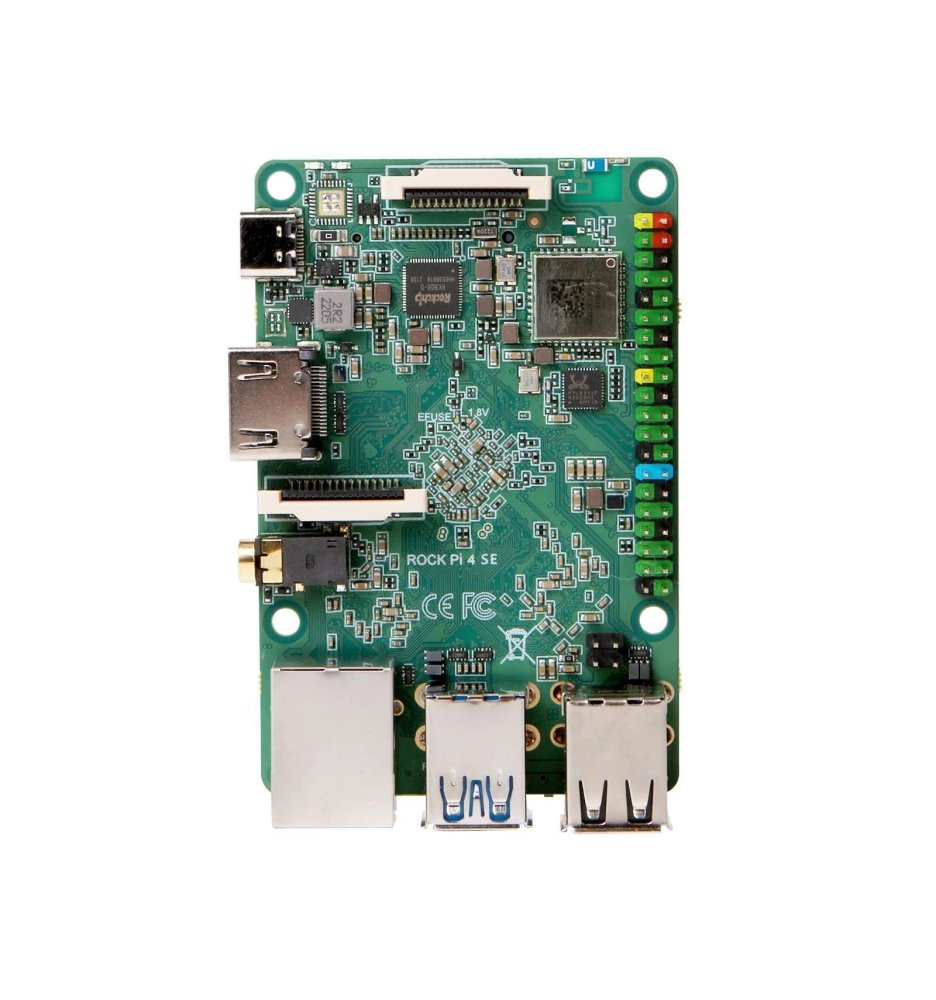

ROCK 4 SE 4GB - Single Board Computer with Powerful RK3399-T Processor
ROCK 4 SE Single Board Computer RK3399

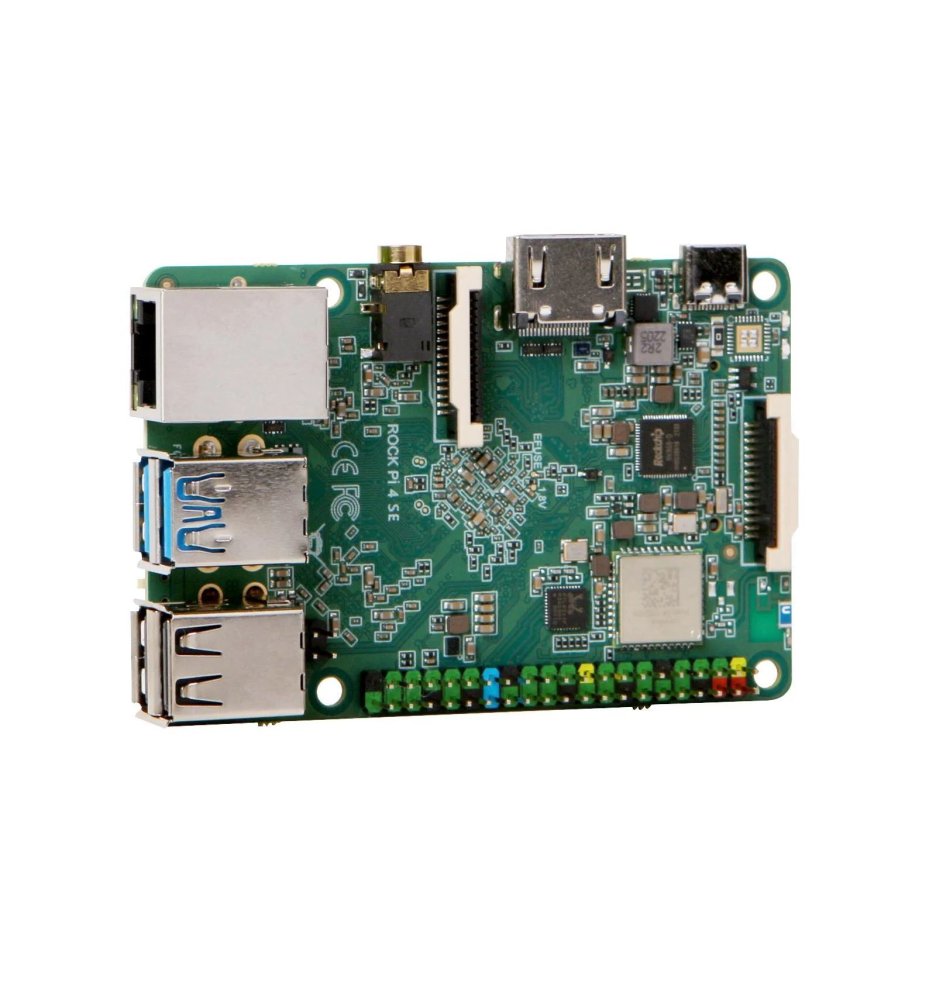

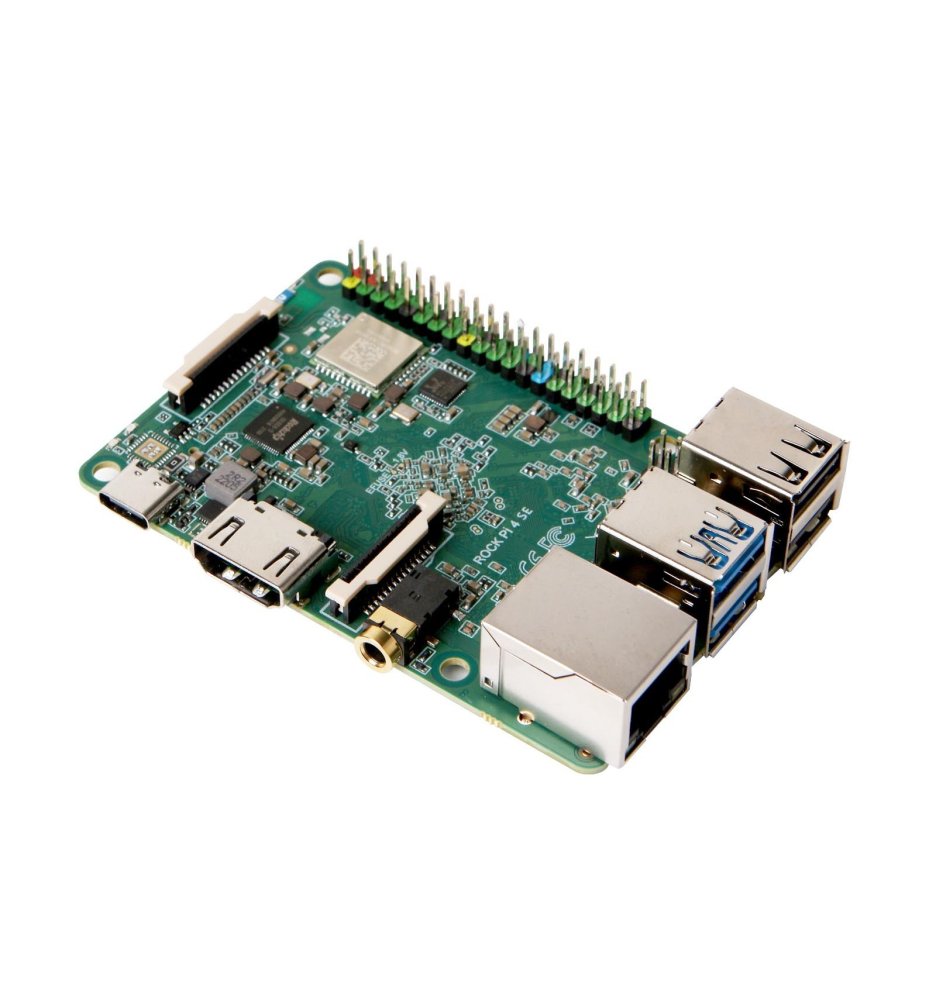

What is ROCK 4 SE

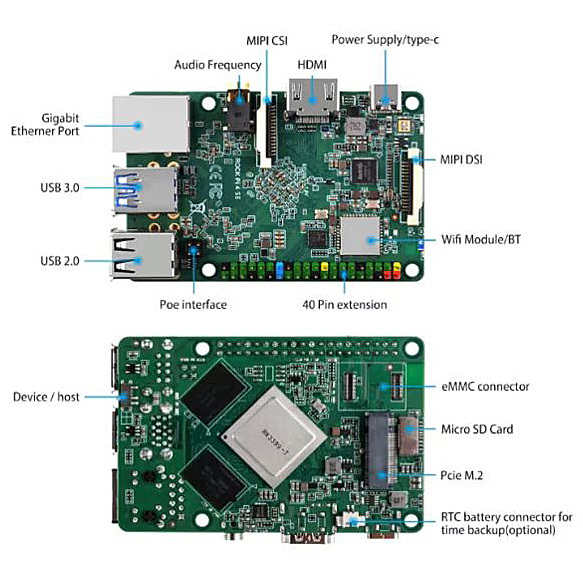

The ROCK 4 SE is equipped with a six-core RK3399-T processor (Dual Cortex-72 at 1.5GHz + Quad Cortex-A53) and 32-bit 3200 Mb/s LPDDR4 RAM. It features 4K@60 HDMI, MIPI DSI, MIPI CSI, a 3.5mm jack with a microphone, USB port, GbE LAN, 40-pin color-coded expansion header, and RTC. Additionally, the ROCK 4 SE supports USB PD and QC power delivery.
User-Friendly, IoT Connectivity
The ROCK 4 SE includes user-friendly expansion options, including a 40-pin GPIO interface, which allows connections to a wide range of inputs such as buttons, switches, sensors, LEDs, and more.
It also features Gigabit LAN for suitable network connections and drivers, working seamlessly with most network applications.
The ROCK 4 SE also includes two USB 3.0 host ports, each providing 5Gbps, operating independently, alongside two USB 2.0 ports.
Specifications:
| Model: | ROCK 4 SE |

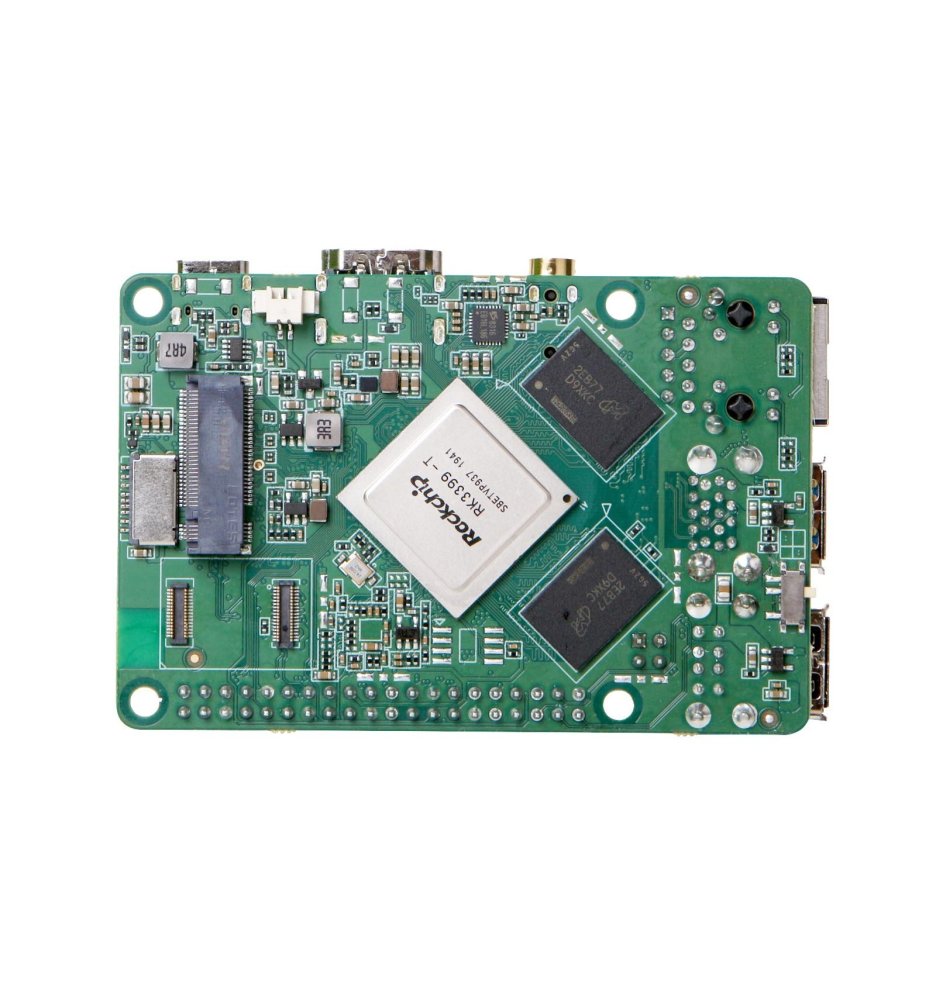

| CPU: | RK3399-T Dual Cortex-72, frequency 1.5GHz paired with Quad Cortex-A53, frequency 1.0GHz |
| GPU | Mali T860MP4 GPU, supports OpenGL ES 1.1/2.0/3.0/3.1/3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11 |
| Memory | 2/4/8GB LPDDR4 3200MT/s, up to 1560MHz |
| Storage | eMMC μSD card (μSD slot supports up to 128GB μSD card) M.2 SSD (M.2 connector supports up to 8TB M2 NVME SSD) |
| Display | HDMI 2.0 up to 4k*2k@60 MIPI DSI with 2 lanes via FPC connector Any two of HDMI, MIPI DSI can operate simultaneously, supporting mirror or extended mode |
| Audio | 3.5mm jack with microphone HD codec supporting up to 24-bit/96KHz audio |
| Camera | MIPI CSI with 2 lanes via FPC connector, supporting up to 800 MP cameras |
| Ethernet | GbE LAN with Power over Ethernet (PoE) support additional HAT required for PoE power supply |
| Wifi/BT | 802.11 ac WiFi BT 5.0 available with built-in or external antenna |
| USB | USB 3.0 OTG X1, hardware switch for host/device switch, front USB 3.0 HOST X1 USB 2.0 HOST X2 |

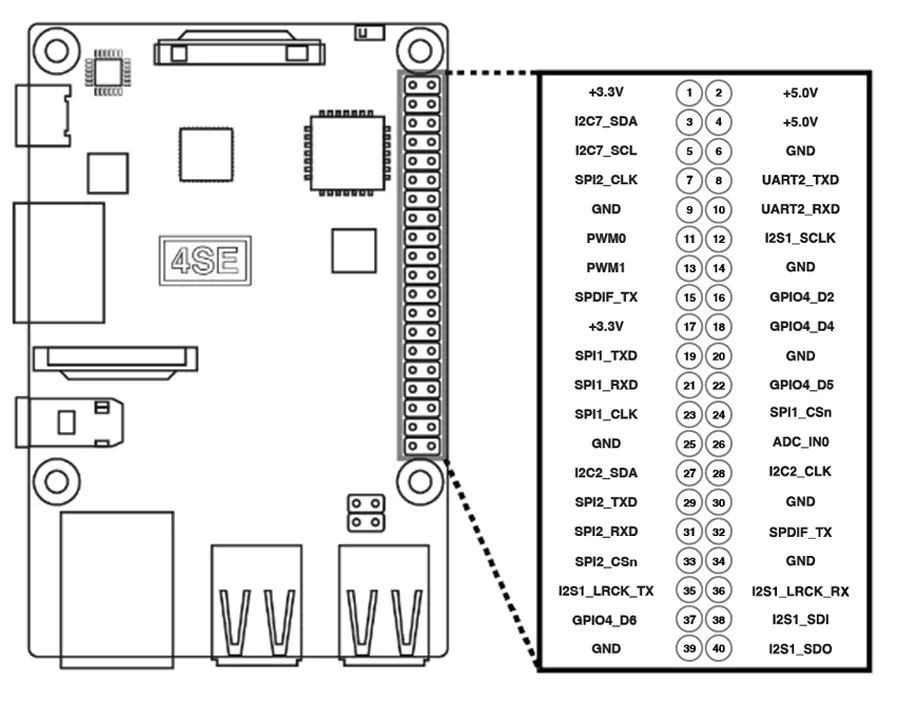

| IO | 40-pin expansion header |
| Other | RTC connector for time backup (optional) |
| Power | USB PD, supports USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A. Qualcomm® Quick ChargeTM: Supports QC 3.0/2.0 adapter, 9V/2A, 12V/1.5A |

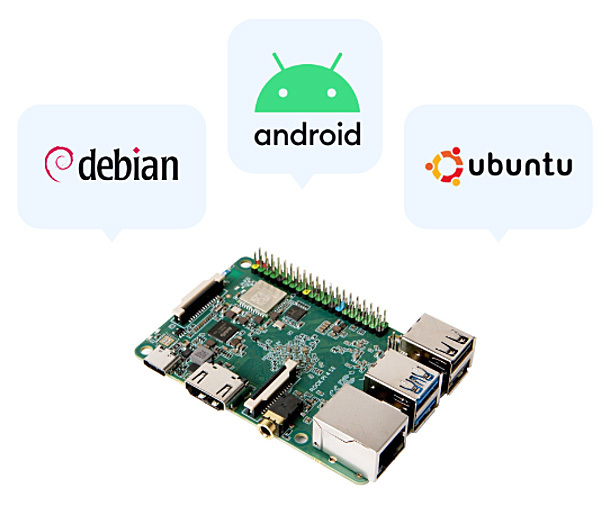

| OS | Android, Debian, Ubuntu |

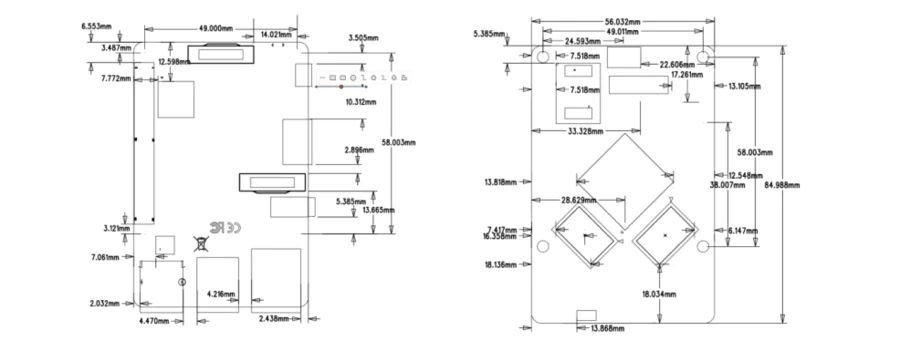

| Dimensions | 85mm x 54mm (8-layer board) |
Official Website: https://wiki.radxa.com/Rock4/se
