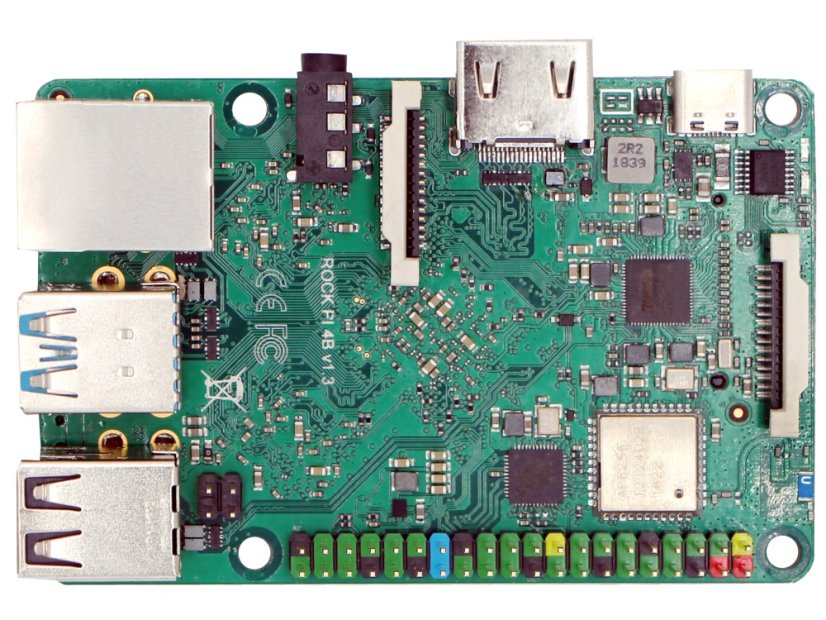

Rock Pi Model B - Single Board Computer with High Performance

Rock Pi Model B

What is ROCK Pi

ROCK PI is a powerful single board computer (SBC) in an ultra-compact design that offers top-tier performance and excellent mechanical compatibility. ROCK PI provides creators, IoT enthusiasts, hobbyists, and other users a reliable platform to bring their ideas to life.

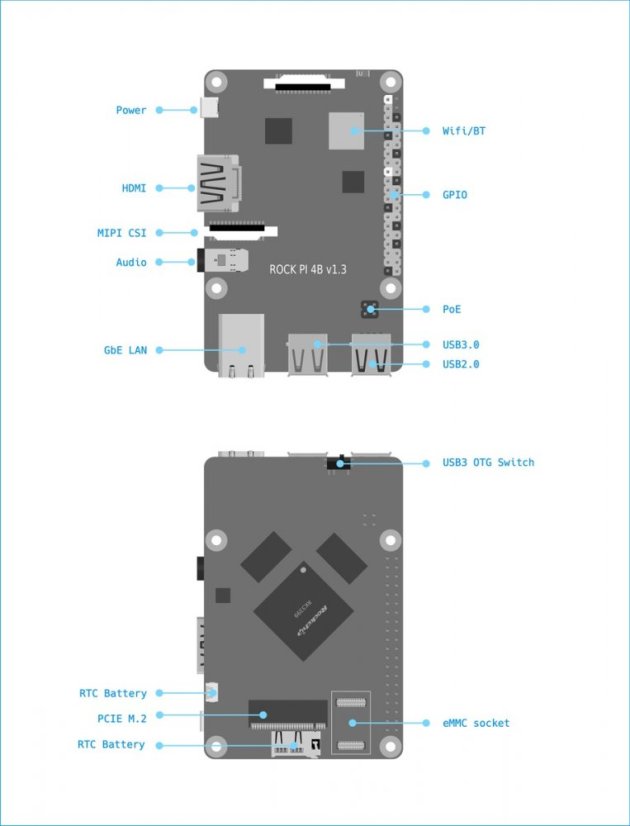

The ROCK Pi 4, built on the RK3399 chip from Radxa, runs on Android and some Linux versions. It features a six-core ARM processor, 64-bit dual-channel LPDDR4 3200Mb/s, support for up to 4K@60 HDMI, MIPI DSI, MIPI CSI, a 3.5mm connector with microphone, WiFi 802.11 ac, Bluetooth 5.0, USB port, GbE LAN, and a 40-pin GPIO.

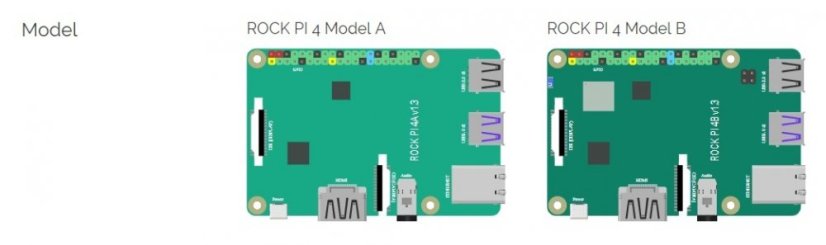

ROCK Pi 4 is available in two models, model A without WiFi/Bluetooth and model B with WiFi and Bluetooth, with memory options of 1GB, 2GB, and 4GB.

Top-Tier Performance

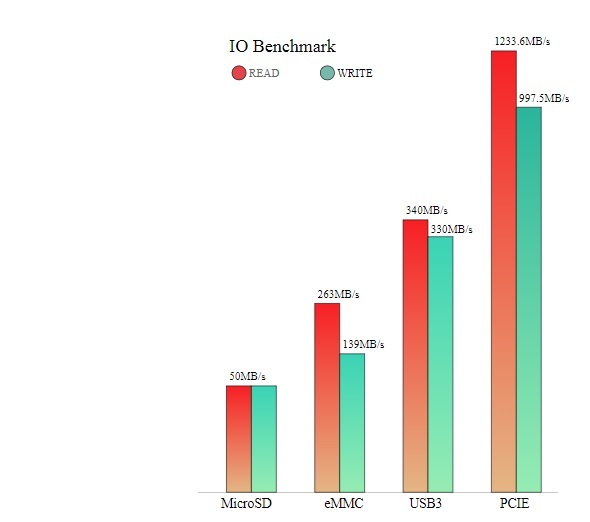

ROCK Pi is equipped with a modern six-core ARM RK3399 processor that provides significantly enhanced performance over other single board computers. All models have LPDDR4 3200Mb/s RAM and optional powerful eMMC modules for increased efficiency.

User-Friendly Interface and IoT Connectivity
ROCK Pi includes user-friendly expansion options including a 40-pin GPIO and Gigabit LAN for various networking applications. The 802.11 ac WiFi offers 2.4G & 5G connectivity while Bluetooth 5.0 ensures improved range and speed.

ROCK Pi also supports USB 3.0 OTG and HOST ports, functioning independently from each other and is finally equipped with RTC for time backup.

AI Capabilities

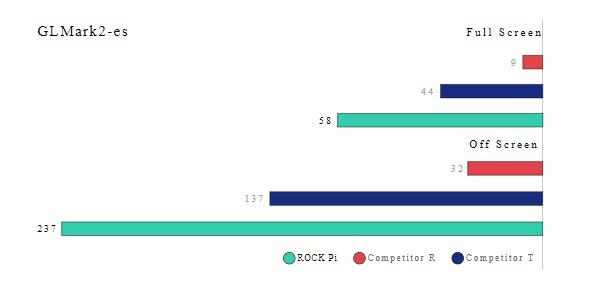

ROCK Pi supports AI packages with GPU acceleration and is compatible with industrial standards for connecting cameras and LCD displays. Ideal for applications in computer vision and robotics.

Specifications:

Official website: https://wiki.radxa.com/Rockpi4/hardware/rockpi4
