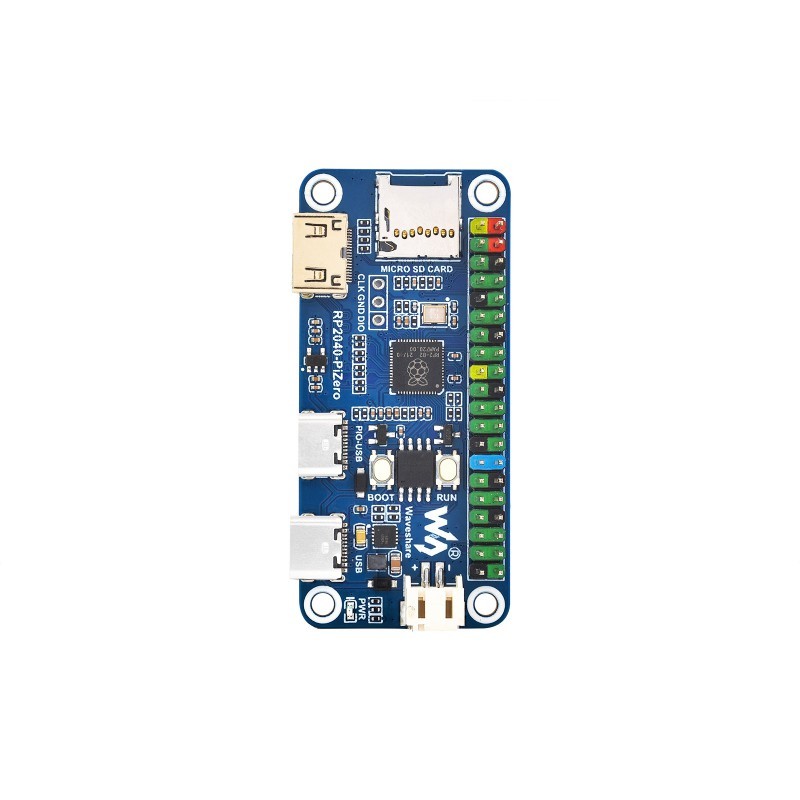

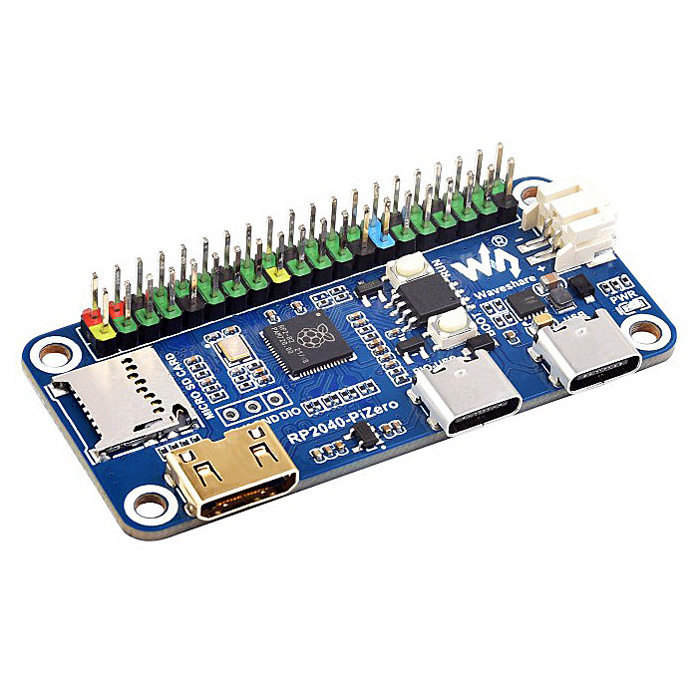

RP2040-PiZero Development Board

RP2040-PiZero Development Board with dual-core RP2040 processor

The RP2040-PiZero development board is based on a dual-core RP2040 processor and is compatible with the Raspberry Pi GPIO interface.

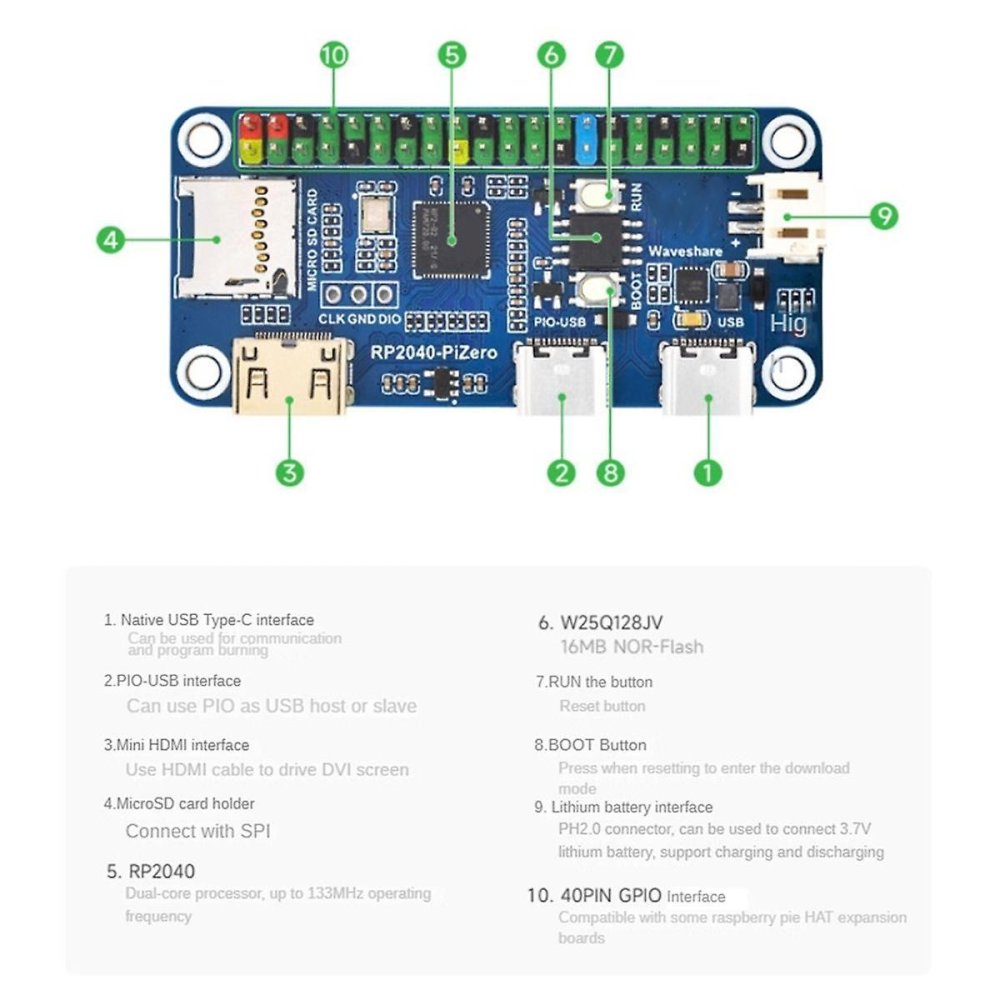

RP2040-PiZero is a high-performance and cost-effective microcontroller board featuring DVI interface, TF card slot, and PIO-USB port, compatible with the 40PIN GPIO header of Raspberry Pi, making it easy to develop and integrate into other products.

Specifications:

• Model: RP2040-PiZero
• RP2040 CPU from Raspberry Pi UK
• Dual-core ARM Cortex M0+ processor, flexible clocking mode up to 133 MHz
• 264KB SRAM and 16MB integrated Flash memory
• Integrated DVI interface can drive most HDMI displays (requires DVI compatibility)
• Supports USB host or slave via integrated PIO-USB port
• TF card slot for reading and writing on TF card
• Integrated header for charging/discharging lithium battery, suitable for mobile scenarios
• USB 1.1 with device and host support
• Drag-and-drop programming via USB mass storage
• Low-power sleep and deep sleep modes
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Precise clock and timing chip
• Temperature sensor
• Accelerated libraries for floating point arithmetic on chip
• 8 × programmable I/O (PIO) state machines to support custom peripherals

Package includes:

1x RP2040-PiZero development board
