RP2040-Zero - High-Performance MCU Board
RP2040-Zero

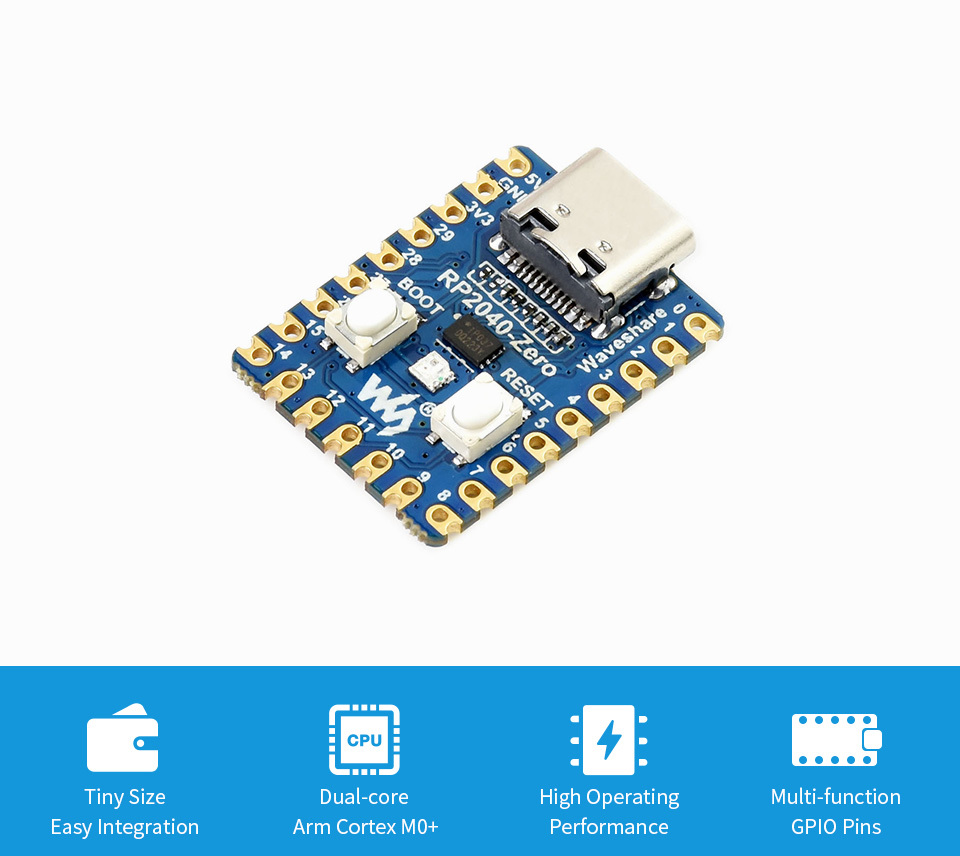

RP2040-Zero, an affordable, high-performance Pico-type MCU board based on the Raspberry Pi RP2040.
- Equipped with an RP2040 microcontroller featuring a dual-core ARM Cortex M0+ processor
- Programmable via USB mass storage
- 8x programmable I/O (PIO) to support custom peripherals
- Mini version with compact dimensions: 23.5 x 18 mm (0.93 x 0.71 in)
- USB 1.1 supporting both device and host modes
- Interface: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM
- Built-in temperature sensor
- Programmed using C/C++ Raspberry Pi or MicroPython SDK

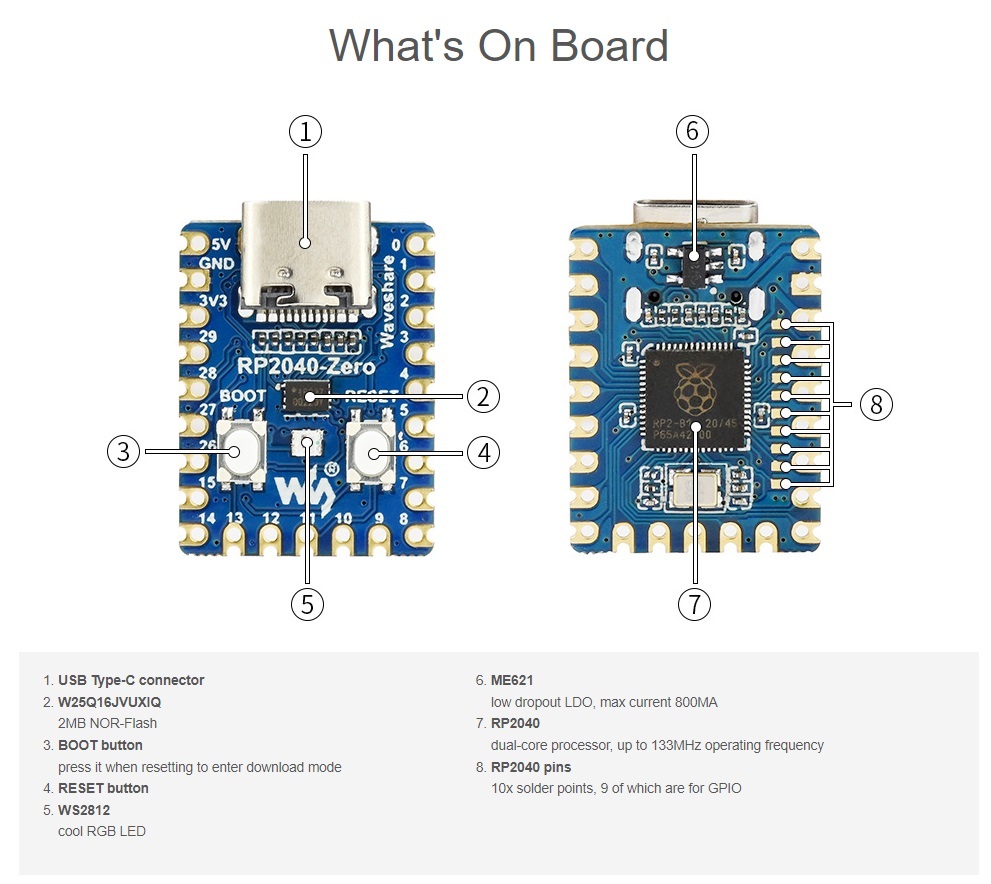

Board Specifications
- Chip: Raspberry Pi RP2040
- Core: ARM Cortex-M0+ Dual-Core 133 MHz
- SRAM Memory: 264 kB
- Built-in Flash Memory: 2 MB
- Interface: 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x PWM
- LDO: ME6217 800 mA
- Development Environment: C/C++ Raspberry Pi or MicroPython SDK
- Power Connector: USB Type-C

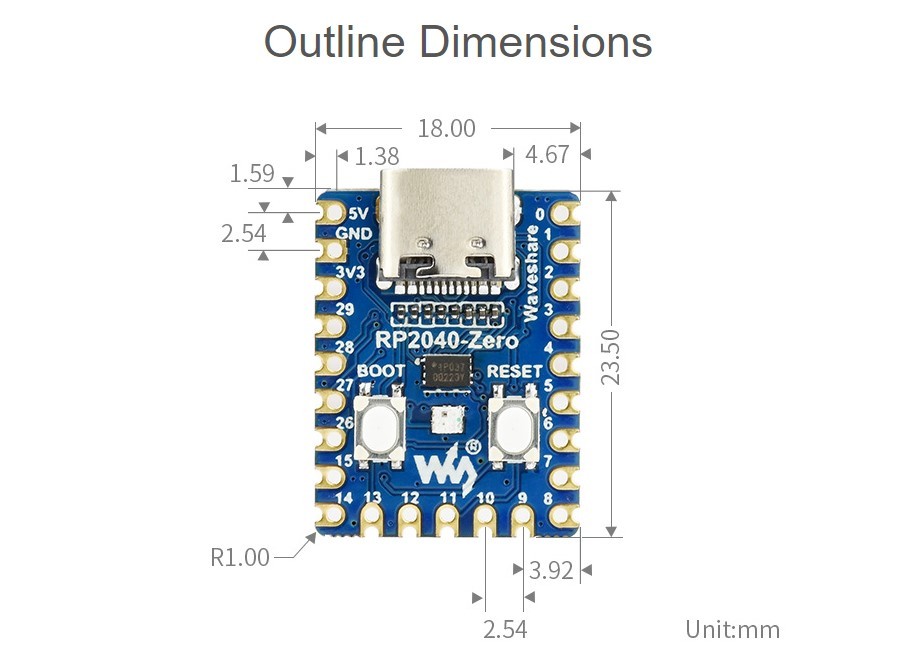

- Tile Dimensions: 23.5 x 18 mm (0.93 x 0.71 in)
Wiki: https://www.waveshare.com/wiki/RP2040-Zero

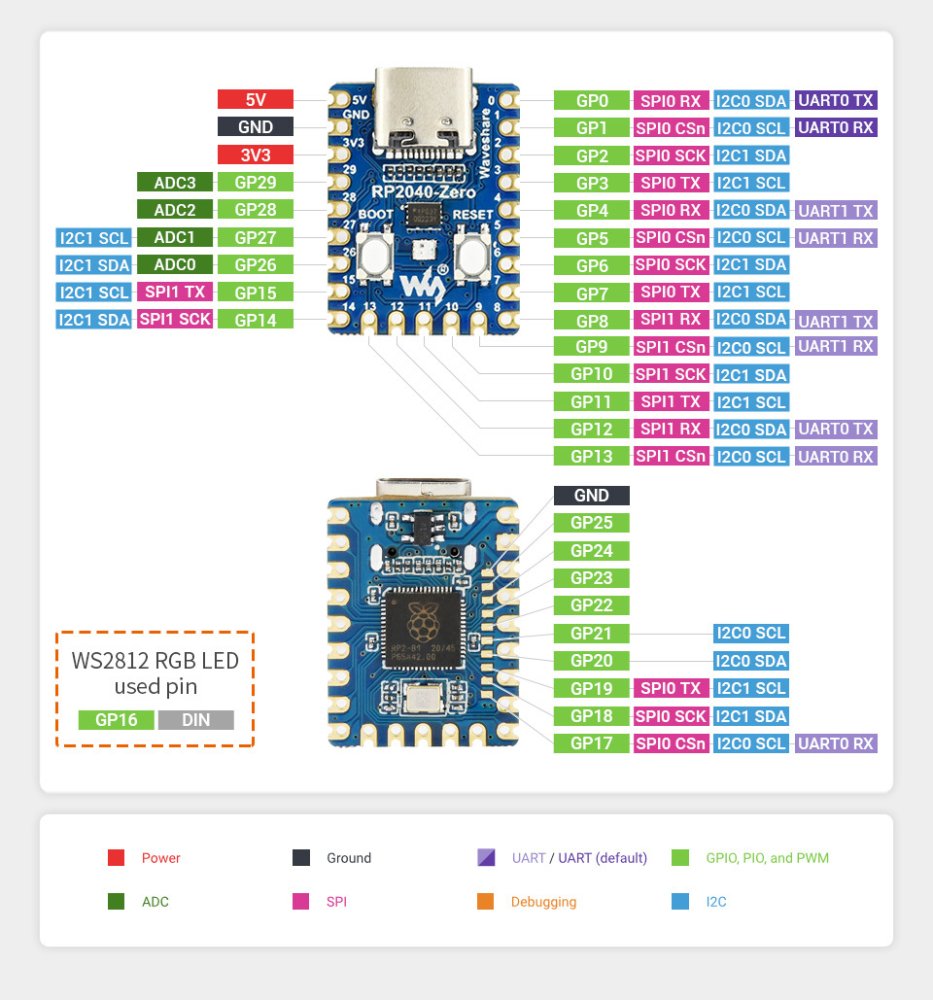

29 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration
