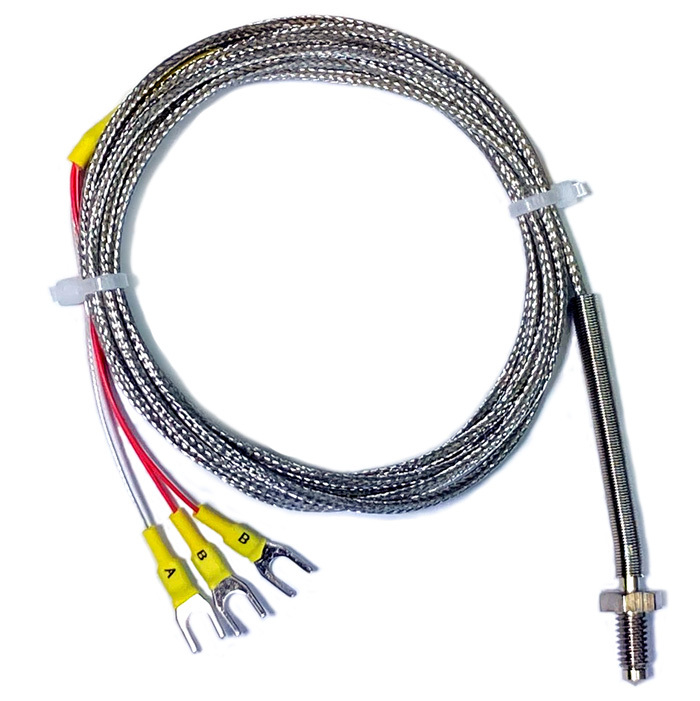

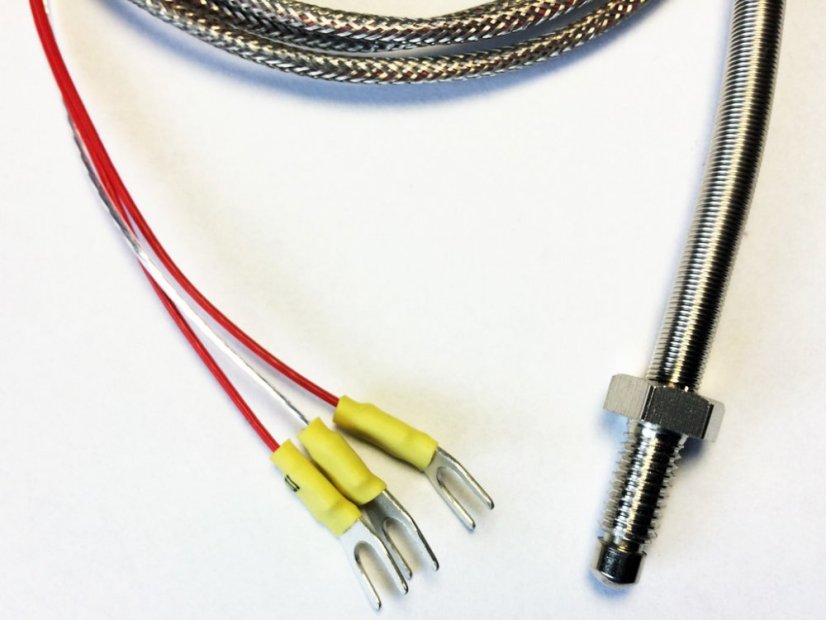

RTD Temperature Sensor M6 with Metal Braiding

RTD Temperature Sensor M6 with Metal Braiding

High-quality resistance temperature sensor (RTD) with sensors imported from Germany.

Resistance temperature detectors (RTDs) are known for their precision and are among the most accurate temperature sensors available on the market. They not only offer excellent accuracy but also provide outstanding stability and repeatability. RTDs have gained a strong reputation for their accuracy, repeatability, and stability and are widely used in laboratory and industrial processes.

RTDs offer several advantages:

• Wide temperature range (approximately from 0 to 300 °C)

• High accuracy (better than thermocouples)

• Good interchangeability

• Long-term stability with a temperature range up to 850 °C, RTDs can be used in industrial processes that experience high temperatures. During metal production, such as platinum, they remain highly stable and do not corrode or oxidize.

The DIN/IEC 60751 standard requires RTDs to have an electrical resistance of 100.00 Ω at 0 °C and a temperature coefficient of resistance (TCR) of 0.00385 Ω/Ω/°C between 0 and 100 °C. IEC60751 specifies four different resistance tolerances for thin-film RTDs:

• Class C = ± (0.6 + 0.1*t)°C or 100.00 ± 0.24 Ω at 0°C (-50 to 600°C)
• Class B = ± (0.3 + 0.005*t)°C or 100.00 ± 0.12 Ω at 0°C (-50 to 500°C)
• Class A = ± (0.15 + 0.002*t)°C or 100.0 ± 0.06 Ω at 0°C (-30 to 350°C)
• Class AA (originally 1/3B) = ± (0.1 + 0.0017*t)°C or 100.0 ± 0.04 Ω at 0°C (0 to 150°C)

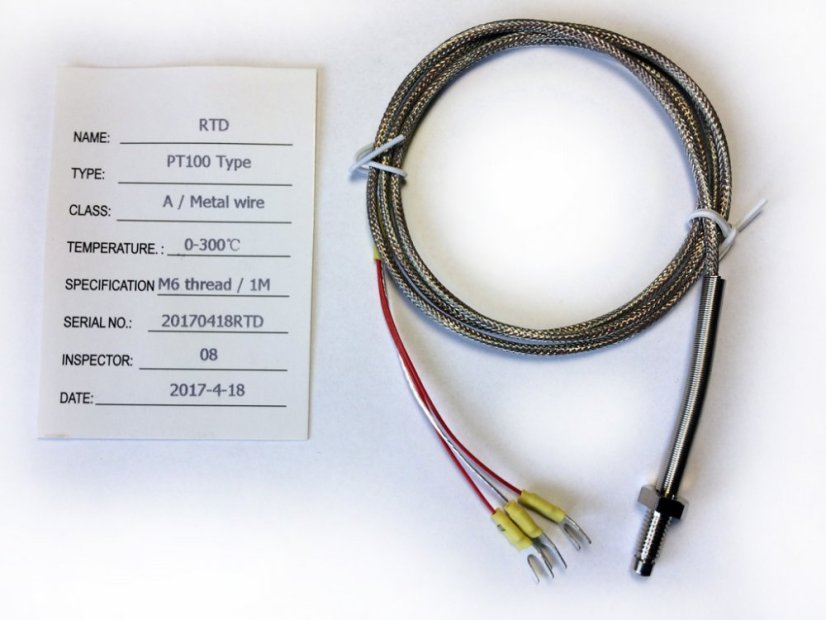

Technical Specifications:

• Model: RTD-M6M1-01
• Type: resistance sensor (RTD) - PT100/PT500/PT1000
• Class: A
• Temperature Range: -50 to +300°C
• Housing: M6 thread, Cu-copper
• Cable Type: glass insulated cable with metal braiding
• Wire Type: 3 separate wires
• Lead Length: 1/2/3/5m or as required
