RTD2513 V1.0 LVDS HDMI Control Board

The RTD2513 V1.0 is a multifunctional control board for LCD monitors, designed to support dual/single 6/8bit LVDS LCD panels. More

Manufacturer: NEVEN Product code: 12834 Shipping and payment

20,90 EUR incl. VAT

The RTD2513 V1.0 is a multifunctional control board for LCD monitors, designed to support dual/single 6/8bit LVDS LCD panels. More

Manufacturer: NEVEN Product code: 12834 Shipping and payment

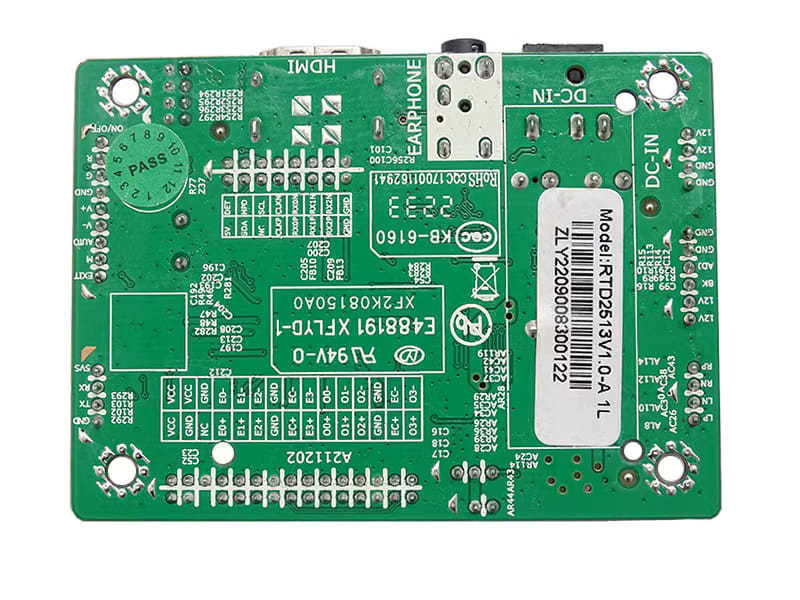

The RTD2513 V1.0 is a multifunctional control board for LCD monitors. It is designed to support dual/single 6/8bit LVDS LCD panels.

Supports a resolution of up to 1920x1080 @60Hz.

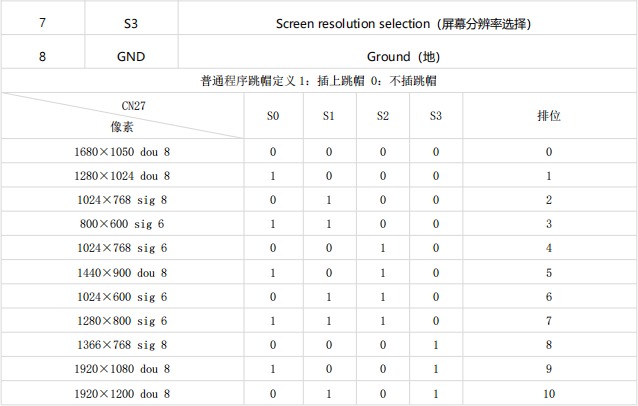

Jumper configurations
Exclusively supports HDMI input signal. Instead of standard connectors, HDMI and DC input connectors can be used for internal power connections.
Supports HDMI audio signal with an output power of 2X4Ω/2.5W. Also includes a headphone output.
Supports keyboard control (not included).

Specifications:

CHIPSET	RTD2513 (Realtek)
Supported LCD panel	Interface	30pin, 1ch/2ch, 6/8 bit LVDS
Supported LCD panel	Resolution	Up to 1920x1080@60Hz
Power	For board	12V DC power supply
	For LCD panel	3.3V, 5V
	Control	Low power consumption mode
	Backup	≤0.5 W
OSD language	Simplified Chinese, English as default. Other languages as customizable.
Functional buttons	5 buttons	ON/OFF, Menu, Right, Left, Exit
Video input	HDMI	480i, 480p, 576i, 576p, 720p 1080i, 1080p
Audio input	0.2 – 1.5 Vrms
Audio output	2X2.5W (4Ω) THD+N<10%
Extended functions	Factory reset, brightness control (DC dimming mode), board includes several different firmware (optional), vertical mode for OSD menu.

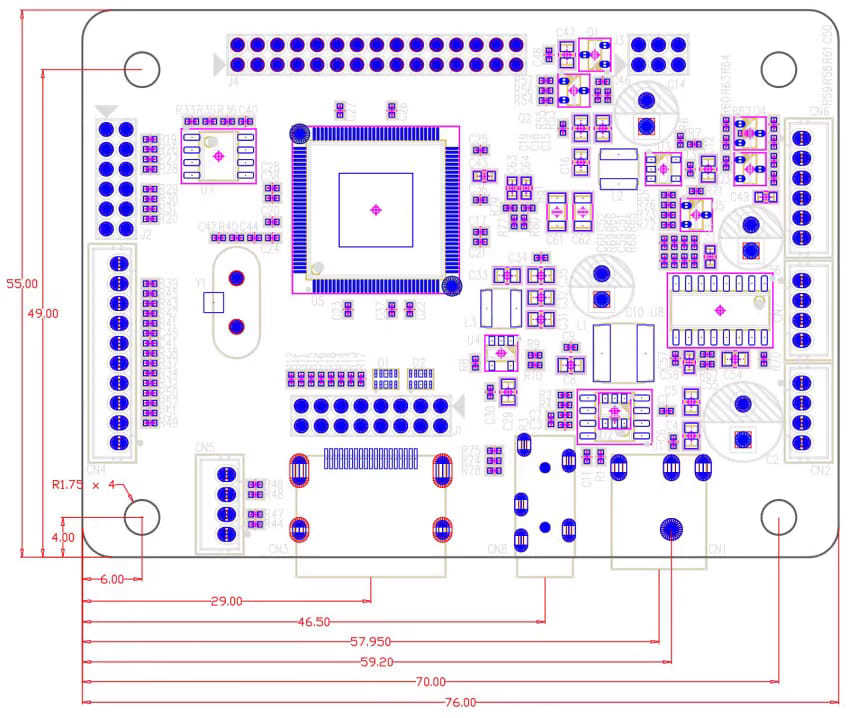

Dimensions	76mm(L)x55mm(W)x11mm(H)

Package contents:

1x RTD2513 v.1 control board
