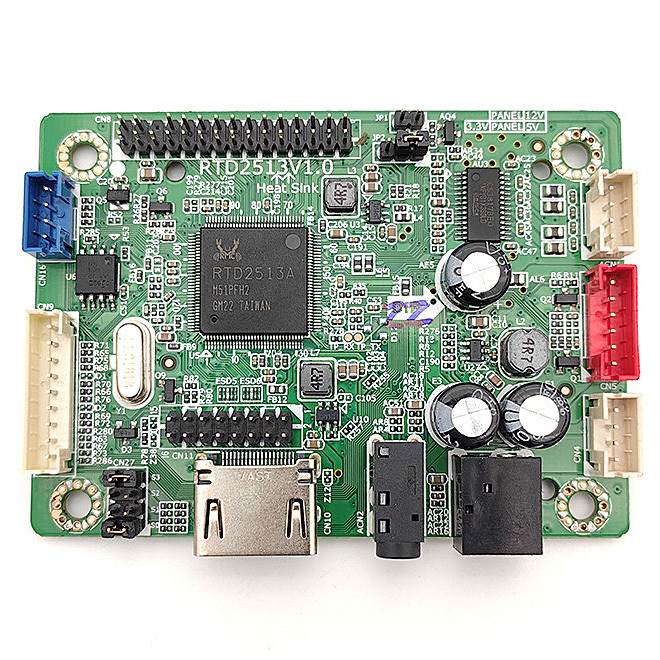

RTD2513 V1.0 - LVDS HDMI Control Board for LCD Displays

The RTD2513 V1.0 is a versatile control board designed for LCD monitors, supporting dual/single 6/8-bit LVDS panels. More

Manufacturer: NEVEN Product code: 12995 Shipping and payment

17,70 EUR incl. VAT

The RTD2513 V1.0 is a versatile control board designed for LCD monitors, supporting dual/single 6/8-bit LVDS panels. More

Manufacturer: NEVEN Product code: 12995 Shipping and payment

RTD2513 V1.0 LVDS HDMI Display Control Board Basic

The RTD2513 V1.0 is a versatile control board for LCD monitors. It is designed to support dual/single 6/8-bit LVDS LCD panels.

Supports a resolution of up to 1920X1080 @60Hz.

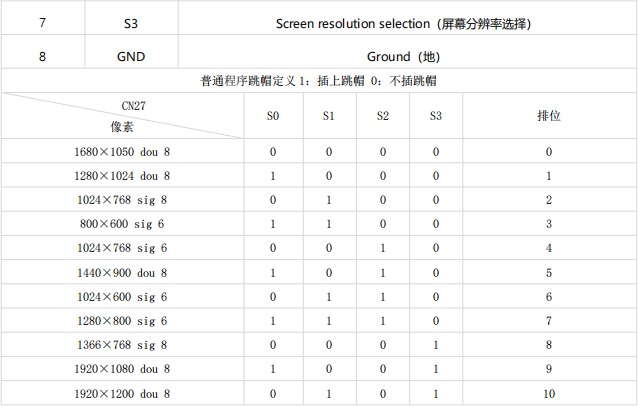

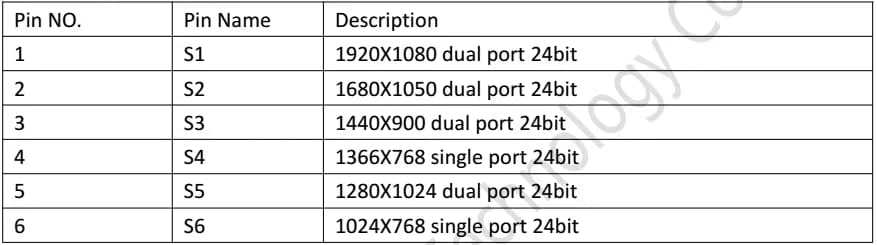

Jumper configuration.
Supports only HDMI input signal. Instead of standard connectors, HDMI and DC power input connectors can be used for internal connections.
Supports HDMI input audio signal with an output power of 2X4Ω/2.5W. Also supports headphone output.
Supports keyboard control (not included).

Specifications:

CHIPSET	RTD2513 (Realtek)
Supported LCD Panel	Interface	30pin, 1ch/2ch, 6/8 bit LVDS
Supported LCD Panel	Resolution	Up to 1920X1080@60Hz
Power	For Board	12V DC power supply
	For LCD Panel	3.3V,5V
	Control	Low power consumption mode
	Standby	≤0.5 W
OSD Language	Simplified Chinese, English is default. Other languages by custom setting.
Functional Buttons	5 buttons	ON/OFF, Menu, Right, Left, Exit
Video Input	HDMI	480i, 480p, 576i, 576p, 720p 1080i, 1080p
Audio Input	0.2 – 1.5 Vrms
Audio Output	2X2.5W (4Ω) THD+N<10%
Extended Features	Factory reset, brightness control (default is DC dimming mode, PWM dimming mode is optional), the board contains various firmwares (optional), vertical mode for OSD menu.
Dimensions	76mm(L)x55mm(W)x11mm(H) - 2.99in(L)x2.17in(W)x0.43in(H)

Package Contents:

1x RTD2513 v.1 control board
