RTD2555 Universal eDP TFT Display Control Board with Audio Input

RTD2555 Universal eDP TFT Display with Audio Control

Add to favourites Add to compare list

RTD2555 Universal eDP TFT Display with Audio Control

Versatile eDP TFT display module with audio input and resolution selection capability. More
Manufacturer: NEVEN Product code: 12833 Shipping and payment
20,40 EUR incl. VAT
in stock (21 ks)
Versatile eDP TFT display module with audio input and resolution selection capability. More
Manufacturer: NEVEN Product code: 12833 Shipping and payment

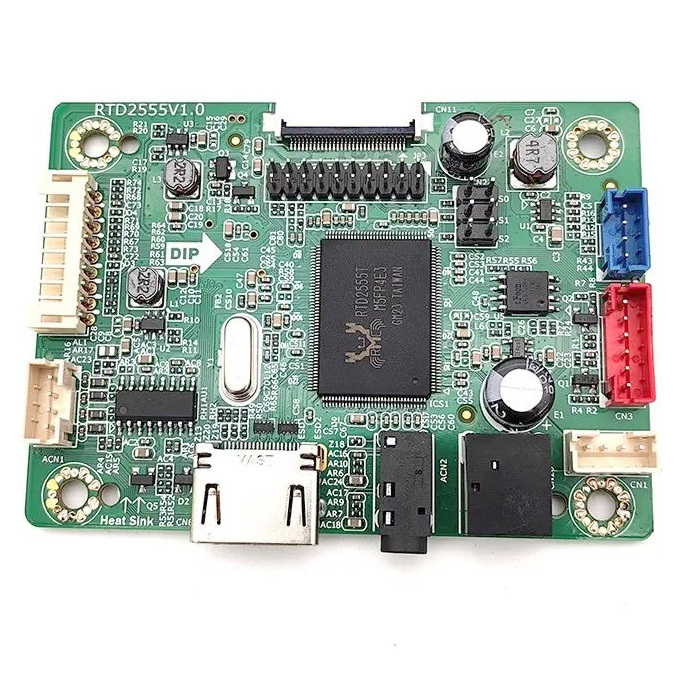

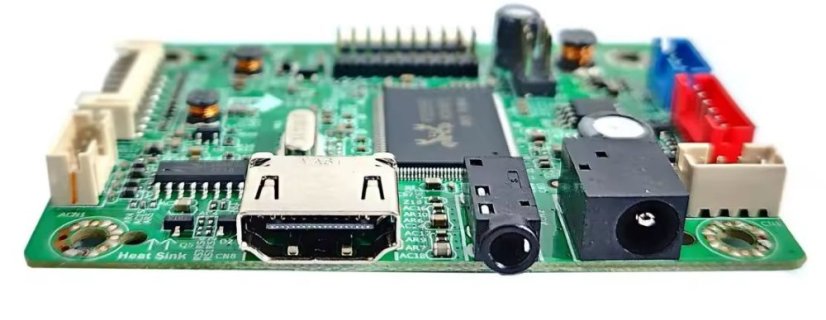

RTD2555 Universal eDP TFT Display Control Board with Audio Input

Specifications

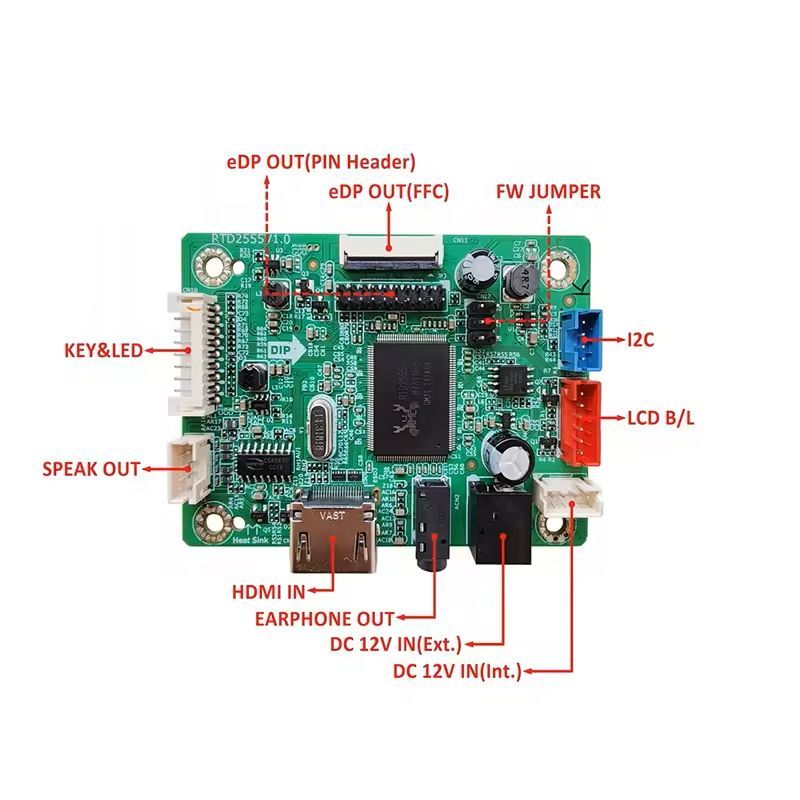

  • Model: M.RTD2555 v2.0 (RT2556)
  • Resolution: 1366*768, 1280*800, 1600*900, 1024*768, 1920*1080, 1920*1200
  • Input: HDMI
  • Output:
    • eDP, 30-pin FFC connector
    • 2x10 pin connector
  • Audio input: yes
  • Keyboard: yes
  • Power supply: 12V
  • Dimensions: 75x55x12mm (2.95x2.17x0.47 inches)

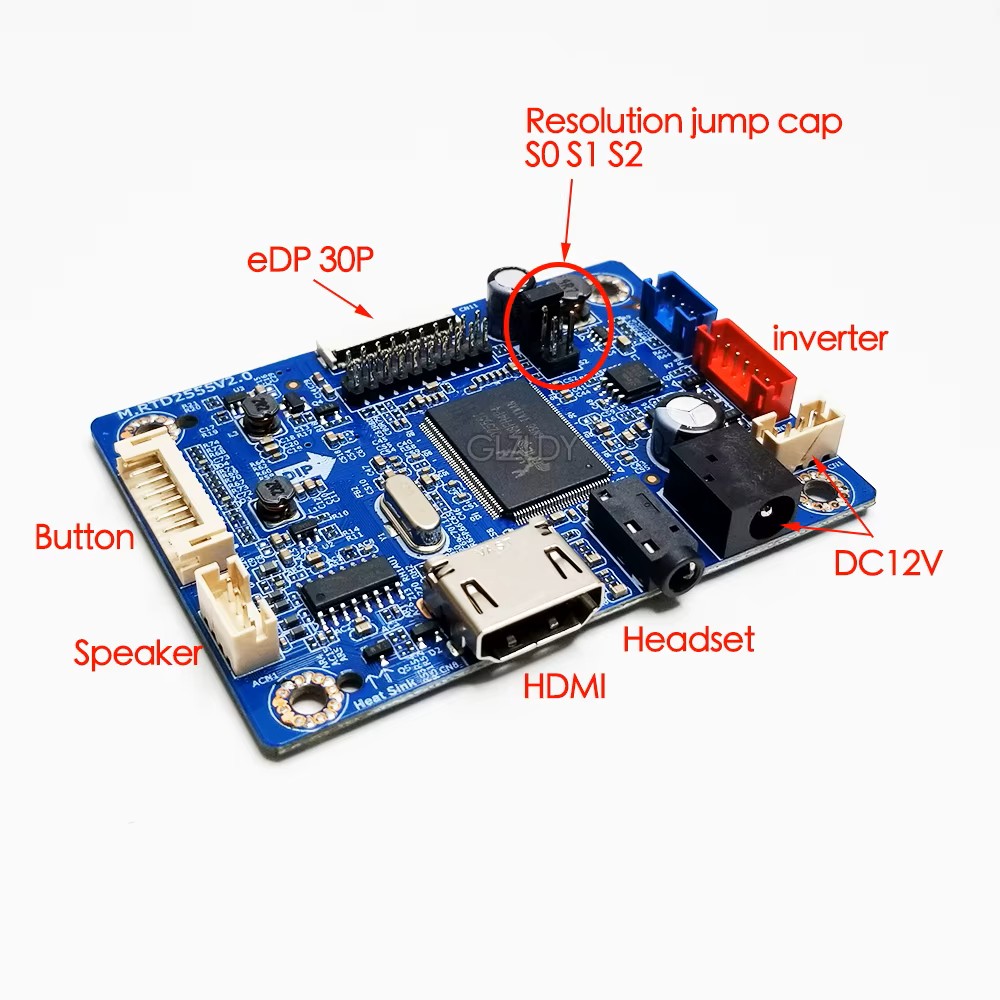

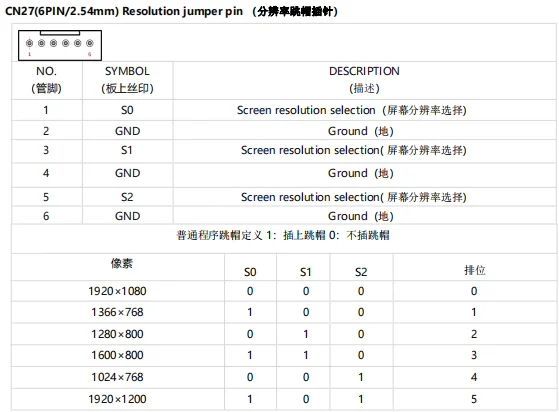

Jumper Positions for Resolution Selection:  see the photo below

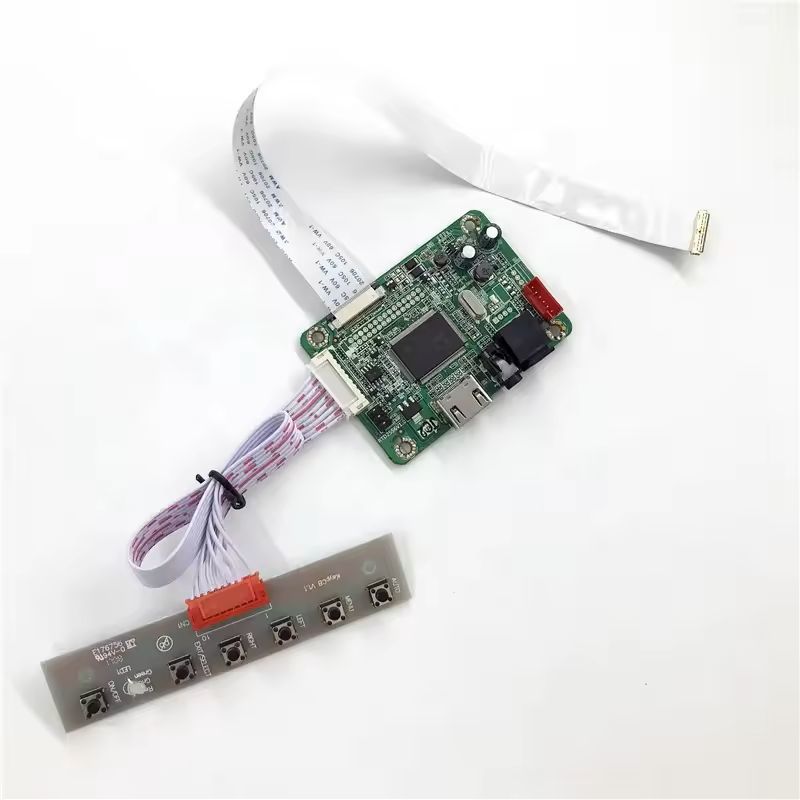

Package Includes:

  • 1x Control Board
  • 1x Keyboard

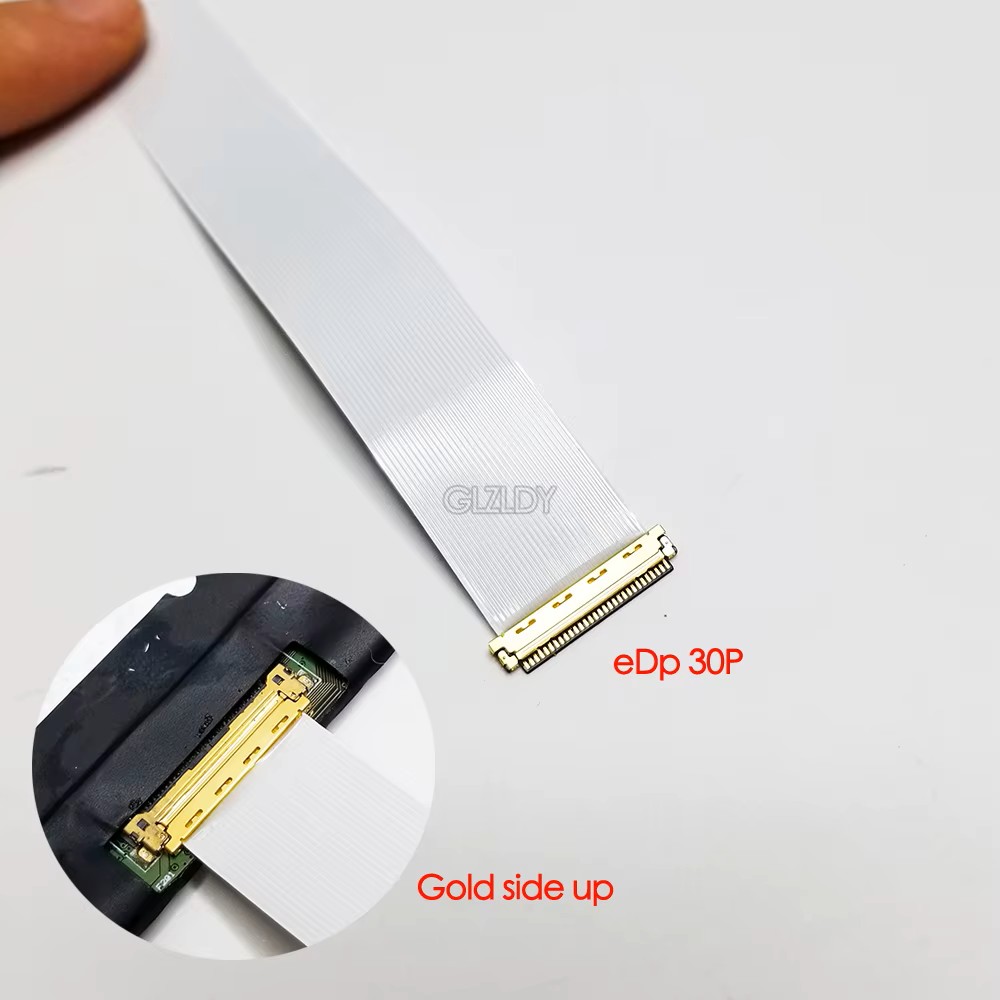

  • 1x FFC Cable

RTD2555 univerzální eDP TFT displej s audio ovládací deskou

RTD2555 univerzální eDP TFT displej s audio ovládací deskou

RTD2555 univerzální eDP TFT displej s audio ovládací deskou

RTD2555 univerzální eDP TFT displej s audio ovládací deskou

RTD2555 univerzální eDP TFT displej s audio ovládací deskou

RTD2555 univerzální eDP TFT displej s audio ovládací deskou
