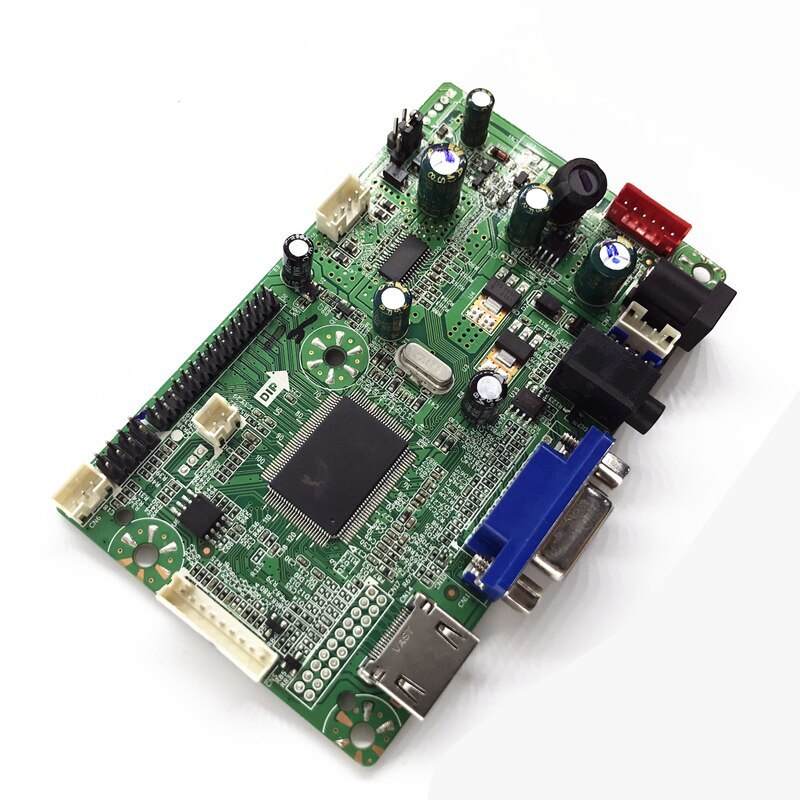

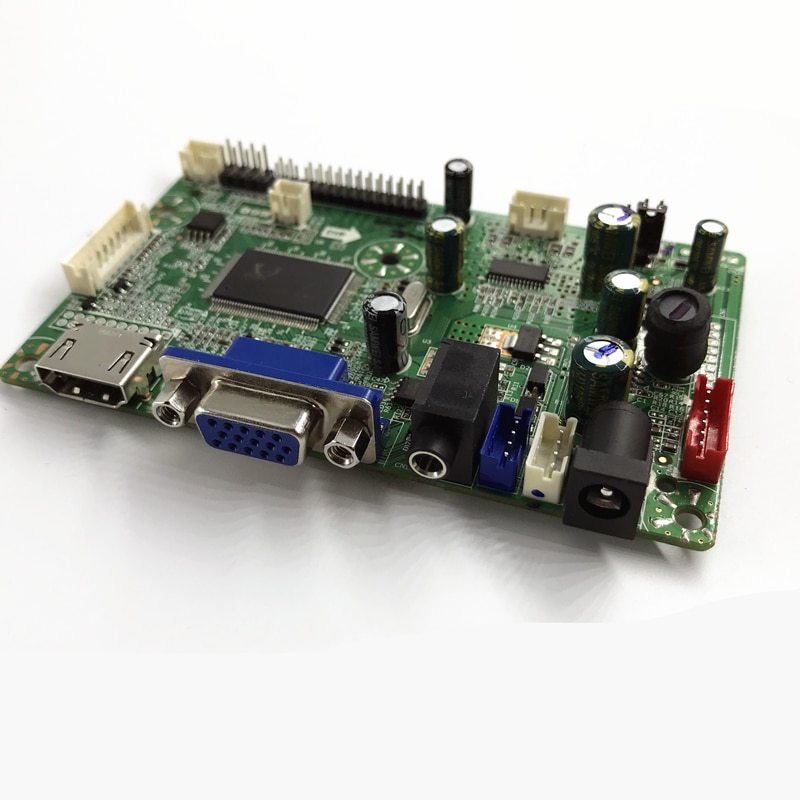

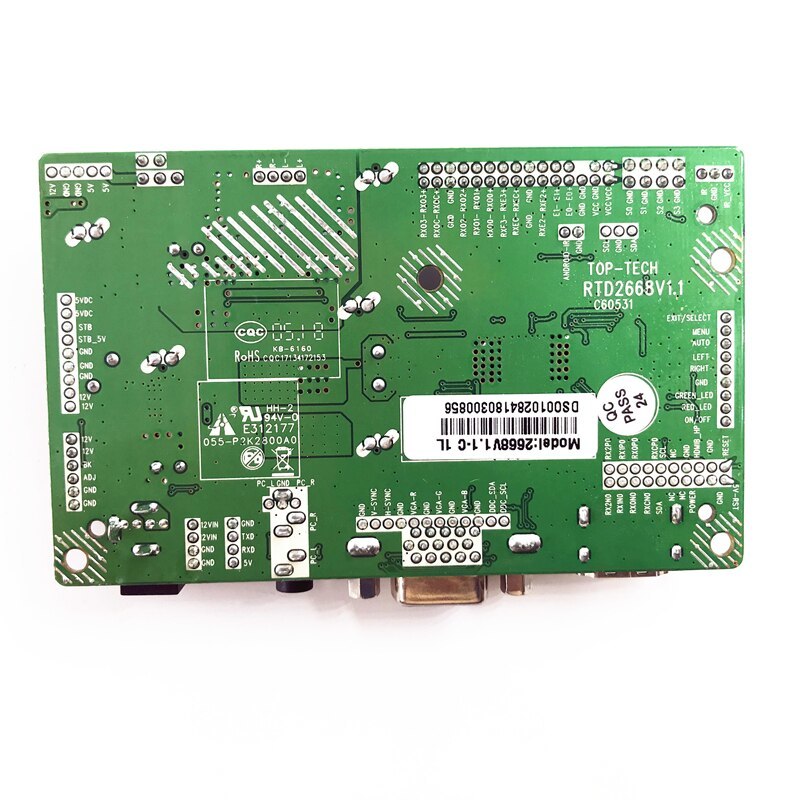

RTD2668 V1.1-C Multi-Purpose LCD Monitor Control Board

RTD2668 V1.1-C Multi-Purpose LCD Monitor Control Board

The RTD2668 V1.1-C is a versatile LVDS control board designed for LCD monitors. It is engineered to support dual/single 6/8 bit LVDS LCD panels.

• Supports resolutions up to 1920x1200 @60Hz.
• Supports HDMI and VGA input signals.
• Supports HDMI audio input with an output current of 2X4Ω/2.5W, including a headphone output.
• Control via keyboard, brightness adjustment, firmware updates.

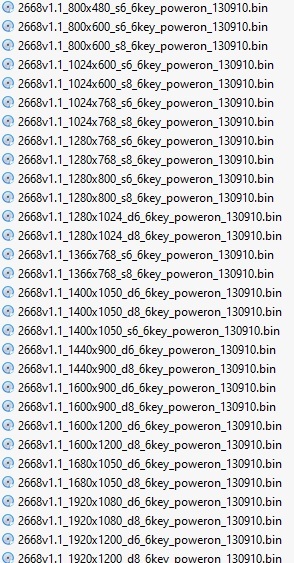

WARNING: This board does not have a display configuration loaded. Please contact us for specific model configuration and display resolution before ordering. Without prior notice, the default display configuration will be set to 800*480!

Specifications:

• Model: RTD2668 V1.1-C
• Chipset: Realtek RTD2668
• Output Resolution: 1920x1200

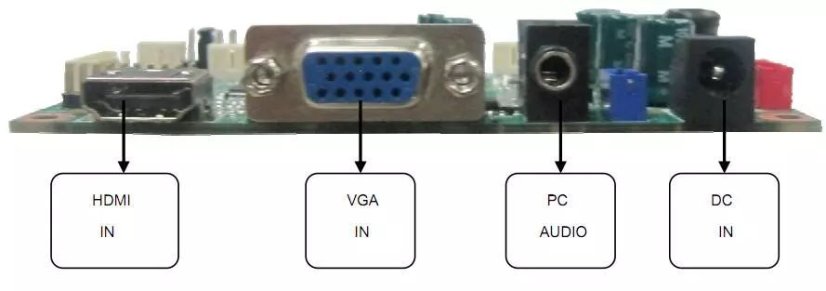

• Output Interfaces: HDMI, VGA

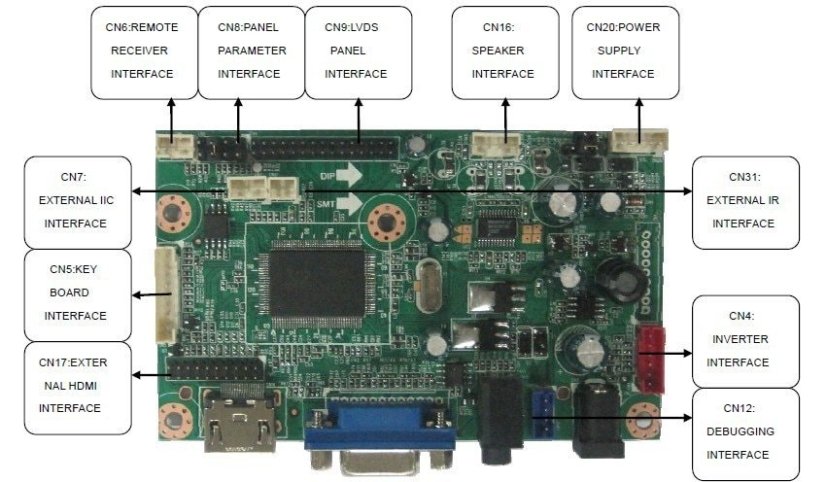

• Input Interface: 30pin Single/Dual 6/8 bit LVDS
• Audio: 2*2W 8Ω
• Keyboard: 5 buttons - ON/OFF, Menu, Right, Left, End (not included)
• Display Power Supply: 3.3V, 5V, 12V

• Board Power Supply: 12V
• Dimensions: 107x66x17mm

Package Contents:

1x RTD2668 Control Board
