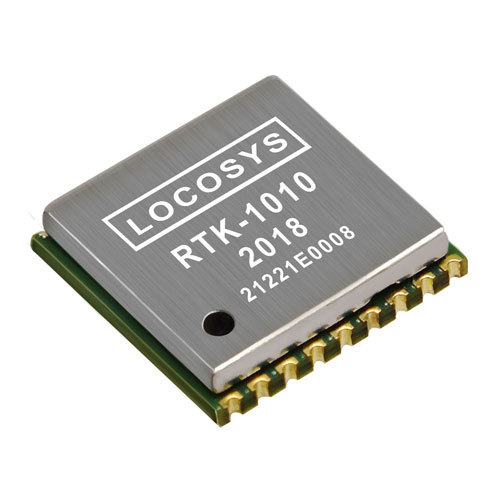

RTK-1010 L1+L5 - Dual-Band GNSS RTK Module

RTK-1010 L1+L5

The RTK-1010 is a high-performance dual-band GNSS RTK module designed for applications requiring centimeter-level positioning accuracy. It boasts a 12 nm process and an efficient power management architecture that ensures low energy consumption and high sensitivity.

The module supports concurrent reception of GPS, GLONASS, BeiDou, GALILEO, and QZSS, which enhances the availability and reliability of RTK solutions even in challenging conditions.

FEATURES

• Dual-frequency positioning solution with adjustable RTK
• Supports GPS, GLONASS, GALILEO, BEIDOU, and QZSS
• Controls SBAS (WAAS, EGNOS, MSAS, GAGAN)
• Supports 135 GNSS channels
• Low energy consumption
• Fast TTFF at low signal levels
• Small form factor 10.1 x 9.7 x 2.2 mm
• SMD type with pad through holes; compliant with RoHS
• IATF 16949 quality control

SPECIFICATIONS

• Satellite system: GPS + GLONASS + BeiDou + GALILEO + QZSS
• Interface: UART
• Input voltage: 3.1 V – 4.5 V
• Power consumption (mA): 65 mA
• VB (uA): 44 uA
• Operating temperature (°C): -40 ~ 85 °C
• Dimensions (mm): 10.1 x 9.7 x 2.2 mm

APPLICATIONS

• Precision agriculture
• AGV robotics
• V2X / ETC / 5G stations
• Structural/ground monitoring
• Coastal/marine applications

LOCOSYS Technology Inc., established in 2005 in Taiwan, provides hardware and software services within the Global Navigation Satellite System (GNSS), wireless communication, and embedded electronic systems for aviation, automotive, and other users.

LOCOSYS Technology maintains a strong developer and research team in software, hardware, and system integration. The company is a qualified supplier for Tier 1 and Tier 2 manufacturers in the automotive industry and provides solutions and services for various other markets.
