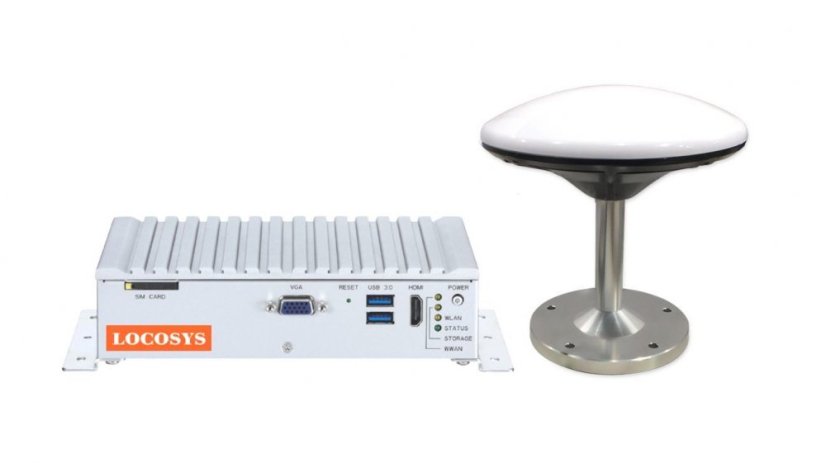

RTK-M300 L1+L5 Dual Frequency and Multi-Constellation RTK

RTK-M300 L1+L5 Dual Frequency and Multi-Constellation RTK

LOCOSYS RTK-M300 is a compact and robust industrial computer fitted with an Intel Atom® X5-E3930 processor, dual-core 1.3GHz, and an aluminum top cover, designed for Ad-hoc network environments.

It features an advanced RTK (Real-Time Kinematic) receiver, supporting global GPS/GLONASS/BeiDou/Galileo/QZSS satellites, and provides L1+L5 dual frequency and multi-constellation RTK positioning solutions. The RTK-M300 is equipped with a full-frequency 4G-LTE communication board and global LTE, UMTS/HSPA+, and GSM/GPRS/EDGE coverage. It includes 10/100/1000Mb/s Ethernet data and voice connectivity, while an external SIM slot allows user-friendly access to the SIM card. The RTK-M300 operates on Windows 10 (or Linux) and can be paired with LOCOSYS Firebird application software, offering a user-friendly graphical interface for base management or "Rover" use.

Thanks to its compact, fanless design, temperature certification from -30 to +70 degrees Celsius, and MIL-STD-810 vibration testing, flexible installation is achieved without compromising between limited space and performance features. Whether used as an RTK base or RTK Rover, the computer is very responsive and offers easy usability and installation. RTK-M300 maintains the flexibility to meet various telemetry monitoring or surveying application demands.

FEATURES

• Compact 1.3 GHz dual-core Intel Atom® X5-E3930 processor with fanless design.
• L1 + L5 dual frequency and multi-constellation receiver and RTK positioning solution.
• Support for GPS, GLONASS, BeiDou, GALILEO, QZSS satellites.
• Capability to utilize SBAS (WAAS, EGNOS, MSAS, GAGAN).
• Supports 135-channel GNSS.
• RTK positioning accuracy of 1 cm CEP.
• GNSS positioning accuracy of 1.5 m CEP.
• Default support for 1/5Hz (Optional: Update frequency up to 10 Hz).
• 10/100/1000Mbps Ethernet.
• 1PPS high-precision time pulse output.
• Operating temperature range -30 to +70 °C.
• Wide DC input range of 9-36V (Optional: AC100-240V power adapter).
• Certified by CE/FCC/E13.
• Passed military standard vibration test (MIL-STD-810).
• RTK base management or RTK Rover use.

SPECIFICATIONS

APPLICATIONS

• RTK positioning and navigation in vehicles
• Automotive navigation
• Marine navigation
• Fleet management
• Autonomous vehicle guidance
• Precision agriculture
• AGV Robotics
• Structural and land monitoring
• Ad-hoc RTK networks

Firebird basic functions

Firebird: RTK base and rover

Documents:

RTK-M300_datasheet_v0.4
