RTL-SDR LNA signal amplifier

RTL-SDR LNA Signal Amplifier 100MHz–1.5GHz | 19.7dB Gain, 5V

This RTL-SDR low-noise amplifier (LNA) enhances weak radio signals across a 100 MHz – 1.5 GHz frequency range. Designed for SDR dongles, it offers 19.7 dB gain and operates at 5V, making it ideal for improving reception of ADS-B, FM, AIS, and other signals. Compact and lightweight, it comes in an antistatic bag and includes an SMA connector.

Specifikace:

• Frekvenční rozsah: 100MHz - 1,5GHz
• Zisk: 19,7dB
• Napájení 5V
• Rozměry: 55,5mm x 11,6MM (včetně SMA konektoru)
• Hmotnost: 11g
• Balení v antistatickém sáčku

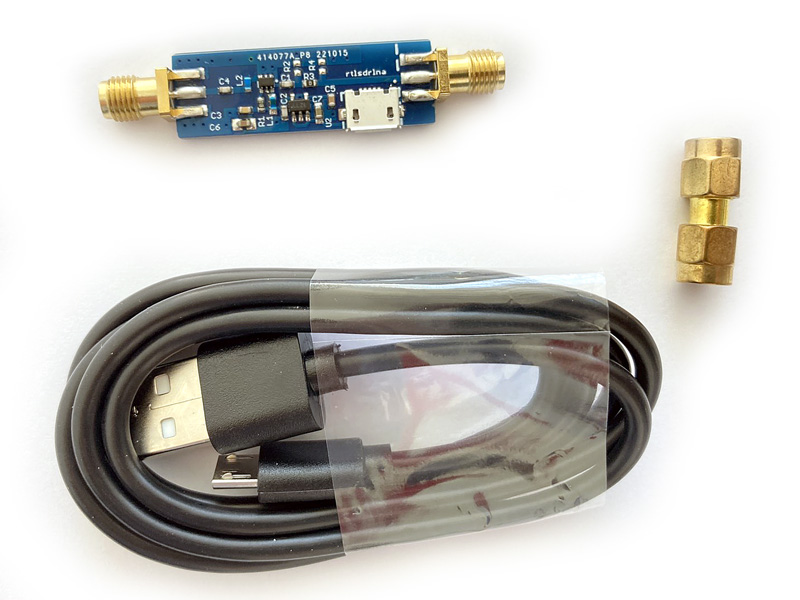

Package content:
1x RTL-SDR LNA board
1x SMA-SMA adapter
1x USB cable
