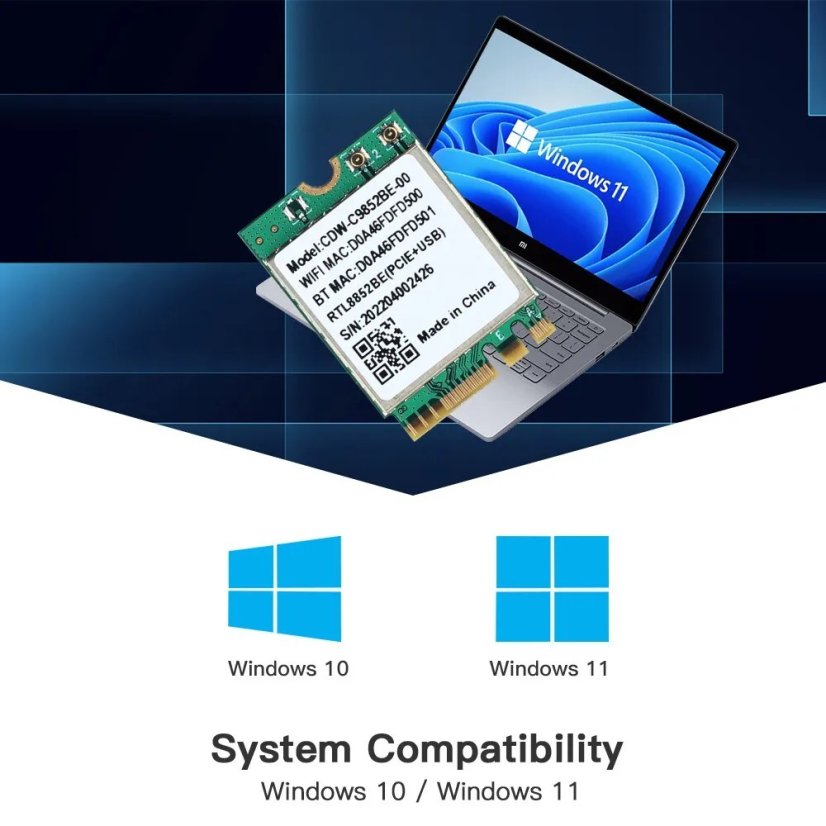

RTL8852BE M.2 NGFF WiFi6 Card

RTL8852BE WiFi6 Network Card, Internal for Laptop, 2.4Ghz, 5Ghz, 802.11 a/b/g/n/ac/ax, Bluetooth 5.2, M.2 NGFF, 2x IPEX4 Connector

Compact Wi-Fi 6E and Bluetooth adapter supporting the 802.11 a/b/g/n/ac/ax standard. Excellent for multimedia transmissions. Small dimensions ideal for compact devices. Maintains connection with minimal energy consumption, thereby extending the battery life of portable devices.

The Realtek RTL8852BE module utilizes Bluetooth 5.2. In addition to Wi-Fi 802.11 a/b/g/n/ac/ax, it also supports Wi-Fi 6E. Security includes 64-bit and 128-bit WEP, AES-CCMP, and TKIP. Authentication supports CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM. Wi-Fi location features allow for easy searching.

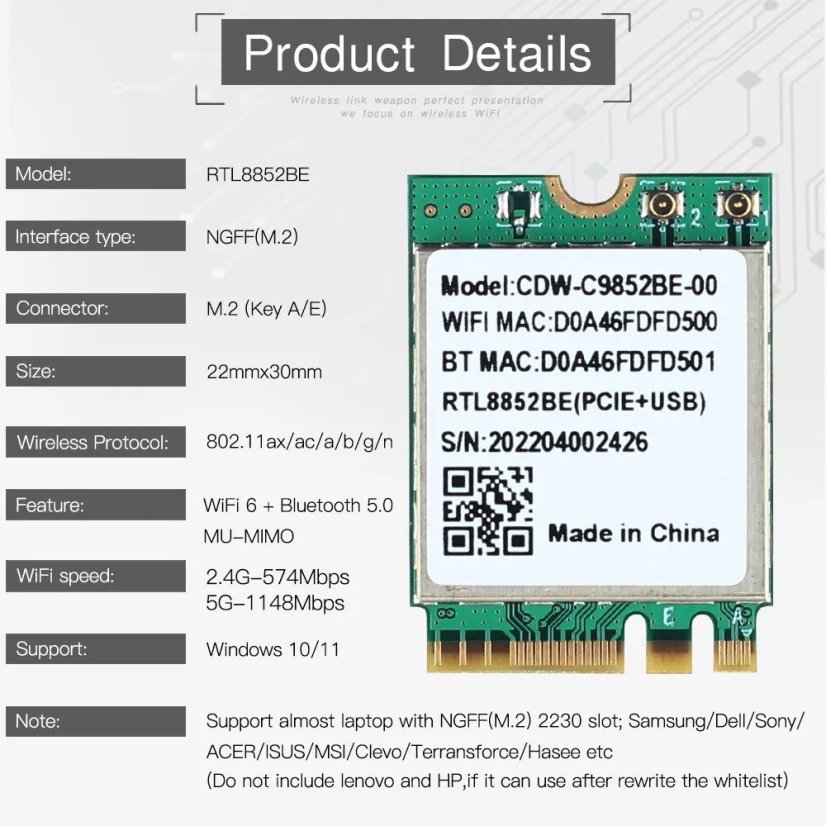

Specifications:

• Manufacturer: Realtek
• Model: RTL8852BE
• Standards: 802.11 a/b/g/n/ac/ax
• Wireless Data Rates: 1.8Gbps
• Frequency: 2.4Ghz, 5Ghz
• TX/RX Streams: 2x2, MU-MIMO
• Bluetooth: 5.2

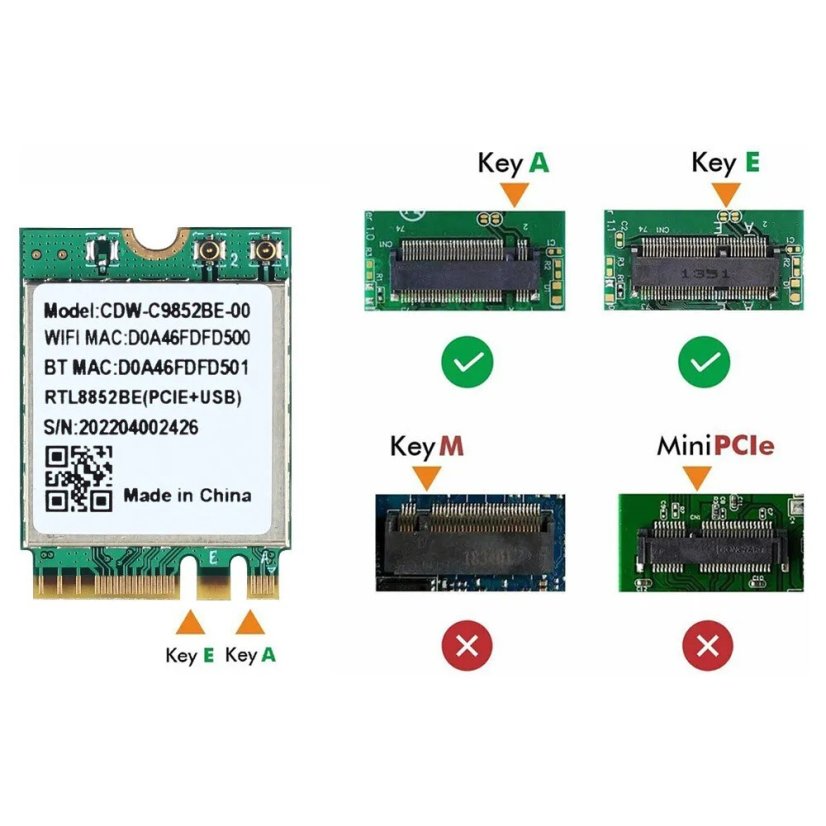

• Interface: M.2/NGFF
• RF connector: IPEX4
• Dimensions: 22x30x3mm

This model does not support IBM/Thinkpad/Lenovo/HP laptops!

Contents of the package:

• 1x RTL8852BE card
