Universal RF Band-Pass Filter | 22 Frequency Models | SMA | SDR, ADS-B, HAM

SAW Bandpass Filter

Add to favourites Add to compare list

SAW Bandpass Filter

Compact band-pass RF filter with SMA, 22 models from 137–1700MHz. Low loss, high selectivity. Perfect for SDR, ADS-B, HAM. More
Manufacturer: NEVEN Product code: P00069 shipping-link
from 18,10 EUR incl. VAT
Variant does not exist
Compact band-pass RF filter with SMA, 22 models from 137–1700MHz. Low loss, high selectivity. Perfect for SDR, ADS-B, HAM. More
Manufacturer: NEVEN Product code: P00069 shipping-link

Variants22

Center Frequency Availability Price incl. VAT Quantity (ks)

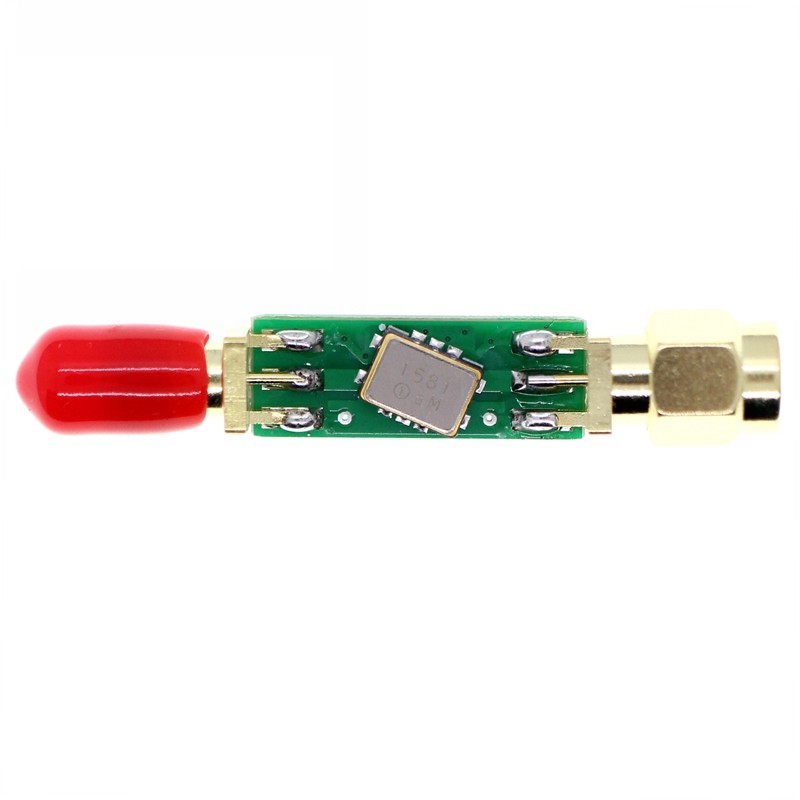

SAW Bandpass Filter 137MHz < 5 pieces in Stock 18,10 EUR
SAW Bandpass Filter 403MHz Out of Stock Watch availability 23 EUR Demand
SAW Bandpass Filter 506MHz Out of Stock Watch availability 21,70 EUR Demand
SAW Bandpass Filter 607MHz Out of Stock Watch availability 21,70 EUR Demand
SAW Bandpass Filter 868MHz >= 5 pieces in Stock 21,70 EUR
SAW Bandpass Filter 897MHz < 5 pieces in Stock 21,70 EUR
SAW Bandpass Filter 902MHz Out of Stock Watch availability 21,70 EUR Demand
Next

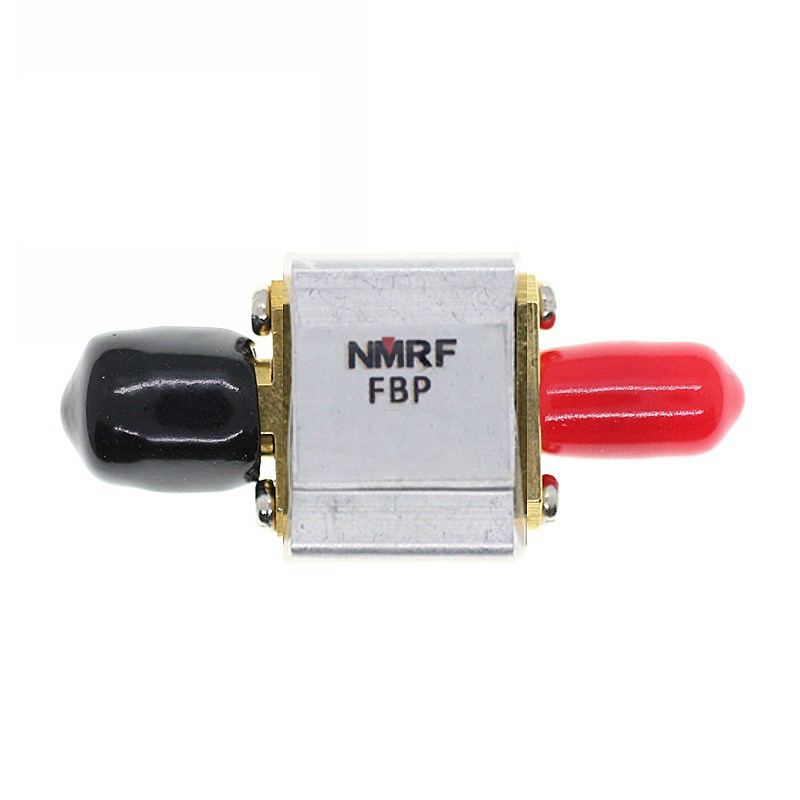

SAW Bandpass Filter, SMA, 20+ frequencies

This band-pass filter ensures a wide passband bandwidth, low insertion loss, and steep stopband attenuation. Optimized for use with ADS-B, SDR, and other radio frequency reception systems, it effectively filters out out-of-band signals, reduces noise, and improves dynamic range. With ultra-compact size and convenient connectors, it's ideal for a variety of frequency-specific applications. Available in over 20 different frequency models to match your exact needs.

  • Model: FBP-XXXX (varies by frequency)

  • Impedance: 50 Ohms

  • Center Frequency: see the table below

  • Passband (1 dB Bandwidth): see the table below

  • Insertion Loss: see the table below

  • Max Power Handling: see the table below

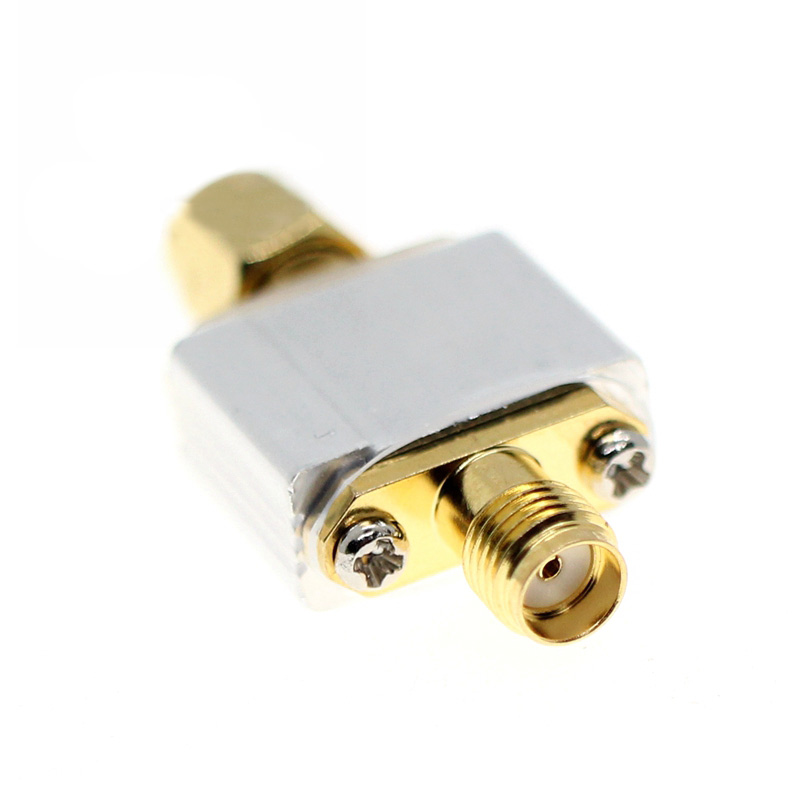

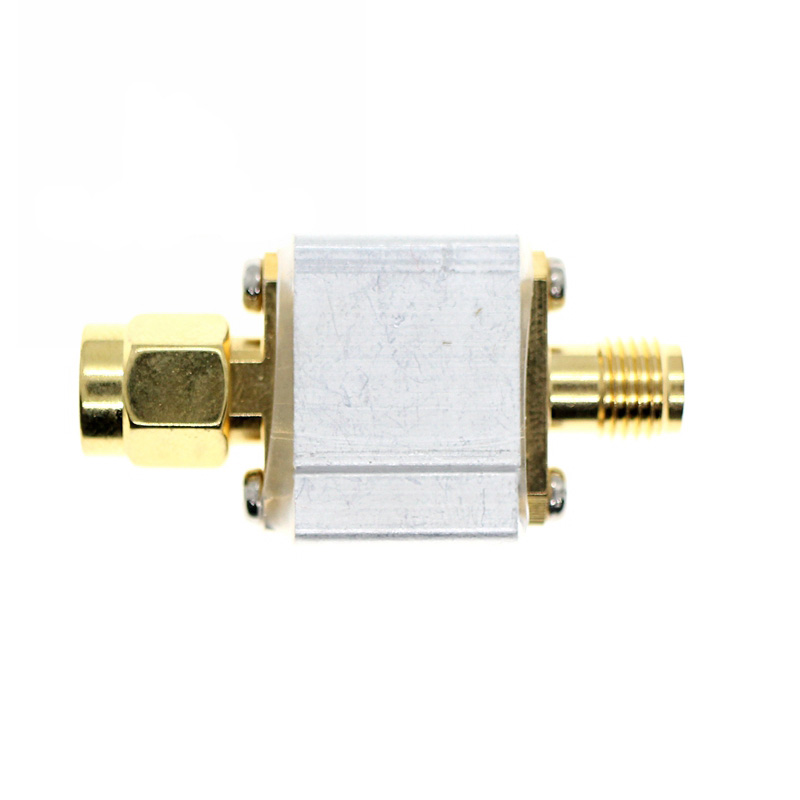

  • Connectors: SMA-M, SMA-F

  • Weight: Approx. 10g

Model: Center Frequency Passband (1 dB Bandwidth) Insertion Loss Max Power Handling:
FBP-137s 137.5MHz 137-138MHz < 3.5dB (typ ~1.5dB)
FBP-403s 403MHz 401-405MHz < 2.5dB@401~405MHz 100mW (20dBm)
FBP-506s  506.5MHz 503-510MHz < 2.5dB 300mW (25dBm)
FBP-607s  607MHz 593~620MHz <= 2.5dB 50mW (17dBm)
FBP-868s 868MHz RFID 866~870MHz < 3.5dB 100mW (20dBm)
FBP-897s 897.5MHz 880~915MHz < 2.0-2.5dB (typ ~2.2dB) 20mW (13dBm)
FBP-902s  902MHz 890~915MHz < 2.0-2.5dB (typ ~2.2dB) 100 mW (20 dBm)
FBP-915s 915MHz RFID 920~925MHz < 2.0dB 100 mW (20 dBm)
FBP-922s  922.5MHz RFID 902~1010MHz < 3.0dB 20mW (13dBm)
FBP-1000s 1000MHz 990~928MHz < 3.0dB 200 mW (23 dBm)
FBP-1090s 1090MHz ADS-B

30 MHz (1 dB BW)

<80 MHz (30 dB BW)

 1.7 ~ 2.2 dB 100 mW (20 dBm)
FBP-1200s  1200MHz 1190~1210MHz < 1.5dB 200 mW (23 dBm)
FBP-1237s 1237MHz GPS L2 1205~1265MHz (3dB BW) <= 3.0dB 200 mW (23 dBm)
FBP-1420s 1420MHz 1420MHz/80Mhz <= 3.5dB 10mW (10dBm)
FBP-1500s 1500MHz 1490~1510MHz < 3.5dB 200 mW (23 dBm)
FBP-1747s 1747.5MHz UMTS/AWS 1710~1785MHz  < 4.5dB (typ ~3.9dB) 100 mW (20 dBm)
FBP-1840s  1840MHz 1810~1970MHz < 1.7~2.2dB (typ ~1.9dB) 100 mW (20 dBm)
FBP-1880s 1880MHz 1850~1910MHz < 1.5~2.0dB (typ ~1.7dB) 100 mW (20 dBm)
FBP-1960s 1960MHz UMTS/PCS 1930~1990MHz < 1.5~2.0dB (typ ~1.7dB) 100 mW (20 dBm)
FBP-2017s  2017MHz 2005~2030MHz < 1.5~2.0dB (typ ~1.7dB) 100 mW (20 dBm)
FBP-2140s  2140MHz UMTS/AWS 2110~2170MHz < 2.0~2.5dB (typ ~2.2dB) 100 mW (20 dBm)
FBP-2345s 2345MHz 2320~2370MHz < 3.5dB 200 mW (23 dBm)
