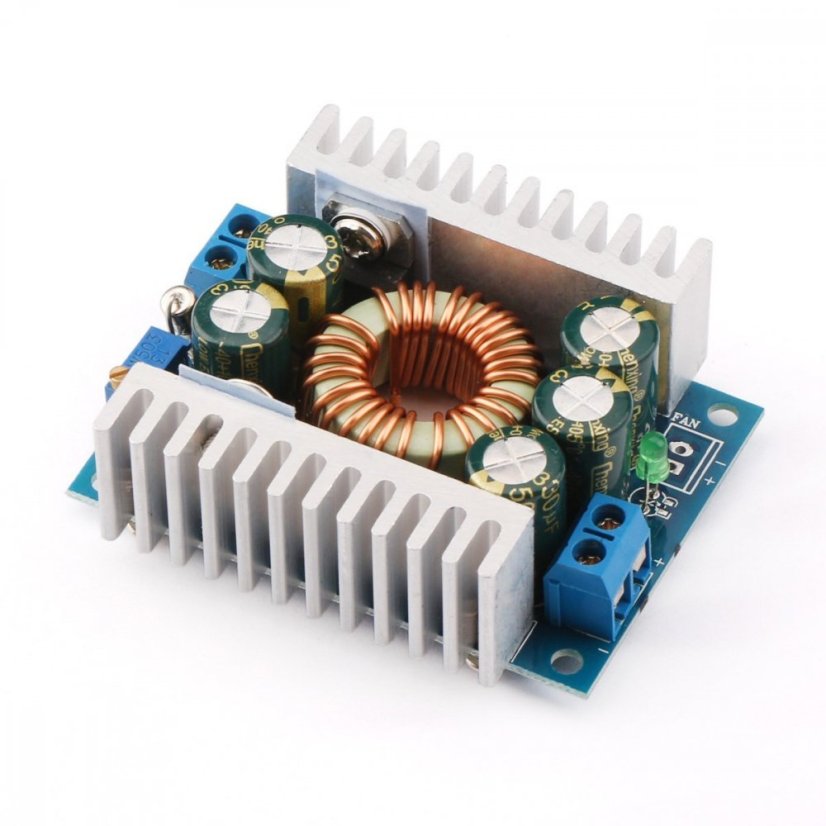

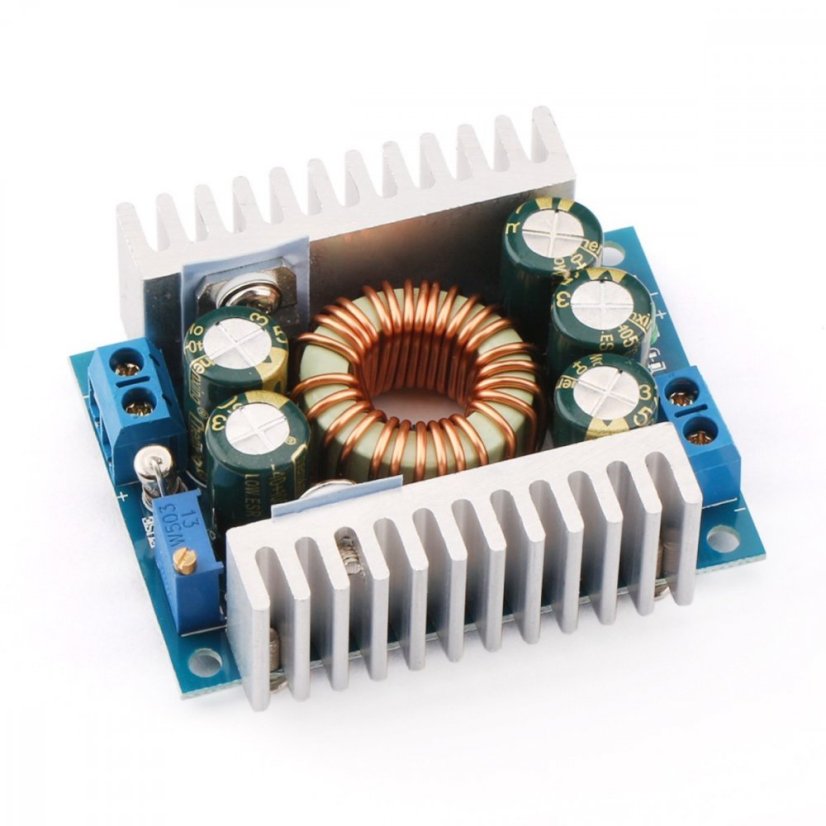

SBT5333 DC-DC Stepdown Converter 4.5-30V > 1.25-30V 100W

Model: 12A buck ideal version
Module Features: non-isolated buck module
Input Voltage: 4.5-30V, do not exceed 30V! ! !
Output Voltage: 1.25-30V continuously adjustable
Output Current: 0-12A, 100W, improves heat dissipation up to 200W,
Operating Temperature: -40 to +85 degrees
Operating Frequency: 300KHz
Conversion Efficiency: up to 95% (efficiency related to input/output voltage, current, and pressure)

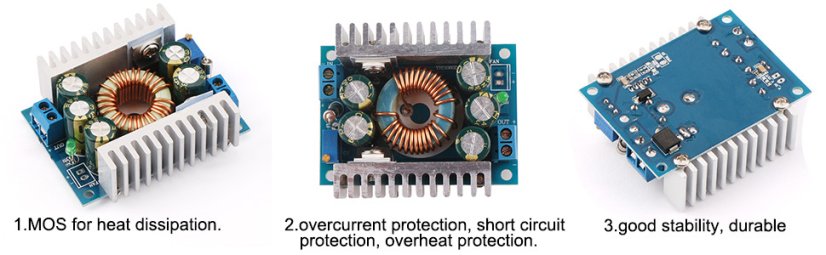

Short Circuit Protection: Yes (current limiting 14A), please try not to short
Overheat Protection: Yes (automatic shutdown after output overheat)
Reverse Polarity Input Protection: No, (if needed, please add a diode string)
Installation: 4*3mm screws

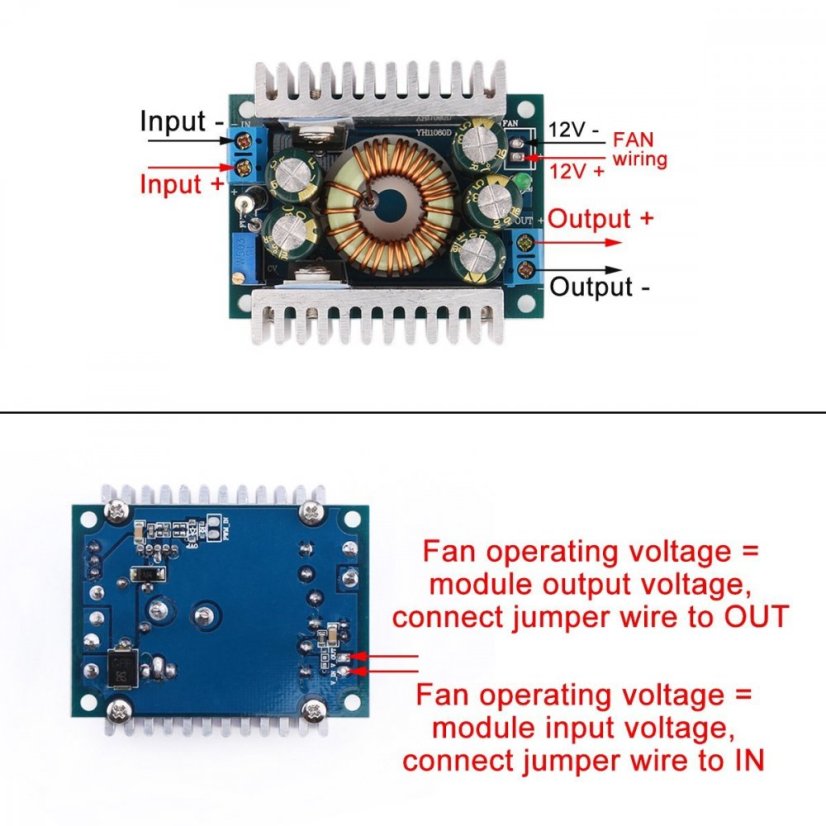

Connection: terminals, no soldering, V-IN is input, V-OUT is output, with module output leads.

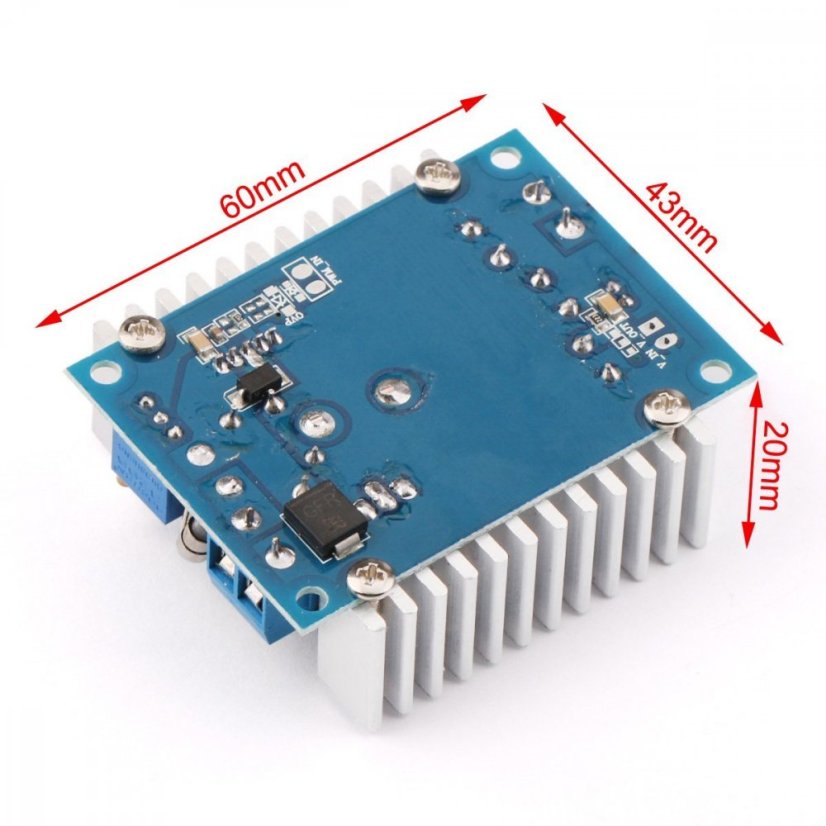

Module Dimensions: 60mm*51mm*22mm
Weight: 76g

Application:

This module can be used in areas where the input voltage is higher than the buck output voltage, such as batteries, power transformers, DIY adjustable power supplies, 24V automotive power, automotive LED lighting, industrial buck devices, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc.
