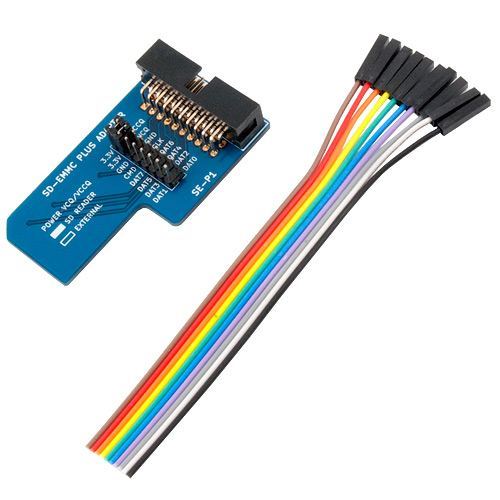

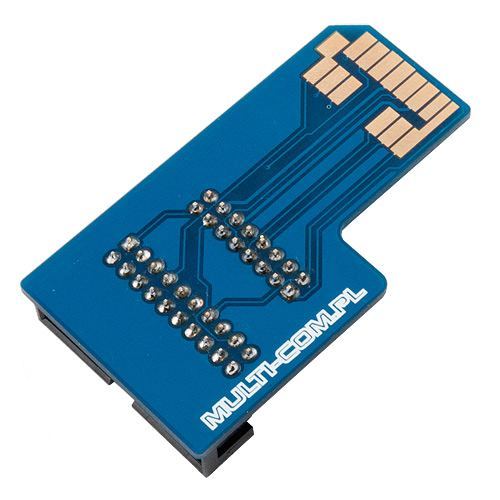

The SD-EMMC Plus Adapter - model SE-P1 is the latest adapter for connecting eMMC memory using ISP or, after modification, through a standard SD card reader or MMC Plus card reader (8-bit transfer). Additionally, the adapter offers the option to source power for the eMMC memory (VCC and VCCq) either from the reader, i.e., 3.3 V, or from an external power supply (VccQ and Vcc).

Features:

• Capable of connecting memory in ISP mode via IDC connector (including Dat0-Dat7 for 8-bit communication used in MMC Plus) or additional connections for oscilloscope or logic analyzer
• Ability to connect external power source controller (VDD / VccQ) and NAND (VDDf / VCC).
• Compatible with many eMMC SD readers.

Examples of use:

This can be used for eMate PRO to read (create an image of) the eMMC chip.

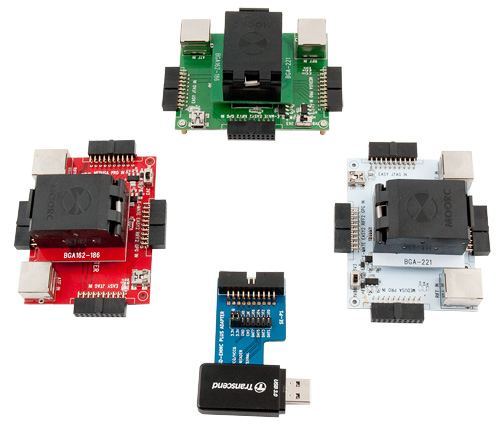

This can be used to connect ISP to VR-Table or to use an oscilloscope.

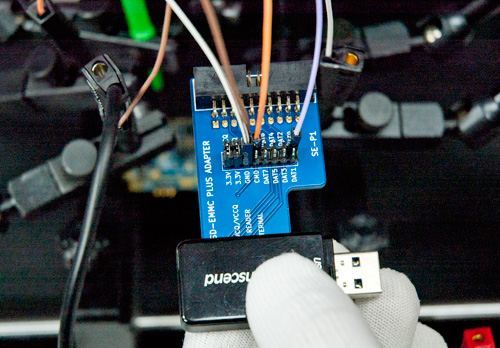

The reading process via eMMC ISP and Direct
