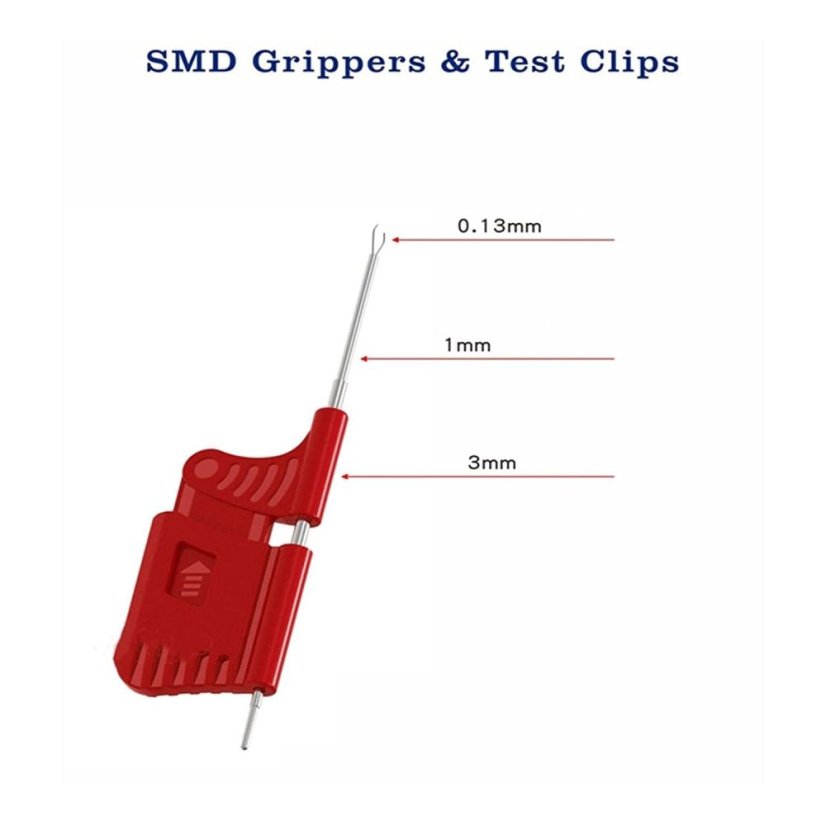

SDK08 - 10 universal clips for chip testing and IC programming
SDK08 - 10 universal clips for chip testing and programming IC TSSOP, MSOP, SOP, QFP

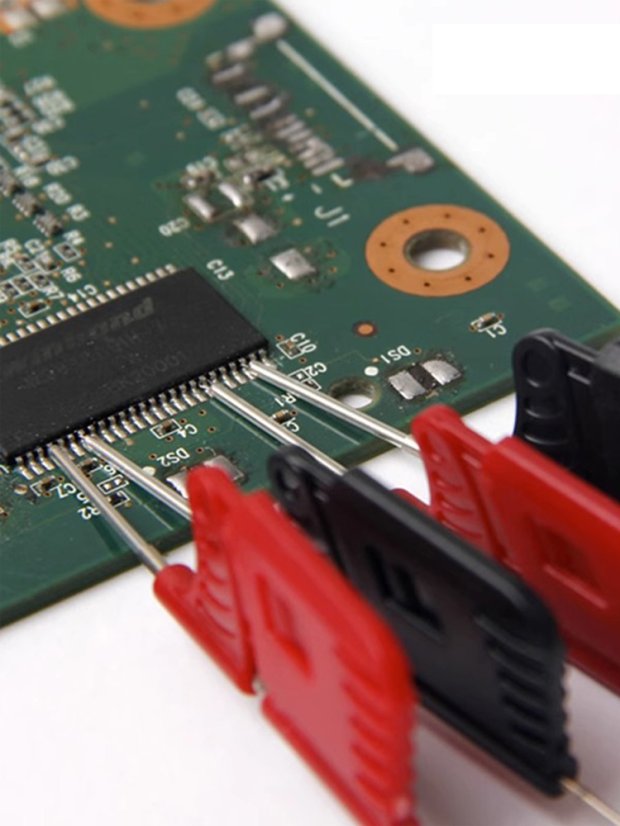

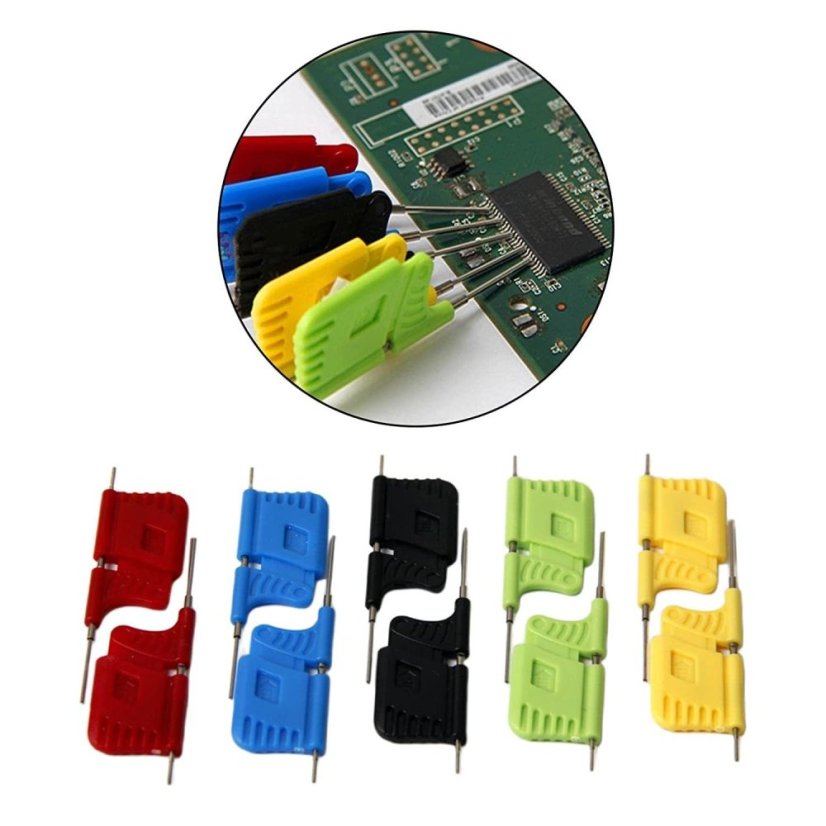

No soldering is required for reading and writing to the chip, just a single clip is needed to connect to the chip! Online downloads, online upgrades, an essential helper!
Specifications:
- Model: SDK08

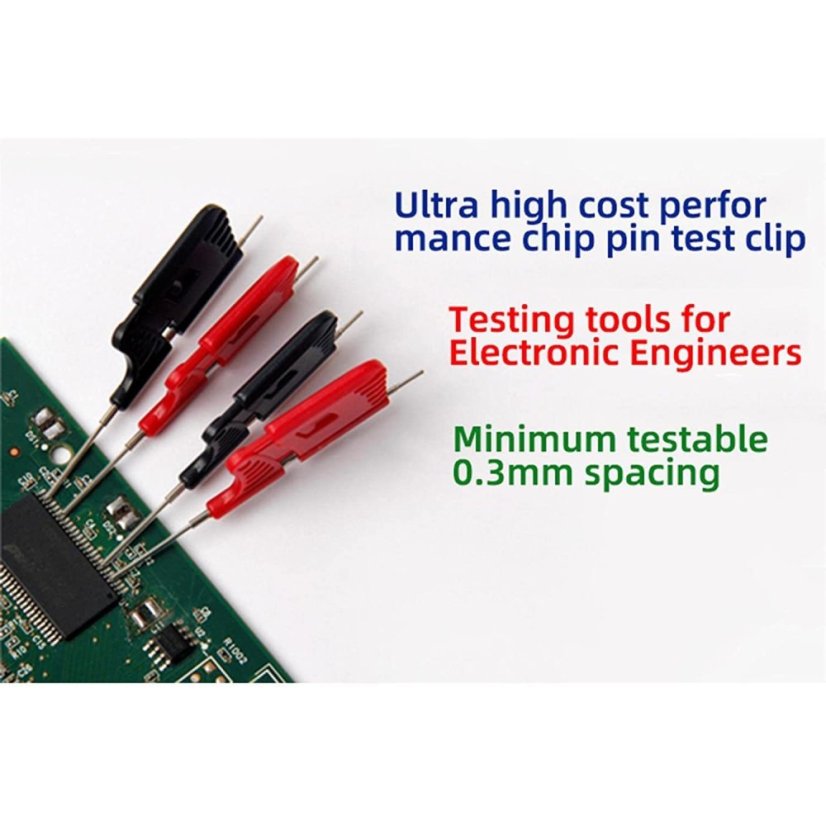

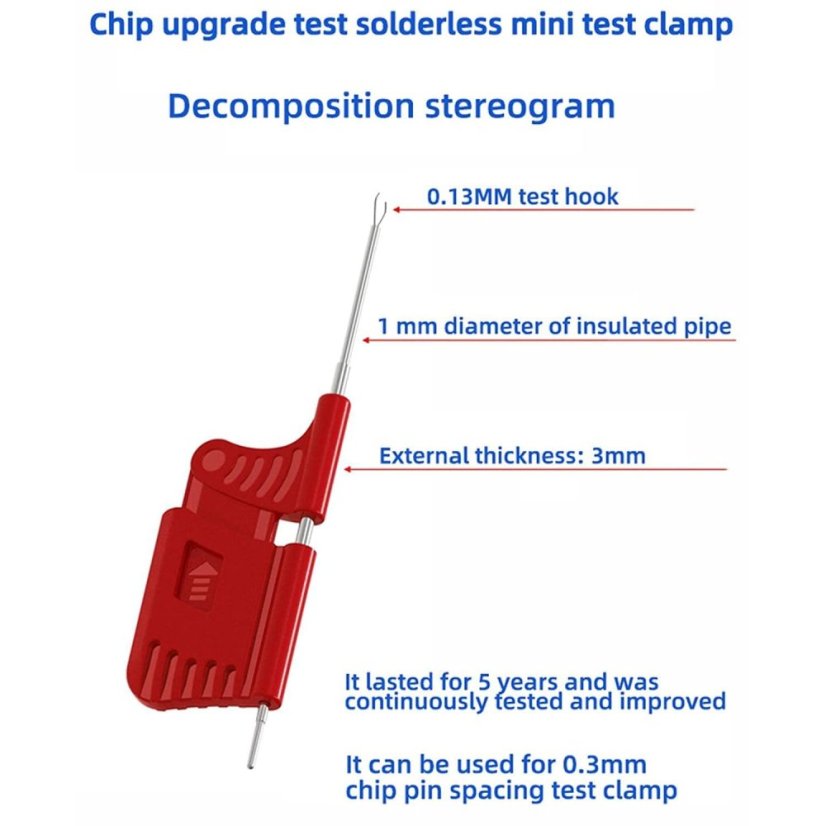

- Supported pin pitches: greater than 0.3 mm
- Rated voltage: 40V
- Rated current: 2A
- Compatible with IC types: TSSOP, MSOP, SOP, TSSOP, QFP
Package Contents:

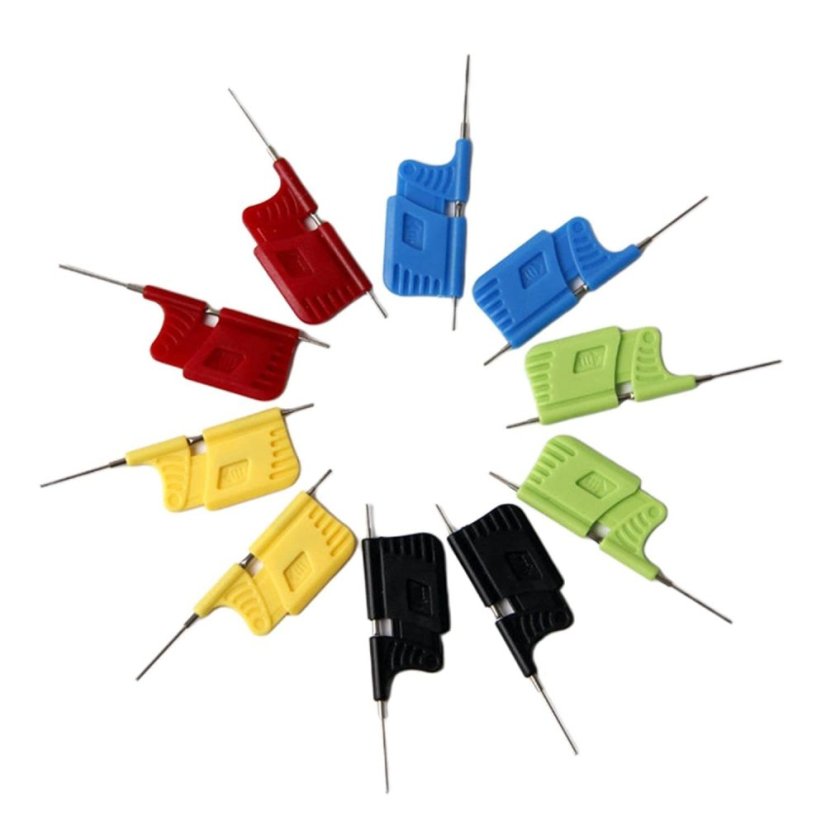

10x universal clip
INSTRUCTIONS:
STEP 1: Insert the dupont cable.
STEP 2: Press the clip out.
STEP 1: Insert the dupont cable.
STEP 2: Press the clip out.
Operational skills:
1: SDK08 clips are used for chips with a pitch greater than 0.3 mm. Method to grasp a small chip: Shake your hand slightly and move it forward gently.
2: After use, do not press the clip off the chip pins. Gently squeeze the clip and remove it from the chip pin.
3: If the clip does not hold the chip pin, please, refer to the image: Adjust the front part of the clip with tweezers so the angle is close to 90 degrees.
1: SDK08 clips are used for chips with a pitch greater than 0.3 mm. Method to grasp a small chip: Shake your hand slightly and move it forward gently.
2: After use, do not press the clip off the chip pins. Gently squeeze the clip and remove it from the chip pin.
3: If the clip does not hold the chip pin, please, refer to the image: Adjust the front part of the clip with tweezers so the angle is close to 90 degrees.
