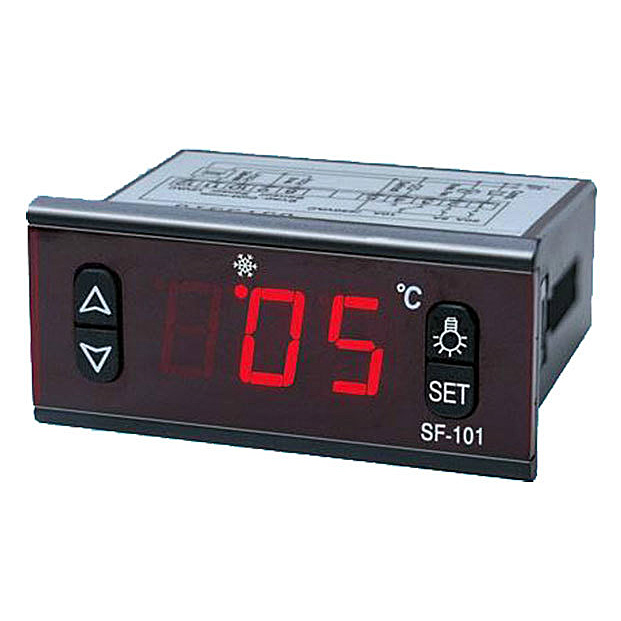

SF-101 220V/10A - Electronic Thermostat for Cooling and Heating

The electronic thermostats of the SF-101 series (10A) are designed for cooling, deep freezing, and general cooling applications.
They can be used for both cooling and heating, with a temperature range from -45 °C to +99 °C.

(replacement for PCR-100, PCR-110, PCR-300, PCR-310, PCR-410, PCR-300RC, and STC-1000/STC-1000)

Features:

Temperature display
Temperature control
Light control
Value storage
Parameter locking
Automatic testing

Technical Specifications:

Temperature measurement range: —45 to 99°C
Temperature setting range: —45 to 45°C
Accuracy: ±1°C
Compressor: N.O. 10A/250VAC
Light: N.O. 6A/250VAC

Parameters:

Parameter	Function	Adjustable Range	Default
E1	Lower limit setting	−45°C～Set temperature	−35°C
E2	Upper limit setting	Set temperature～45°C	20°C
E3	Temperature hysteresis	1～10°C	4°C
E4	Delay time for compressor start	0～10 Min	2 Min
E5	Room temperature measurement offset	−20～20°C	0°C
