SF-731 12V/30A - Elektronický termostat pro chlazení a mražení
SF-731 12V/30A - Elektronický termostat pro chlazení a mražení
The SF-731 is an electronic thermostat ideal for cooling, deep freezing, and general refrigeration applications. More
35,60 EUR
incl. VAT
The SF-731 is an electronic thermostat ideal for cooling, deep freezing, and general refrigeration applications. More

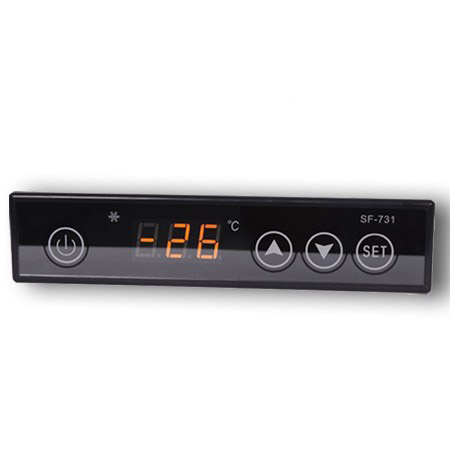

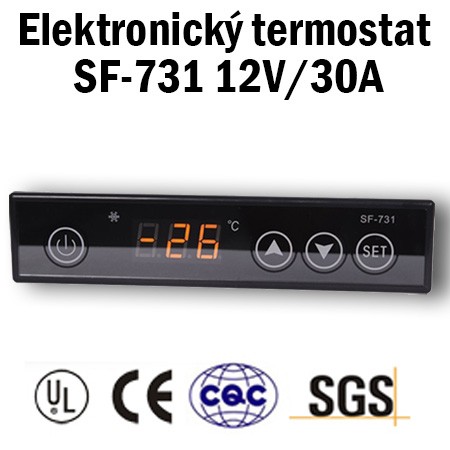

The SF-731 Series electronic thermostats are designed for cooling, deep freezing, and general refrigeration applications.
(replacement for PCR-100, PCR-110, PCR-300, PCR-310, PCR-410, PCR-300RC, and STC1000/STC-1000)
Features:
- Touchscreen display
- Temperature indicator
- Temperature control
- Value storage
- Automatic testing
Technical specifications:
- Temperature measurement range: –45 to 99 °C (–49 to 210 °F)
- Temperature setting range: –45 to 45 °C (–49 to 113 °F)
- Accuracy: ±1 °C (±1.8 °F)
- Compressor: N.O. 30A/250VAC
- Mounting hole dimensions (W, H): 171×38×18 mm (6.73×1.50×0.71 in)
- Overall dimensions (W, H, D): 164×30.5 mm (6.46×1.20 in)
Parameters:
Parameter | Function | Set Range | Default |
E1 | Lower setting limit | –45 °C to Set Temperature | –35 °C (–31 °F) |
E2 | Upper setting limit | Set Temperature to 45 °C | 20 °C (68 °F) |
E3 | Temperature hysteresis | 1 to 10 °C | 4 °C (39.2 °F) |
E4 | Delay before compressor turn-on | 0 to 10 min | 2 min |
E5 | Offset to room temperature | –20 to 20 °C | 0 |
