Simple Lithium Battery Status Indicator with LED

Simple Lithium Battery Status Indicator

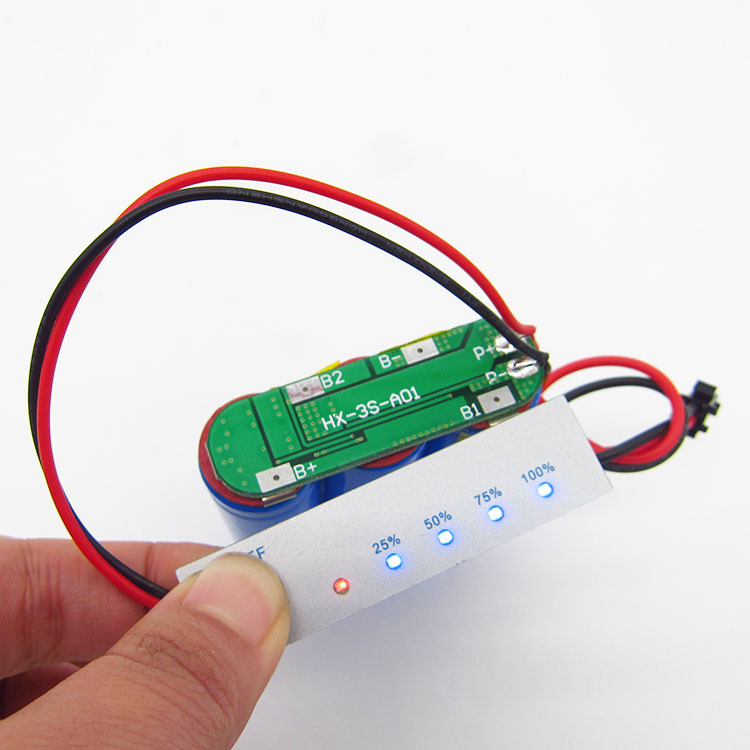

Featuring 5 small lights to display the battery charge level, this is perfect for inverter batteries and other battery-powered devices! As long as the voltage is 12V, measurement is possible, and it is unrelated to your capacity! Similarly, regardless of the battery type or device, it will operate since it detects the voltage!

The 12.6V indicator is suitable for 3 of 3.7V Li-ion batteries.

The 14.4V indicator is suitable for 4 of 3.2V LiFePO4 batteries.

Technical Specifications:

• Supported Batteries:
• 3S-12.6V Li-ion
• 4S-14.4V LiFePO4
• Voltage Levels:
• 3S-12.6V
• L1 1.5-9V
• L2 9V-11V
• L3 11V-11.5V
• L4 11.5V-12V
• L5 12V-12.6V
• 4S-14.4V
• L1 1.5-9V
• L2 9V-11V
• L3 11V-11.5V
• L4 11.5V-12V
• L5 12V-12.6V
• Indication: 5 LED Levels, empty, 25%, 50%, 75%, 100%
• Operating Current: < 30 mA
• Dimensions: 62x15.8x2x7mm
• Cable Length: 140mm
• Operating Temperature: -10 °C ~ +50 °C
• Operating Humidity: 10 ~ 80 % (no condensation)
