Single-Phase LED AC Frequency Meter DIN-F

Single-Phase LED AC Frequency Meter DIN-F

The DIN-F is a single-phase digital AC frequency meter/Hz meter designed for DIN rail installation, featuring an LED display with a frequency range of 30-70Hz.

Specifications:

• Model: DIN-F
• Measured Frequency Range: 30-70Hz
• Accuracy Class: Class 0.5
• Power Supply: 150-250V AC
• Operating Frequency: 50/60Hz
• Phase: Single-phase
• Protection Class: IP44
• Display: 8mm 3-digit display
• Connection Type: Instant connection
• Display Color: Yellow
• Connection Type: Terminal connection
• Operating Temperature: -5°C to 55°C
• Dimensions: 35.4x95x60mm (1.39 x 3.74 x 2.36 inches)
• Weight: 147g (0.32 lbs)

Package Contents:

1x DIN-F LED frequency meter

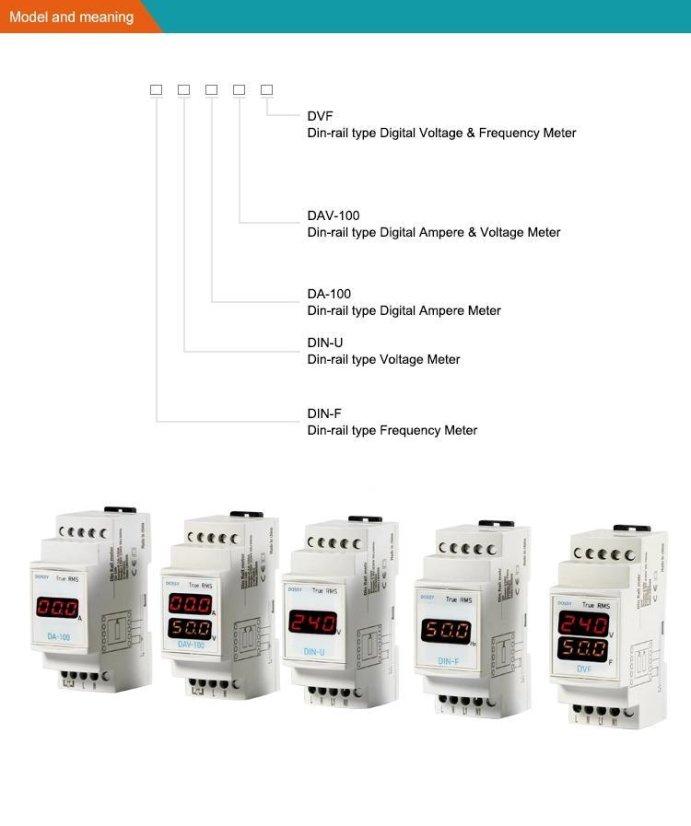

Model Selection:
