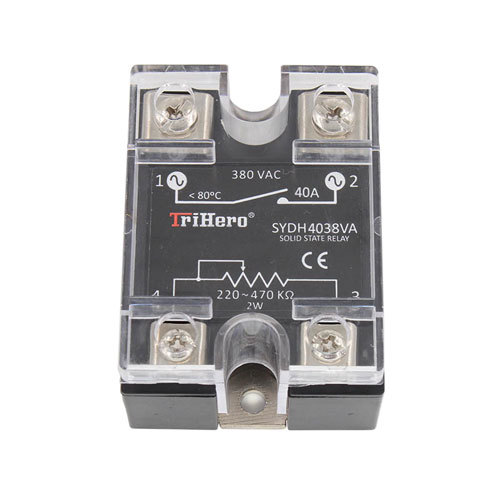

Single-Phase SSVR Voltage Regulator 0-220VAC and 380VAC up to 120A

Single-phase semiconductor solid state voltage regulator (SSVR) type VA, 0-220VAC or 380VAC up to 120A

• Control via potentiometer
• Load current 10-120 A
• Built-in RC
• Excellent linear output
• High reliability

Specifications:

• Type: VA
• Load voltage: 0-220VAC or 380VAC
• Load current: 10A, 15A, 20A, 25A, 40A, 50A, 60A, 80A, 100A, 120A
• Control: potentiometer 330KΩ 2W (WTH118-1A-470K2W)
• Opto-isolation: NO, (Warning: high voltage on potentiometer input)
• Maximum leakage current when off: 2mA
• Maximum voltage drop when on: 1.5V
• Dielectric strength (input, output to base): 2500Vrms
• Weight (approx.): 100g (0.22 lbs)
• Operating temperature: -20°C to 80°C (-4°F to 176°F)

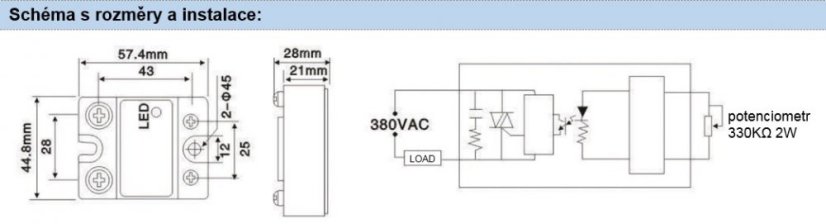

• Dimensions (mm): 57.4L x 44.8W x 28H (2.26"L x 1.77"W x 1.10"H)
• Certification: CE
• Made in: China

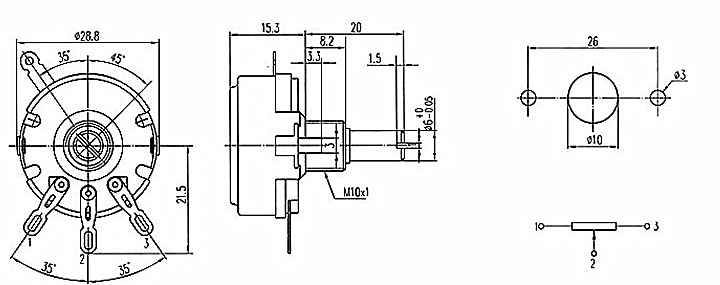

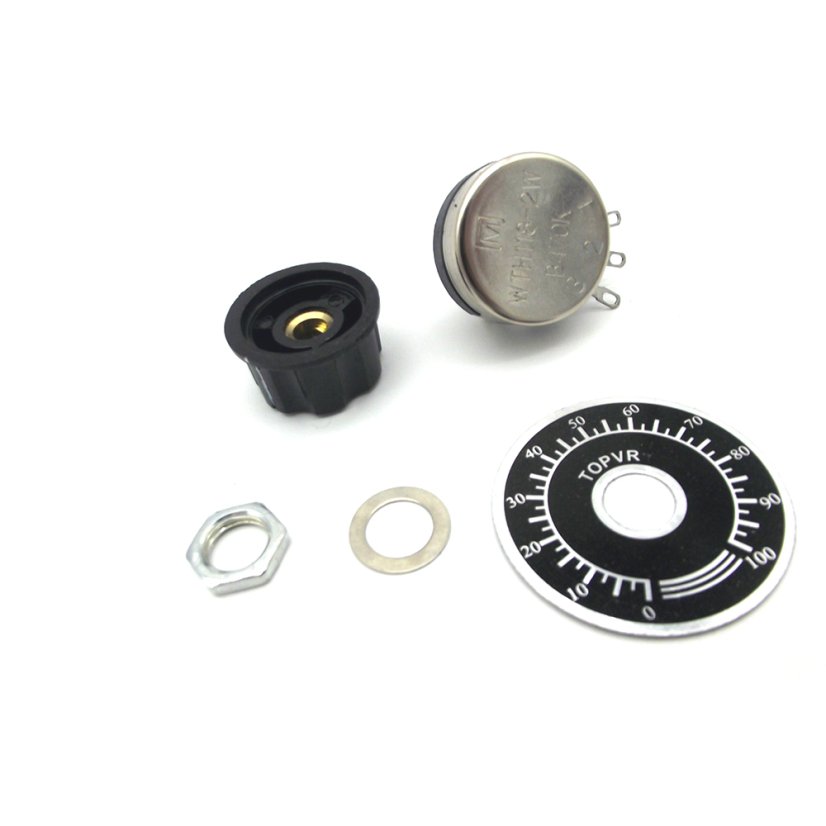

Potentiometer: WTH118-1A-470K2W

Model number and parameters:

How to choose the right regulator:

For pure resistive loads, multiply the operating current by three. Example: (2.2kW/220V) * 3 = 30, so the most suitable model will be 40A - SYDH4038VA.

For inductive loads (motors), multiply the operating current by five. Example: (5kW/220V) * 5 = 113, so the most suitable model will be 120A - SYDH12038VA.

Cooling:

To ensure that the models with a capacity of 40A, 60A, 80A, 100A, and 120A do not overheat and operate correctly, a heatsink must be used. Models from 40A and above are supplied with a heatsink.

Do not use models with a rating higher than 40A without cooling!

NOTE:

• Input and output terminals are not isolated, please be careful when using!
• If the load is more than 25A, you must install a heatsink; if it exceeds 40A, you must add a fan.
• If using a transformer, please choose the DTY series.

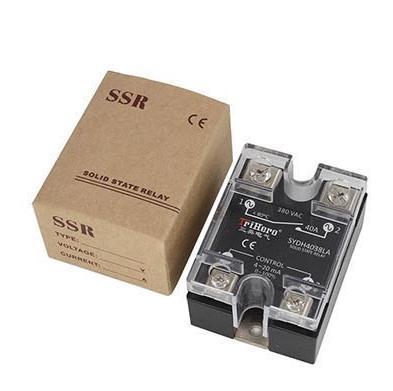

Package contents:

• VA type voltage regulator
• potentiometer 330KΩ 2W
• heatsink for models 40A and above

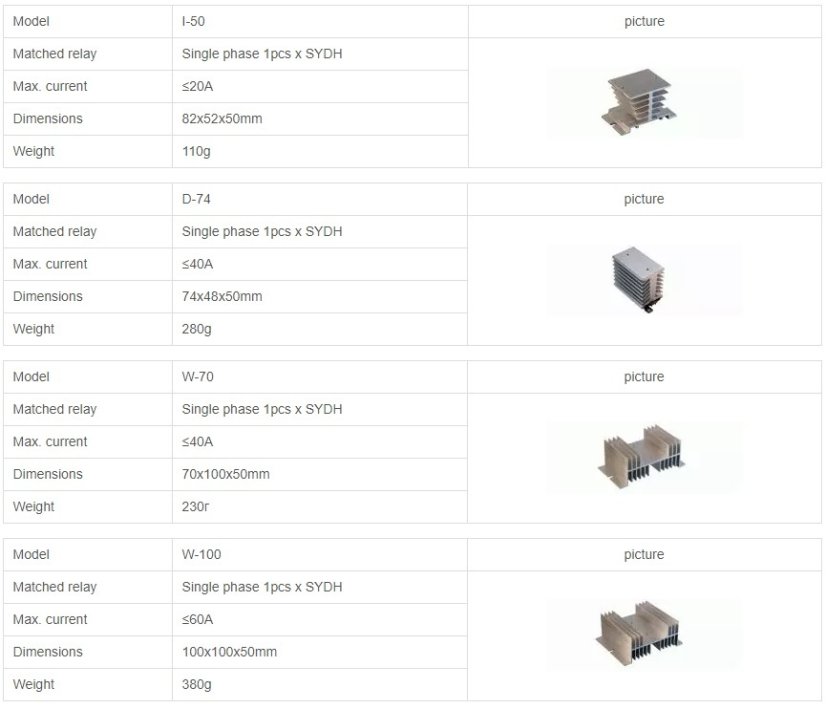

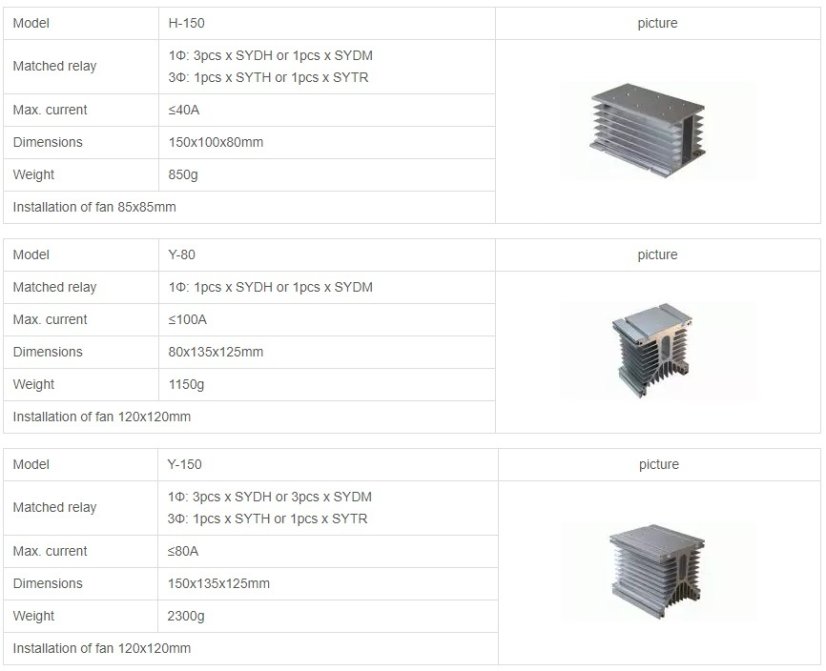

Heatsinks:
