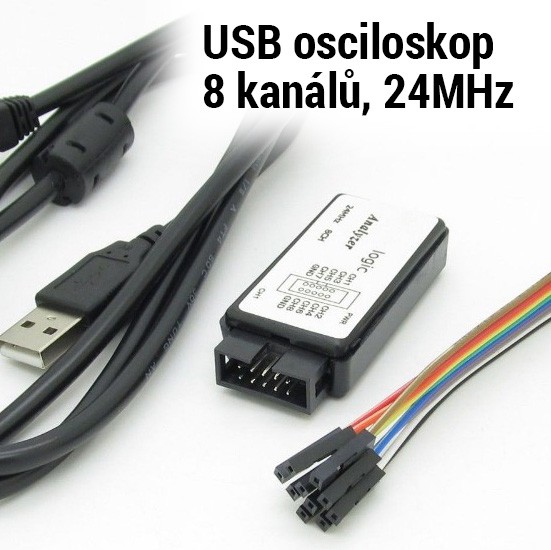

SL-USB8CH 8-channel USB Logic Analyzer and Oscilloscope - 24MHz
SL-USB8CH 8-channel USB Logic Analyzer and Oscilloscope - 24MHz
The SL-USB8CH is a versatile 8-channel USB logic analyzer and oscilloscope with a bandwidth of 24MHz, compatible with Saleae Logic Software. More
18,80 EUR
incl. VAT
The SL-USB8CH is a versatile 8-channel USB logic analyzer and oscilloscope with a bandwidth of 24MHz, compatible with Saleae Logic Software. More
SL-USB8CH 8-channel USB Logic Analyzer and Oscilloscope - 24MHz Logic Analyzer Singlechip ARM FPGA Debugging SCM Saleae
Technical Specifications:
- Model: SL-USB8CH
- Compatible with "Saleae Logic Software"
- Bandwidth: 24MHz
- 8 channels
- Supports 5V logic
- LED indicators: power and signal on Ch0

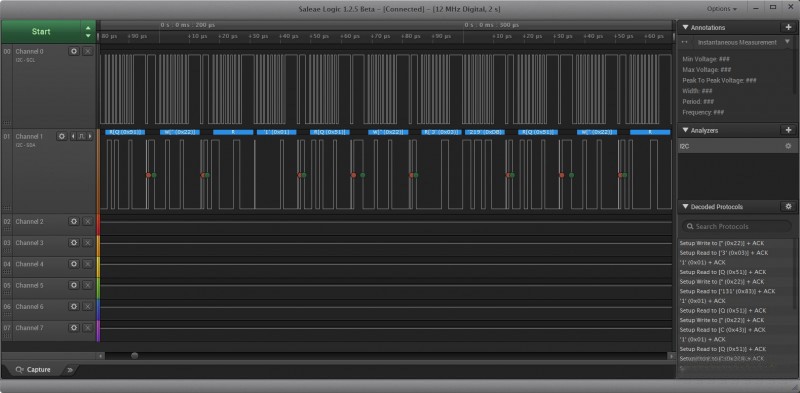

- Supports over 20 protocols (SPI, I2C, etc.)
- Connects to PC via USB
- Supports Windows 32b and 64b, Linux 32b and 64b, MAC OS
- Manufacturer: OEM/Non-original

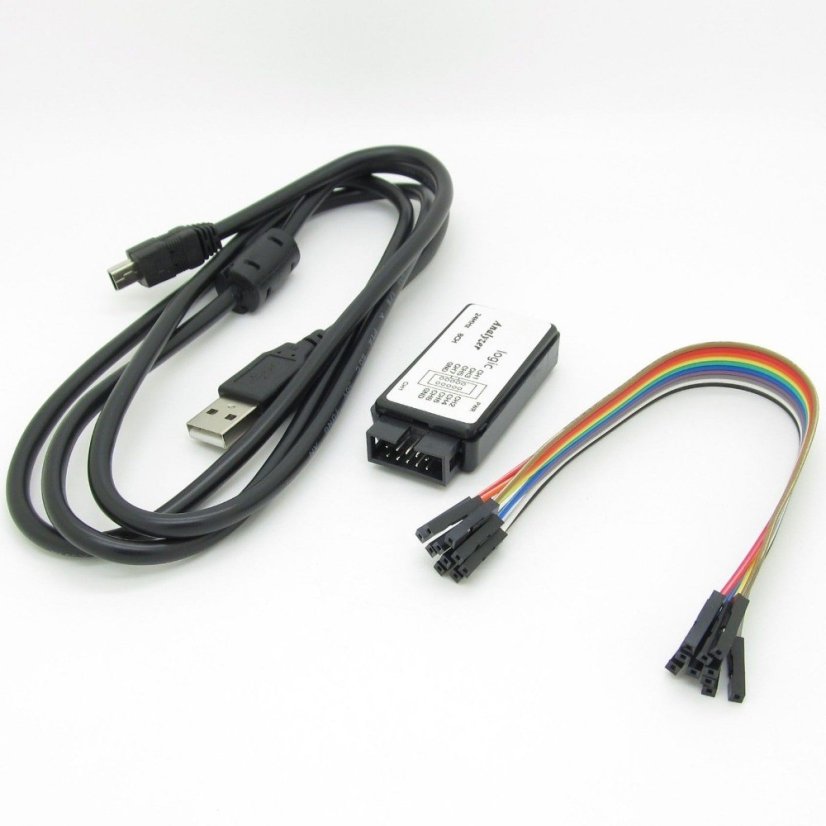

Package Contents:
- SL-USB8CH logic analyzer
- USB cable
- Dupont cable
Saleae Logic Beta Software (drivers): Logic+Setup+1.2.7.exe
PulseView: https://sigrok.org/wiki/PulseView
