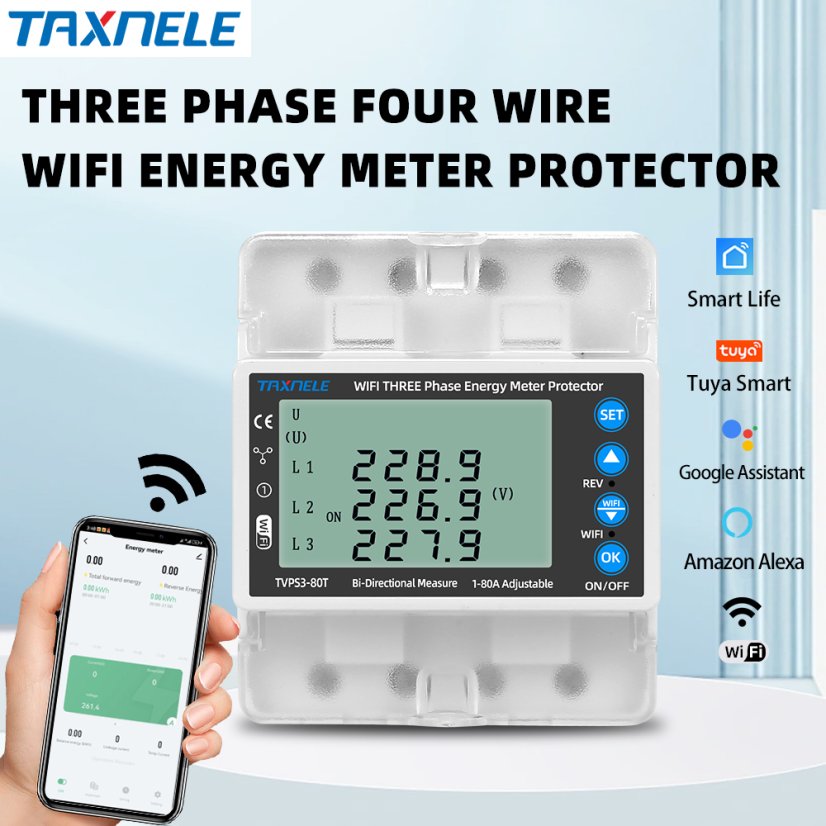

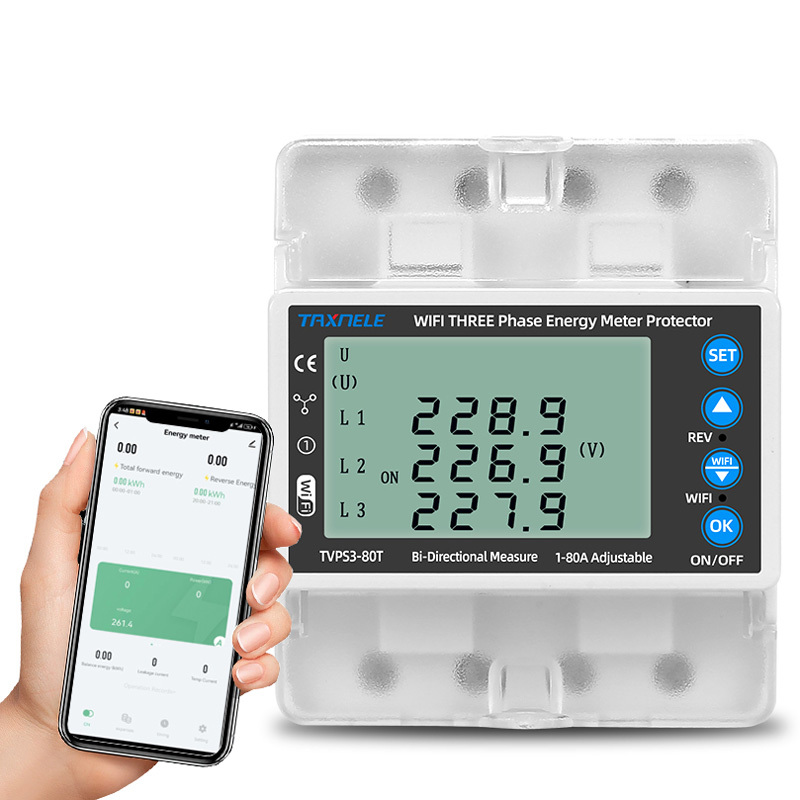

Smart 3-Phase WiFi Energy Meter Tuya 380V with Protection

Smart 3-Phase WiFi Energy Meter Tuya 380V with Protection

3-phase 380V Tuya WiFi smart bidirectional energy meter with overvoltage and undervoltage protection, relay switch, and current limiter.

Specifications:

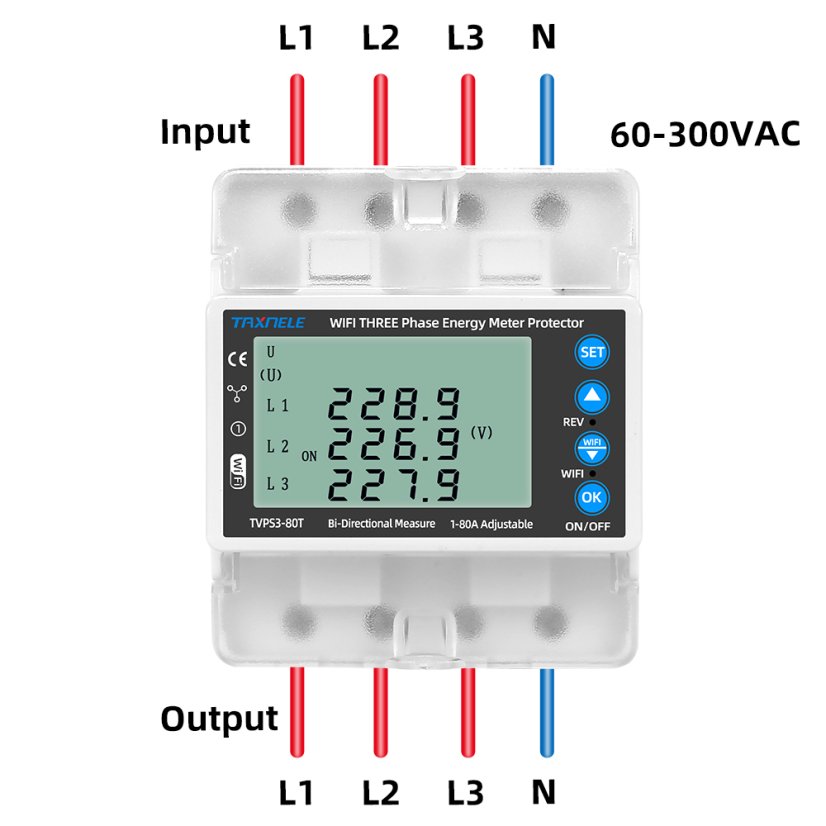

• Model: TVPS3-80T
• Rated current: 80A
• Reference voltage: AC 60-300V
• Frequency: 50-60Hz
• Pulsing frequency: 1200 imp/kWh
• WiFi: IEEE 802.11 b/n/g 2.4G Hz
• Power: 1W/6VA
• App Functionality
• Remote control anytime and anywhere using SMART LIFE / TUYA apps
• Timer - scheduling, countdown, cycle duration.
• Voice control via Amazon Alexa / Google Assistant.

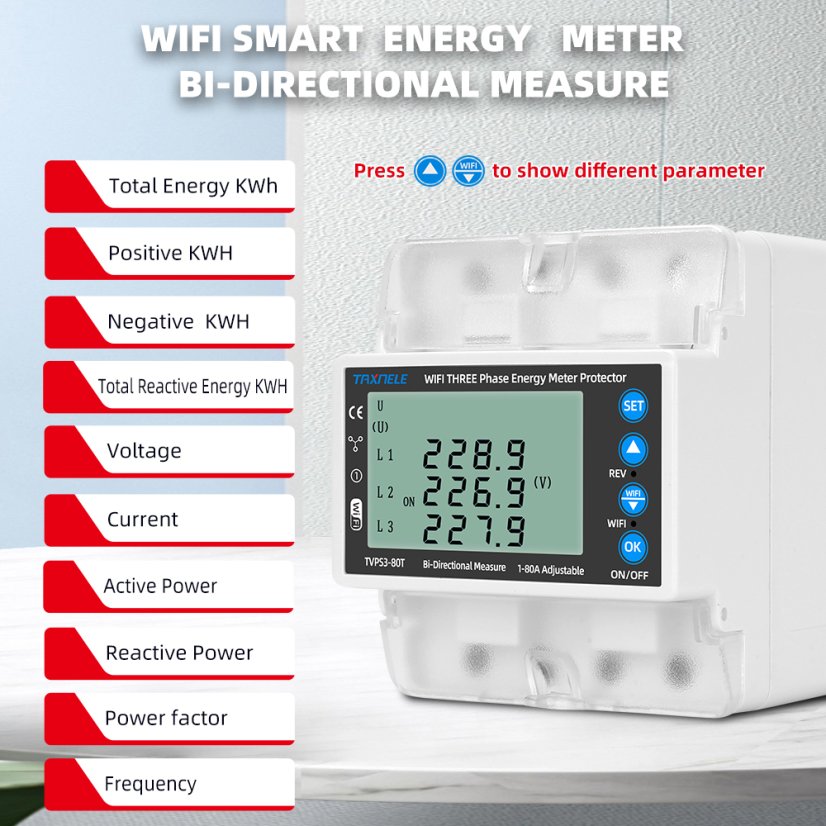

• Meter Functions
• Bidirectional measurement.
• Total energy KWh (positive kWh + negative kWh).
• Total reactive energy kWh (positive reactive kWh + negative reactive kWh).
• Voltage, current, active power, reactive power, power factor, frequency.

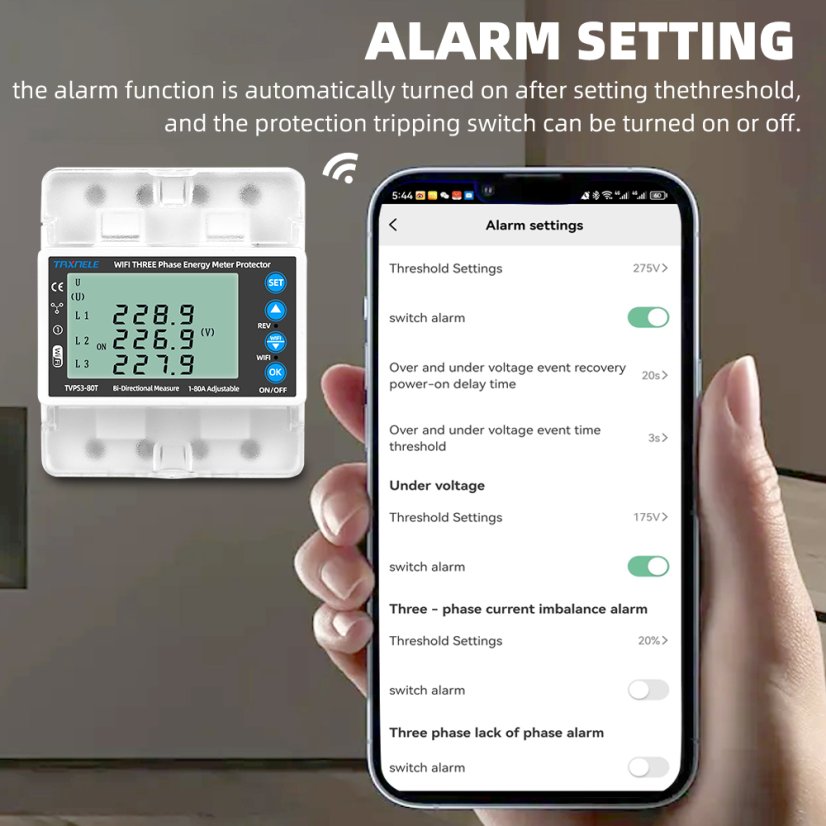

• Protection Functions:
• Under-voltage protection 60V-300V (adjustable) (default: 175V).
• Over-voltage protection 60V-300V (adjustable) (default: 275V).
• Overcurrent protection 1A-100A (adjustable) (default: 80A).
• Under current protection 1A-100A (adjustable) (default: off).
• Voltage imbalance protection 10-100% (adjustable) (default: loss).
• Current imbalance protection 10-100% (adjustable) (default: off).
• Overheat protection 10-85℃ (adjustable) (default: 85℃).
• Usage: Indoor/IP20.
• Material: Flame-retardant ABS.
• Operating temperature: -25 °C to + 55 °C.
• Working humidity: 5% - 99% non-condensing.

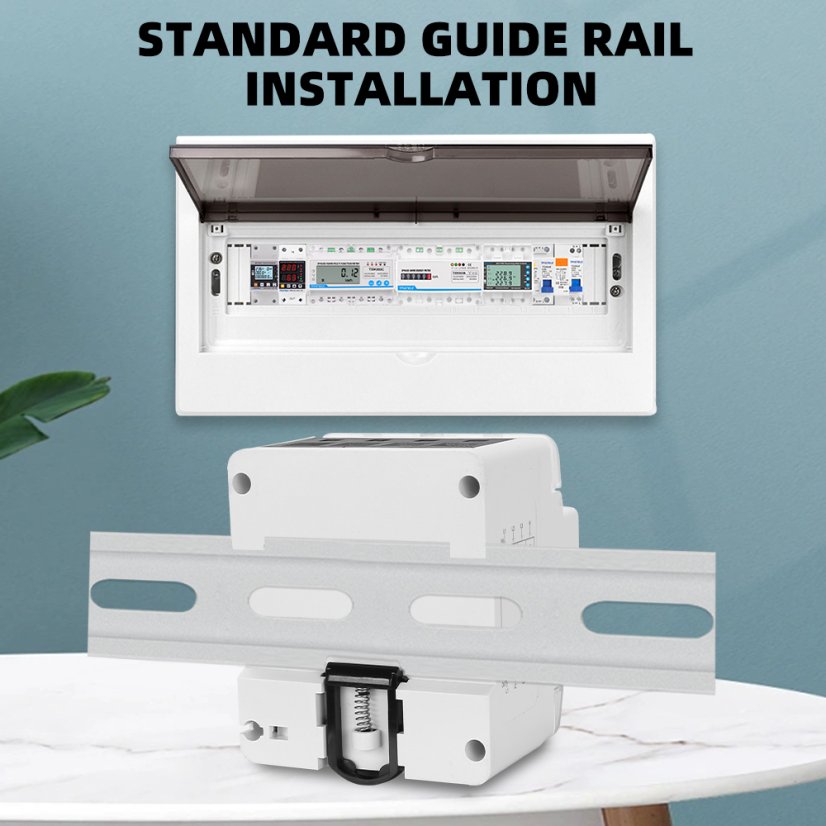

• Installation: 35mm DIN rail.

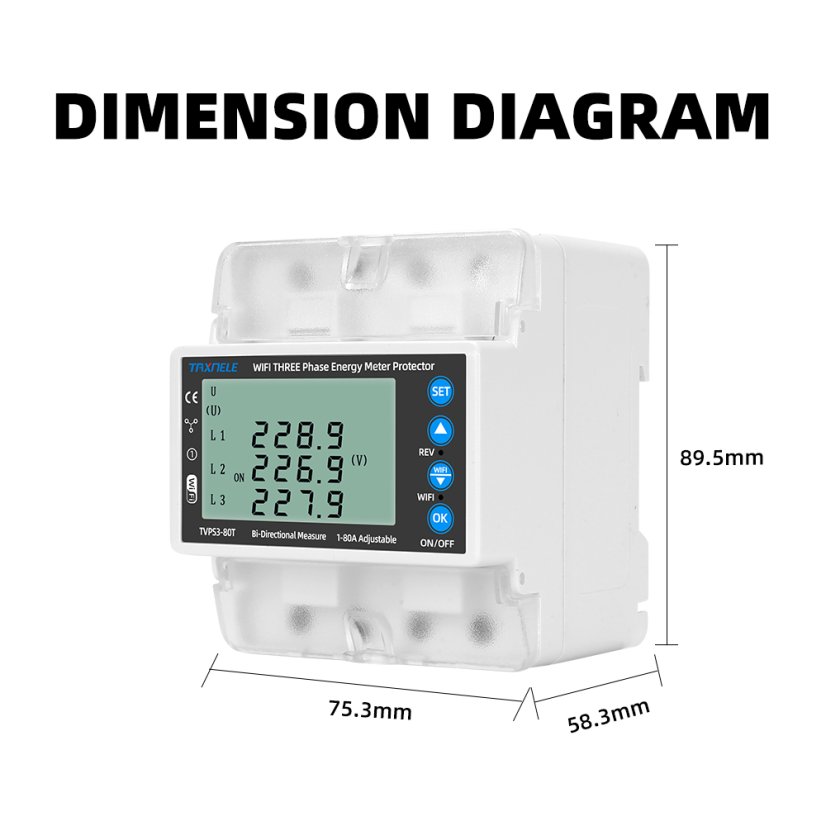

• Dimensions: 7.53x8.95x5.83 cm.
