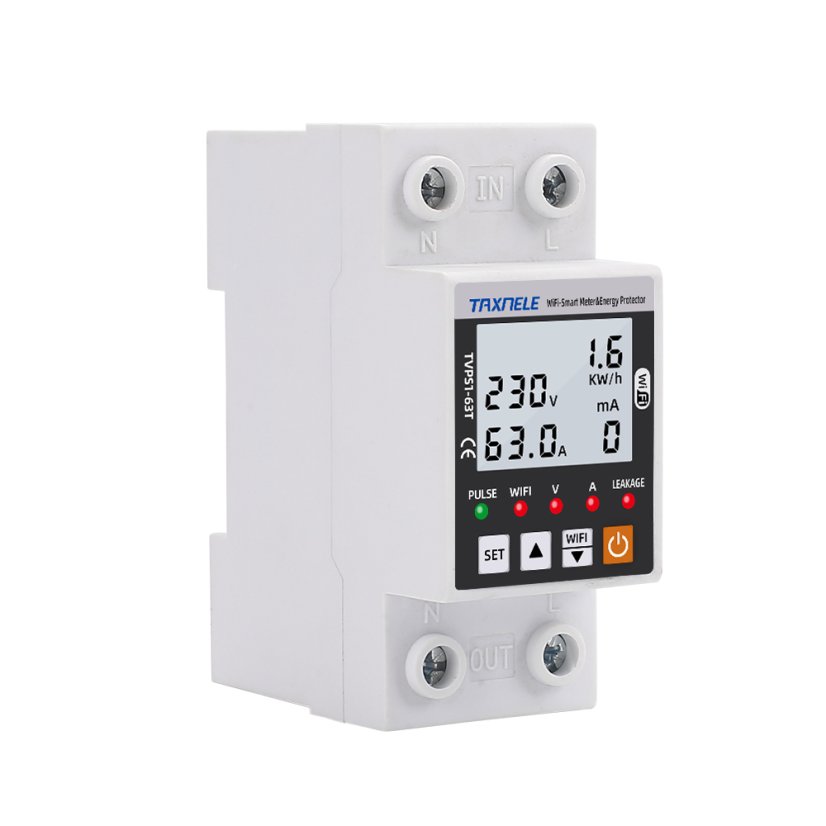

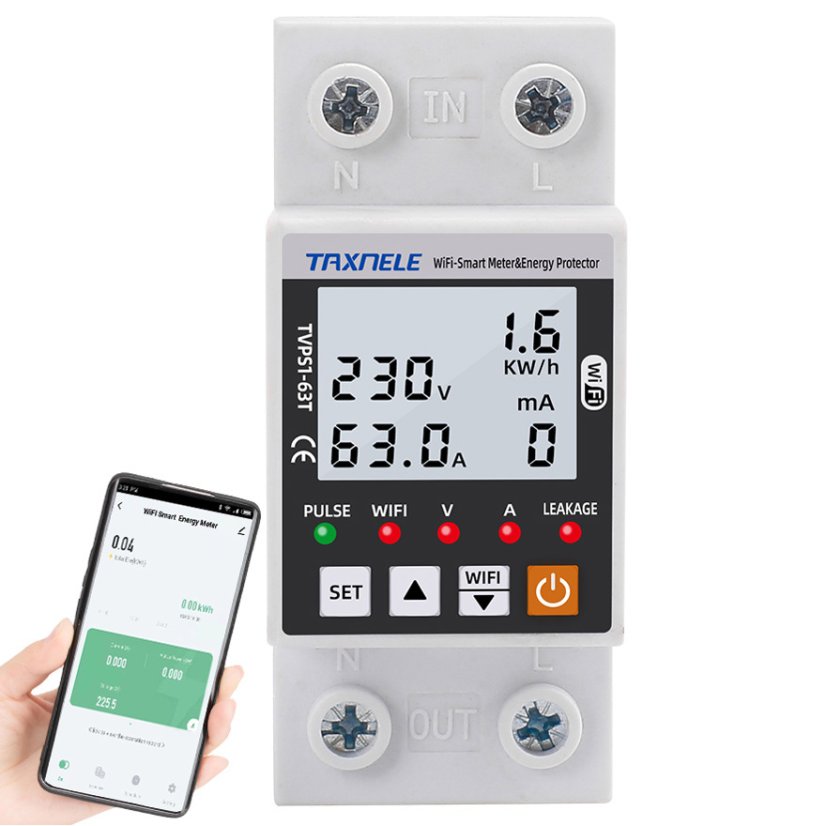

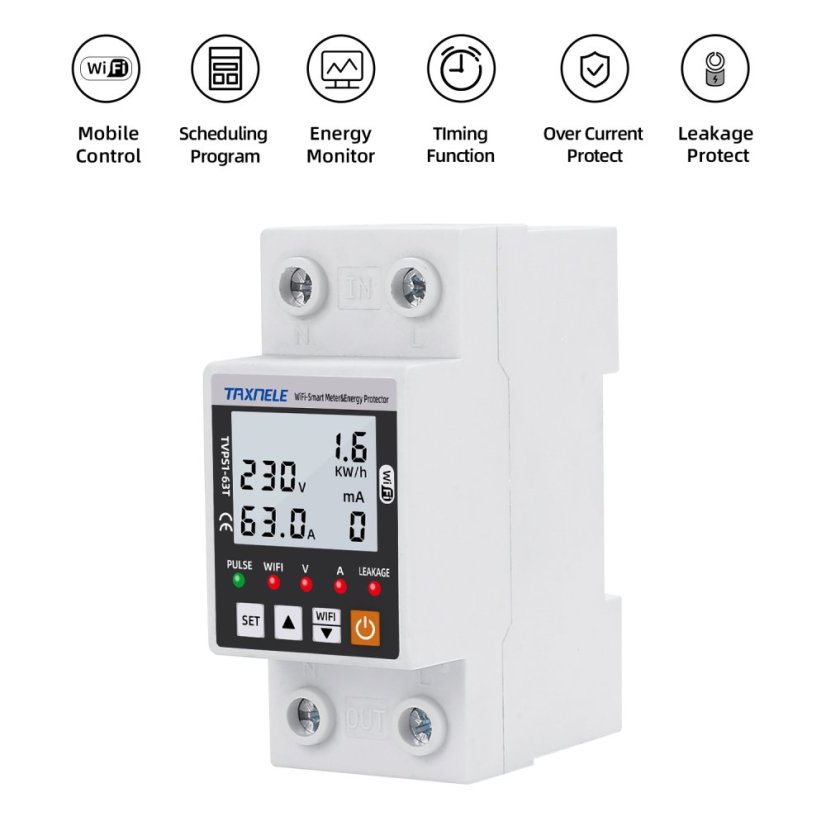

Smart Surge and Under-voltage Protection TVPS1-63T with WiFi

Smart Surge and Under-voltage Protection TVPS1-63T with WiFi

An excellent solution for protecting your electrical equipment from surges and under-voltage. The TVPS1-63T combined with WiFi provides maximum control and flexibility for safe usage.

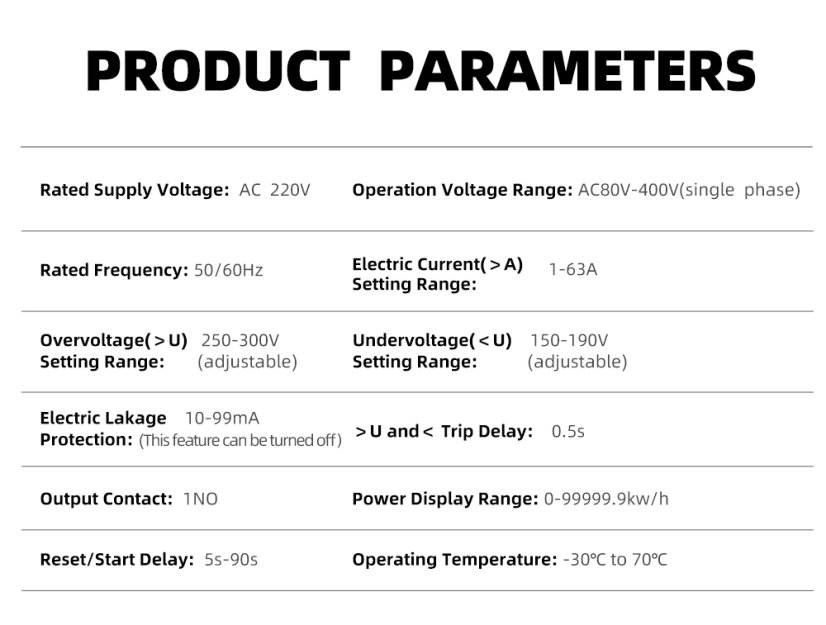

Specifications:

• Model: TVPS1-63T
• Rated Current: 63A
• Reference Voltage: AC 230V
• Frequency: 50-60Hz
• Pulse Frequency: 1200 imp/kWh
• WiFi: IEEE 802.11 b/n/g 2.4G Hz
• Power: 1W/6VA

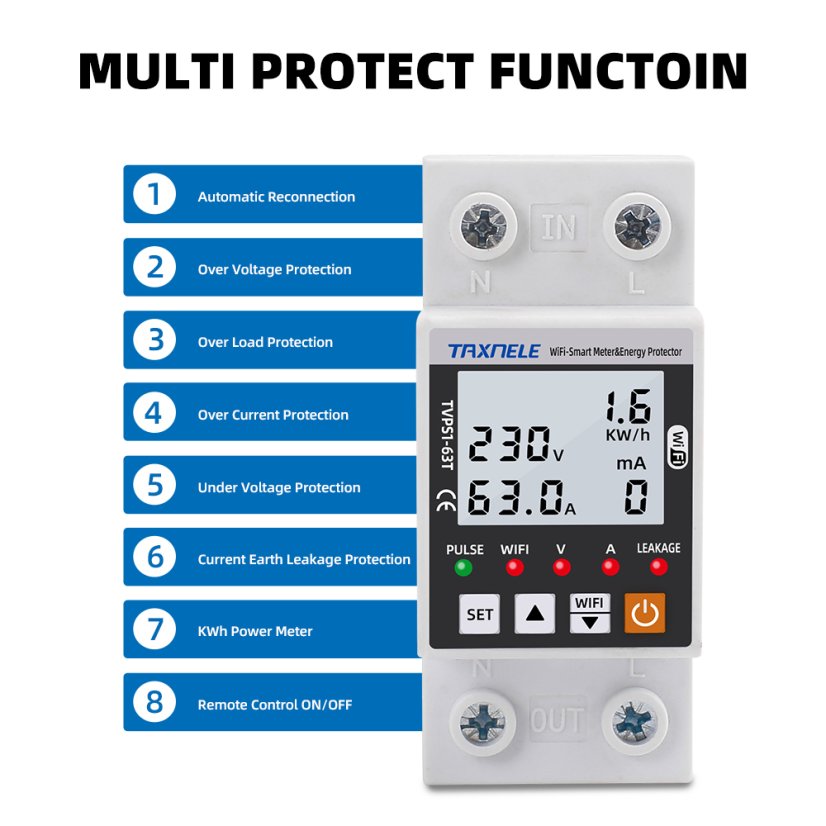

• Features:
• Under-voltage protection 150V-190V (adjustable) (default: 170V)
• Surge protection 250V-300V (adjustable) (default: 270V)
• Overcurrent protection 1A-63A (adjustable) (default: 63A)
• Reconnect time (delay time): 5s-90s (default: 30s)
• Ground fault protection: 10-99mA
• Power display range: 0-99999.9 kWh

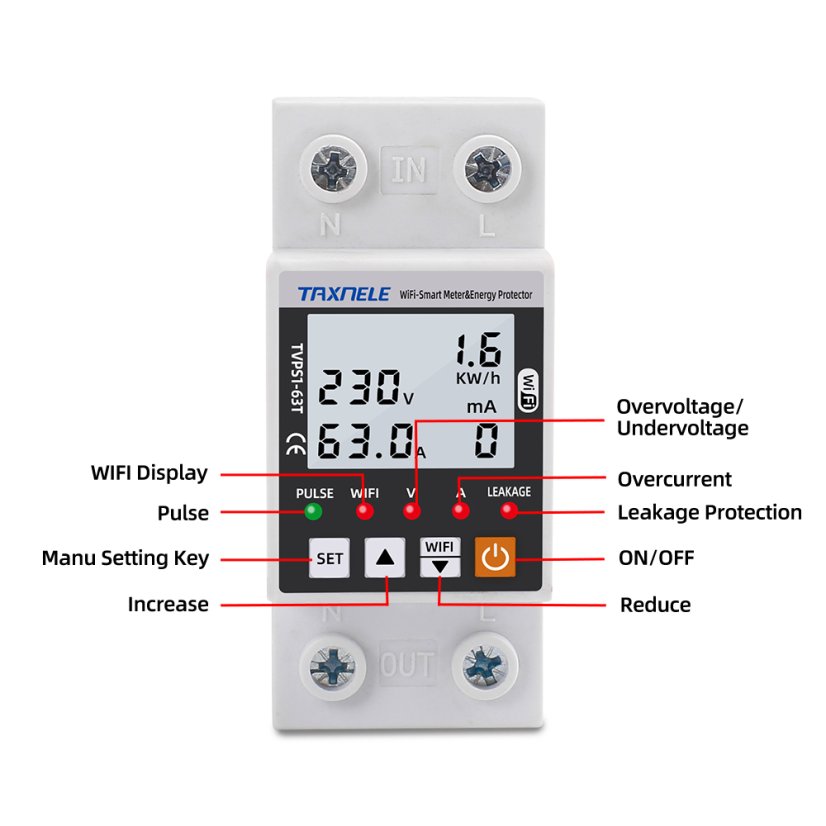

• Voltmeter
• Ammeter
• Energy meter
• Timer
• Usage: Indoor/IP20
• Material: Fire-retardant ABS
• Operating Temperature: -25 °C to + 55 °C
• Operating Humidity: 5% - 99% non-condensing
• Installation: 35mm DIN rail

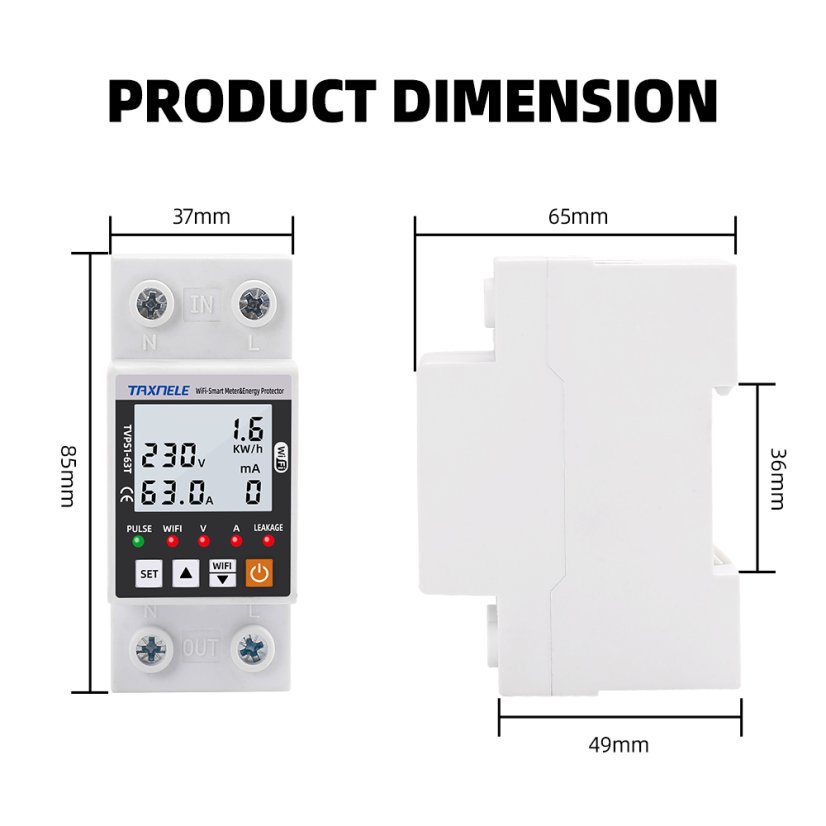

• Dimensions: 3.7x8.5x5.65 cm

NOTE:

If protection shuts off three times due to ground fault protection, the device will not automatically reconnect until the user checks the power outage location and repairs it to ensure safety!

This device has a memory function; when the power is disconnected, it remembers the KWh value, surge, under-voltage, and overcurrent values.
