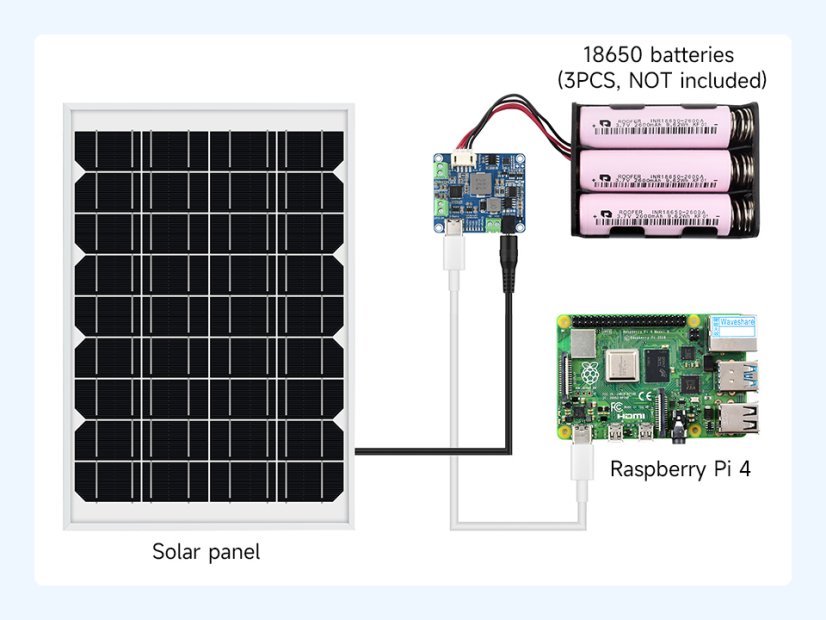

Solar Power Manager Module (D) is a comprehensive solar charge and boost controller designed for 6–24 V solar panels. Featuring Maximum Power Point Tracking (MPPT), it efficiently charges 3.7 V lithium batteries via solar input or USB‑C adapter. With a regulated 5 V/3 A output supporting PD/QC/FCP/PE/SFCP protocols, it powers Raspberry Pi, Jetson Nano, Arduino, and other development boards. LED indicators monitor solar and battery status, while onboard protection guards against over-charge, over-discharge, reverse polarity, overheating, and over-current. Compact and durable, it’s ideal for off-grid, environmental, or IoT projects.

Specification:

• Model: Solar Power Manager D

• Input Voltage (Solar): 6–24V

• Input Voltage (USB-C): 5V

• Battery Type: 3.7V Li-ion (single cell or 3x18650 in parallel)

• Battery Holder: Included

• Charging Method: MPPT (Maximum Power Point Tracking)

• Charging Efficiency (Solar): ~78%

• Charging Efficiency (USB): ~93%

• Boost Efficiency (Battery to Output): ~90%

• Output Voltage: 5V regulated

• Output Current: Up to 3A

• Output Interfaces: USB-C + Screw Terminals

• Fast-Charge Protocols Supported: PD, QC, FCP, PE, SFCP

• No-load Current: <30 mA

• LED Indicators: Solar charging, battery level, power output

• Protections: Overcharge, over-discharge, reverse polarity, overcurrent, overheat

• Operating Temperature: –40 °C to +85 °C

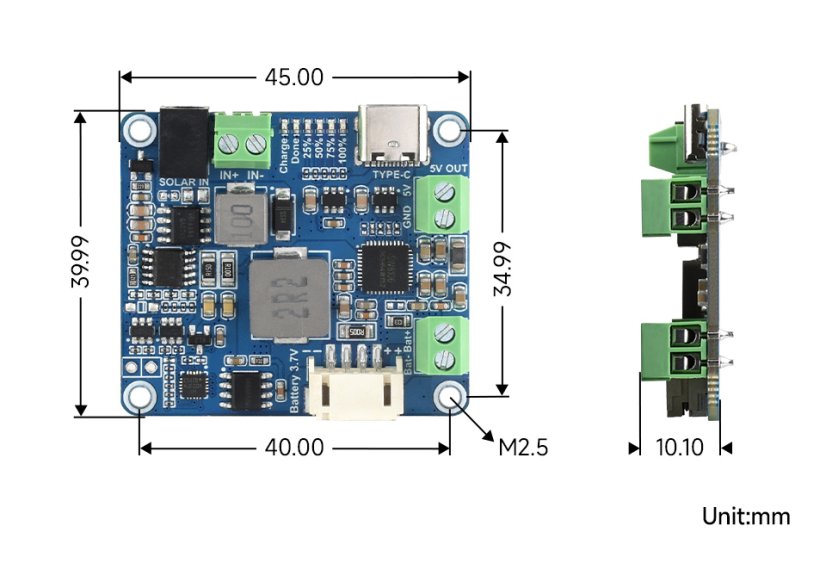

• Dimensions: 45 × 40 × 10.1 mm

• Weight: Approx. 20 g

Wiki: https://www.waveshare.com/wiki/Solar_Power_Manager_(D)

Included:
1x Solar Power Manager Module
1x Holder for 3x 16850 batteruesd (not included)
