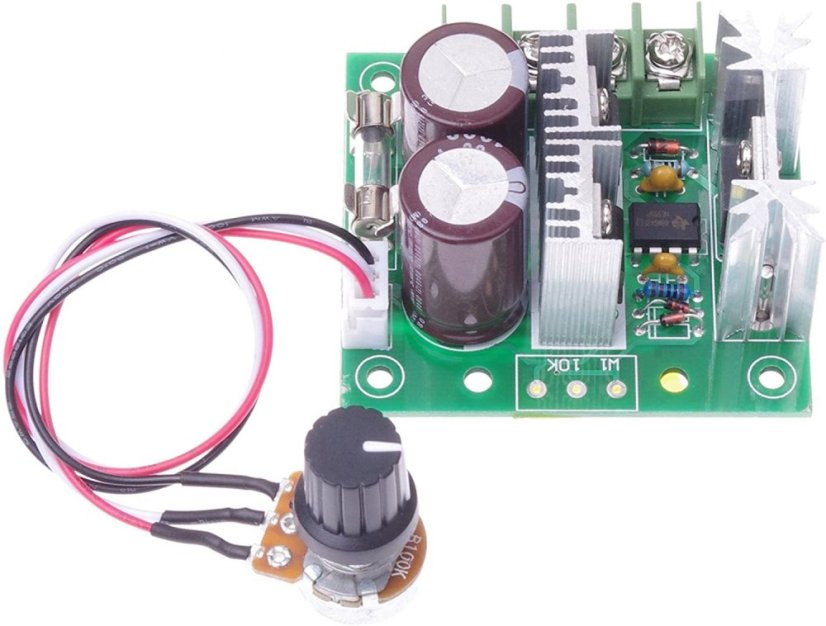

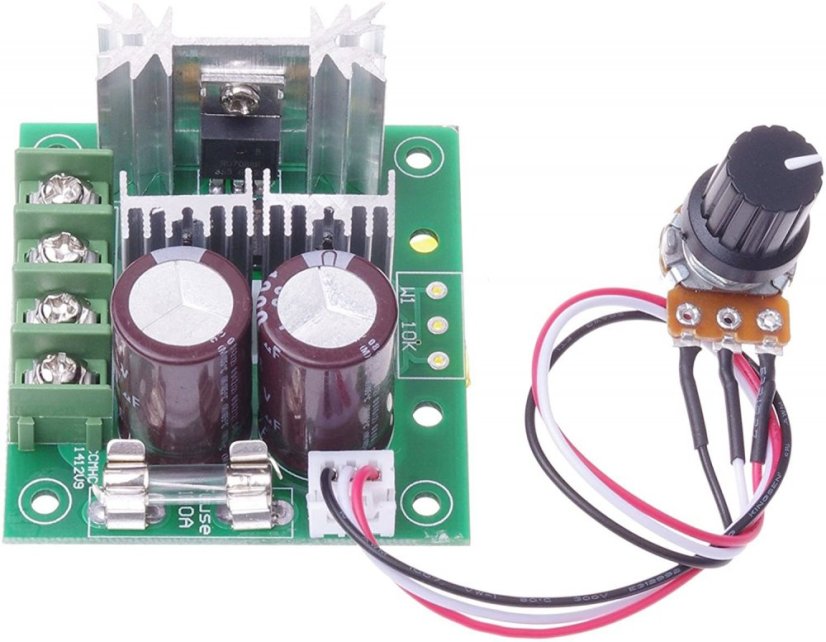

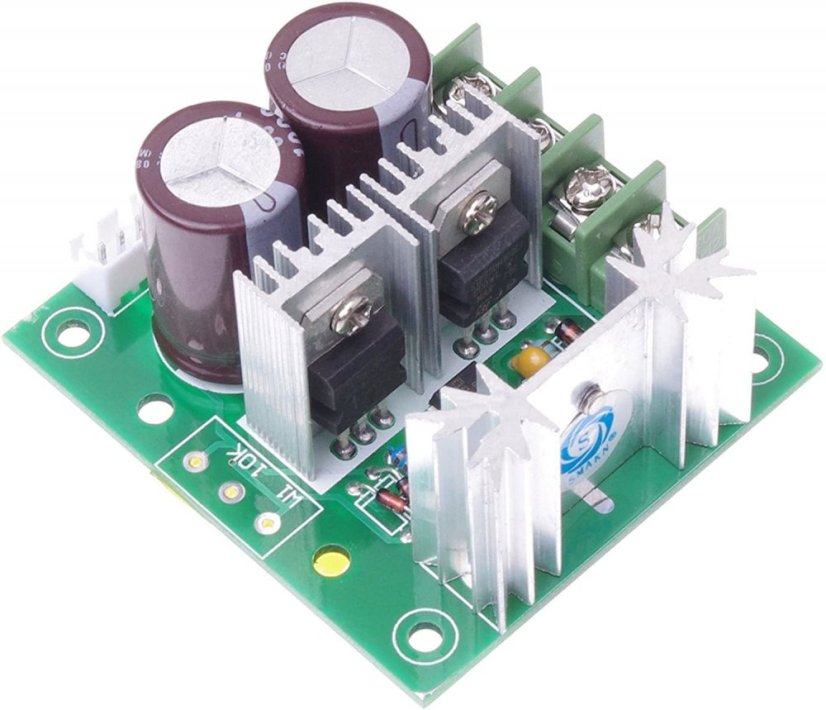

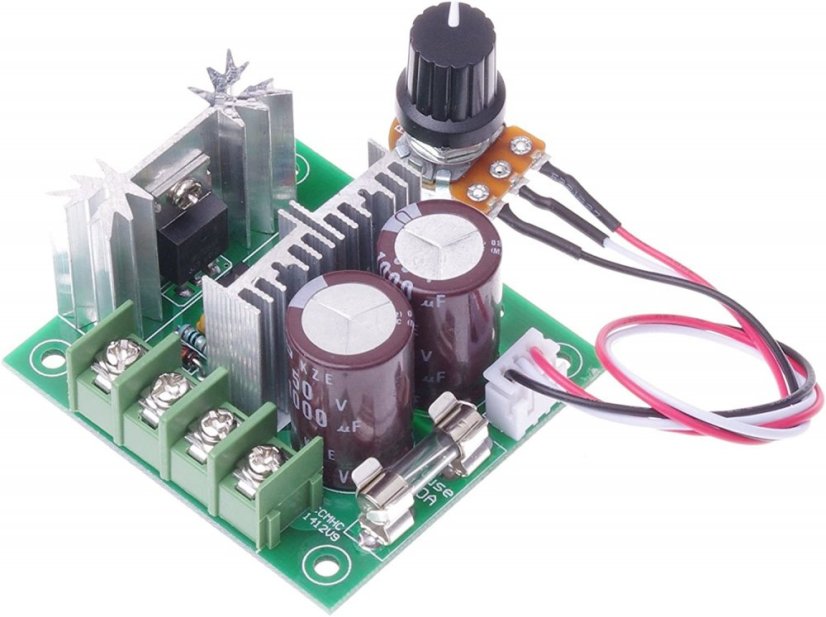

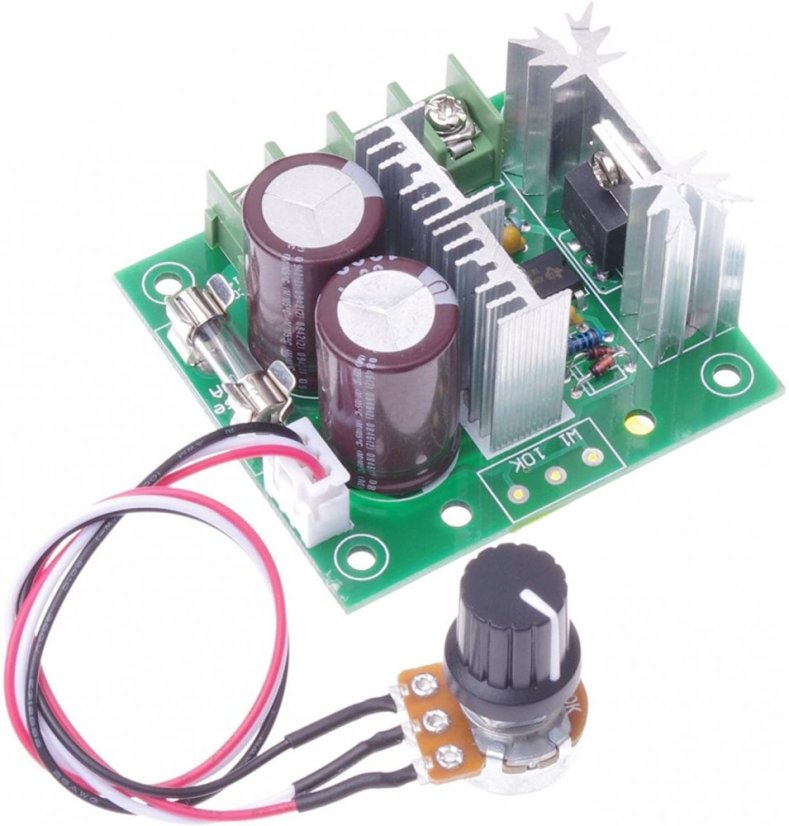

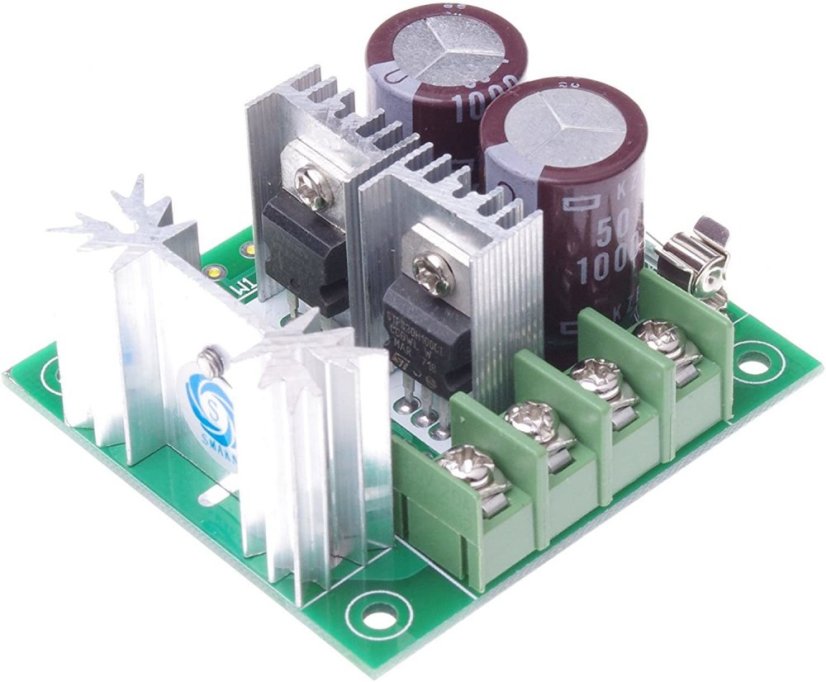

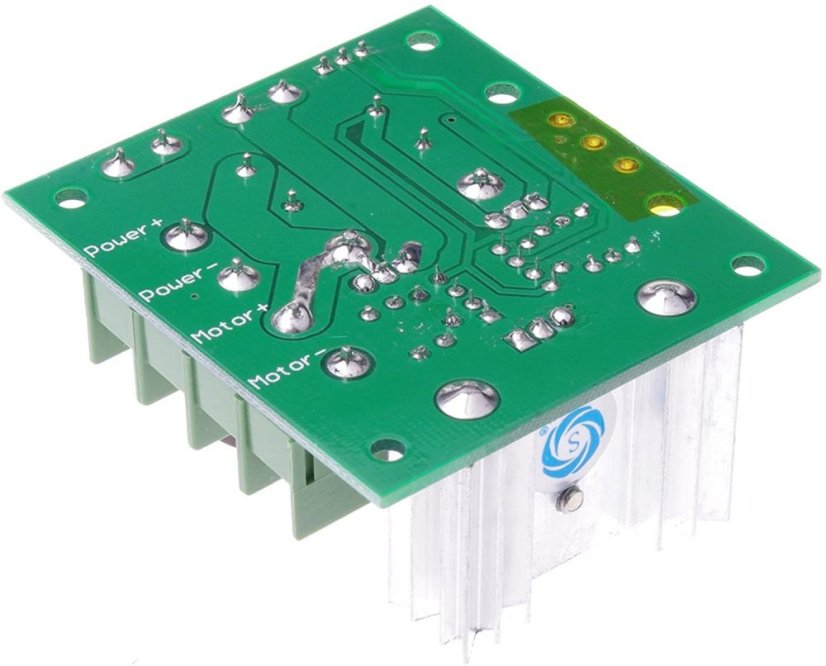

Speed Controller CCMHCW 12V-40V 10A for DC Motors

Speed Controller for DC Motors - PWM 12V-40V 10A

This PWM driver is designed for DC motors. It can be used to control the speed of small motors or the brightness of LED lights. The circuit does not include feedback to maintain the set speed. The regulator uses PWM (Pulse Width Modulation) to vary the width of the current pulse supplied to the motor. With pulse regulation, both the current and voltage remain constant, while the active duration through which the current flows to the motor changes. Thus, the motor maintains consistent power across its entire range of speeds. Adjustable output via potentiometer.

• Model: CCMHCW
• Power Supply: 12V-40V DC
• Voltage Regulation: 0.01 - 400W
• Maximum Output: 10A (fuse)
• PWM Frequency: 13kHz
• Duty Cycle: 10-100%

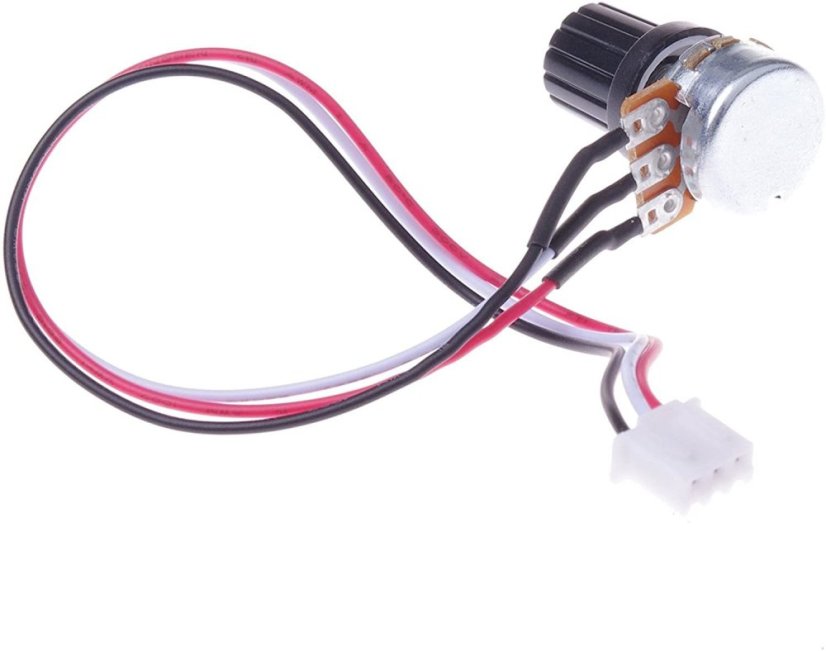

• Potentiometer: 100KΩ
• PCB Dimensions: 60*55*28mm
• Knob Diameter: 19 mm

Not a kit!
