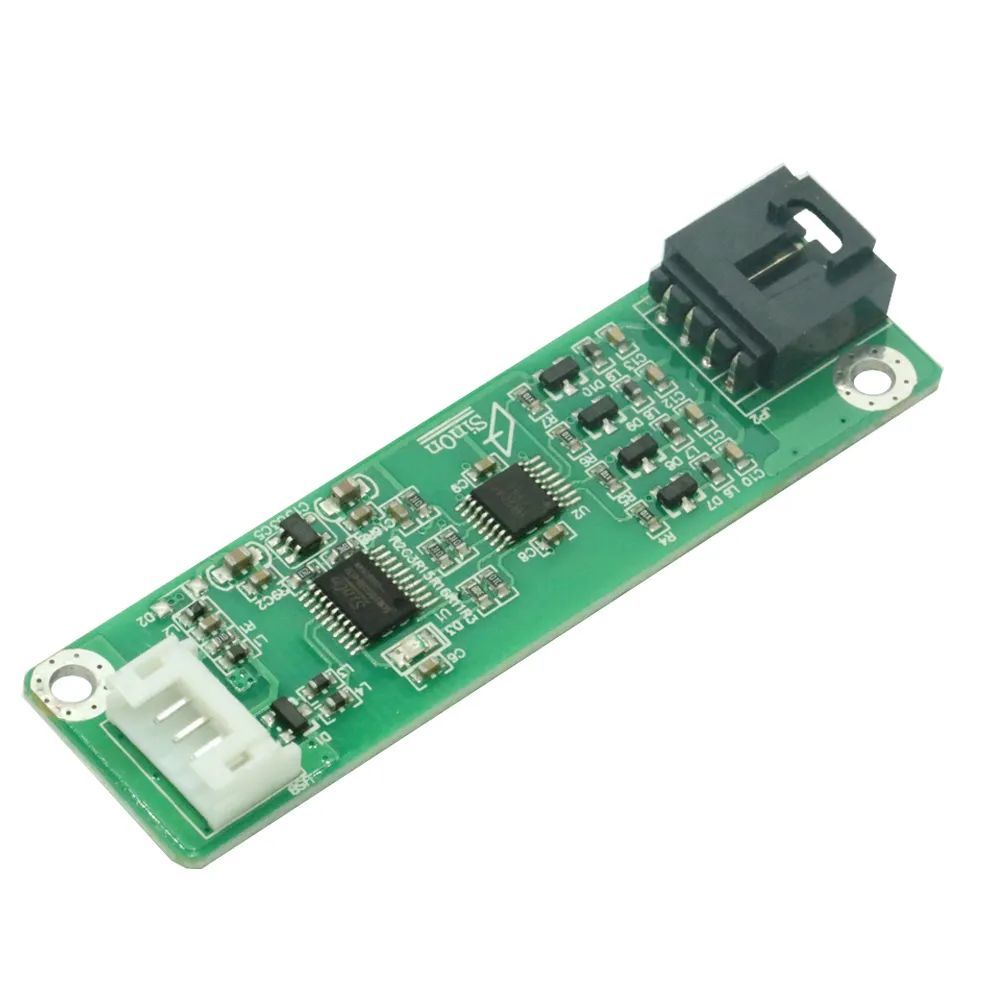

STP-RAP45U2U-S 4-Wire RT to USB Board

STP-RAP45U2U-S 4-Wire RT to USB Board

The USB touch controller connected to an attached glass touch panel can be an efficient solution for various applications requiring user interaction. The 4-wire resistive touch panel with the control card simplifies the user interface and facilitates the operation of various devices. This touch controller model is compatible with 4-wire resistive touch panels. Connection to the computer is through a USB port, and Plug and Play support is also available. It supports both modern and older operating systems, including Windows 10, Windows 8, Windows 7, Windows 98, 2000, NT4, Me, XP, XP Tablet Edition, CE 2.12, CE 3.0, CE.net, Linux, DOS, and iMac touch screens. The controller emulates all mouse functions, including right and left button functionalities.

Features:

• Model: STP-RAP45U2U-S
• 4-point calibration
• 25-point calibration
• Right mouse button support
• Line drawing test support
• Multilingual operating window
• Multi-monitor support
• With visual rotation
• Touch screen communication interface: USB
• PC interface: Pin Header
• Power requirements: D.C.+5V (Max 100mA, typically 70mA, 50mV peak value maximum fluctuation)
• Operating temperature: 0 to 50 ℃
• Storage temperature: -40 to 80 ℃
• Relative humidity: 95% at 60 ℃
• Interface: USB 1.1 Low Speed
• Reporting frequency: Max. 160 points/sec
• Response time: Max. 35 ms
• Output order: X +, Y +, X-, Y-
• Resistance range: 300 ~ 900 ohm (pin to pin on the same layer)
• Supports operating systems including Windows 8, Windows 7, Windows 98, 2000, NT4, Me, XP, XP Tablet Edition, CE 2.12, CE 3.0, CE.net, Linux, DOS, and iMac.

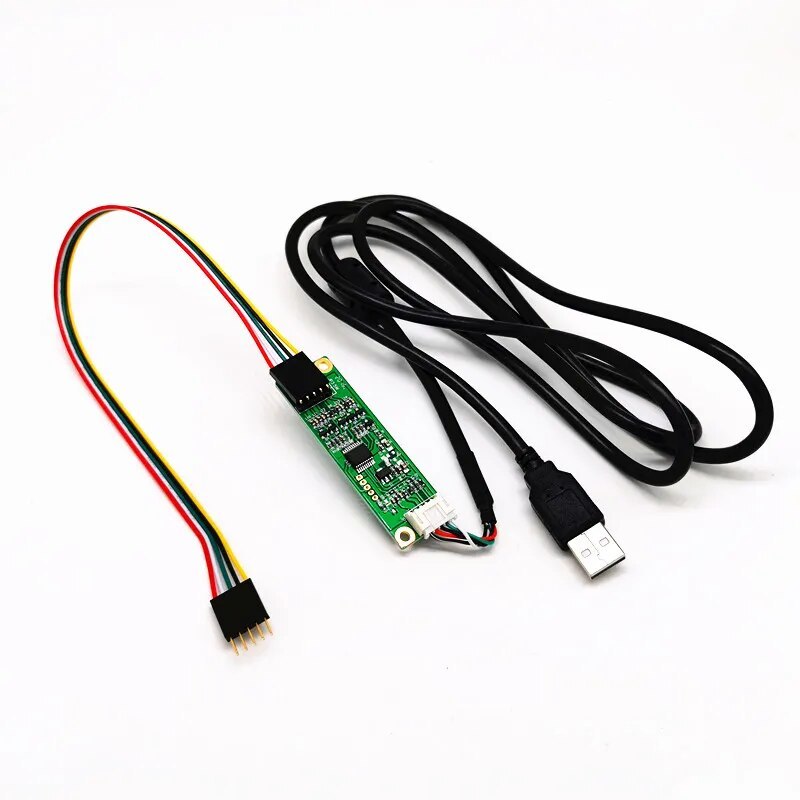

Package includes:
1 x 4-wire resistive USB controller
1 x USB cable
1 x Customized extension cable
