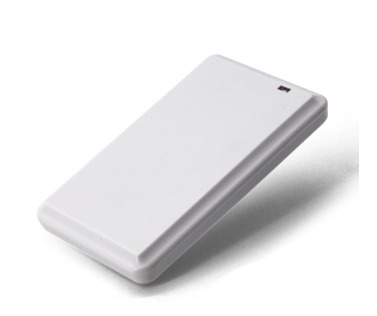

T-62 RFID UHD USB Reader and Writer

T-62 RFID UHD USB Reader and Writer

UHF reader T-62 is an ultra high frequency RFID reading device compatible with the ISO18000-6C EPC Gen 2 protocol and operates within the frequency range of 920-9925 MHz. It is designed for installation in confined spaces due to its compact size. Drivers are installed automatically.

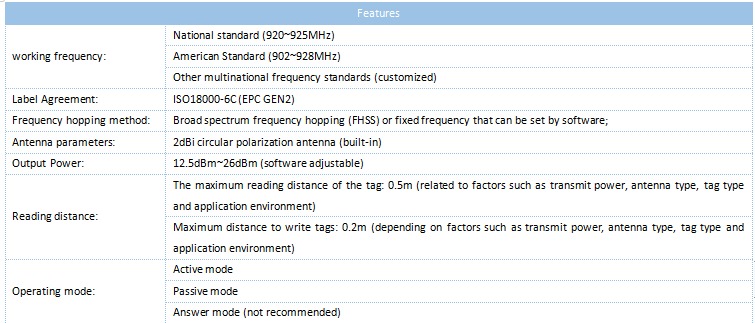

Specifications:

• Model: T-62
• Technology: RFID UHF
• Writing capability: yes
• RFID protocol: EPC Class 1 Gen 2
• ISO: 18000-6C
• Frequency:
• National standard (920-925MHz)
• American standard (902-928MHz)
• Frequency hopping method: Wideband frequency hopping (FHSS) and fixed frequency can be set in the software
• Signal range:
• reading 0.5m
• writing: 0.2m
• Operating mode:
• active mode
• passive mode
• Design: desktop
• Power supply: 5V DC USB
• Operating temperature: -10 to 60 °C (14 to 140 °F)
• Storage temperature: -15 to 65 °C (5 to 149 °F)
• Humidity: 10 - 90 %
• Interface: USB HID
• Case material: ABS
• Color: white
• Weight: 150 g (0.33 lbs)
• Dimensions: 12 x 8.6 x 7.9 cm (4.72 x 3.39 x 3.11 in)

Drivers:

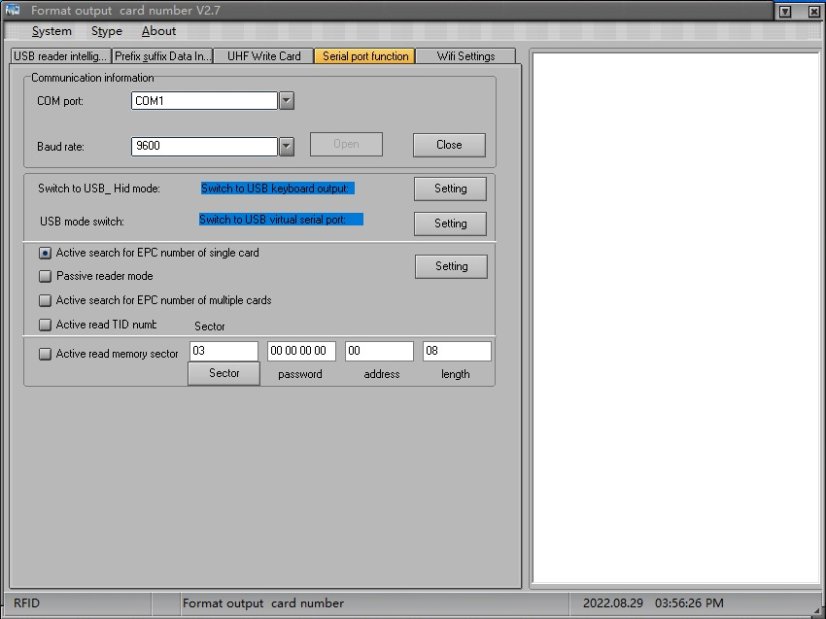

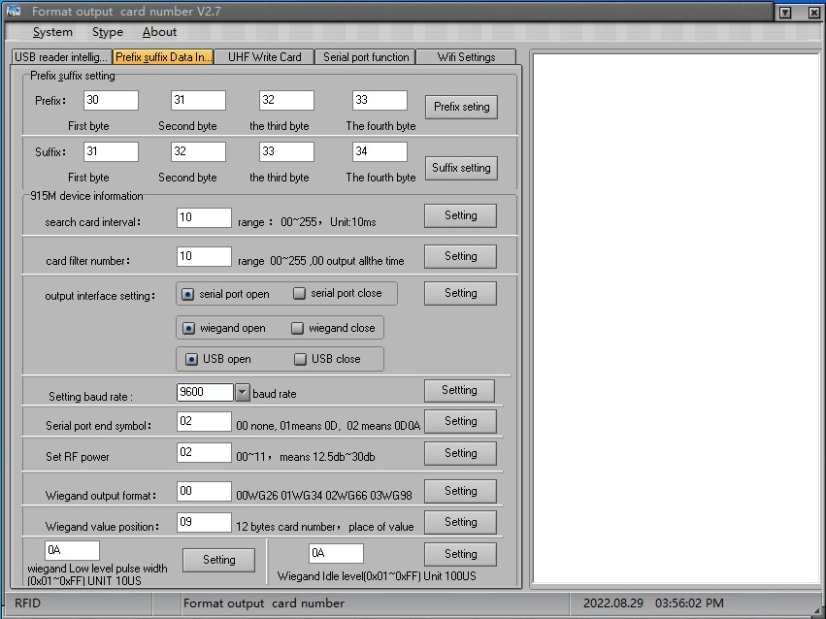

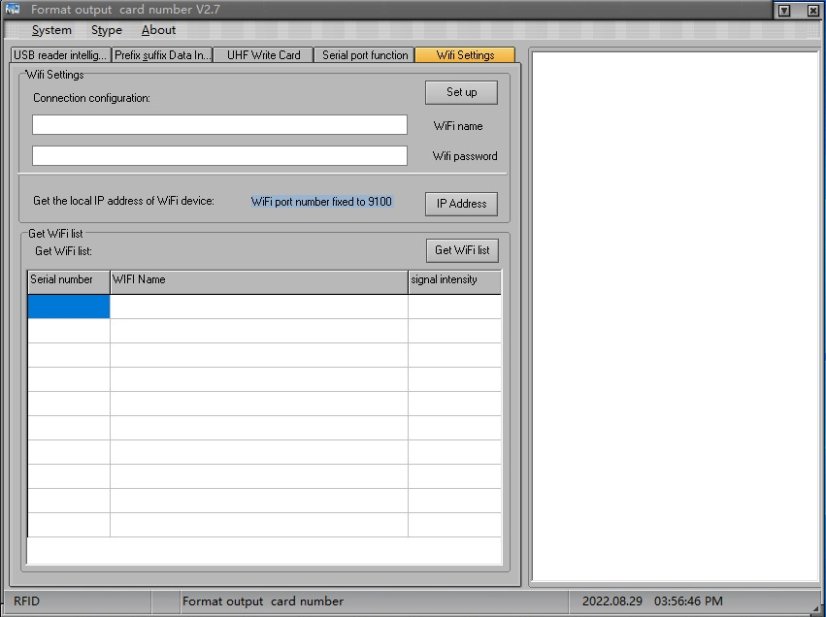

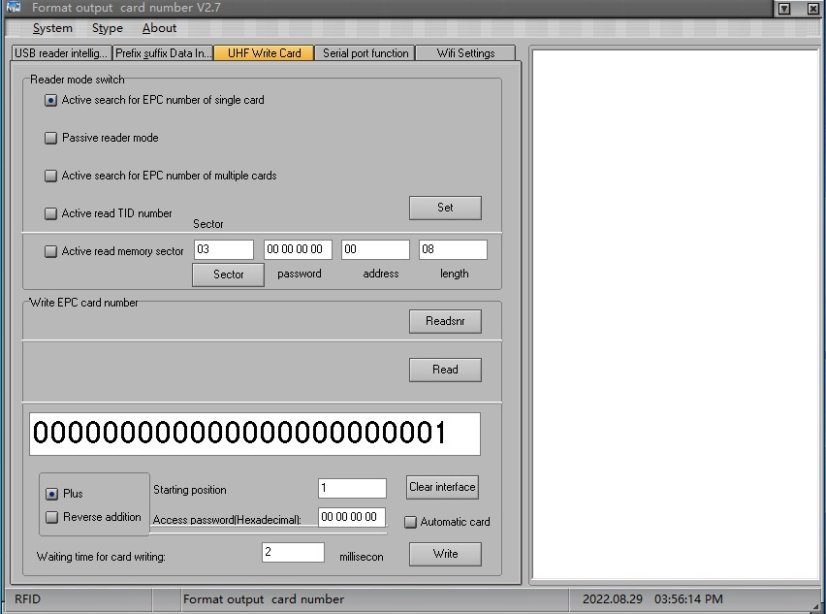

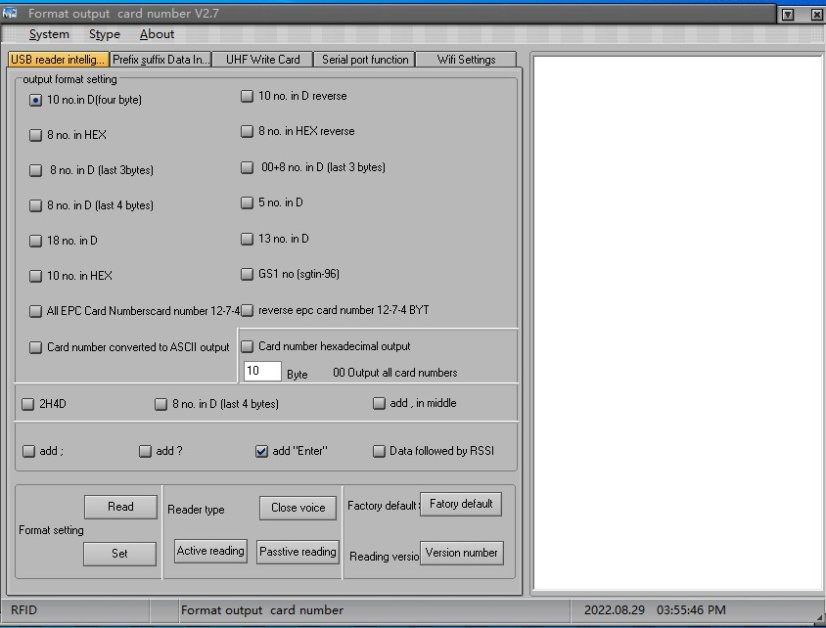

SW + Manual:

The RFID card reader/writer operates only with the software from the link mentioned above:

Package includes:
1x T-62 RFID card reader/writer
