tinySA Portable Spectrum Analyzer and Generator
tinySA Portable Spectrum Analyzer and Generator
The tinySA is a portable spectrum analyzer or signal generator capable of performing a wide range of measurements from 5100 kHz to 350 MHz and 240 MHz to 960 MHz. More
69,10 EUR
incl. VAT
The tinySA is a portable spectrum analyzer or signal generator capable of performing a wide range of measurements from 5100 kHz to 350 MHz and 240 MHz to 960 MHz. More
tinySA Portable Spectrum Analyzer and Generator

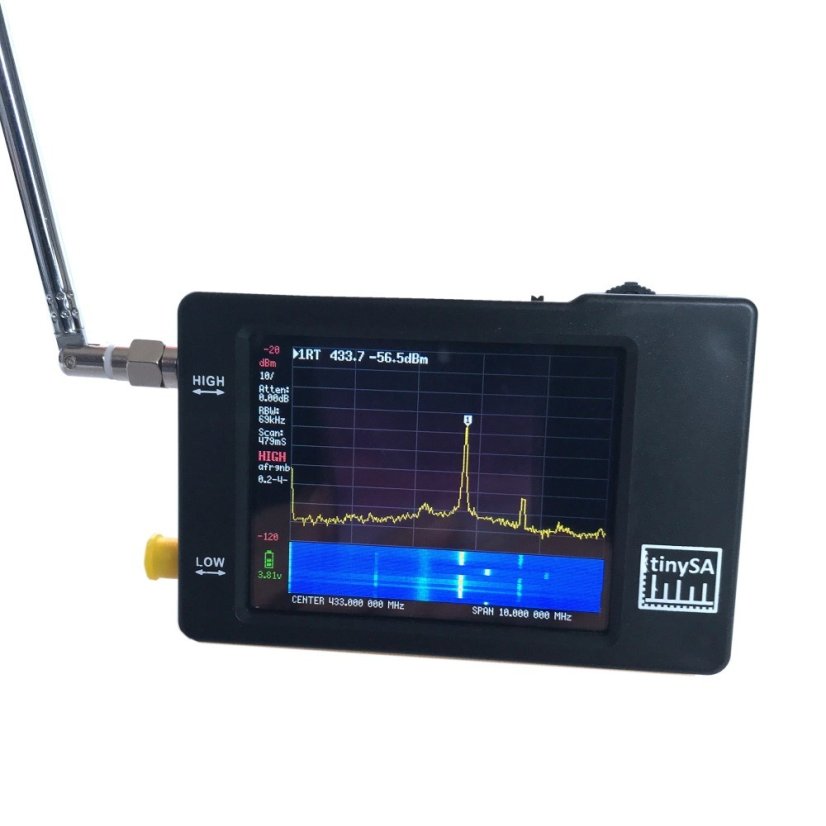

The tinySA is a portable spectrum analyzer or signal generator capable of performing a wide range of measurements, from 100 kHz to 350 MHz and 240 MHz to 960 MHz.
Specifications:
|
Parameter |
Specification |
|
Model |
tinySA HW v. 0.3.1_EL |
|
Frequency Range |
100 kHz ~ 350 MHz 240 MHz ~ 960 MHz |
|
Display Size |
2.8" |
|
Resolution |
320*240, 16bit RGB |
|
Power Supply |
USB, 5V ± 0.5V 500mA MAX |
|
Operating Temperature |
-10℃ ~ 50℃ |
|
RF Connectors |
SMA female |
|
Display |
2.8” TFT LCD (320×240) |
|
3.95” TFT LCD (480×320) |

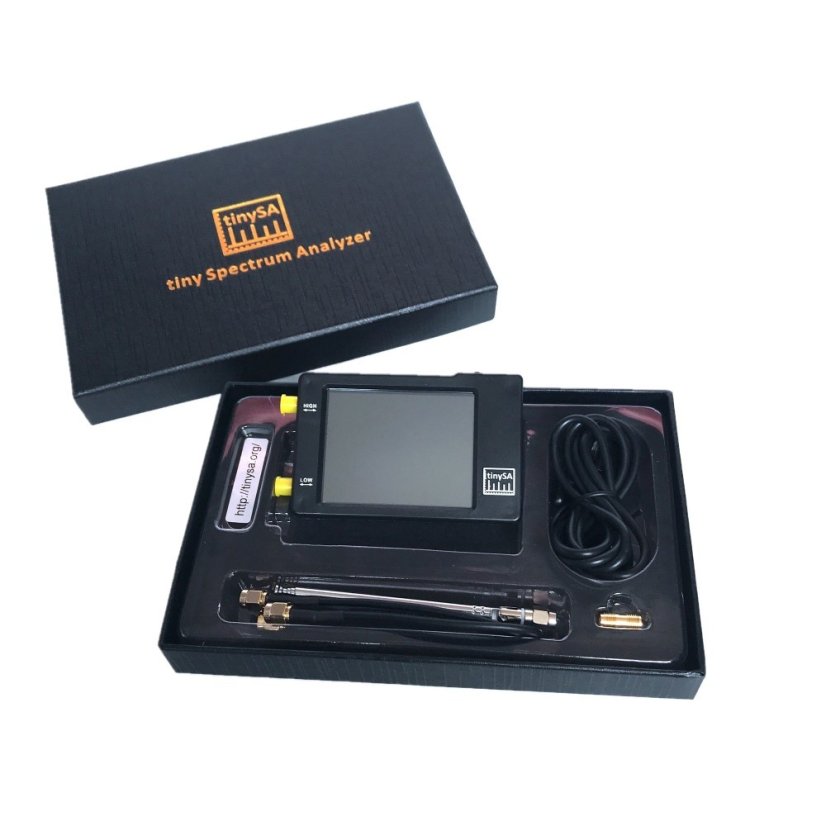

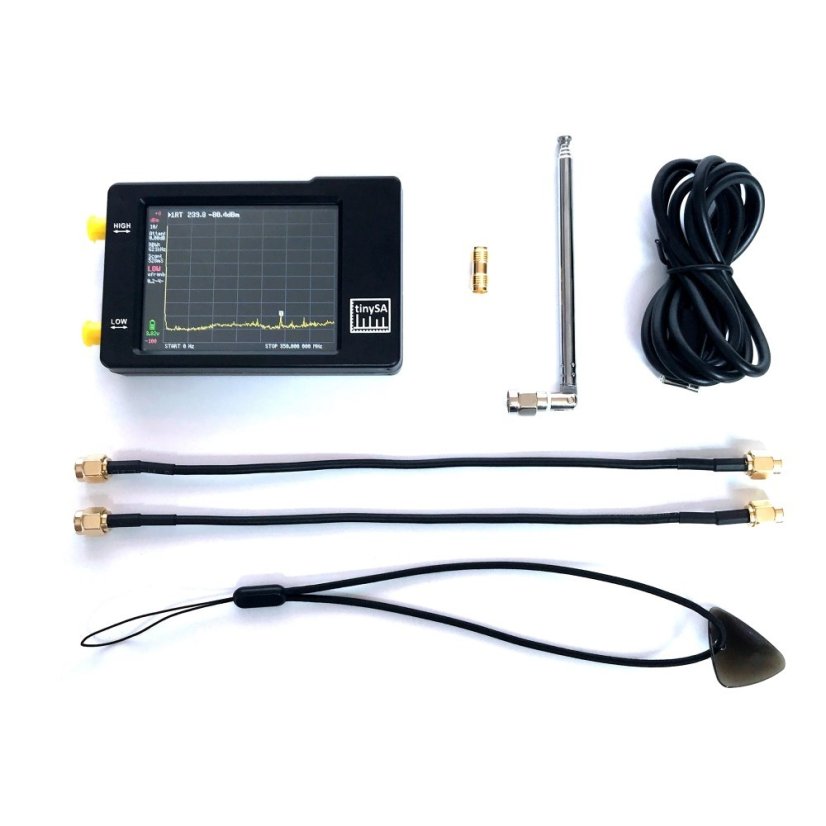

Included:
- tinySA
- USB-C Cable
- 2 pcs SS405 SMA RF cables 30cm
- antenna
Manual/Wiki (EN): https://www.tinysa.org/wiki/
