tinySA ULTRA+ Portable Spectrum Analyzer and Generator

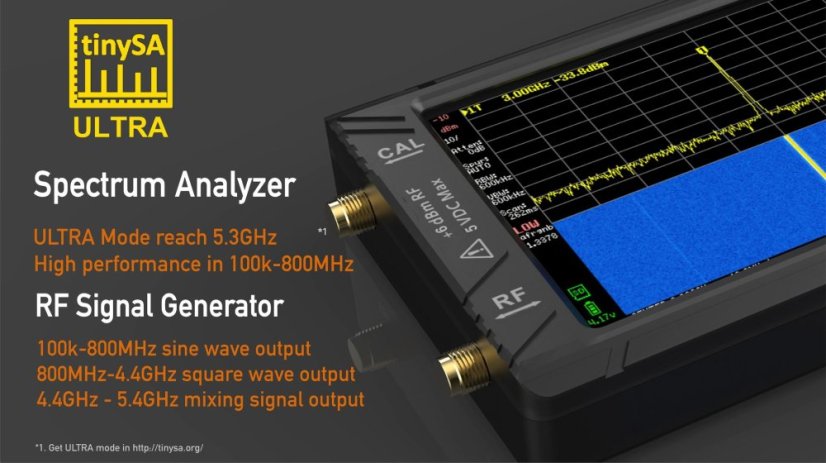

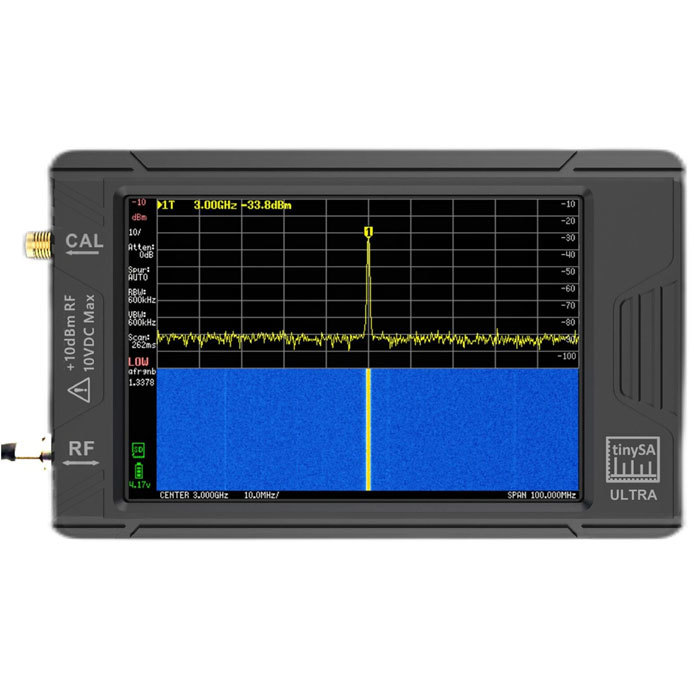

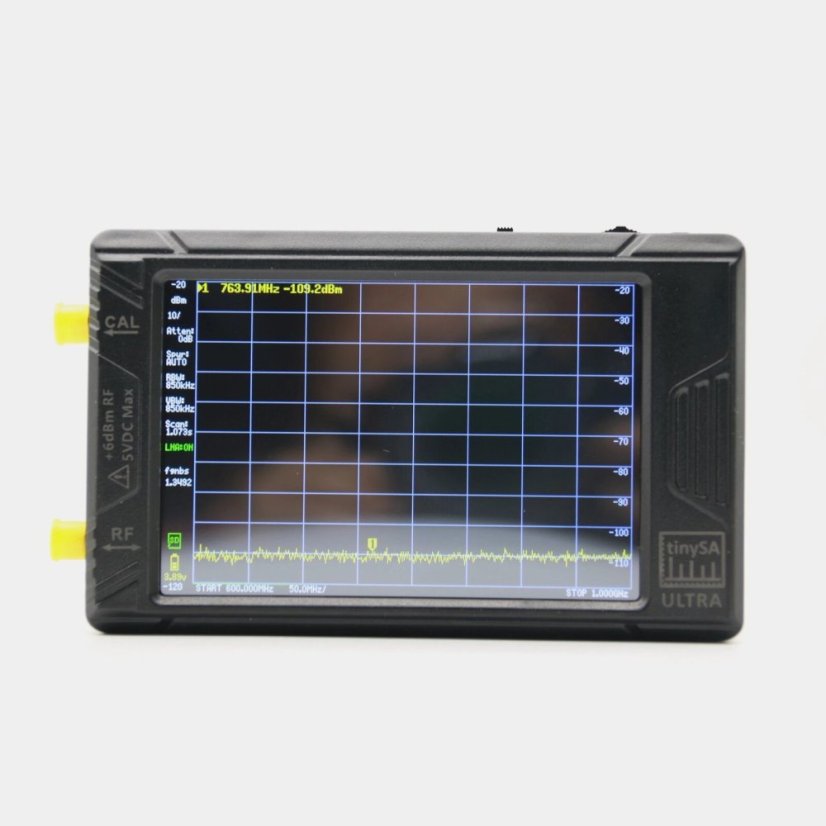

The tinySA ULTRA+ is a portable spectrum analyzer or signal generator, providing a wide measurement range from 100 kHz to 5.4 GHz.

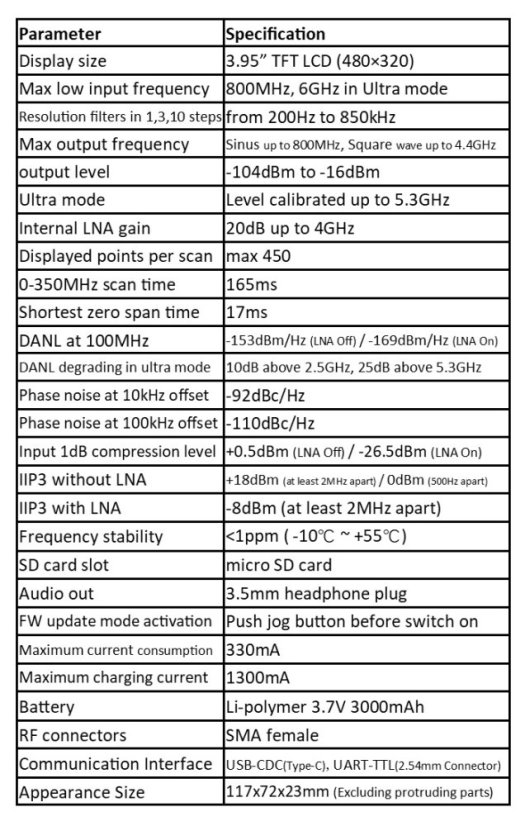

Specifications:
| Parameter | Specification |
| Model | tinySA ULTRA+ (ZS-406) HW v. 0.4.6 |
| Frequency Range | 100 kHz ~ 900 MHz 900 MHz ~ 5.4 GHz |

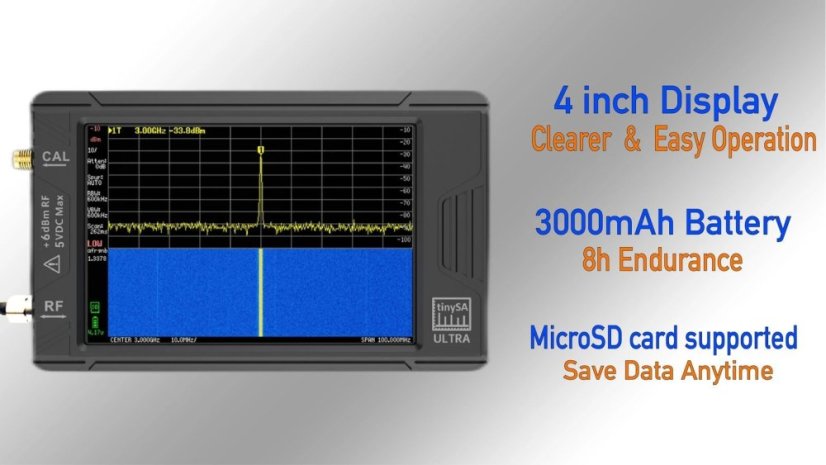

| Display Size | 3.95” |
| Resolution | 480×320, 16bit RGB |
| Power Supply | USB-C, 5V±0.5V 1.5A MAX |
| Operating Temperature | -10℃ ~ 50℃ |
| RF Connectors | SMA female |
Includes:
- tinySA ULTRA+
- USB-C cable
- 2 pcs SS405 SMA RF cables 30cm
- antenna
Manual/Wiki (EN): https://www.tinysa.org/wiki/
