Touchless Switch with IR Sensor, 12-24V – SI-12
Variants6
| IR switch – Thread diameter | IR switch – Model | IR switch – Cover | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|---|---|
 |
19mm | SI-12 | without case | >= 5 pieces in Stock | 17,50 EUR | |||
|
22mm | SI-15 | without case | >= 5 pieces in Stock | 18,30 EUR | |||
|
22mm | SI-25 | with case - 115x39mm | >= 5 pieces in Stock | 20,90 EUR | |||
|
22mm | SI-85 | with case - 86x39mm | >= 5 pieces in Stock | 21,50 EUR | |||
|
38mm | SI-18 | without case | >= 5 pieces in Stock | 20,70 EUR | |||
|
38mm | SI-88 | with case - 86x39mm | Out of Stock Watch availability | 22,30 EUR | Demand |
Touchless Switch with Infrared IR Sensor
The touchless switch with an IR sensor is used to turn on and off any lighting or other devices with an operational voltage of 220 – 240V/50Hz.
Usage: Anywhere instead of a mechanical switch.
Warning: Ensure proper connection of input voltage and avoid short-circuiting wires.

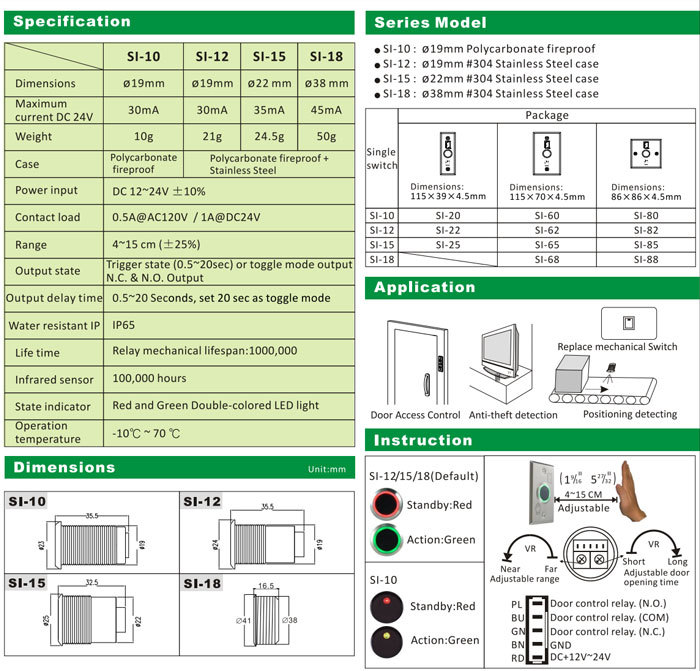

Specifications:

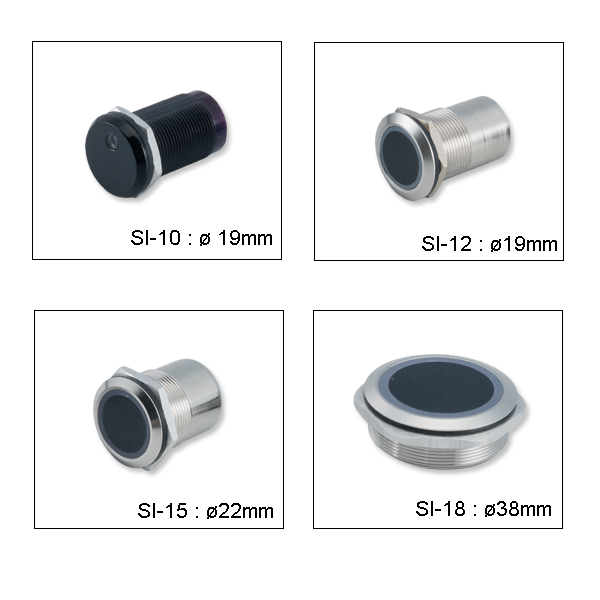

- Model and thread diameter:
- SI-12, 19mm
- SI-15, 22mm
- SI-18, 38mm
- Motion detection: max. 4-15cm (±25%) from the sensor
- Contact configuration: NC, NO
- LED color: red/green
- Printing (design): none
- Power supply: 12-24V DC
- Switching voltage: 220V AC / 24V DC
- Switching current: 0.5A / 1A
- Housing material: stainless steel
- Protection rating IP: IP66, IK09
- Mounting type: Panel mounting
- Material: nickel-plated brass
- Operating temperature range: -10 ~ +70°C
