TQP3M9009 Low-Noise RF Signal Amplifier 50-4000MHz LNA for HF VHF/UHF

TQP3M9009 Low-Noise RF Signal Amplifier 50-4000MHz LNA for HF VHF/UHF

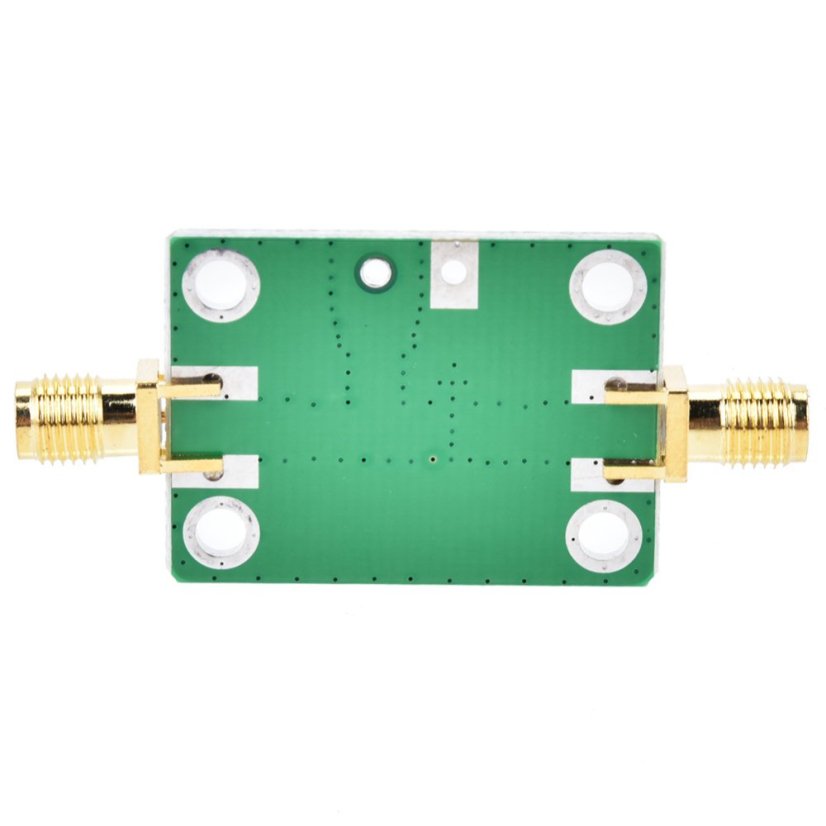

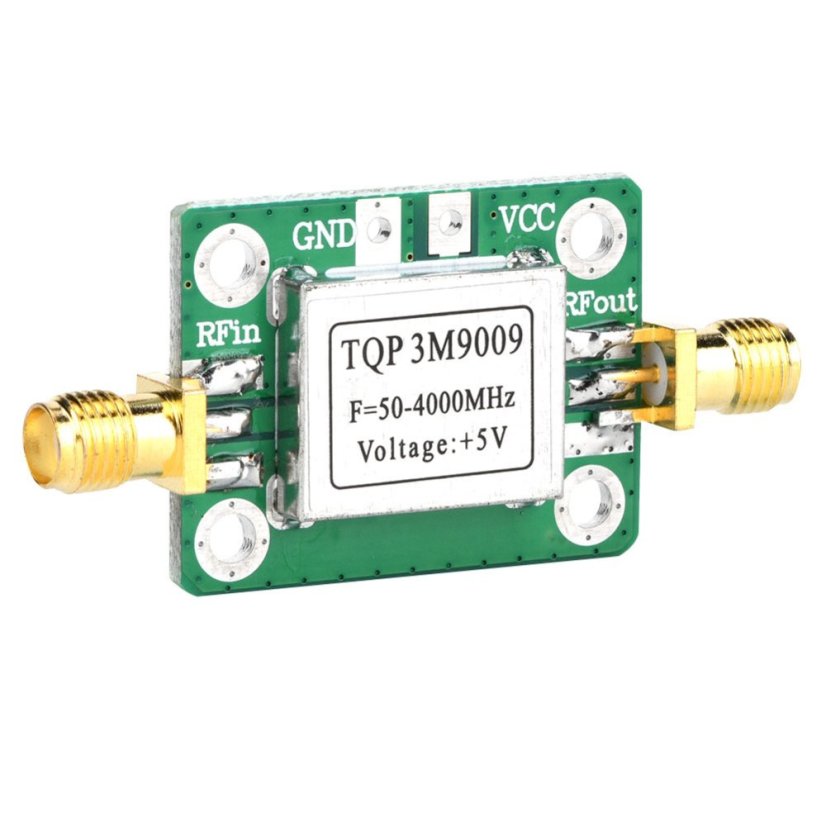

The TQP3M9009 low-noise amplifier module features high gain and delivers very low noise across a broad frequency range. It is powered by 5V and offers excellent stability and a wide dynamic range, making it ideal for solid amplification of various RF signals.

Specifications:

• Model: TQP3M9009
• Chip Used: TQP3M9009
• Operating Frequency: 50-4000MHz
• Gain: 21.8 dB (typical)
• SNR: 1.3 dB (typical)
• Maximum Output Power: +22dBm (150mW) @ 1dB compression point
• Operating Current: 125mA (5V)
• Voltage: 5VDC
• Impedance: 50 ohms
• Dimensions: 52 x 24mm
• Connector: SMA-F

Datasheet: https://www.qorvo.com/products/p/SPF5189Z

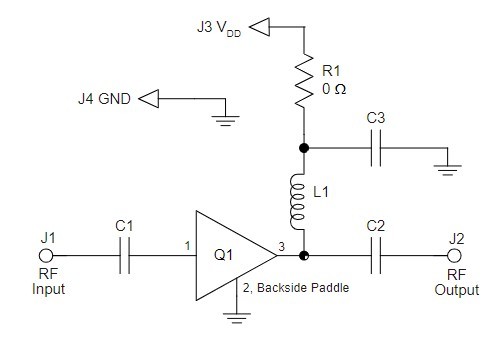

Reference Diagram:

Package Contents:

1 x TQP3M9009 LNA board with metal cover
