Tuya WiFi 8v1 Electrometer 170-270V/63A

Tuya WiFi 8v1 Electrometer, application control, voltage and current meter 170-270V/63A

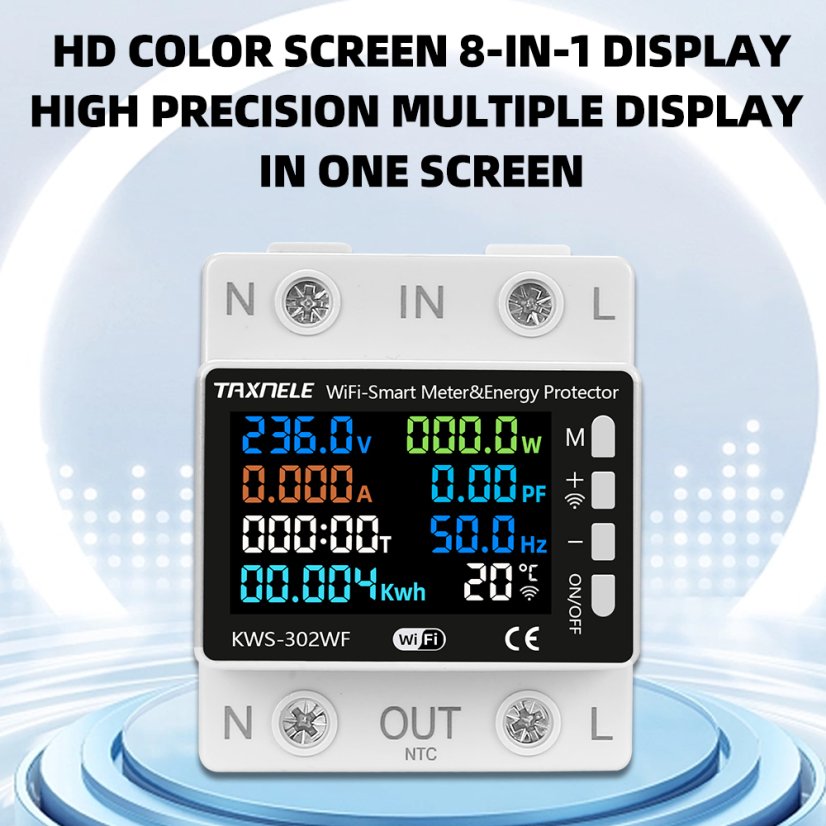

This 1-phase electrometer has a clear and readable display, making its operation more convenient and safer. It measures voltage, current, power, timing, electrical energy, temperature, frequency, and power factor in a compact 8-in-1 design! It helps users understand their electricity consumption. With a standard DIN rail for easy installation, it is suitable for apartments, businesses, shopping centers, hotels, family houses, and similar applications.

Specifications:

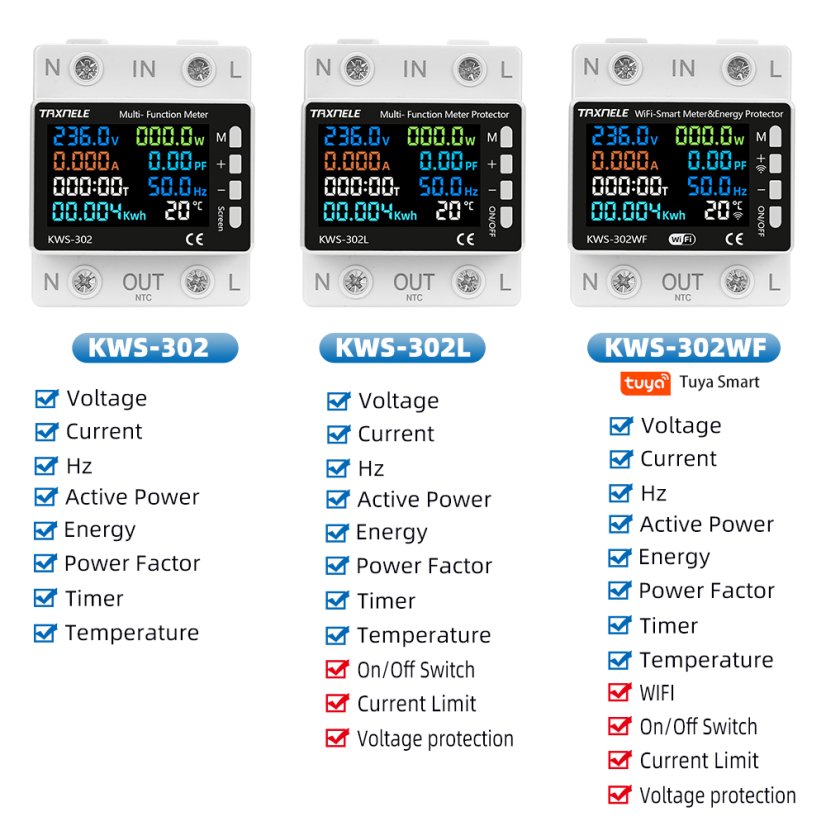

• Model:
• KWS-302WF (with WIFI and shutdown function)
• KWS-302L (without WIFI and with shutdown function)
• KWS-302 (without WIFI and without shutdown function)
• Rated current: 63A
• Reference voltage: 170-270V
• Frequency: 50-60Hz
• Power measurement range: 0-17KW
• Time measurement range: 0-999Hrs
• Electric energy measurement range: 0-9999Kwh
• Power factor: 0.00-1.00PF
• Pulse frequency: 1200 imp/kwh
• Wifi: IEEE 802.11 b/n/g 2.4G Hz (only KWS-302WF)
• Power: 1W/6VA
• Functions:
• Memory during power outage: KWS-302WF yes, KWS-302L yes, KWS-302 yes
• Under-voltage protection: KWS-302WF yes, KWS-302L yes, KWS-302 no
• Over-voltage protection: KWS-302WF yes, KWS-302L yes, KWS-302 no
• WIFI: KWS-302WF yes; KWS-302L no, KWS-302 no

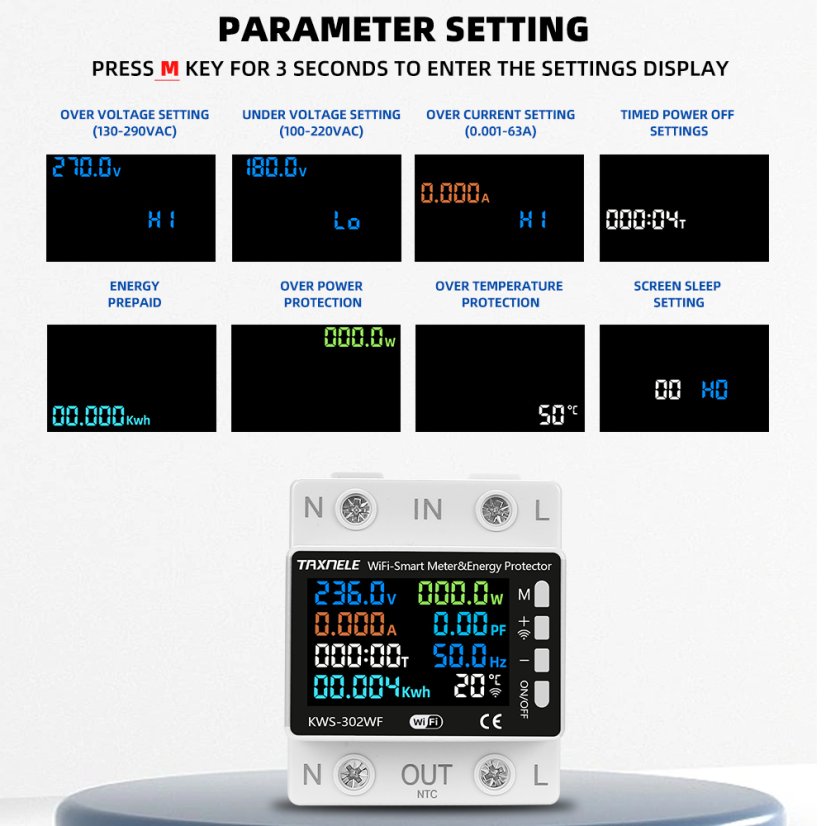

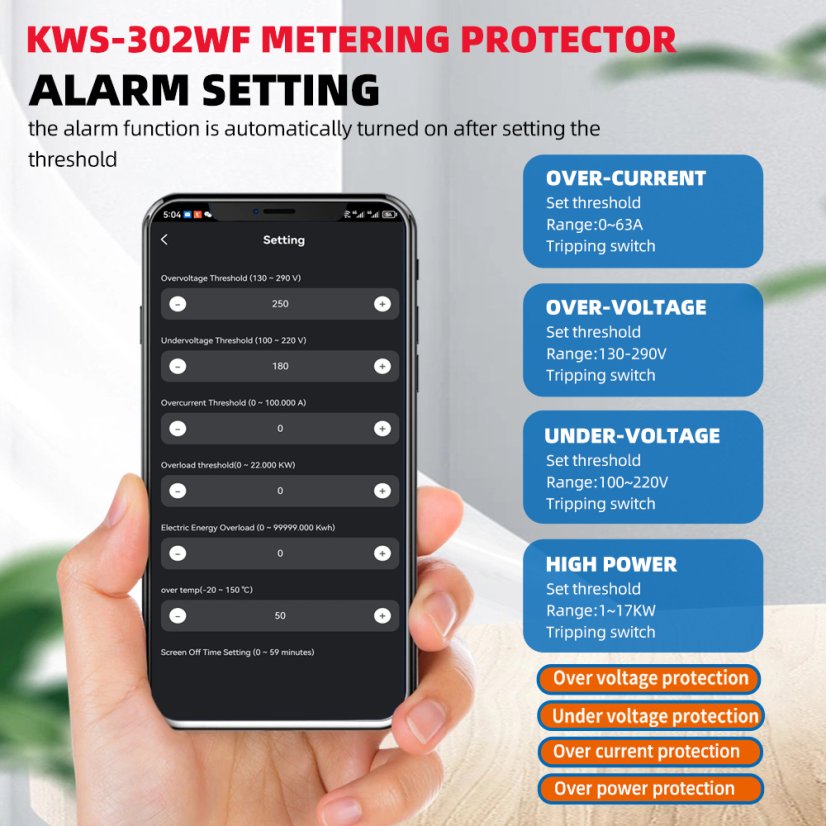

• Power failure protection features (only KWS-302WF and KWS-302L): Supports over-voltage, under-voltage, over-current, over-voltage, overheating, settings for power failure timer protection and screen sleep mode settings.
• Usage: indoor/IP20
• Material: ABS+PC+VO
• Operating temperature: -25 °C to +55 °C
• Operating humidity: 5% - 99% non-condensing

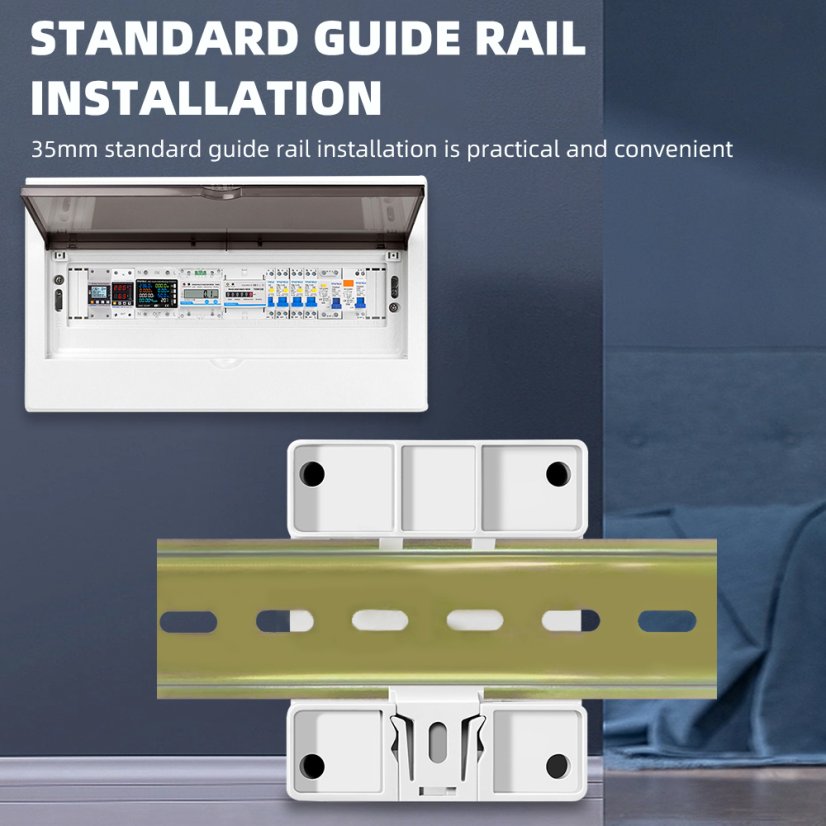

• Installation: 35mm DIN rail

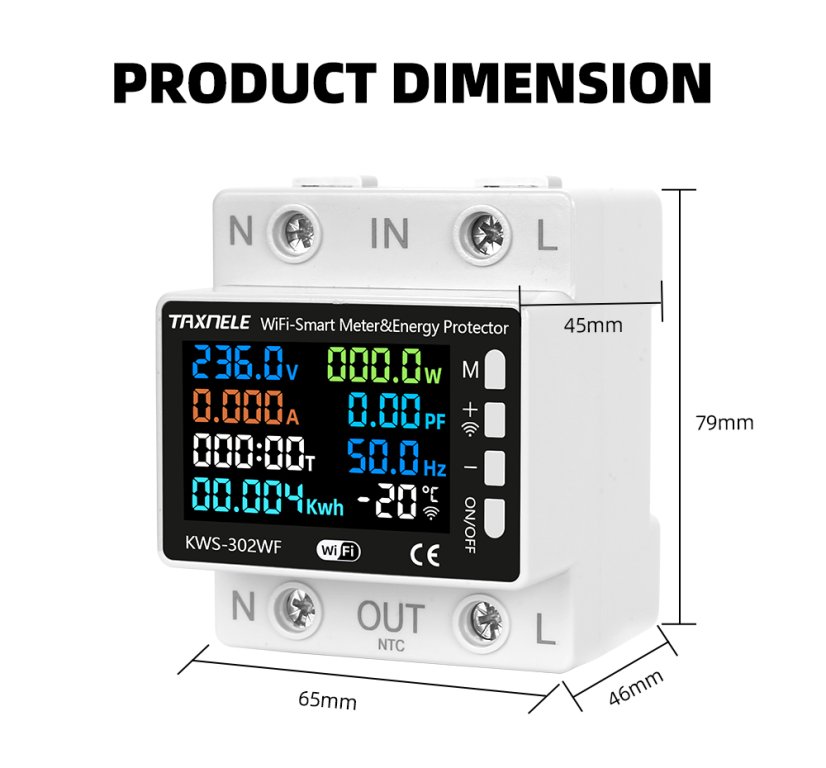

• Dimensions: 65x46x79mm
