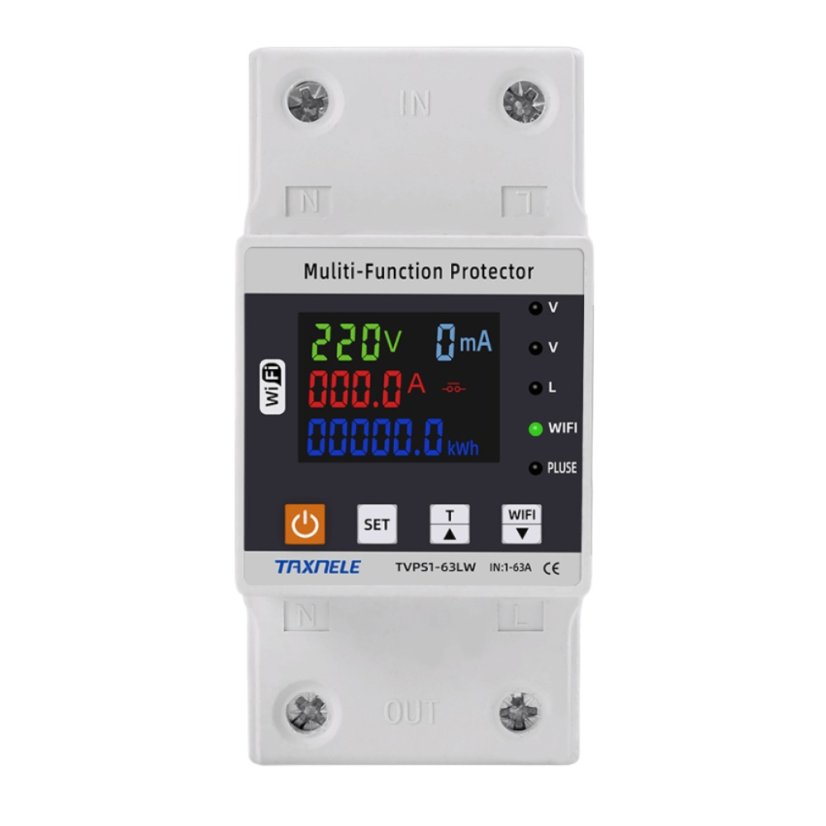

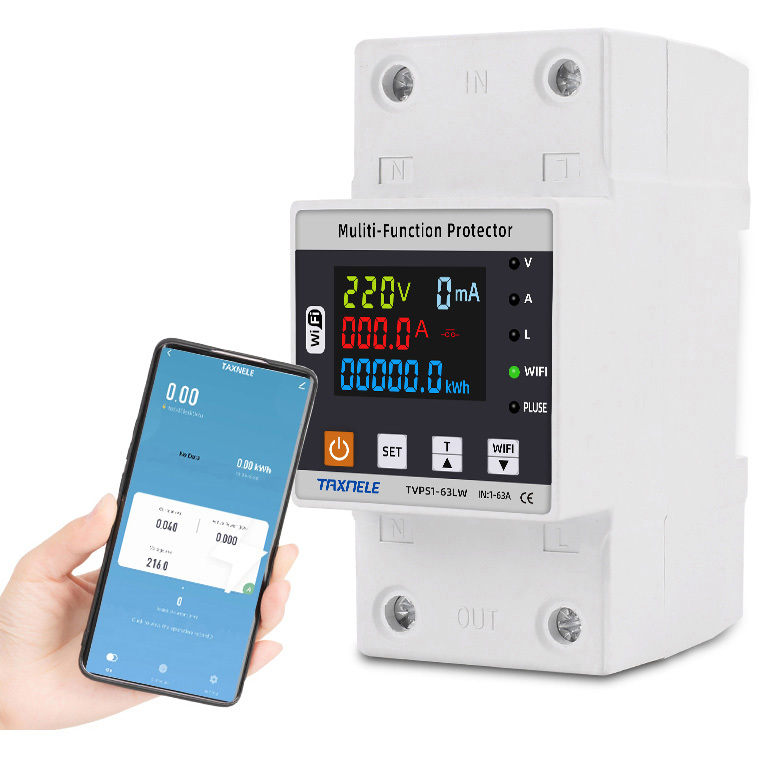

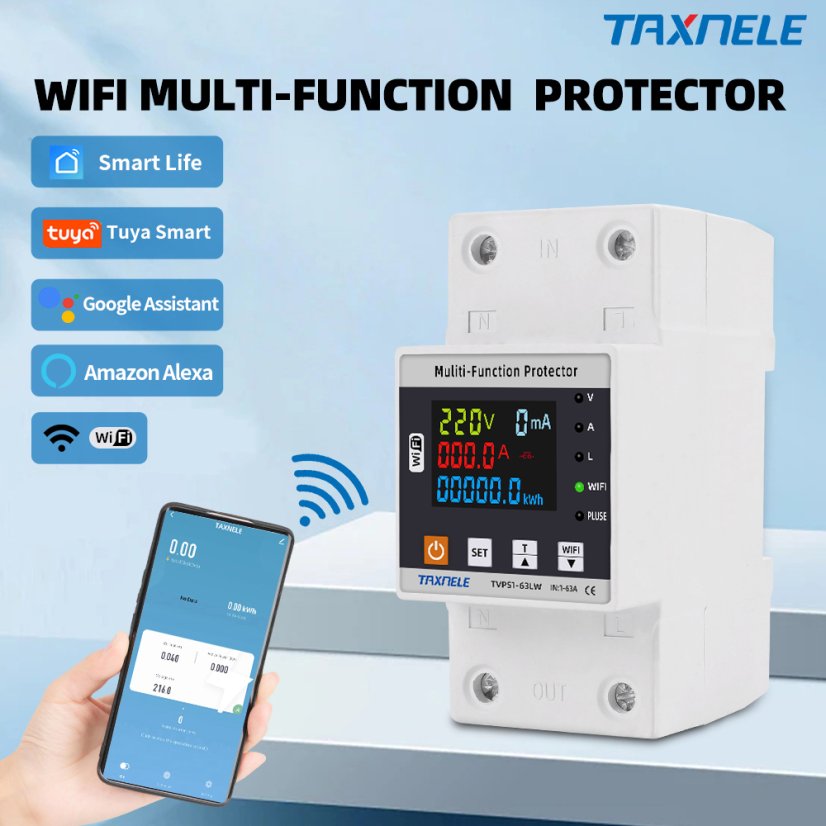

TVPS1-63LW Tuya WiFi Intelligent Surge and Under-Voltage Protection 63A

TVPS1-63LW 63A Tuya WiFi Intelligent Surge and Under-Voltage Protection, Circuit Breaker, Timer, and Energy Meter

This model is identical to the TVPS1-63T, but can simultaneously disconnect both L and N.

Specifications:

• Model: TVPS1-63LW
• Rated current: 63A
• Reference voltage: AC 230V
• Frequency: 50-60Hz
• Pulse frequency: 1200 imp/kWh

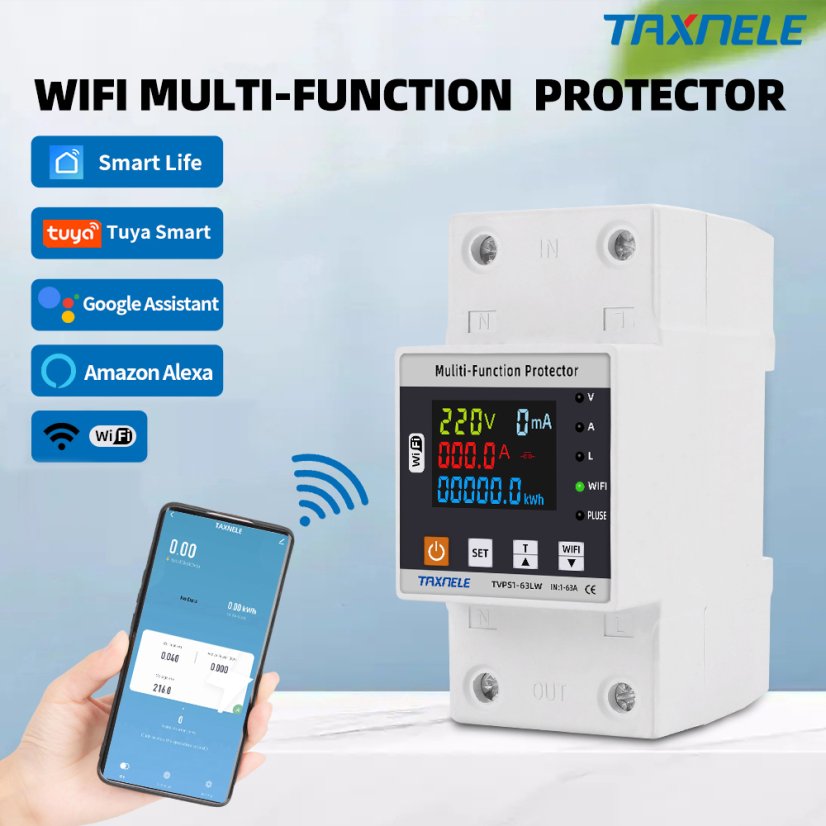

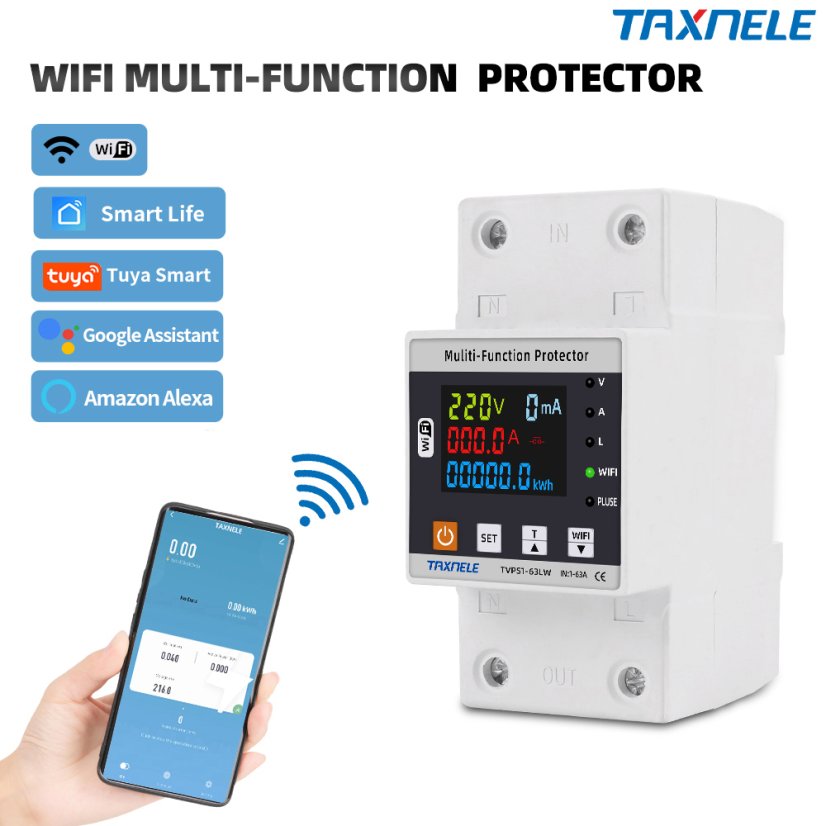

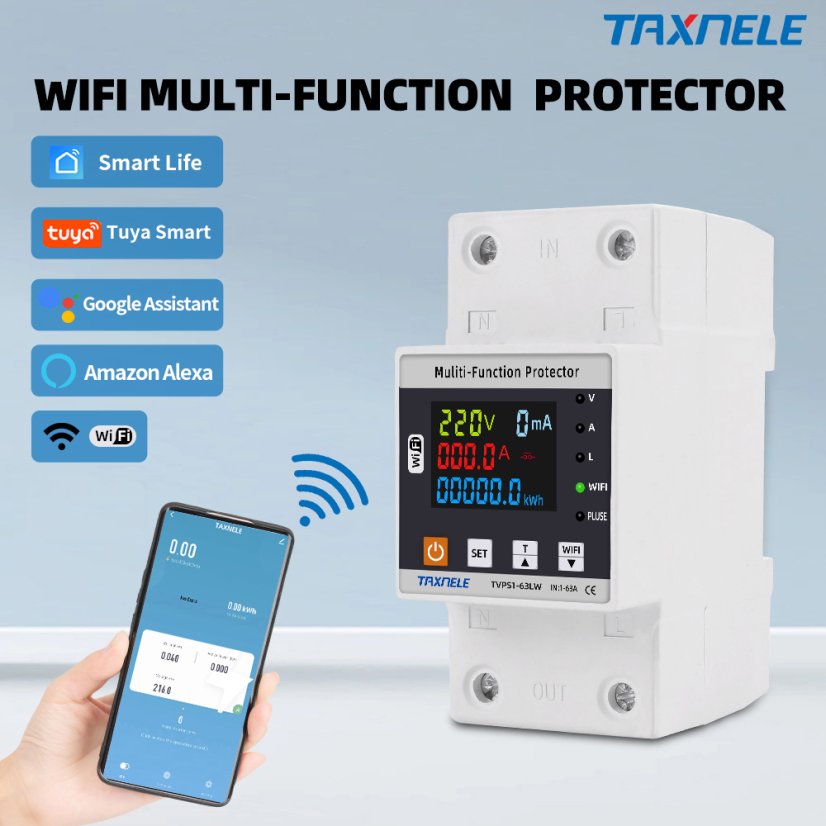

• Wifi: IEEE 802.11 b/n/g 2.4G Hz
• Power: 1W/6VA
• Functions:

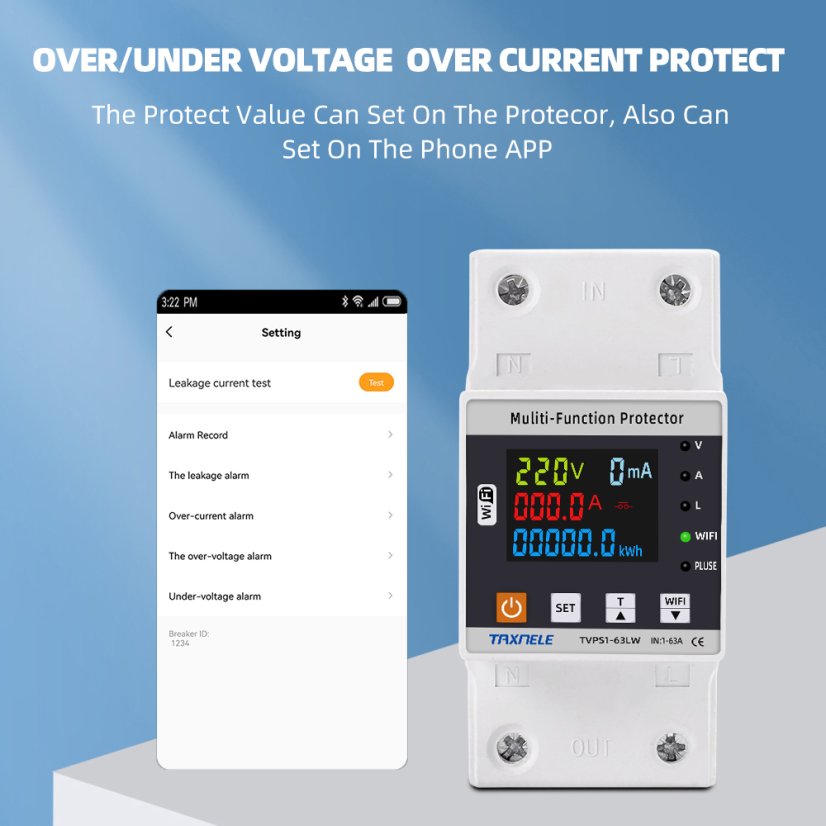

• Under-voltage protection 150V-190V (adjustable) (default: 170V)
• Over-voltage protection 250V-300V (adjustable) (default: 270V)
• Overcurrent protection 1A-63A (adjustable) (default: 63A)
• Reconnection time (delay time): 5s-90s (default: 30s)

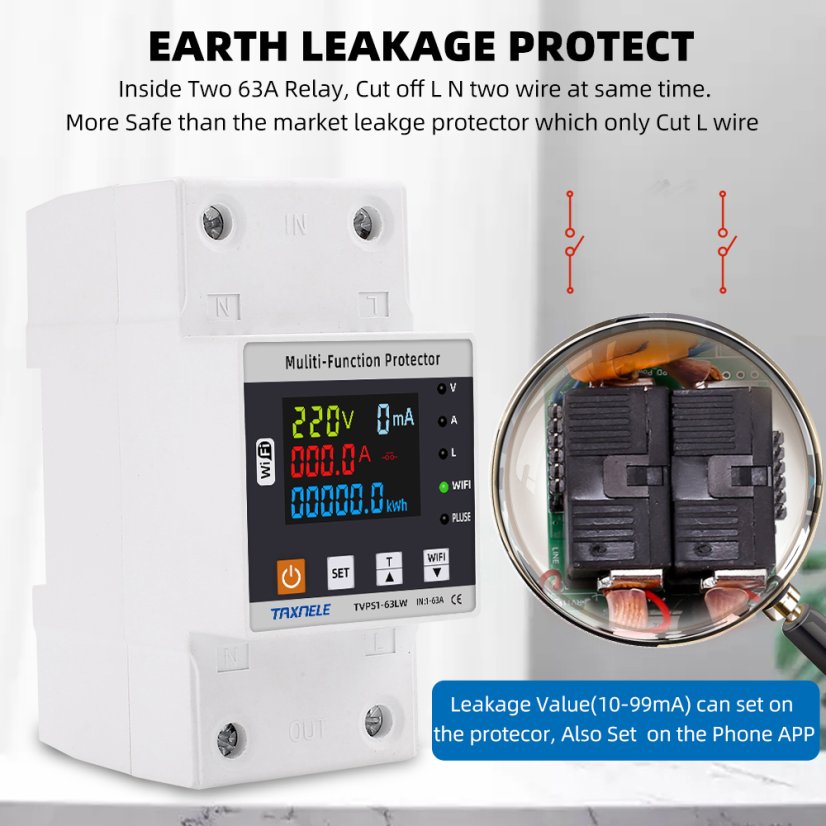

• Leakage protection: 10-99mA, simultaneously disconnects L and N.

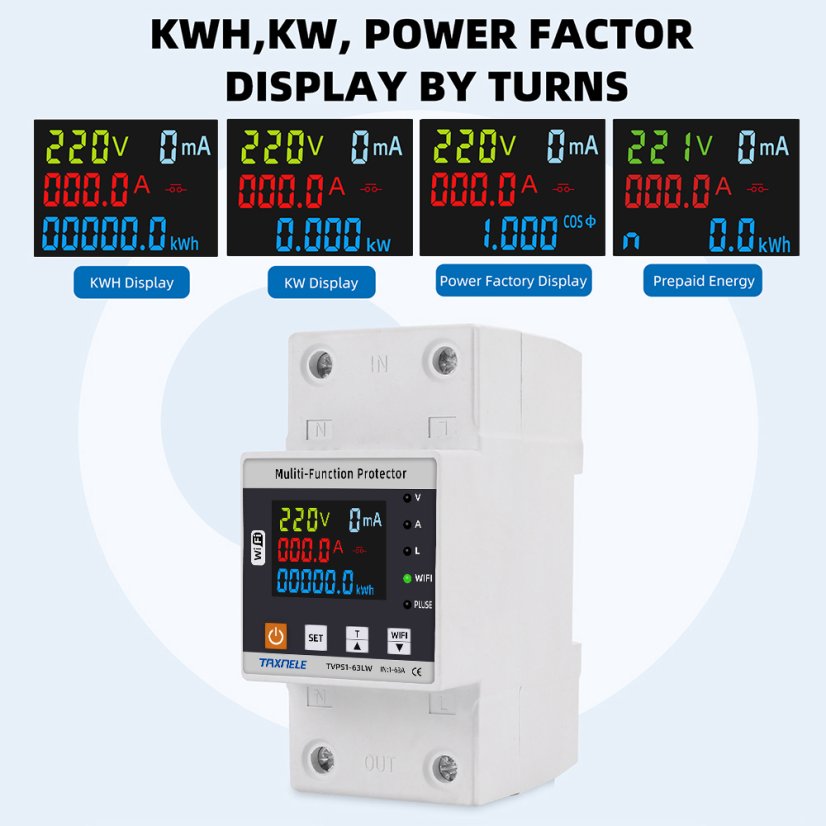

• Power display range: 0-99999.9 kW/h
• Voltmeter
• Ammeter

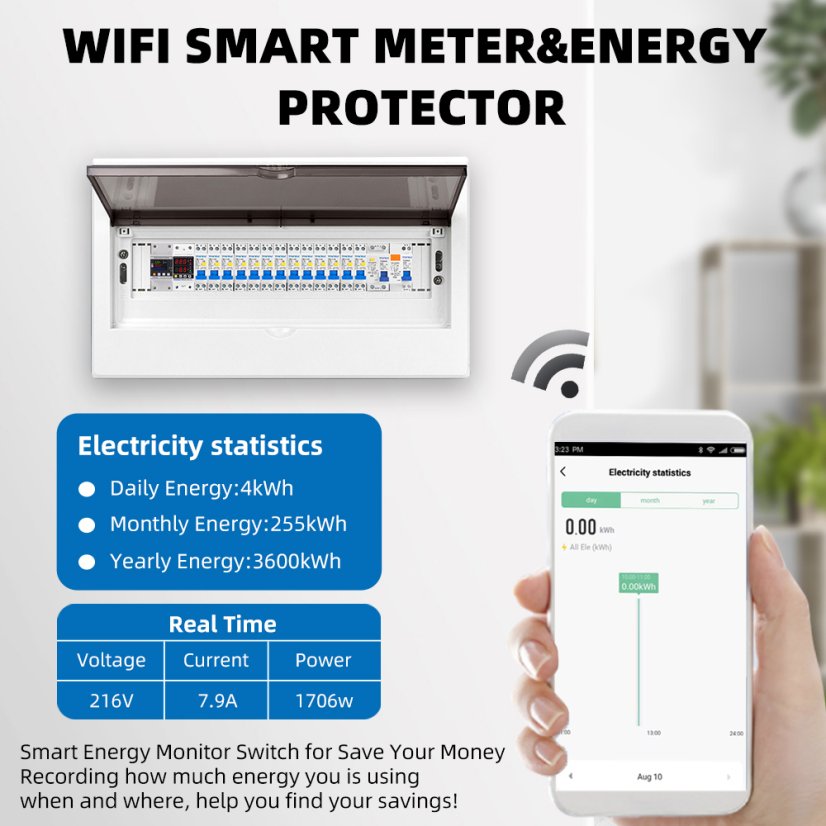

• Energy meter
• Timer
• Usage: Suitable for indoor use, IP20
• Material: Flame-retardant ABS
• Operating temperature: -25 °C to + 55 °C
• Operating humidity: 5% - 99% non-condensing
• Installation: on a 35mm DIN rail
• Dimensions: 3.7x8.5x5.65 cm

NOTE:

If the protection disconnects three times due to earth fault protection, the device will not automatically reconnect until the user checks where the power outage is and corrects it for safety!

This device has a memory function; when power is disconnected, it remembers the KWh value, over-voltage, under-voltage, and overcurrent values.
