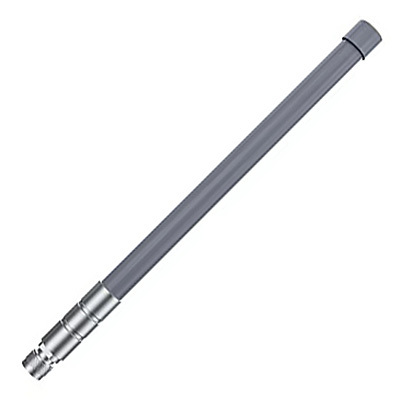

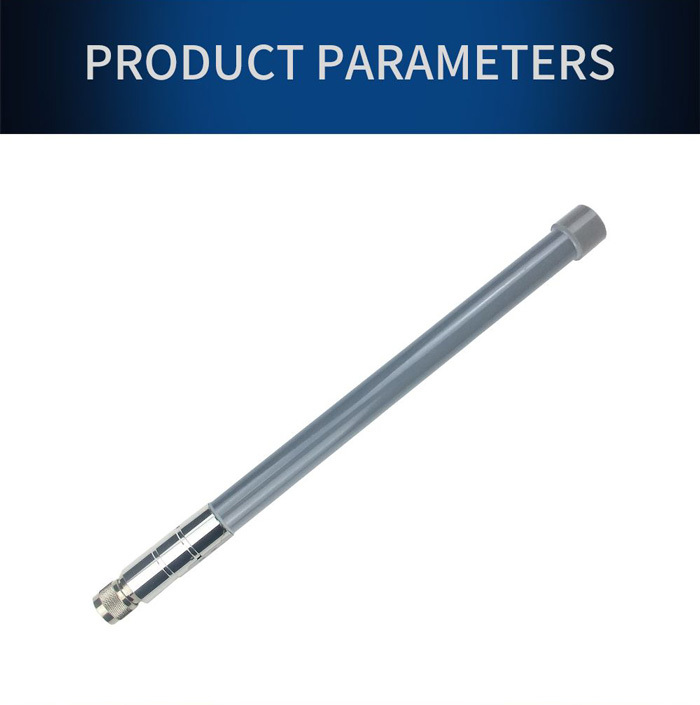

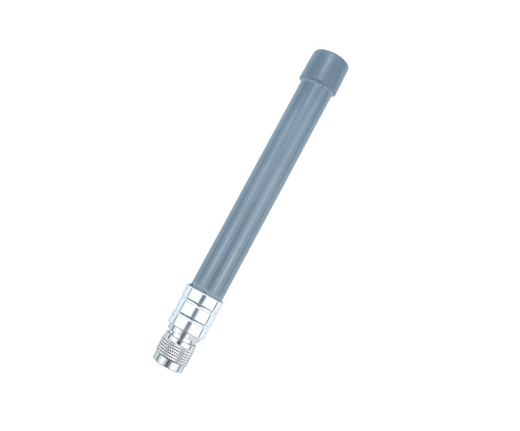

TX433-BLG External Fiberglass Antenna 410-450MHz

External Fiberglass 410-450MHz Antenna

Durable external LoRa antenna with a gain of 3-8 dBi tuned to the EU frequency 433MHz for use in the LoRa network. Designed for outdoor use, it withstands most weather conditions. Equipped with an N-Type connector for connecting low-loss cables.

Features

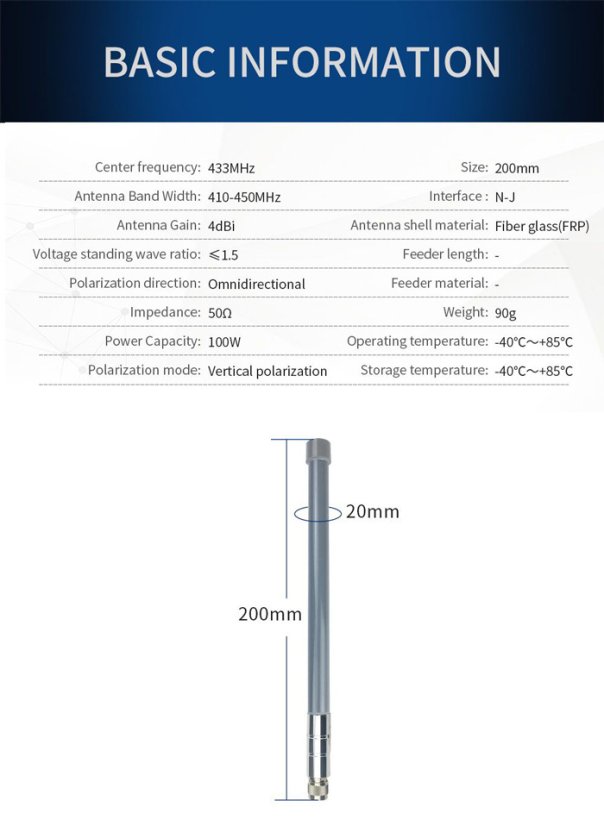

• Model: TX433-BLG
• Frequency: 433 MHz

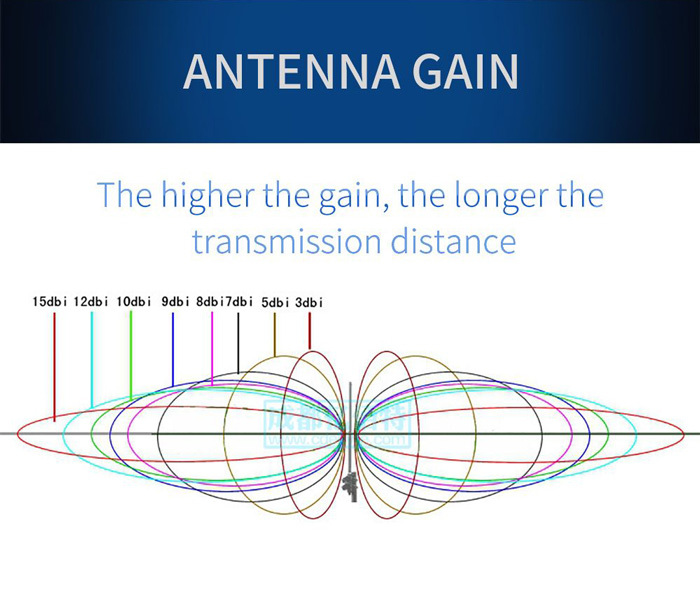

• Antenna gain: 3dBi, 5dBi, 6dBi, 8dBi
• Polarization: linear
• Impedance: 50 ohms

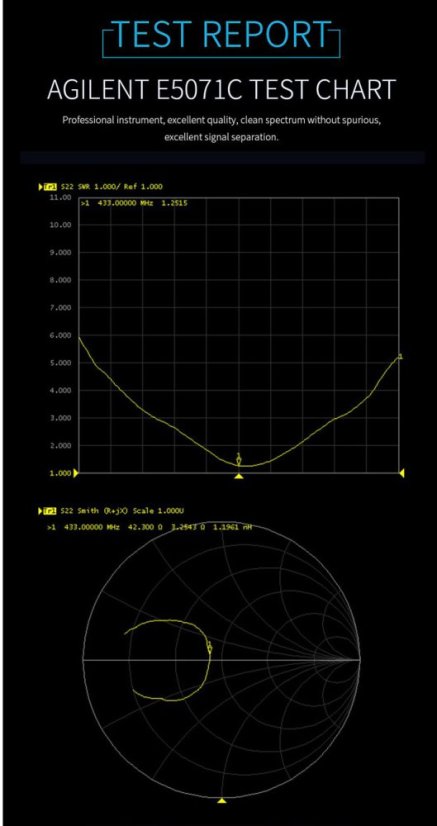

• V.S.W.R: ≤1.5

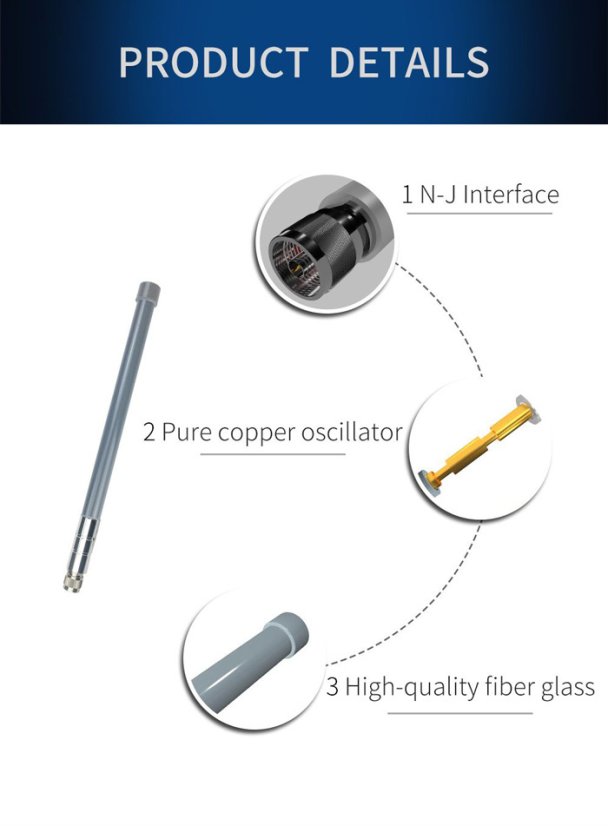

• Body: fiberglass

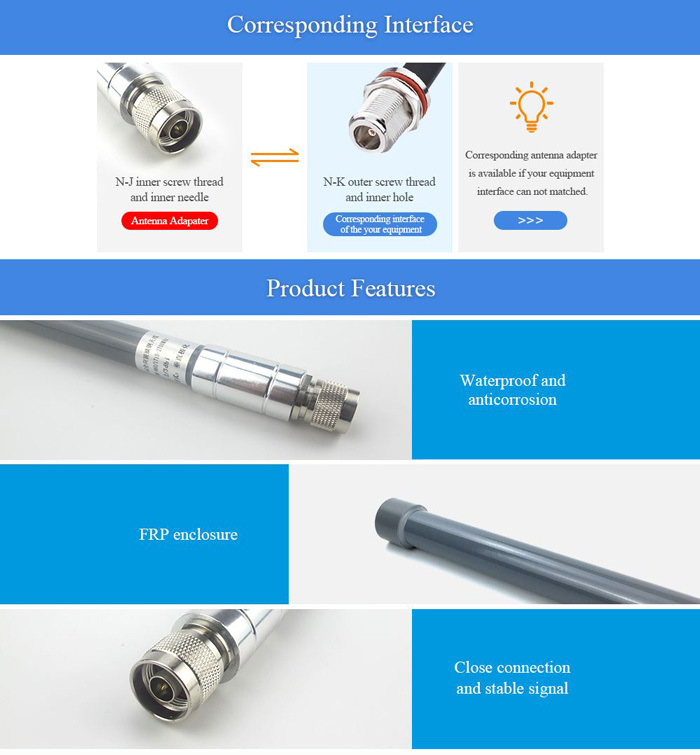

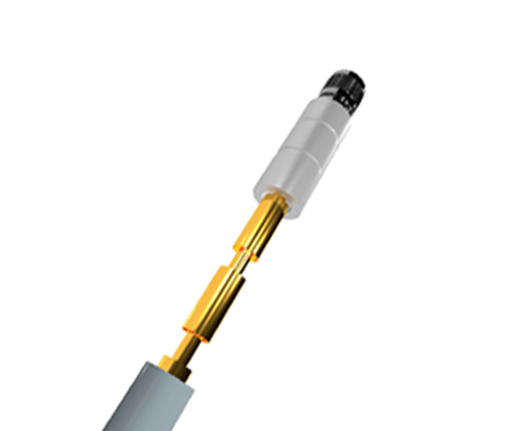

• Connector type: Type N
• Pull test result of the connector: > 5 kg
• Operating temperature: -40 °C to 80 °C
• Storage temperature: -40 °C to 80 °C
• Connector type: N-male

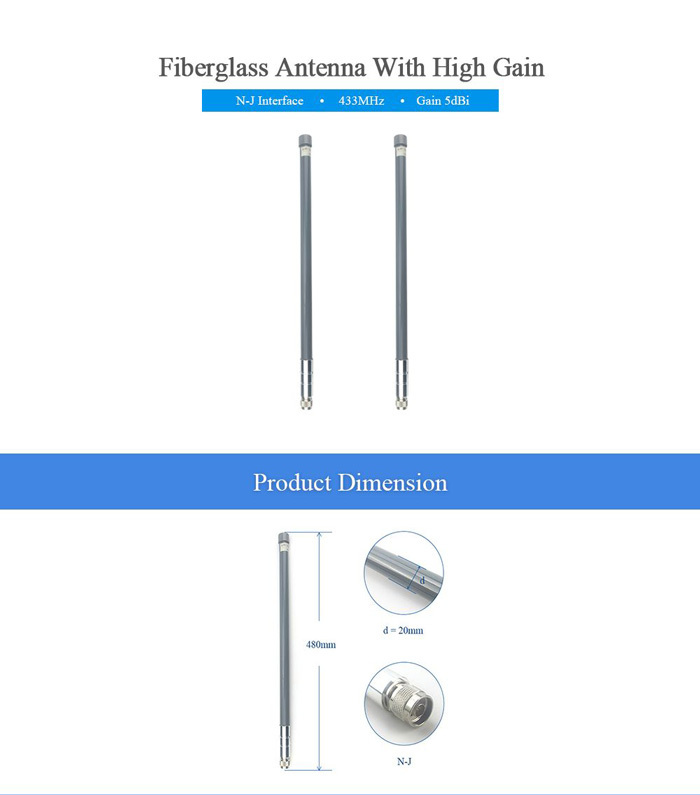

• Diameter: Ф20
• Length: 20cm, 48cm, 55cm
• Weight: 0.085kg, 0.18kg, 0.2kg

Package Contents:

1x Fiberglass Antenna
