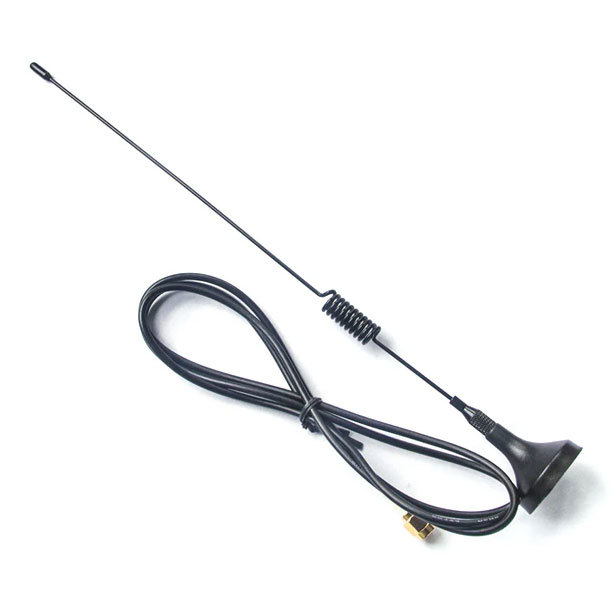

TXGN-XPL-300 824MHz SMA 5.5dBi High-Gain RF Suction Antenna
TXGN-XPL-300 824MHz SMA 5.5dBi High-Gain RF Suction Antenna
High-Gain RF Suction Antenna with 5.5dBi gain, SMA interface, and compact design for reliable performance. More
8,20 EUR
incl. VAT
High-Gain RF Suction Antenna with 5.5dBi gain, SMA interface, and compact design for reliable performance. More
TXGN-XPL-300 824-960MHz, 1710-2170MHz SMA 5.5dBi High-Gain RF Suction Antenna
We offer a wide selection of antennas for various applications. The TXGN-XPL-300 antenna operates reliably in standard deployments that require good performance and relatively small size. This antenna is available for frequencies of 170MHz, 230MHz, 433MHz, 490MHz, 780MHz, 868MHz, 916MHz, and 2.4GHz, among others.
Specifications:
- Model: TXGN-XPL-300
- Name: Suction Antenna
- Gain: 5.5dBi

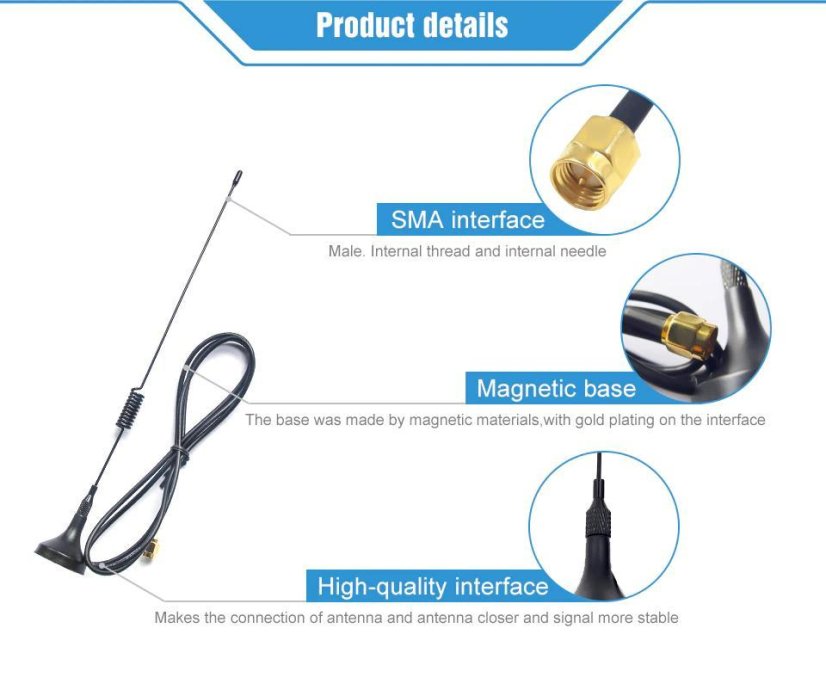

- Interface: SMA Male, outdoor thread, internal, outdoor pin
- Antenna Size: 288 cm, cable length 3m
- Standing Wave Ratio (SWR): less than 1.5
- Frequency: 824-960MHz, 1710-2170MHz
- Impedance: 50 ohm
