TXM331 Three-Phase Digital Meter DIN

TXM331 Three-Phase Digital Meter DIN


Three-phase digital meter for measuring electricity consumption. More
Manufacturer: NEVEN Product code: 12415 Shipping and payment
41,90 EUR incl. VAT
in stock (3 ks)
Three-phase digital meter for measuring electricity consumption. More
Manufacturer: NEVEN Product code: 12415 Shipping and payment

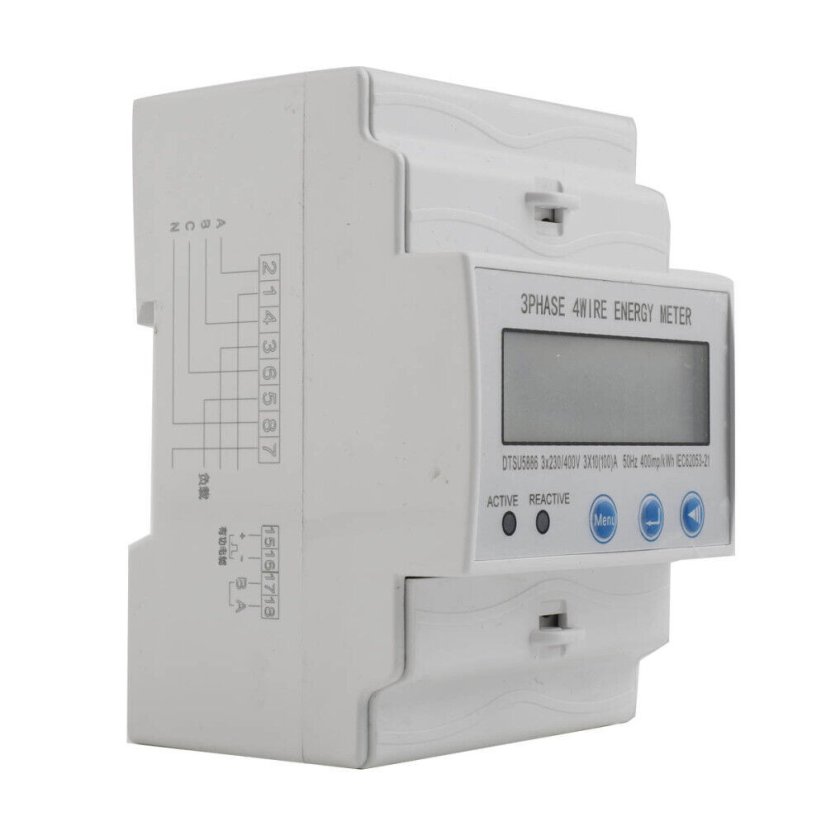

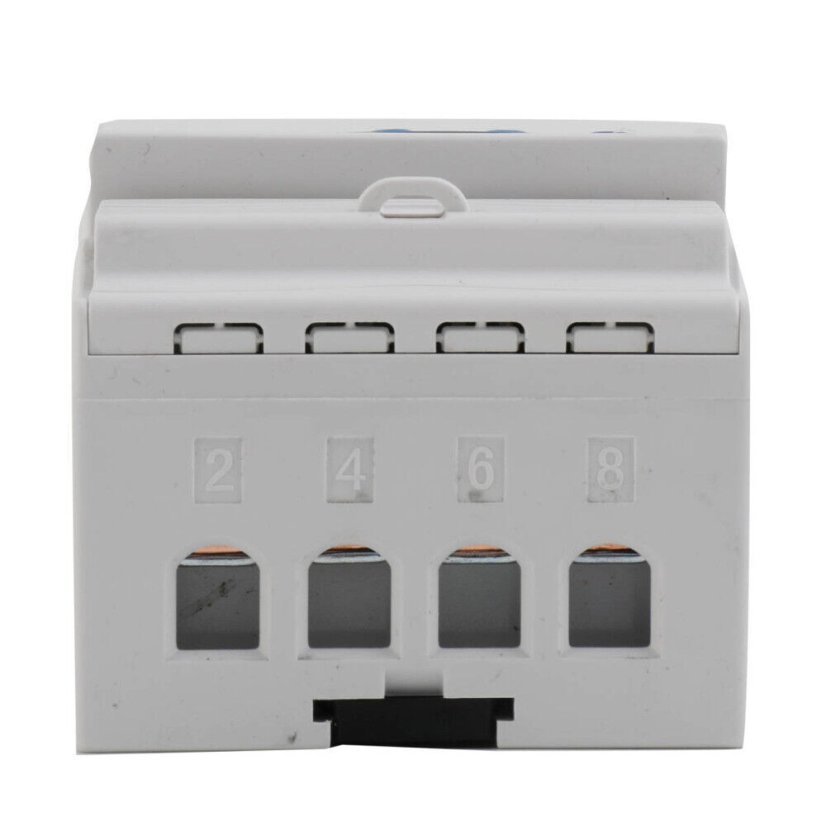

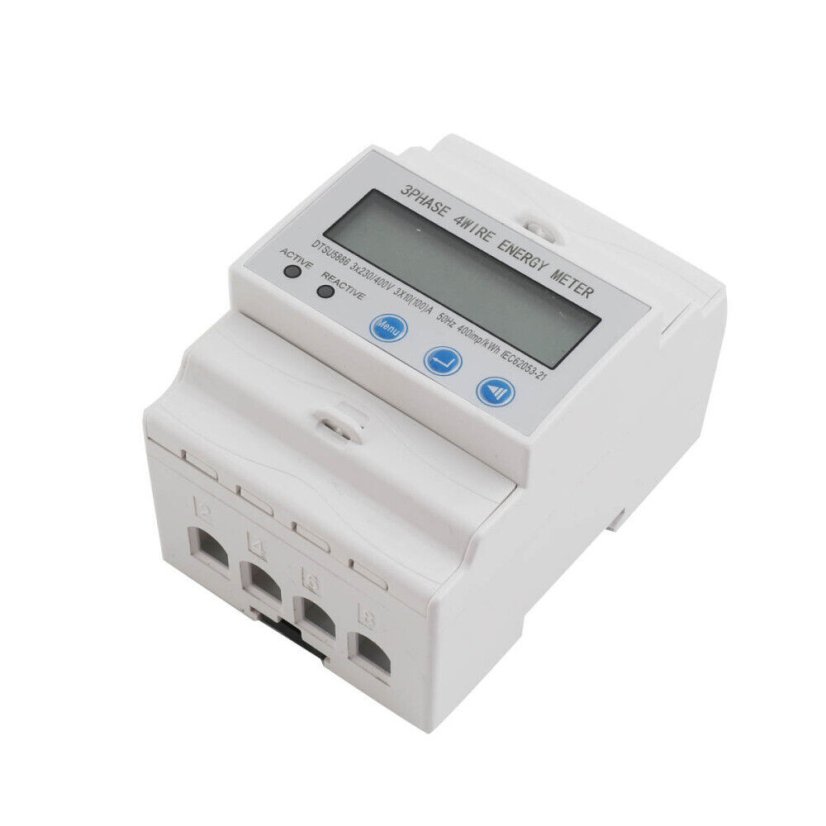

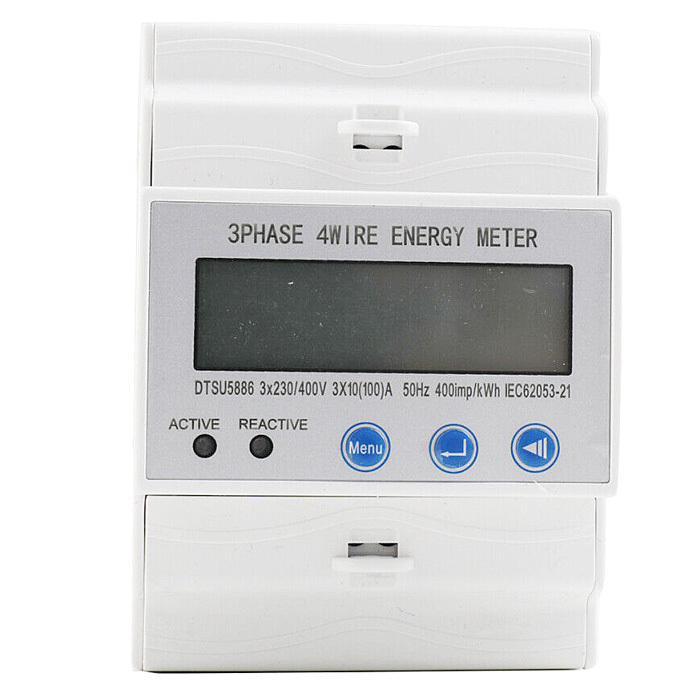

TXM331 Three-Phase Digital Meter for DIN Rail

Three-phase digital meter for DIN rail to measure consumed electrical energy.



Specifications:

  • Model: DTSU5886 (TXM331)
  • Rated Voltage (Un): 3x230/400V AC
  • Rated Current: 3x10(100)A
  • Operating Power: 3x230VAC + 20%
  • Maximum Value: 9999999.9 km kWh / kVarh
  • Supply Frequency: 45Hz-65Hz
  • Power Consumption: <2W/ 10VA per phase
  • Accuracy: Class 1
  • Standard IEC 62053-21
  • Dimensions: 96 x 72 x 68 mm
  • Installation Method: DIN
