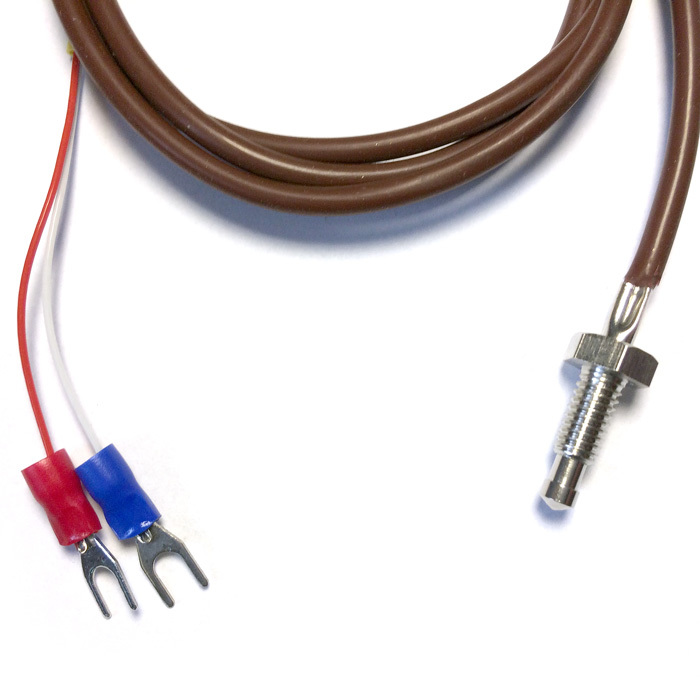

Type E Thermocouple Temperature Sensor with M6 Thread and Silicone Cable

High-quality type E thermocouple temperature probes with sensors imported from Germany. More

Manufacturer: NEVEN Product code: P10542 Shipping and payment

from 10,30 EUR incl. VAT

High-quality type E thermocouple temperature probes with sensors imported from Germany. More

Manufacturer: NEVEN Product code: P10542 Shipping and payment

Variants2

	Length	Availability		Price incl. VAT	Quantity (ks)
	1m	in stock		11,60 EUR
	2m	in stock		10,30 EUR

Description
Inquiry Form

High-quality type E thermocouple temperature probes with sensors imported from Germany.

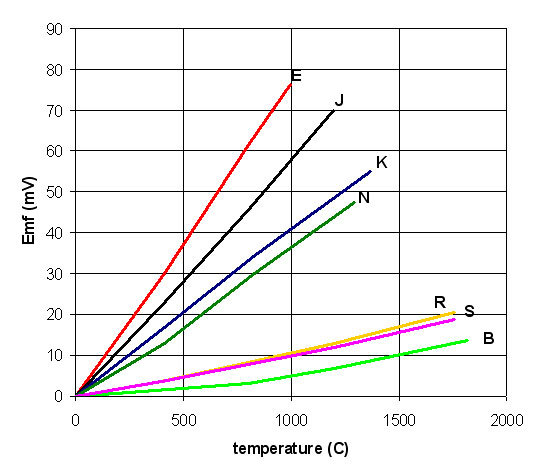

Thermocouples are available in several material combinations. Each material pair has its unique characteristics regarding temperature range and output voltage. The voltage generated by the thermocouple is always low, in the millivolt range, and non-linear. The table below lists some common thermocouples and their basic parameters.

Type	Materials	Min. Temperature	Max. Temperature	Min. °C	Max. °C
J	Iron Constantan (Cu-Ni)	0 °C	750 °C	0 mV	42.281 mV
T	Copper Constantan (Cu-Ni)	-250 °C	350 °C	-6.18 mV	17.819 mV
K	Chromel (Ni-Cr) Alumel (Ni-Al)	-200 °C	1250 °C	-5.891 mV	50.644 mV
E	Chromel (Ni-Cr) Constantan (Cu-Ni)	-200 °C	900 °C	-8.825 mV	68.787 mV
N	Nicrosil (Ni-Cr-Si) NiSil (Ni-Si-Mg)	-260 °C	1300 °C	-4.336 mV	47.513 mV
S	Platinum-13% Rhodium Platinum	-50 °C	1768 °C	-0.236 mV	18.693 mV
B	Platinum-30% Rhodium Platinum-6% Rhodium	0 °C	1820 °C	0 mV	13.82 mV
C	Tungsten-5% Rhenium Tungsten-26% Rhenium	0 °C	2320 °C	0 mV	37.107 mV

T, K, and E represent the most commonly used thermocouples in the industry.

Thermocouples offer several advantages:

Wide temperature range
Cost-effective
Fast response
Easy to use

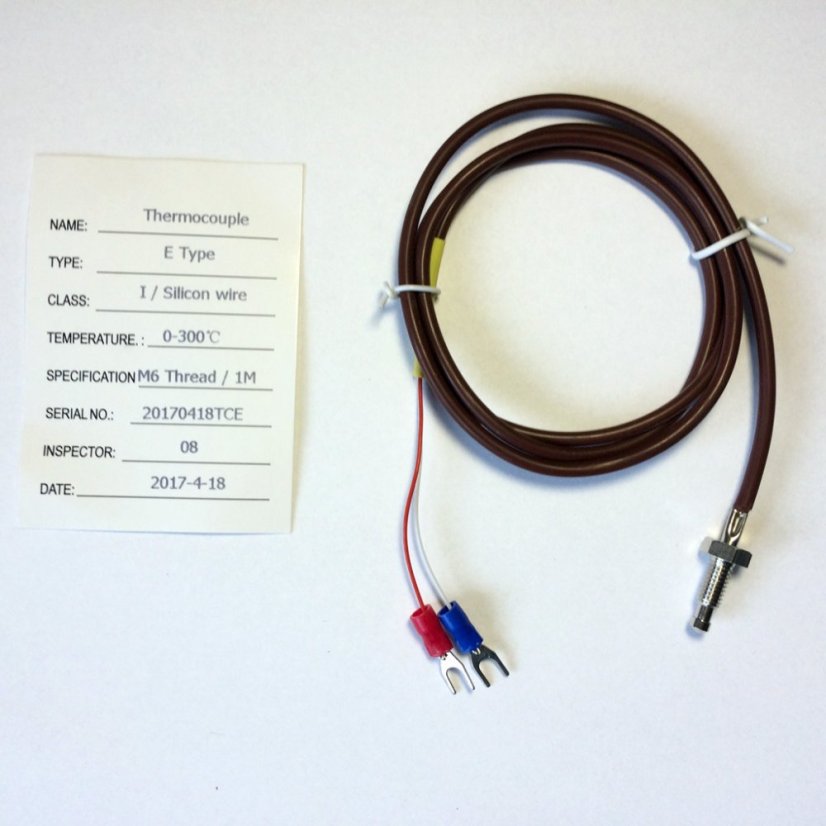

Technical Specifications:

Model: TC-M6S1-01
Type: thermocouple sensor (TC) - Type E
Class: A
Temperature Range: 0 to +300°C
Housing: M6 thread, Cu-copper
Cable Type: silicone cable
Number of Wires: 2 separate wires
Lead Length: 1/2/3/5m or as requested

NOTE: Before ordering, please ensure that your device supports the selected sensors. After replacement, the thermocouples may require calibration using temperature measurement equipment. The accuracy of thermocouple probes decreases over time and must be regularly calibrated and replaced after extended use.

For orders over 100 units, the probes can be customized to meet customer requirements.
