Type K Thermocouple Temperature Sensor 7x30mm with Metal Sheathing

High-quality Type K thermocouple temperature sensors with sensors imported from Germany. More

Manufacturer: NEVEN Product code: P13239 Shipping and payment

from 8,20 EUR incl. VAT

High-quality Type K thermocouple temperature sensors with sensors imported from Germany. More

Manufacturer: NEVEN Product code: P13239 Shipping and payment

Variants2

	Length	Availability		Price incl. VAT	Quantity (ks)
	1m	in stock		8,20 EUR
	2m	in stock		9,30 EUR

Description
Inquiry Form

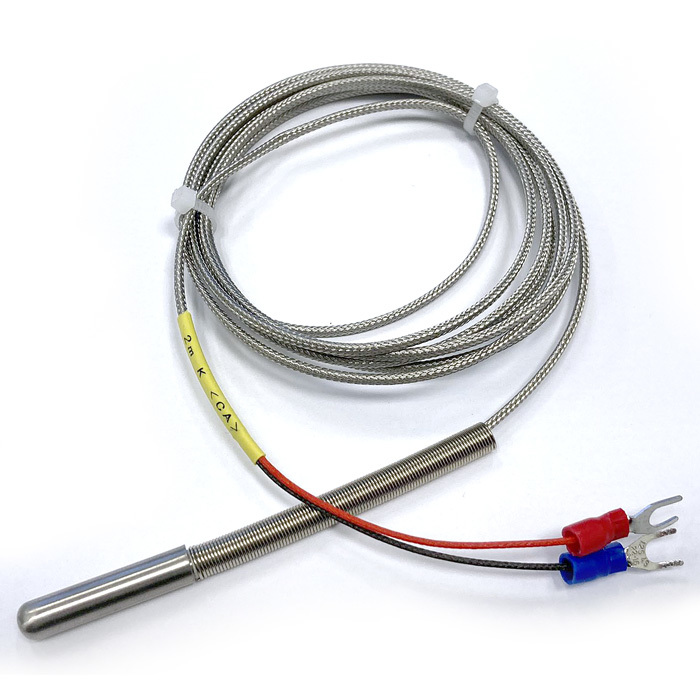

Type K Thermocouple Temperature Sensor 7x30mm with Metal Sheathing

High-quality Type K thermocouple temperature sensors with sensors imported from Germany.

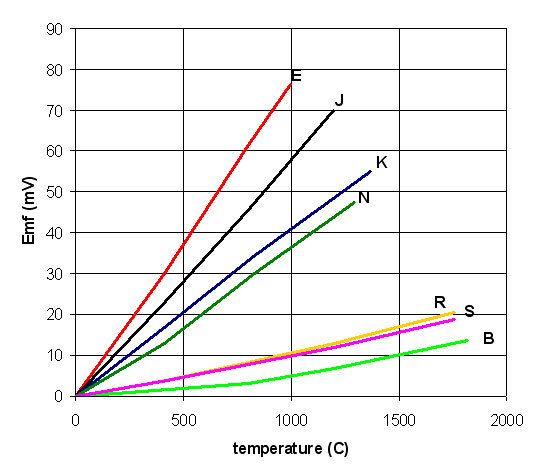

Thermocouples are available in several material variants. Each material pair has different temperature range characteristics and voltages. The voltage generated by the thermocouple is always low, in the range of millivolts, and is non-linear. The table below provides some common thermocouples and their basic parameters.

Type	Materials	Min. Temp.	Max. Temp.	Min. °C	Max. °C
J	Iron Constantan (Cu-Ni)	0 °C	750 °C	0 mV	42.281 mV
T	Copper Constantan (Cu-Ni)	-250 °C	350 °C	-6.18 mV	17.819 mV
K	Chromel (Ni-Cr) Alumel (Ni-Al)	-200 °C	1250 °C	-5.891 mV	50.644 mV
E	Chromel (Ni-Cr) Constantan (Cu-Ni)	-200 °C	900 °C	-8.825 mV	68.787 mV
N	Nicrosil (Ni-Cr-Si) NiSil (Ni-Si-Mg)	-260 °C	1300 °C	-4.336 mV	47.513 mV
S	Platinum-13% Rhodium Platinum	-50 °C	1768 °C	-0.236 mV	18.693 mV
B	Platinum-30% Rhodium Platinum-6% Rhodium	0 °C	1820 °C	0 mV	13.82 mV
C	Tungsten-5% Rhenium Tungsten-26% Rhenium	0 °C	2320 °C	0 mV	37.107 mV

TC, Thermocouple Temperature Sensor

Types T, K, and E thermocouples are the most common thermocouples used in industries.

Thermocouples offer several advantages:

Wide temperature range
Cost-effective
Fast response
Easy to use

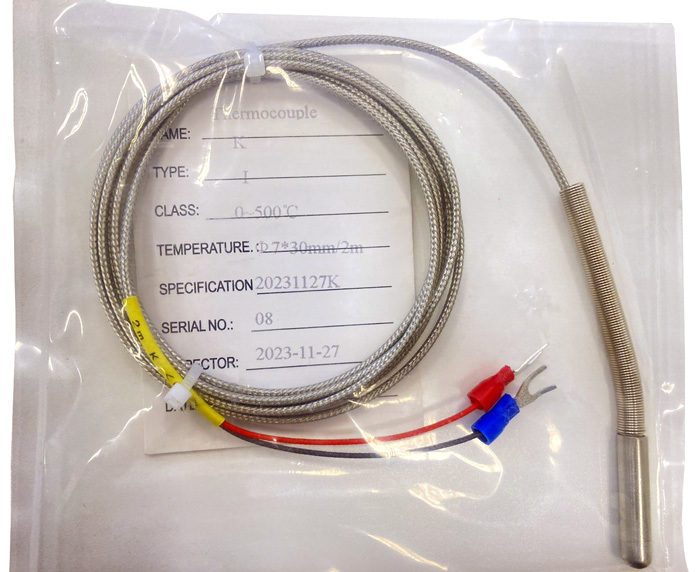

Technical specifications:

Model: TC-M6K2-02
Type: thermocouple sensor (TC) - Type K
Class: A
Temperature range: 0 to +500°C
Housing: 7x30mm, 304SS
Cable type: glass-insulated cable with metal sheathing
Wire type: 2 separate wires
Lead lengths: 1/2/3/5m or custom

NOTE: Please ensure that your device supports the selected sensors before ordering. After replacement, the thermocouples may require calibration using temperature measurement devices. The accuracy of thermocouple sensors decreases over time and must be regularly calibrated and replaced after prolonged use.

For orders of more than 100 pieces, sensors can be customized according to customer needs.
