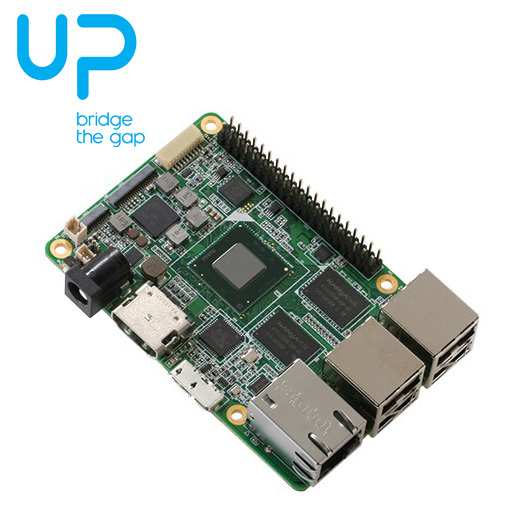

UP Board x5-Z8350 CPU
Variants4
| Model | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|
 |
2GB/16GB eMMC | Upon inquiry | 162,70 EUR | |||
|
4GB/32GB eMMC | Upon inquiry | 231,60 EUR | |||
|
2GB/32GB eMMC | Upon inquiry | 197,50 EUR | |||
|
4GB/64GB eMMC | Upon inquiry | 263,20 EUR |
UP Board unleashes the power of the Intel x5-Z8350 QuadCore 1.44GHz (1.92GHz) 64 bit 2W SDP CPU.

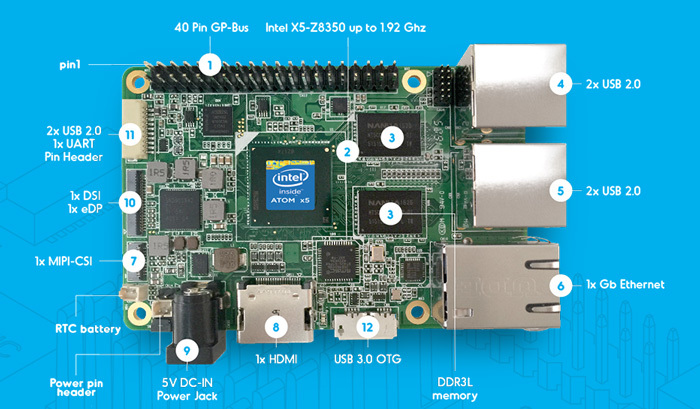

The 40-pin I/O connector, USB 3.0 OTG, Gigabit Ethernet, HDMI, and other features make this board a perfect solution for various applications and products such as robotics, drones, machine vision, smart homes, education, digital signage, smart cars, and the Internet of Things. Compatibility with Linux, Android, and all distributions of Windows 10 provides you with flexibility, scalability, and quick time to market.

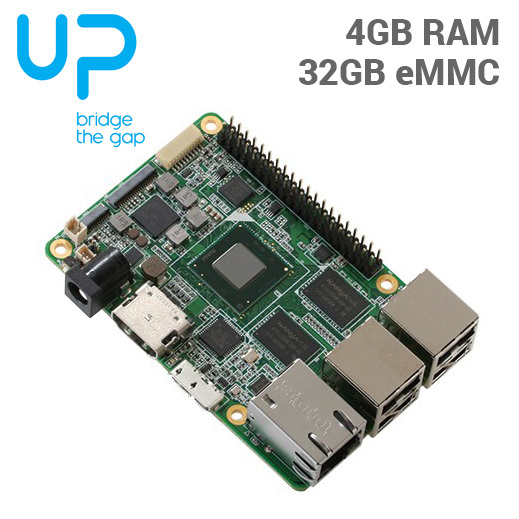

Included in the package is one UP board with the X5-Z8350 processor, 32GB eMMC, and 4GB RAM.
UP boards are the ideal choice for the best full utilization of Intel® RealSense™ technology.
- High performance and low power consumption thanks to the latest tablet technology
- Intel Gen 8 HD with 12 powerful units up to 500 MHz - extremely high 3D graphics performance
- 40-pin GP bus
- MTIntel AES New Instructions and Intel Identity Protection Technology
- Operating temperature range 32-140 °F / 0-60 °C
Note: This product is supplied without an operating system
DATA SHEET
| Version UP Board | UP |
| SoC | Intel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz |
| Graphics | Intel® HD 400 Graphics, 12 EU GEN 8, up to 500MHz Supports DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decoding), VP8 |
| Memory | 2/4GB DDR3L |
| Storage capacity | 16/32/64GB eMMC |
| External USB2.0 connectors | x4 |
| USB2.0 port (pin header) | x2 |
| USB 3.0 port | x1 (OTG) |
| Ethernet | 1x Gb Ethernet (full speed) RJ-45 |
| Video output | HDMI |
| Display interface | DSI / eDP |
| Camera | MIPI-CSI |
| Power input | 5V DC-in @ 3A 5.5/2.1mm jack |
| RTC | YES |
| PXE | NO |
| WOL | YES |
| Operating humidity | 10%～80% RH without condensation |
| Operating temperature | 32-140°F / 0~60°C |
| Expansion | 40-pin GP bus, supported Altera Max V. ADC 8-bit@188ksos |
| Compatible operating system | Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto) • Android |
| Certificate | CE/FCC Class A, RoHS compliant Microsoft Azure certified |
| Dimensions | 3.37" x 2.22" / 85.60 mm × 56.5 mm |
| Net weight (without packaging) | 80 grams (with passive cooler) |
| CEC | No |
| HS code | 8473300000 |
| Packaging dimensions | 15*9*5 cm |
| Gross weight | 140 grams |
| Country of origin | Taiwan |
UP is produced by Aaeon, a member of the Asus group.
Package content:
1x UP Board
1x RTC battery
