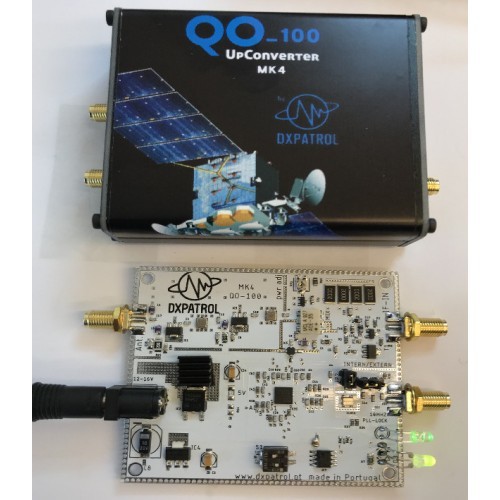

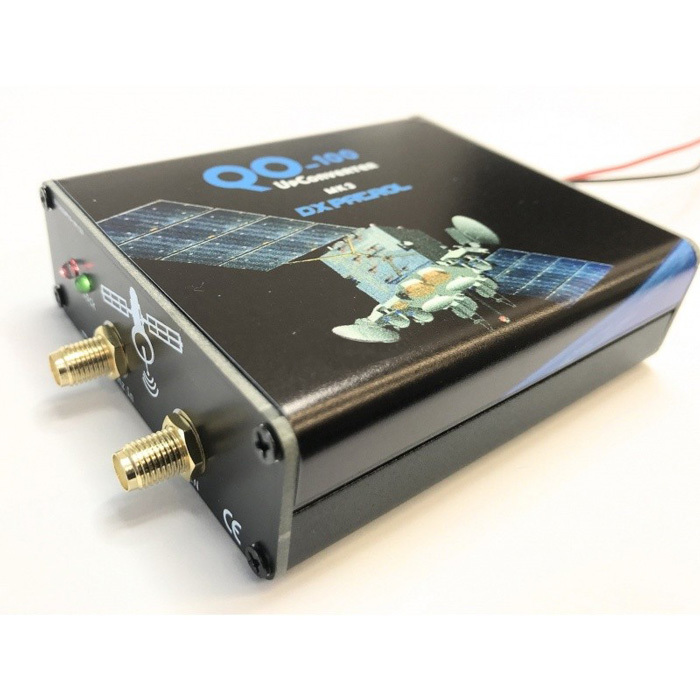

Up-konvertor MK4 pro QO-100

Up-Konverter MK4 for QO-100

The Up-Konverter DXPatrol MK4 (v4.0) for QO-100 allows transmission on the QO-100 satellite uplink and narrowband transponder (NB) from HF, VHF, or UHF radios at frequencies of 28/144/432/1296 MHz to 2400 MHz (13 cm).

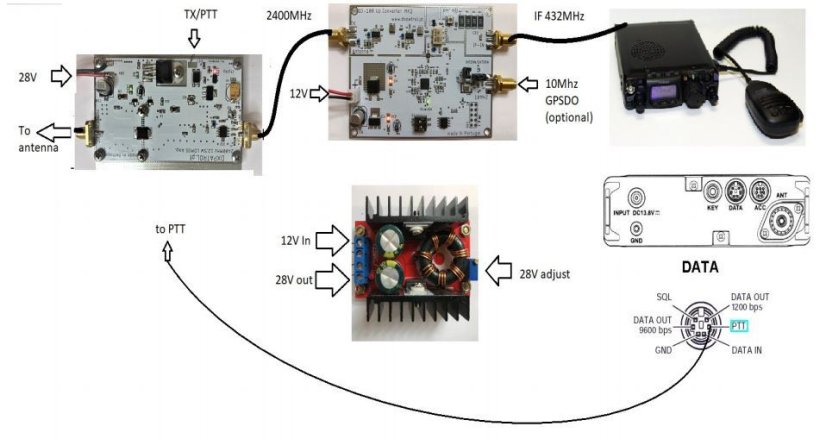

Output power is adjustable from 10 mW to 200 mW max and allows for driving the DXPatrol 2.4 GHz 12W amplifier.

• Version V4.0 - MK4: With jack power connector and VOX/PTT standby mode management.

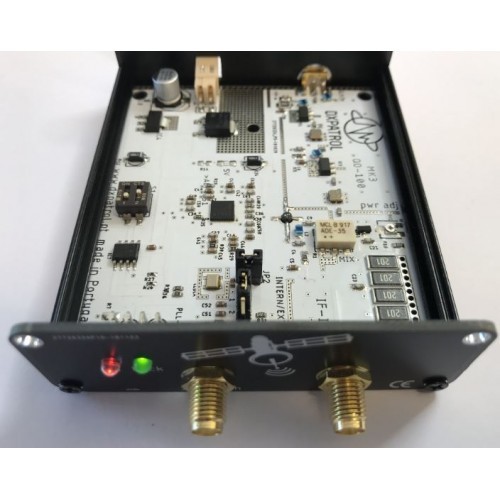

• Fully lockable to internal 10 MHz TCXO reference or external GPSDO.
• TX/Standby function (standby mode) with RF VOX.
• Extreme accuracy and precise transmission frequency.
• Local oscillator has 4 factory-programmed frequencies for 4 IF uses.
• Easy selection using the switch (s1) on the board.
• Clean and stable signal.
• Spurious emissions = < 50 dB.
• 200 mW output 23 dBm.
• Local oscillators use analog AF4351 synthesizer.
• Locked to 10 MHz TCXO sine wave oscillator Frequency Stability 500 ppb.
• Power supply 10 to 15 V.
• Current consumption 300 mA.

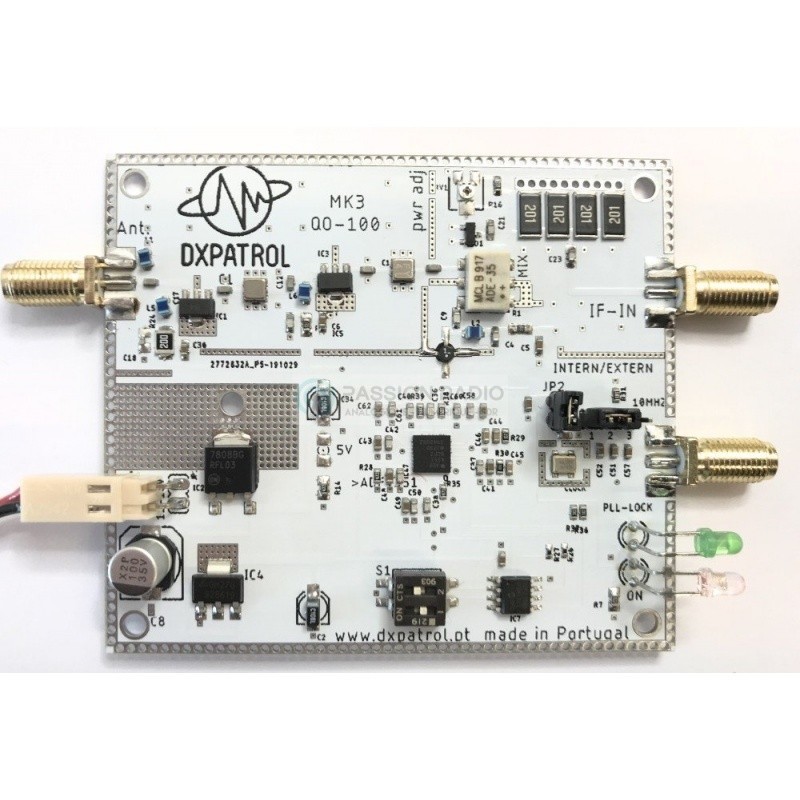

• Dimensions: 77 mm x 67 mm.

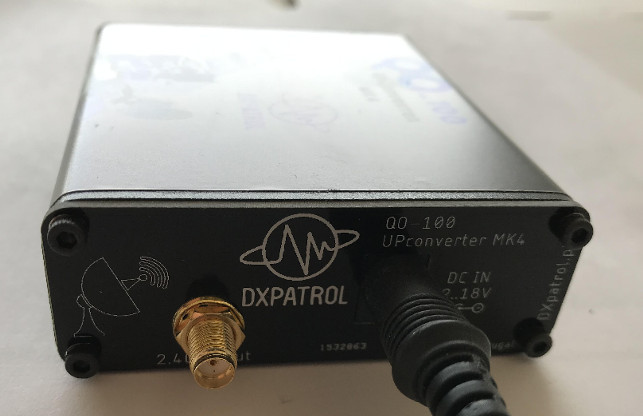

• SMA connectors.
• Green LED indication of locking.

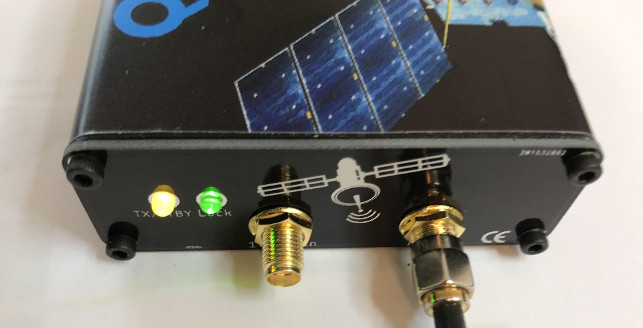

• TX/Standby indication (standby mode) Green/Orange LED.
• RF input 1 to 3 W (absolute maximum 6 W).
• New connection with DC connector.

Package Contents:
1x Up-Konverter MK4
