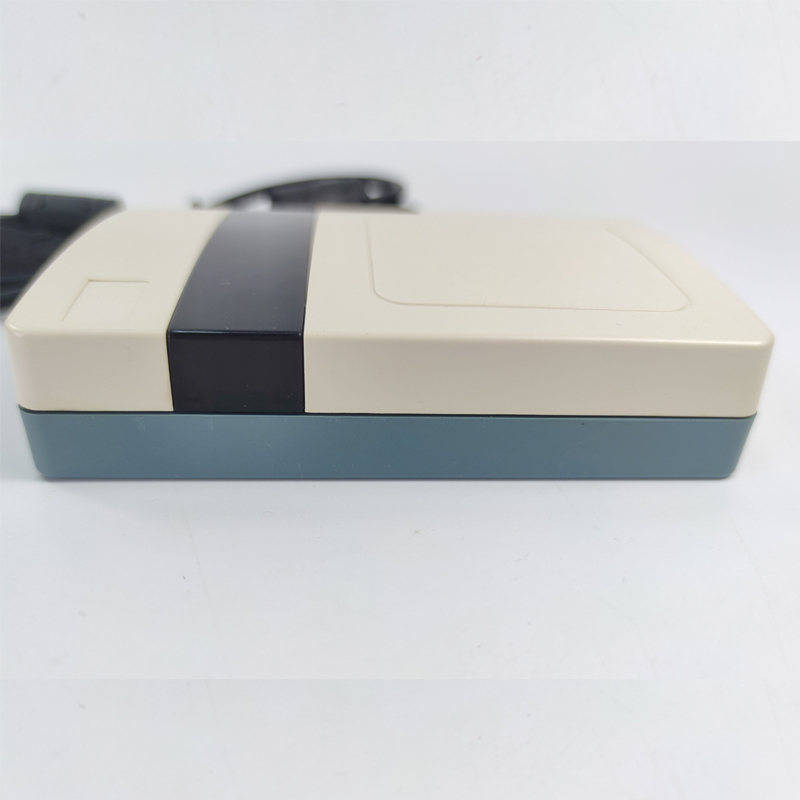

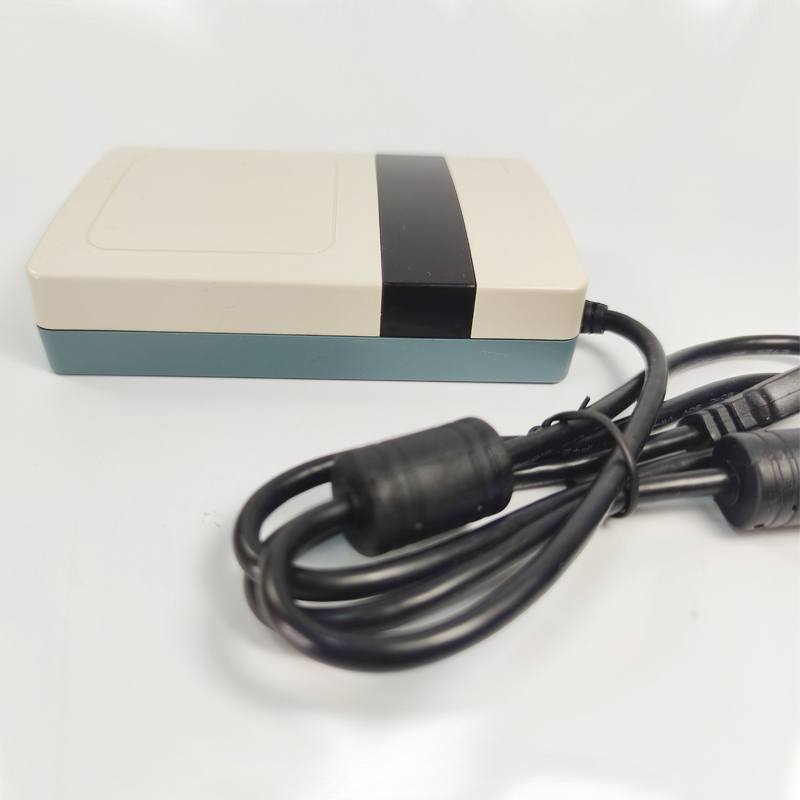

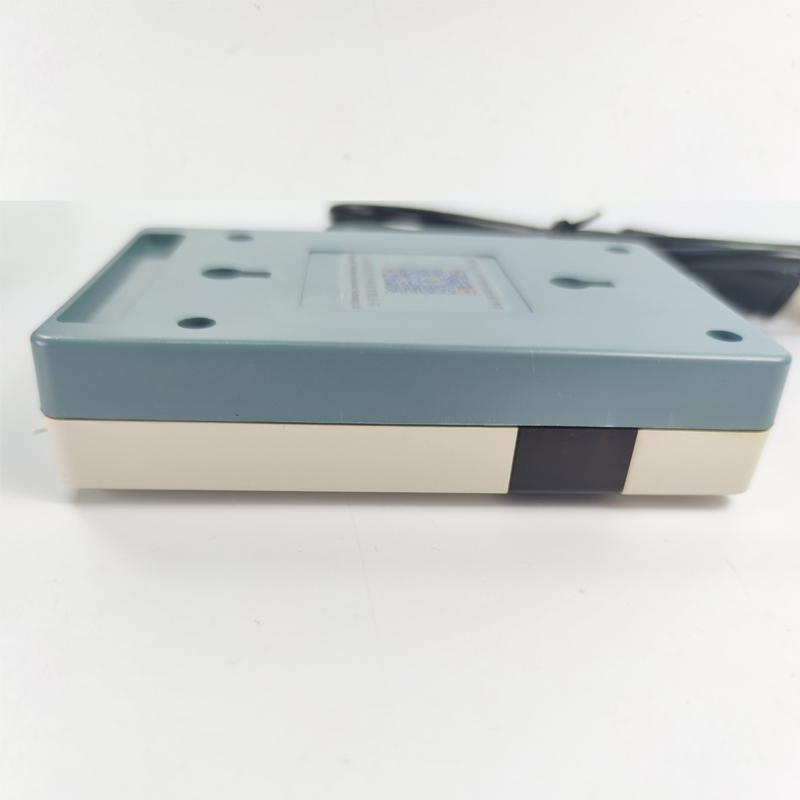

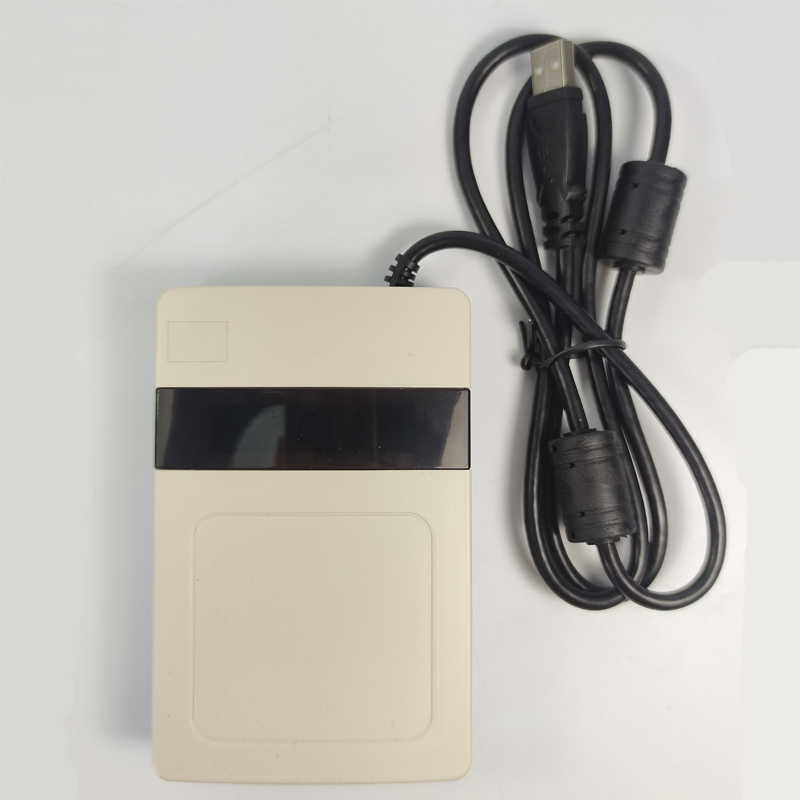

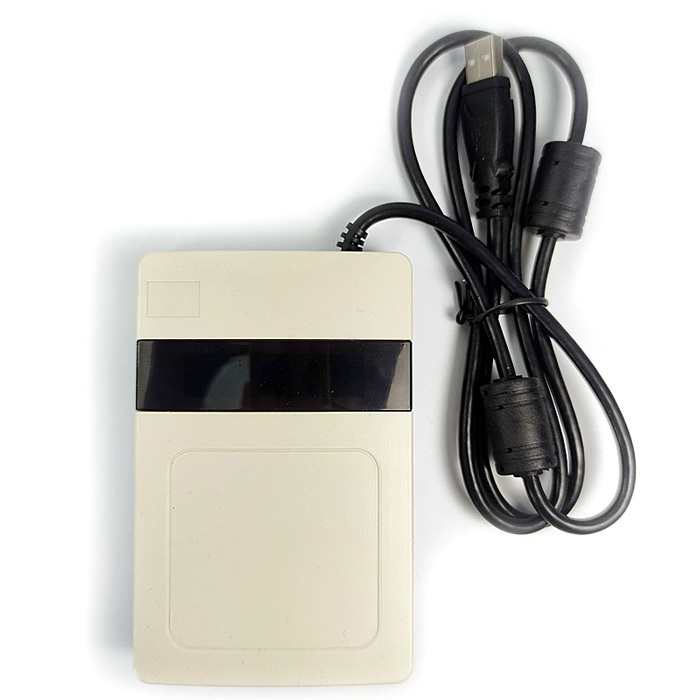

UP103KB-USB RFID Card Reader with USB Interface

UP103KB-USB 13.56MHz RFID Reader with Configurable Output

UP103KB-USB is an RFID reader with a configurable output. It operates at a frequency of 13.56 MHz and supports ISO/IEC 14443 Type A and ISO/IEC 15693 standards. Supported card types include Mifare, ISO14443A, Felica, NFC tags, ICODE SLI/SLIX, and other HFC and RFID chips.

By default, it is equipped with a USB interface, but it can also be ordered with RS232 or RS485 interfaces. Thanks to its compact design, convenient controls, and rich functionality, it is suitable for electronic payment systems, access control systems, membership management, and other applications.

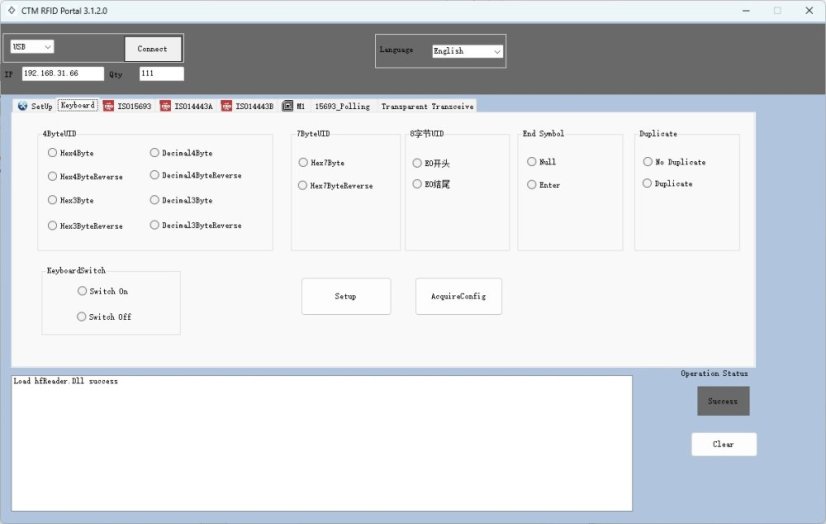

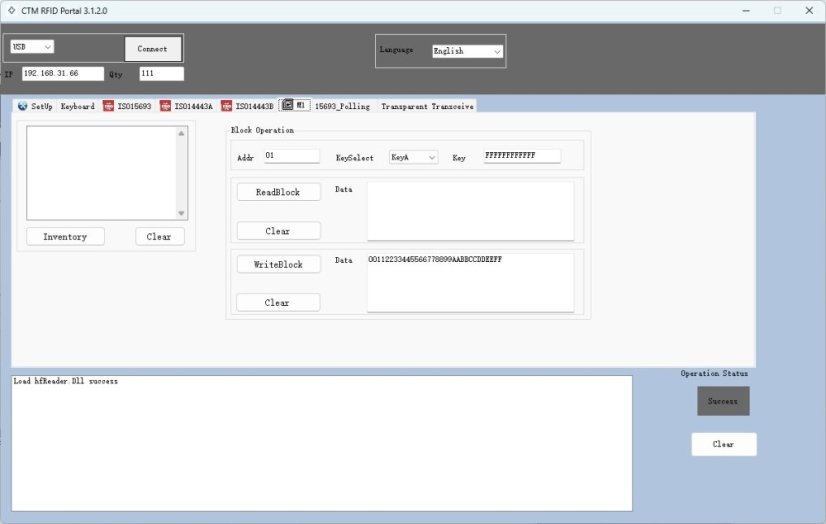

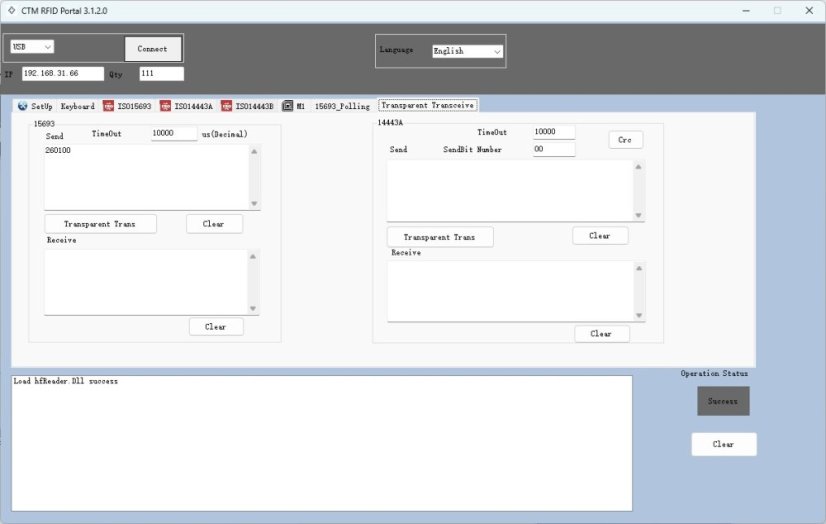

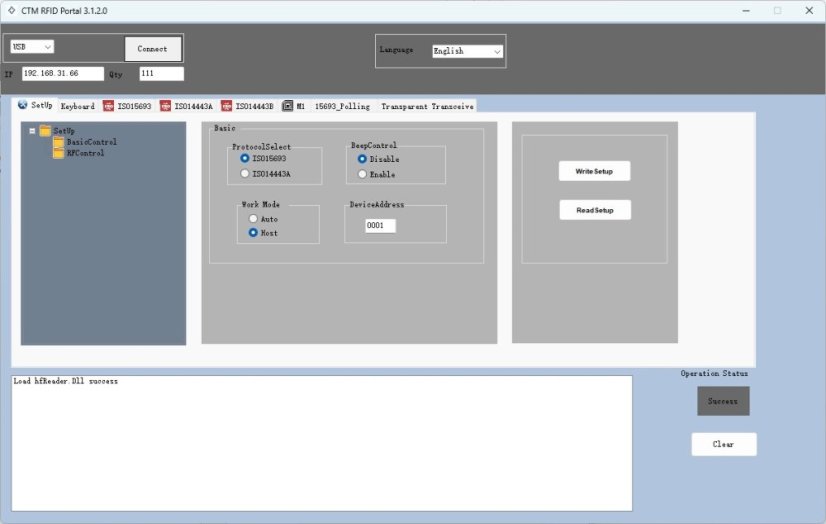

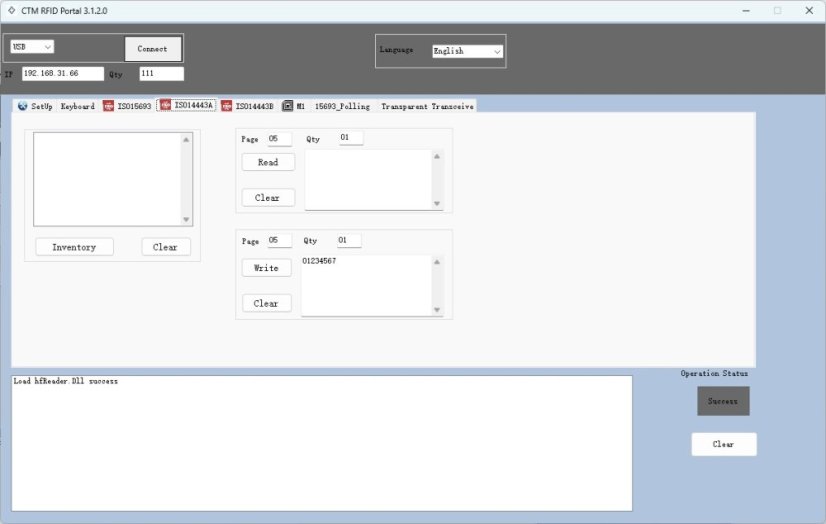

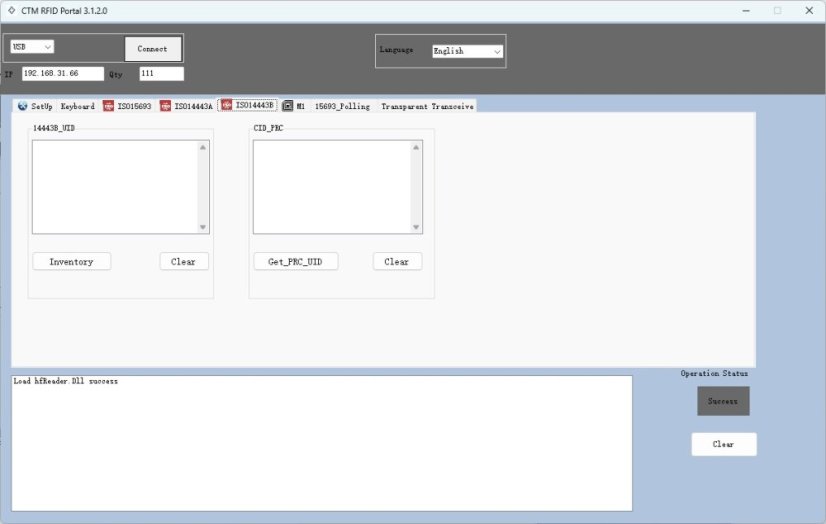

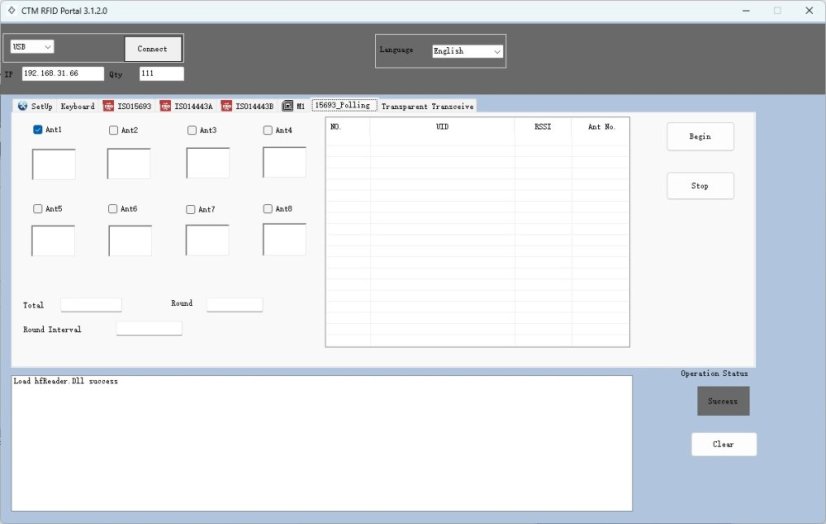

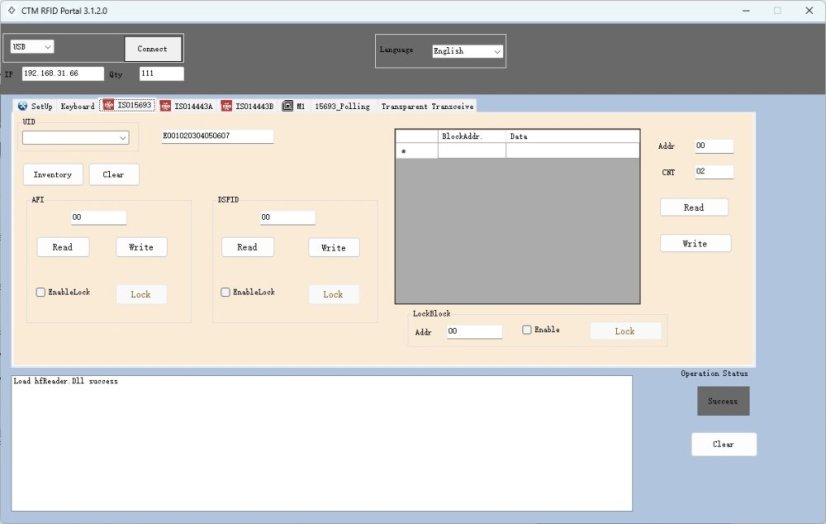

The output format is configurable according to user needs, see screenshots in the gallery.

Drivers are not required.

Specifications:

• Model: UP103KB-USB
• Supported formats: Mifare one s50/S70; Ultralight; Ultralight-C; Ntag203, 213, 216, etc.
• Frequency: 13.56MHz
• Protocol: ISO 14443A/B, ISO 15693
• Function: reader only
• Interface: USB
• Virtual keyboard HID: Yes, configurable via software
• Power supply: 5V, <30mA
• Range: 2-8cm ISO 14443A / 15-20cm ISO 15693
• Reading time: <0.2s
• Power and reading LED indicator
• CE compliance: yes
• Operating temperature: -25 to 65 degrees Celsius
• Dimensions: 119x77x25mm, 2m cable

Software: http://rgb.vision/download/CTMReader_V3.1.2.zip
