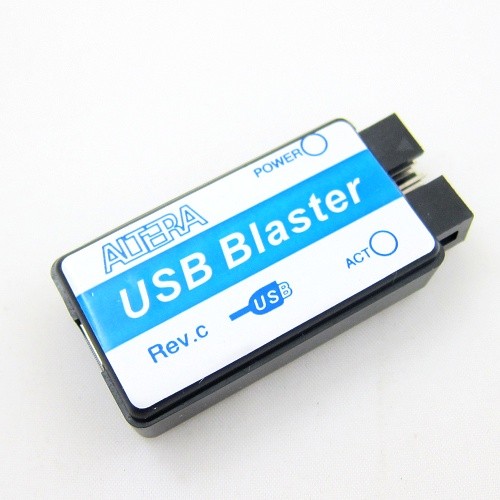

USB Blaster - Programming Cable for Altera CPLD/FPGA/JTAG

USB Blaster - Programming Cable for Altera CPLD/FPGA/JTAG

The USB Blaster Programming Cable is a high-quality device compatible with a range of Altera programmable logic integrated circuits with ISP (In-System Programming) capability.

Features:

• Voltage support: 1.5V, 1.8V, 2.5V, 3.5V, and 5.0V.
• Compatibility with Altera products: CPLD (MAX3000, MAX7000, MAX9000, MAX II), FPGA (Stratix, Stratix II, Cyclone, Cyclone II, ACEX 1K, APEX20K, FLEX 10K), Active Serial Configuration Devices (EPCS1, EPCS4, EPCS16).
• Tested chips: Cyclone (EP1C3, EP1C6, EP1C12, EP1C20); Cyclone II (EP2C5, EP2C8, EP2C35); Stratix (EP1S10, EP1S20, EP1S25); Stratix II (EP2S60); FLEX10K (EPF10K10, EPF0K30); ACEX1K (EP1K30); MAX7000 (MAX7128SLC84, MAX7128); AETC100 (MAX3000, MAX3128); MAXII (MAXII240, MAXII570, MAXII1270); EPCS (EPCS1, EPCS4, EPCS16); EPC (EPC1, EPC4).

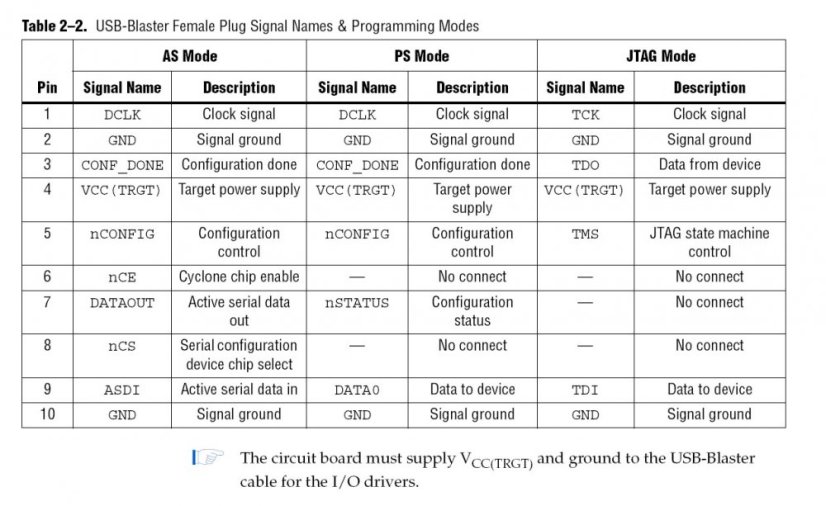

• Programming support: AS, PS, and JTAG programming (with Verify and BankCheck features).
• Built-in Logic Analyzer function: SignalTapII.
• FPGA support: Cyclone 10 LP 10CL025 (EPCQ16A).
• NIOS II communication and debugging support.
• 100% compatible with the original ALTERA USB Blaster.

Specifications:

• Model: USB Blaster Rev. C (with CH552 chip)
• Electronic components on PCB: PIC 18F14K50 + 74H244 buffer.
• USB 2.0.
• Manufacturer: OEM.
• Version: rev. C - 13.12.22.
• Dimensions: 5.5 x 2.7 x 1.8 cm (2.17 x 1.06 x 0.71 inches).

Drivers here: https://www.terasic.com.tw/wiki/File:Usb_blaster_q16.1.zip

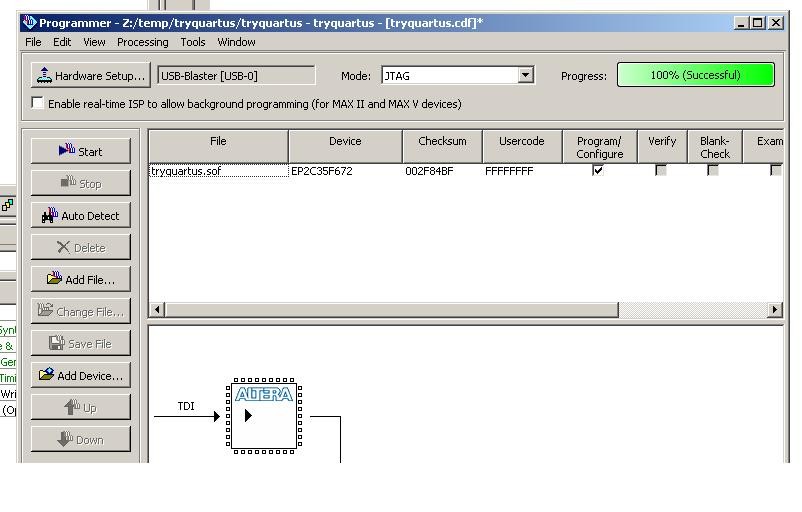

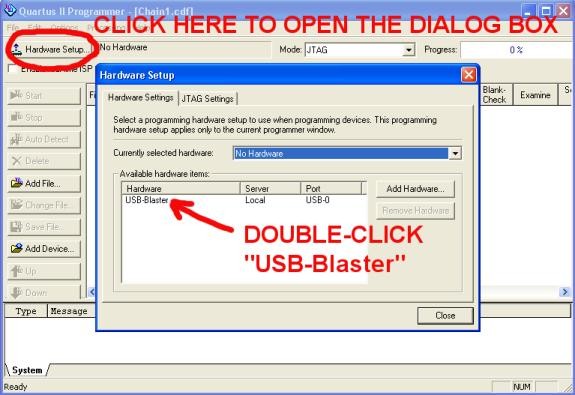

Software: https://www.altera.com/support/support-resources/support-centers/devices/programming-tools/tls-altera-software.html

WARNING: This is a DIY programmer intended for advanced users who know how to use it. It is supplied without programming software. It is the user's responsibility to locate, install, and configure the programming software. There are several free programming applications compatible with this programmer. Links are provided in good faith, without warranty and support.

Package includes:

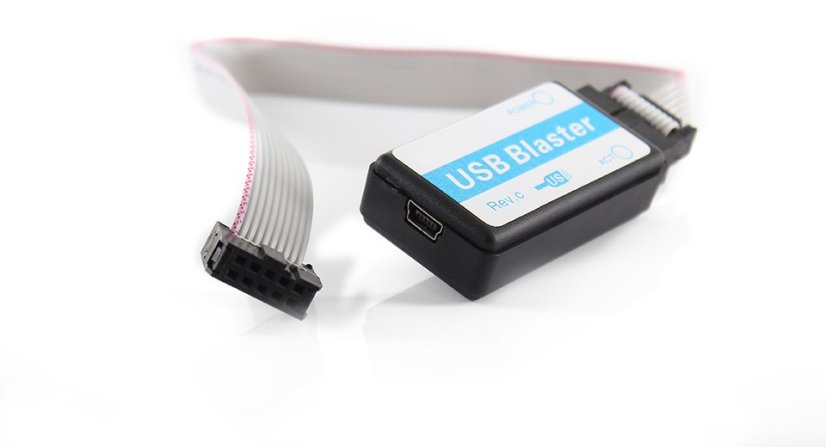

1 x USB Blaster programmer
1 x USB cable (130 cm / 51.18 inches)

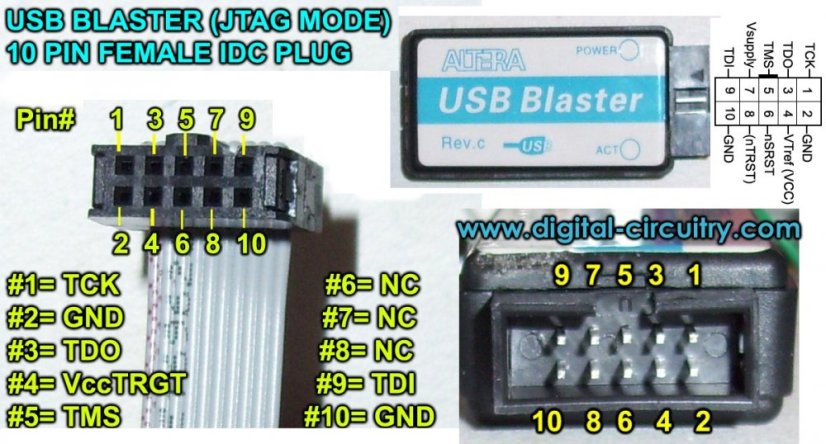

1 x 10-pin JTAG data cable (13 cm / 5.12 inches)
