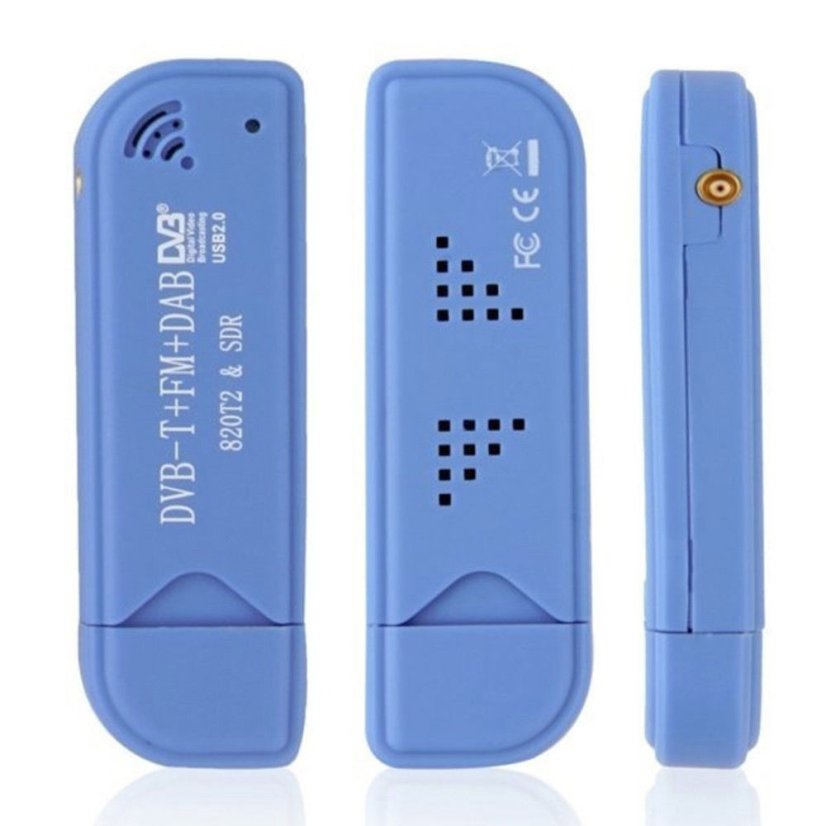

USB DVB-T FM SDR RTL2832U + R820T2

RTL2832U+R828D USB DVB-T FM SDRHelloCQ

The perfect device for software-defined radio applications, including amateur radio, ADS-B, police and fire scanning, cable channels, satellite imagery, and more. Whatever it is, this little gadget is likely to handle it. It outperforms most older models at a fraction of the price!

This SDR is a modified version of a DVB-T USB hardware stick optimized for SDR use, featuring improved crystal capacitors and inductors compared to common devices. The result is lower noise, higher stability, and enhanced durability.

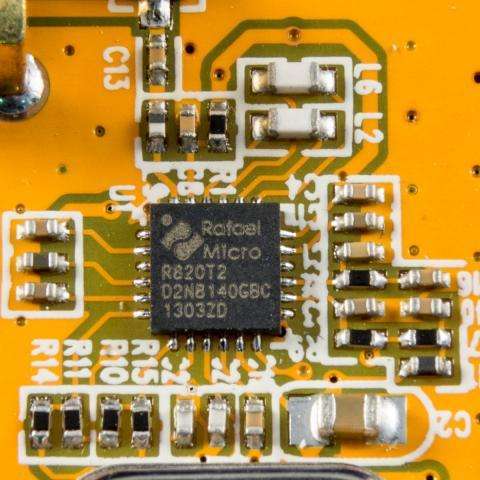

It is based on the R828D tuner IC manufactured by Rafael Micro. It has a frequency range of approximately 25MHz-1750MHz, which may slightly vary from unit to unit. It also includes the built-in RTL2832U IC, which acts as a demodulator and USB interface.

The antenna connector type and the USB board is MCX - male MCX for the antenna, female MCX for the SDR. We offer plenty of adapters and adapter cables in our store to connect your favorite antenna!

Specifications:

• Model: SDRHelloCQ

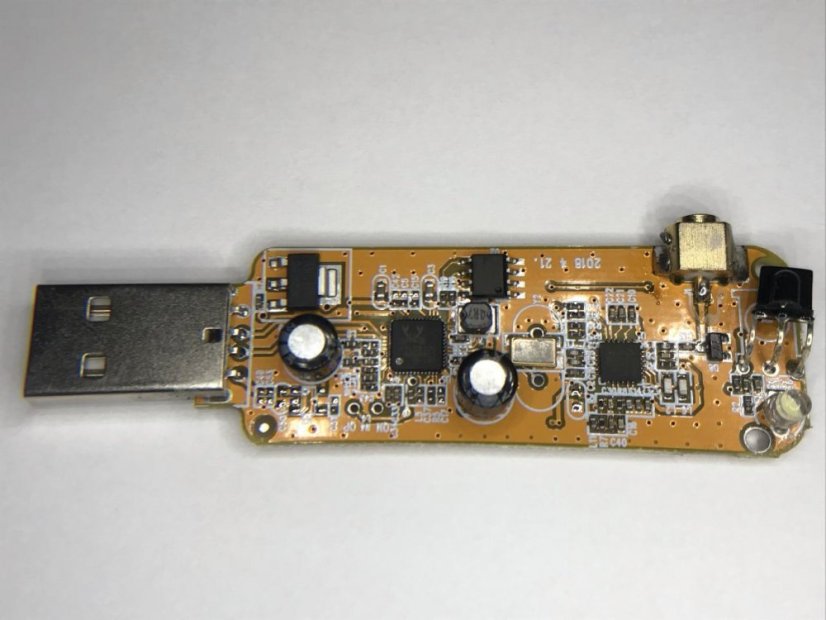

• IC Interface: RTL2832U (orange PCB)
• Tuner IC: Rafael Micro R828D (24 - 1766 MHz)
• Interface: USB A 2.0 Standard
• Input: 75-ohm IEC connector (Din)
• Receiving Frequency:
• FM radio: 87.5 ~ 108 MHZ
• DAB radio: L-Band - 1452960 ~ 1490624 KHZ
• VHF - 174928 ~ 239200 KHZ
• TV Standard: Fully compatible with DVB-T and DAB
• Bandwidth: 6/7/8 MHZ auto select for DVB-T
• Power Supply: USB
• Consumption: ≤ 1.5 W
• Antenna Input: female SMA

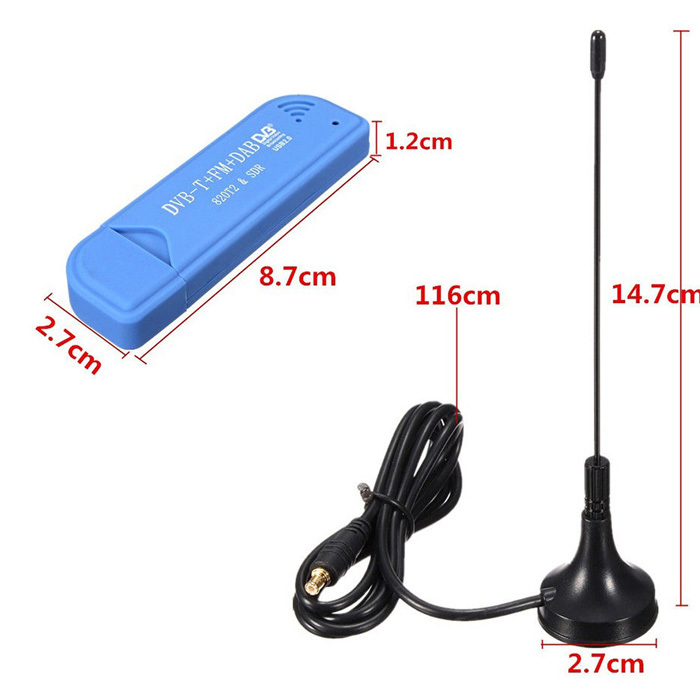

• Dimensions (SDR only): 8.7cm x 2.5cm x 0.9cm

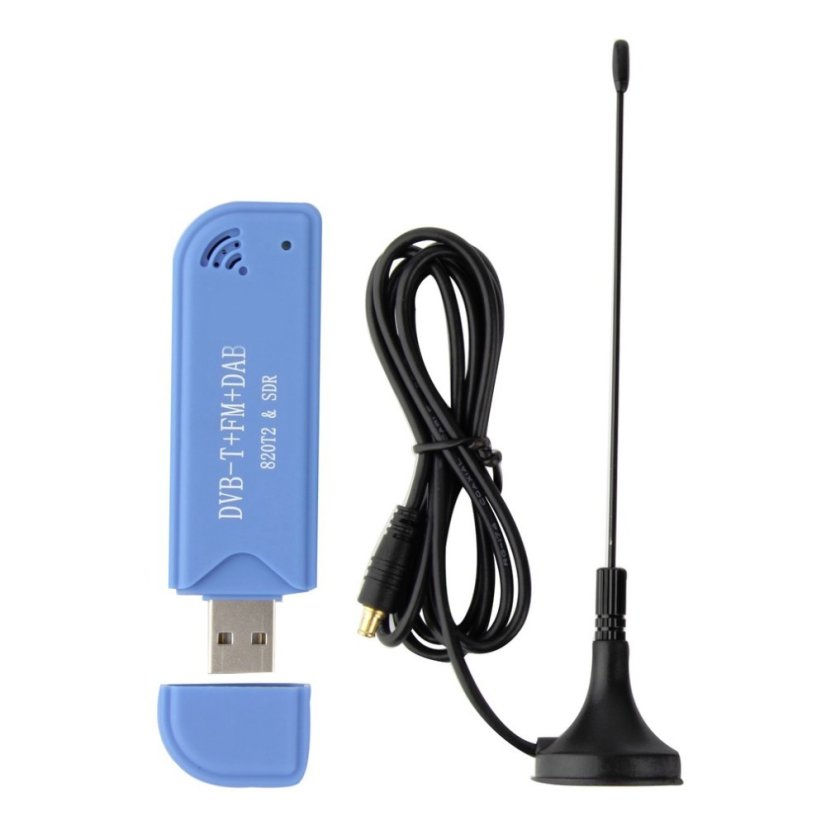

Package Contents:

• SDR receiver
• Antenna

Installation:

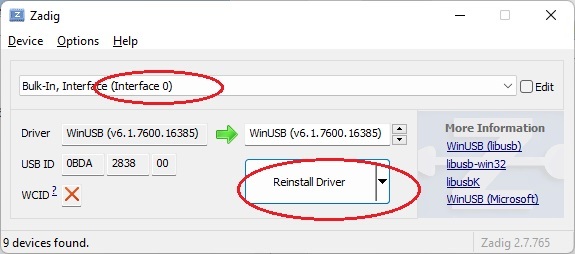

1. Download and run Zadig: https://zadig.akeo.ie/

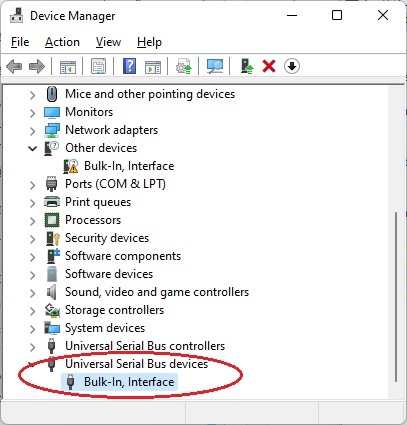

2. Install drivers for Interface 0
3.

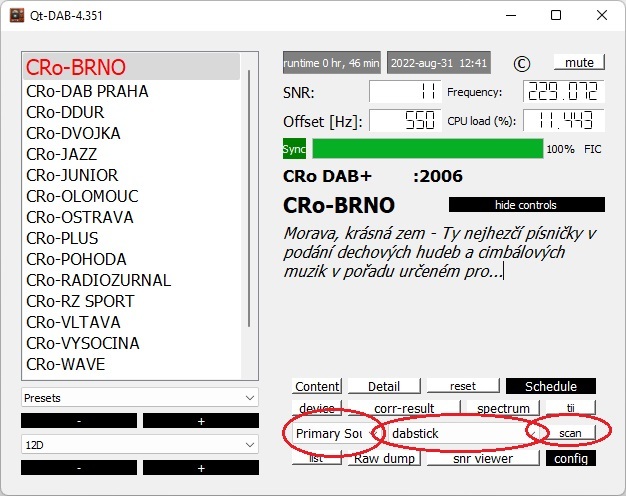

4. Tested and functional version of QT-DAB is 4.351 https://github.com/JvanKatwijk/qt-dab/releases
