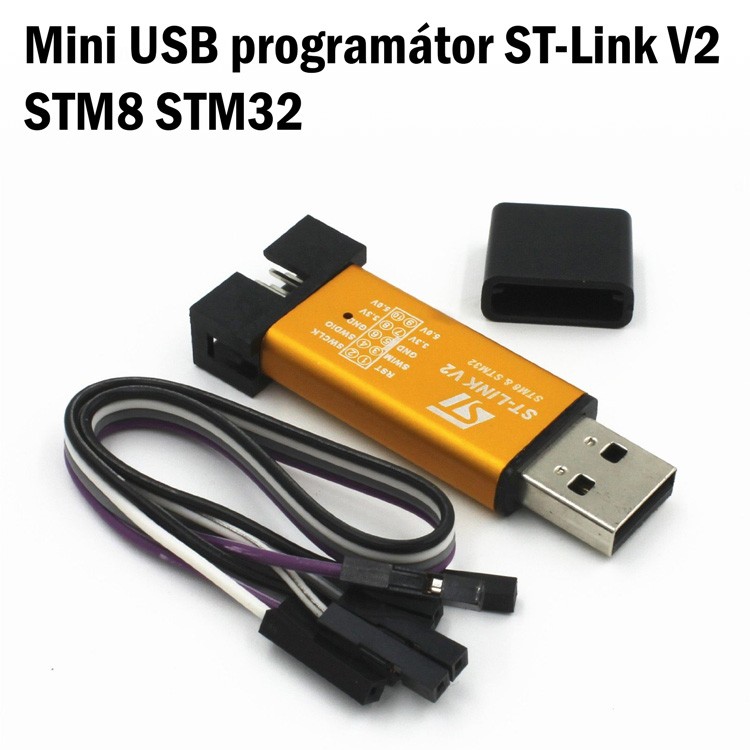

USB Programmer ST-Link V2 for STM8 and STM32

Description:

• STM32 32-bit ARM Cortex MCUs
• Power and communication via USB cable.
• Reading, writing, and verification
• After selecting the chip, it shows how to place it in the socket
• ICSP output on the cable
• Supports Windows 98, 2000, XP, Vista, 7 (32 and 64 bit)...
• Simple management software
• 2x LEDs, indicating power and communication

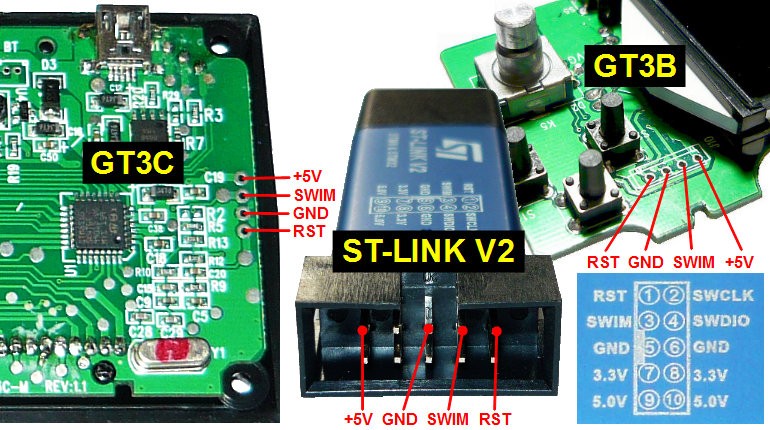

The Mini ST-LINK V2 is fully compatible with the official version, supports automatic updates, fully supports STM32 SWD (only 4 pins including SWCLK, SWDIO, and power), and complete range of STM8 SWIM (only 4 pins including SWIM, Reset, and power) for downloading and debugging.

• PCB installed inside aluminum alloy USB case, portable, safe, and reliable!
• Interface definitions directly marked on the case, clear, convenient, and practical!
• Offers 5V and 3.3V simultaneously, allowing programming of the target board at both 5V and 3.3V
• Characters on the case use laser engraving, never fade! Permanent clarity!
• 500MA internal resettable fuse, complete protection for your expensive computer motherboard!
• Red and blue LED indicators, allowing you to always monitor the operational status of the ST-LINK V2!
• With 4 DuPont wires, making it easy to connect to various target board configurations!
• Packaged in an antistatic bag.

• ST-LINK Utility 2.0 and above
• STVD 4.2.1 and above
• STVP 3.2.3 and above
• IAR EWARM V6.20 and above
• IAR EWSTM8 V1.30 and above
• KEIL RVMDK V4.21 and above

Package includes:

• 1x Programmer
• 1x DuPont cable

Product reviews:

http://rc.305.cz/view.php?cisloclanku=2014030001

WARNING: This is a DIY programmer for advanced users who know how to use it. It requires only ST-link V2 USB drivers to operate. It comes WITHOUT programming software. It is the user's responsibility to seek out, install, and set up the programming software. There are several free programming applications that are compatible with this programmer. Below are links to some of them. We provide links as a courtesy, WITHOUT warranty or support.

ST-link V2 USB Drivers

http://uloz.to/xPv9TVi7/st-link-v2-usbdriver-zip

Software: ST Visual Programmer (STVP)
