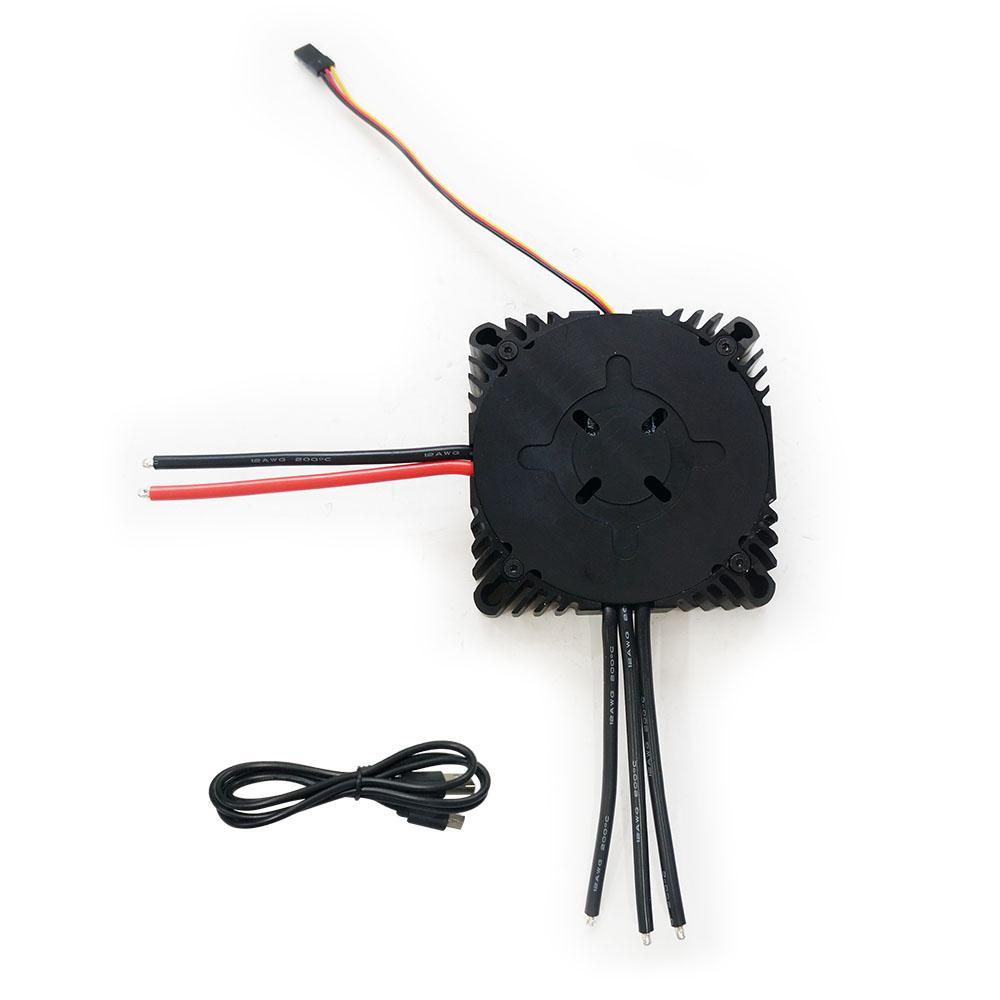

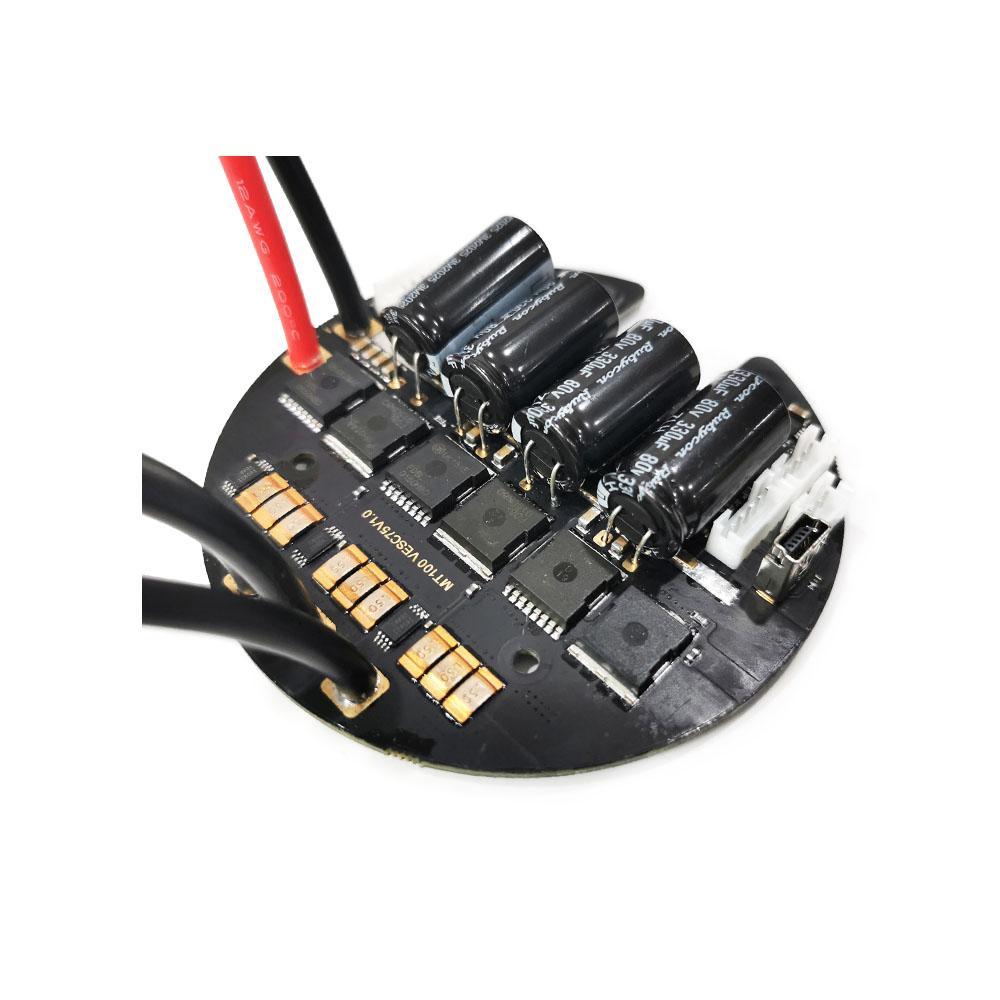

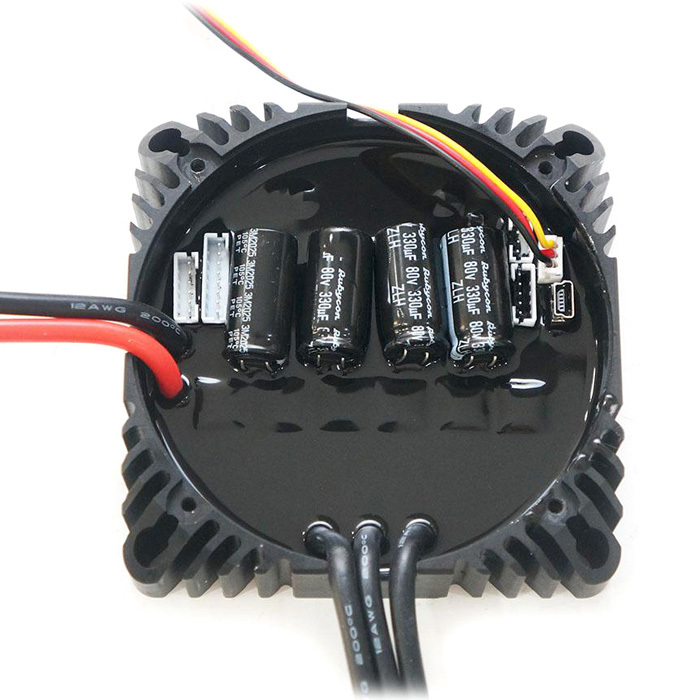

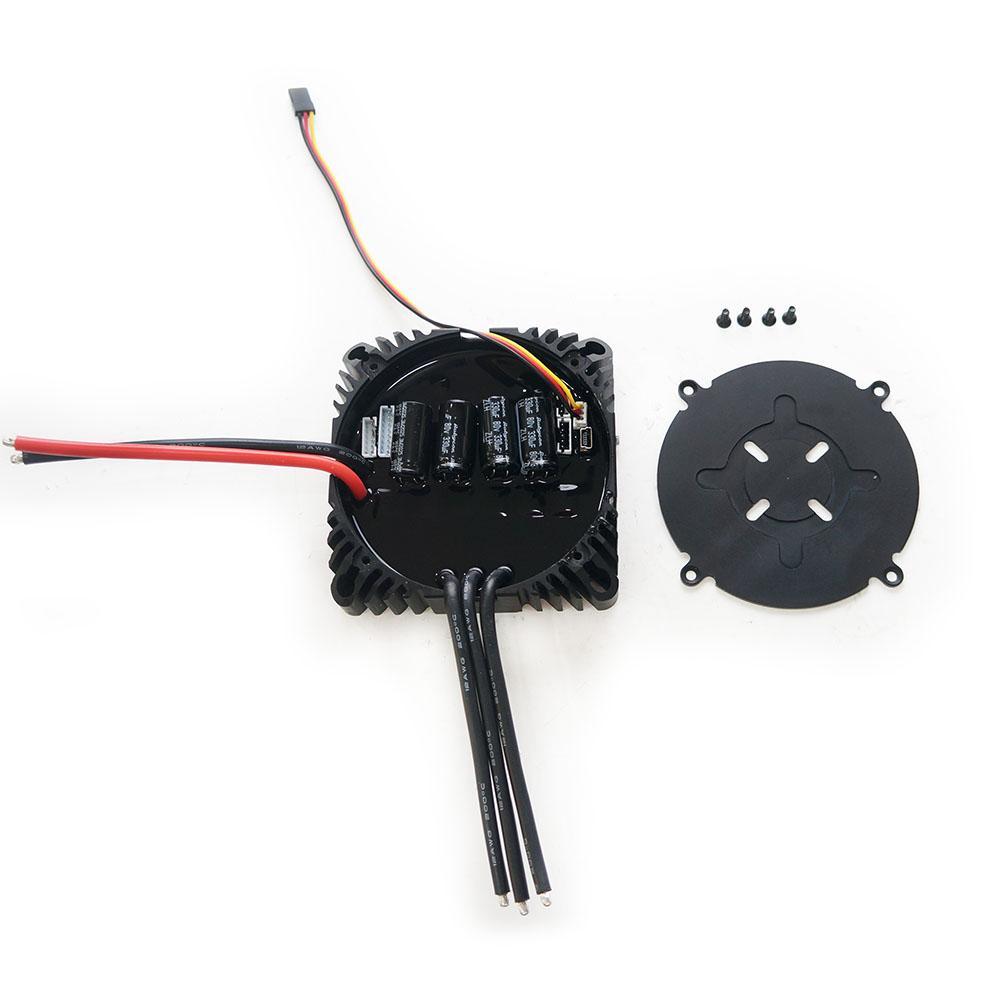

VESC BLDC MTSPF7.5R 50A ESC in Alu Box

VESC BLDC MTSPF7.5R 50A ESC

The VESC BLDC controllers represent the latest generation of ESCs with an open-source code, ideal for controlling motors of electric skateboards. These controllers are manufactured with a range of customizable settings that traditional ESCs do not offer.

VESC is a highly customizable electronic speed controller (ESC) designed by Benjamin Vedder. It is especially suitable for DIY electric skateboard setups. With VESC controllers, it is possible to effectively use sensorless motors for smooth starts, while traditional RC controllers often face issues with this process. The VESC controller can be connected to a computer via mini USB, allowing you to customize its settings according to your needs.

The VESC Tool is only compatible with Windows and Linux systems; MacOS support is not available. During the production cycle, we test our VESC controllers several times.

If your VESC controller is directly set to the specific voltage of the motor and battery, its performance will be further enhanced. Check out our videos for more information on programming the VESC controller. For proper operation of the VESC controller, you will also need additional components listed below.

ADVANTAGES OF ELECTRIC SKATEBOARDS WITH VESC BLDC CONTROLLERS

• Powerful, reliable, and responsive electronic brakes.
• Smooth starts with sensorless motors can match the startup with sensor motors.
• Numerous safety features, including current and temperature control.
• Vector control (FOC) offers more efficient operation of the electric skateboard with minimal motor noise.

Specifications:

• Model: MTSPF7.5R
• Hardware Version: v5.1 based on VESC7.5 High Voltage
• Firmware: Upgradable with the official VESC_TOOL
• Built-in 5V/1.5A BEC circuit (used to power the receiver)
• Voltage: 15V-75V; LiPo 4-18S
• Operating Current: 100A@15-50V; 50A@51-75V
• Maximum Current: 200A@15-50V; 100A@51-75V
• Capacitors: 4pcs 330uf 80V

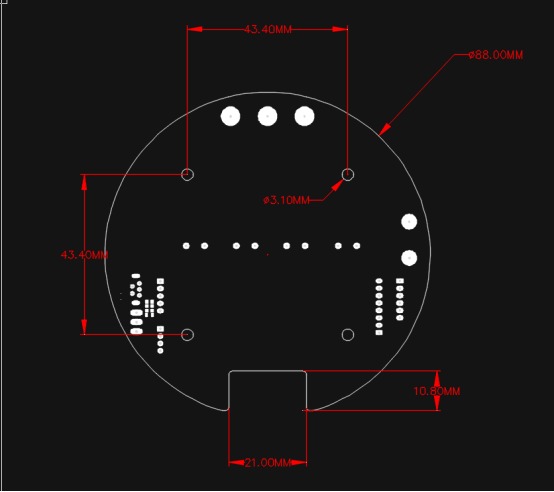

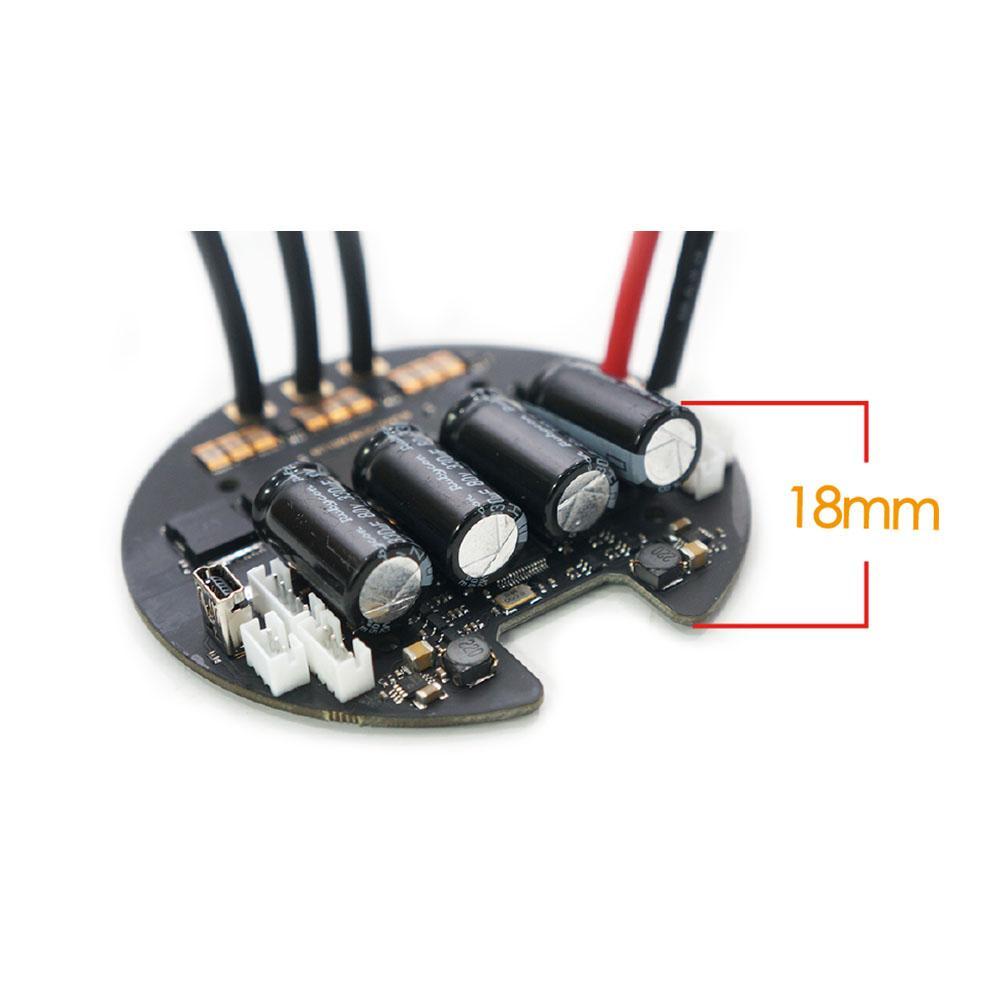

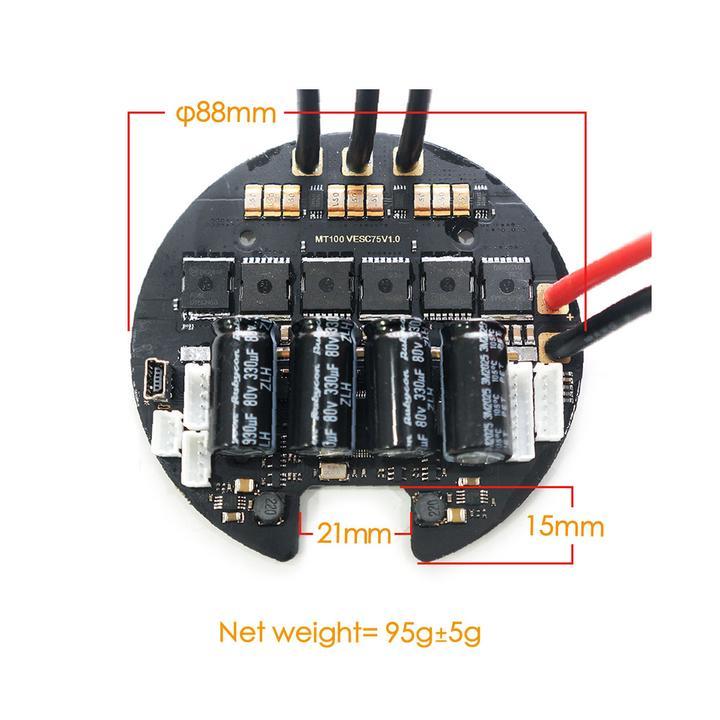

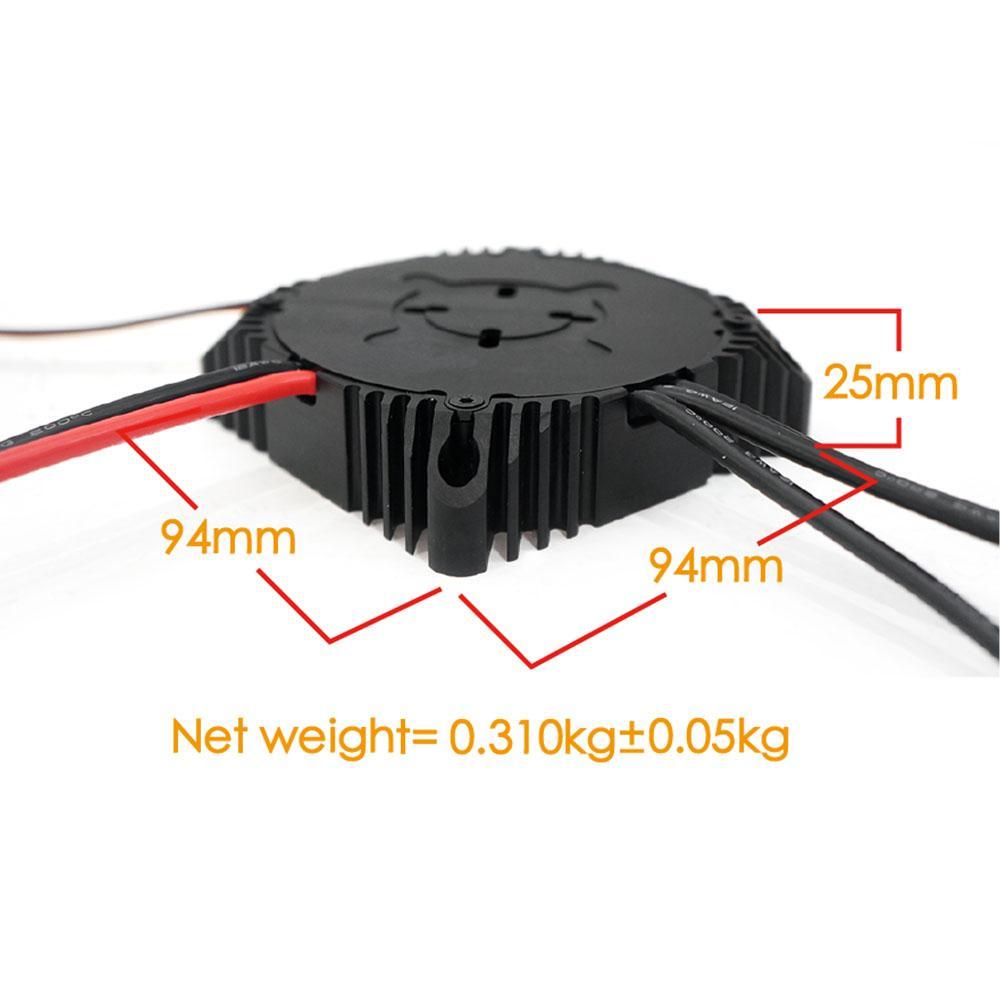

• Overall size of the VESC controller: 88 mm (diameter), 18 mm (height)

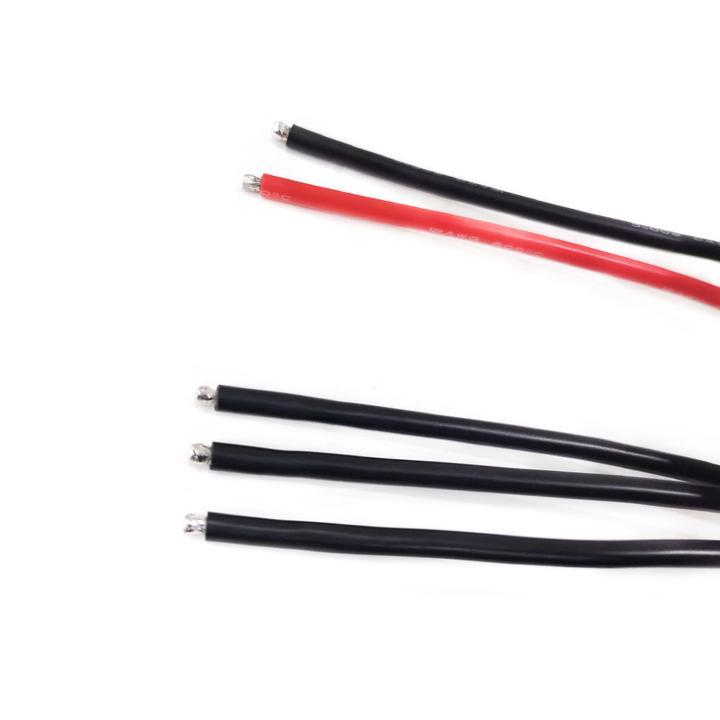

• Battery Wires: XT90 female with 5mm male bullet connectors, 10awg silicone wire
• Motor Wires: 5.5mm bullet connectors, 10awg silicone wire

The user can choose from various operating modes:

• 1. Duty Cycle: Forward and backward riding with braking
• 2. Duty Cycle without backward riding: Forward riding with braking
• 3. Current: Forward and backward riding without braking
• 4. Current without backward riding: Forward riding without braking
• 5. Current without backward riding with braking: Forward with braking
• 6. PID Speed Control
• 7. PID Speed Control – without backward riding

Software: download.maytech.cn/vesc_tool_0.95.exe
