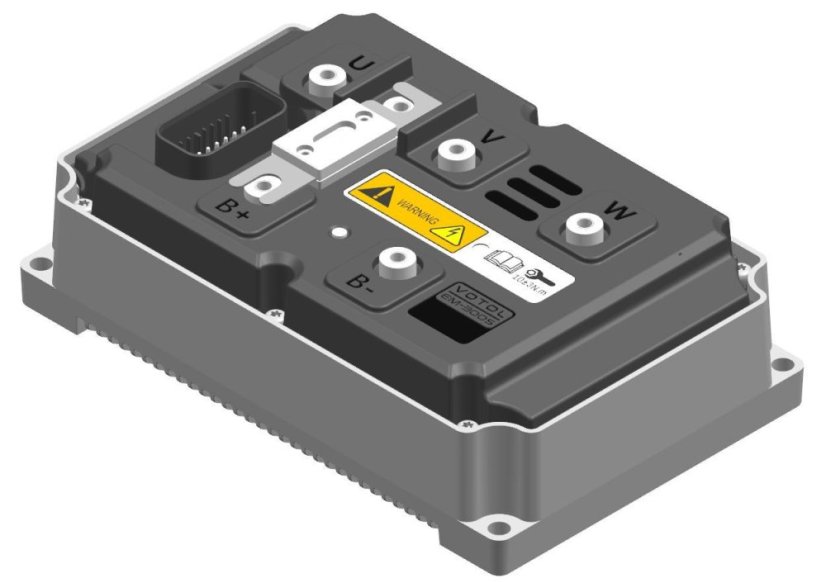

VTOL VCU Control Unit ECU-EM300S

The Vehicle Control Unit (VCU) is an electronic control unit for electric vehicles, similar to the Engine Control Unit (ECU) used in traditional internal combustion engine vehicles.

The VB VCU is a crucial electronic control unit that ensures decision-making for vehicle control. It is generally used only by new energy vehicles, while traditional internal combustion engine vehicles do not require this device. The VCU assesses the driver's intent to drive by collecting signals such as accelerator pedal position, gear shifter, brake pedal, etc., and monitors the vehicle's status information (speed, temperature, etc.). The VCU processes this information and sends operational instructions to the power system and battery system.

• Functional Protection: Overvoltage and Undervoltage Protection, Over Temperature Protection, Short Circuit Protection, Missing Protection, Lock Protection
• Support for Communication Protocols: Basic CAN (UART, LIN, HALL on request)
• Motor Sensor: Hall, SPI, Differential, A/D
• Adjustable Software Interface: Supports Computer and APP
• Motor Controller with Thermal Protection
• Half Hill Climbing Assistant: Anti-Slip
• IP67 Protection Degree

Specifications:

• Model: ECU-EM300S
• Brand: VTOL/VARCHEA
• Input Voltage: 48~60V/72V
• Rated Current: 230A
• BOOST Current: 550A
• Peak Current: 650A
• Rated Power: 13800W/16560W
• Maximum Power: 33000W/39600W
• Speed Range: 140 km/h
• Flow Attenuation Ratio: 200%
• IP Rating: IP67
• Communication Mode: CAN/LIN
• Interface Type: VOTOL

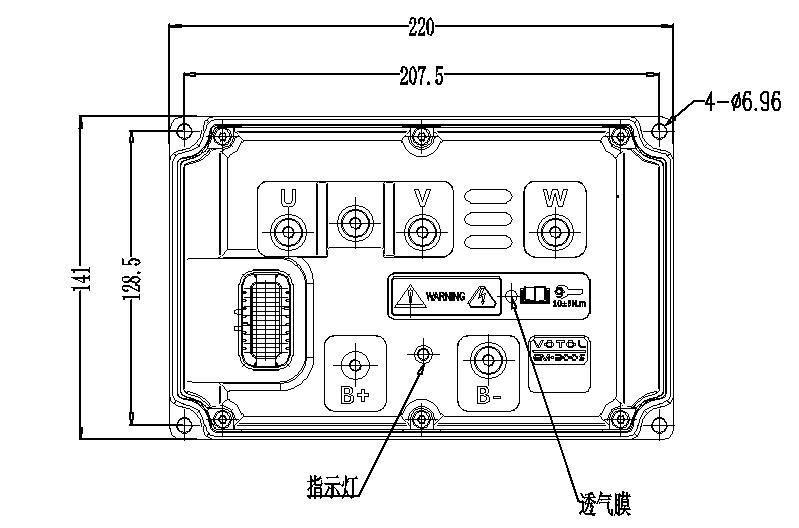

• Dimensions: 220*141*68 (mm)
• Weight: 2180 g
