W25Q Compatible Serial NOR Flash
W25Q Compatible Serial NOR Flash
- Model: W25Q series compatible
- W25Q128JVSQ compatible with W25Q128JVSIQ

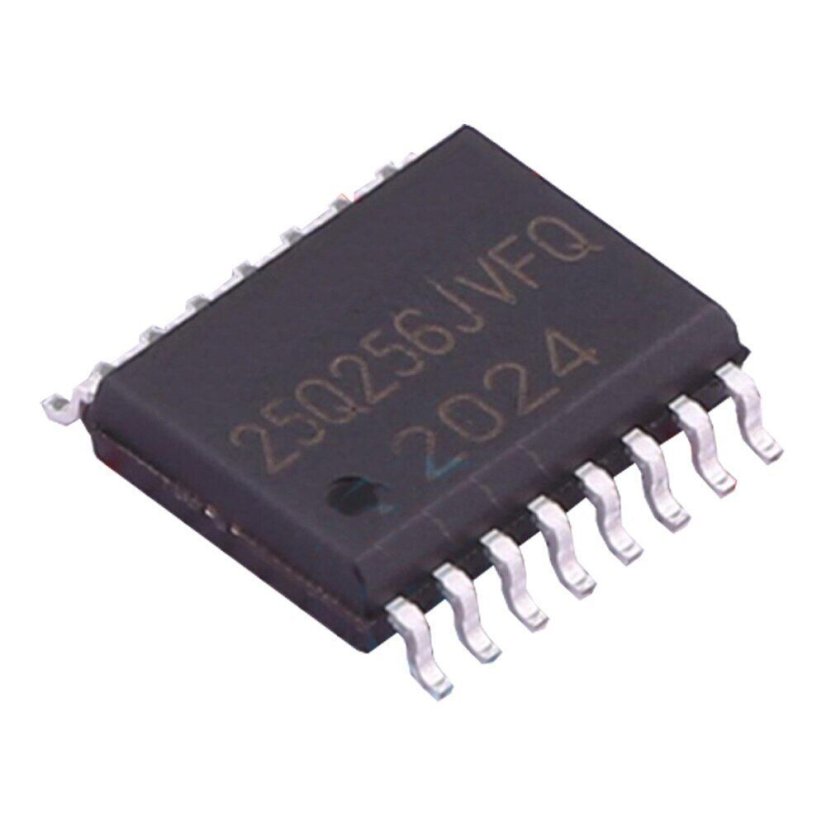

- W25Q256JVFQ compatible with W25Q256JVFIQ

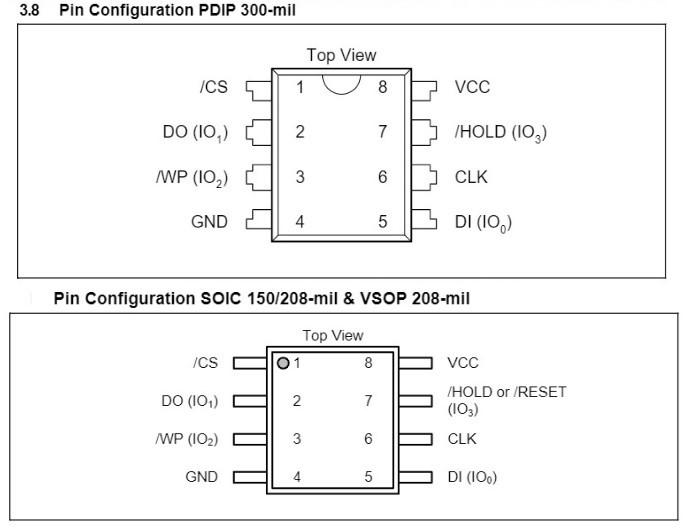

- Package:
- SOIC-8 208-mil
- SOIC-16 300mil
- Functions: Single/Dual/Quad SPI and QPI operations
- Uniform 4KB erasable sectors & 32KB/64KB erasable blocks
- 65,536 pages (256 bytes), page programming in 0.7mS (typical)
- Continuous reading with 8/16/32/64 Byte Wrap
- Quad Peripheral Interface (QPI) reduces instruction operation load
- Clock operation up to 104MHz (208/416MHz equivalent with Dual/Quad I/O Read)
- Power supply 2.7 to 3.6V
- 4mA active read current, 1µA standby current
- -40° to +85°C operating range
- Program/Erase Suspend/Resume, Suspend Status Bit
- Factory programmed unique ID
- Electronic ID with Dual/Quad I/O, hardware and software write protection for upper/lower blocks
- Volatile and non-volatile status register bits
- Lock-Down and OTP protection
- Serial Flash Discoverable Parameters (SFDP)
- 3x256byte security registers with OTP locks
- Complement Array Protection Bit
- Individual block/section write protection
- Software reset & configurable hardware/reset pin
- Programmable output driver strength
