Waterproof Wall-mounted RFID Reader KA107 - IP68

Waterproof Wall-mounted RFID Reader KA107 - RS232, RS485, or TTL, IP68

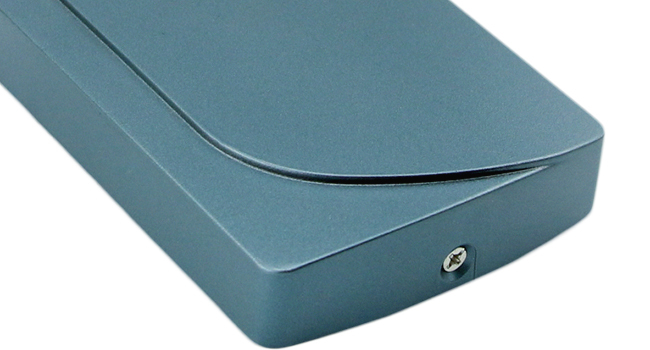

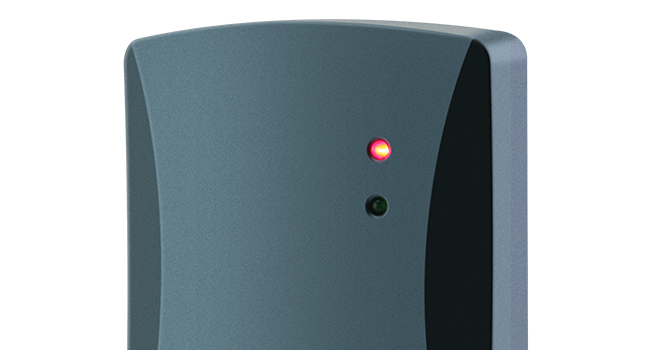

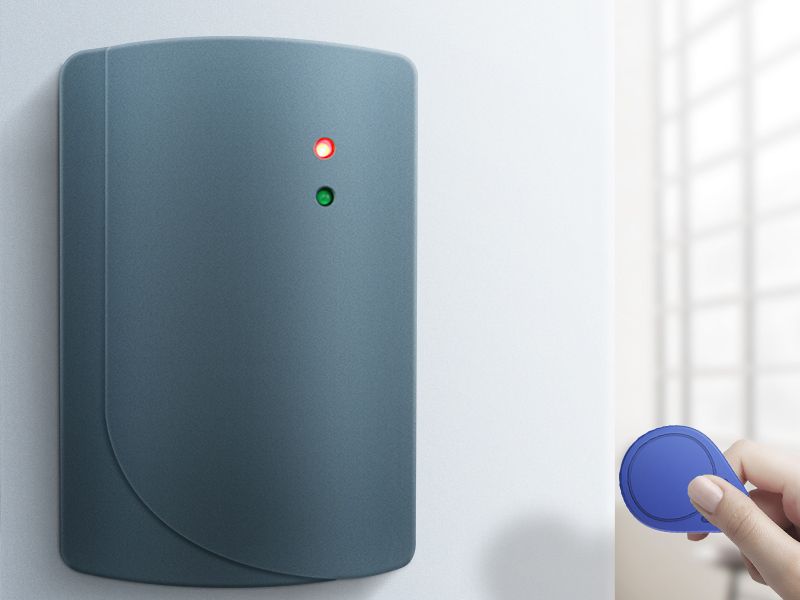

The KA107 reader is intended for reading RFID chips at frequencies of 125kHz or 13.56MHz. It is housed in a plastic enclosure, and the PCB is protected with epoxy resin. The device features an indication LED and a buzzer.

Access Card Verification Verification using 125 kHz ID or 13.56 MHz IC cards; suitable for a variety of applications.

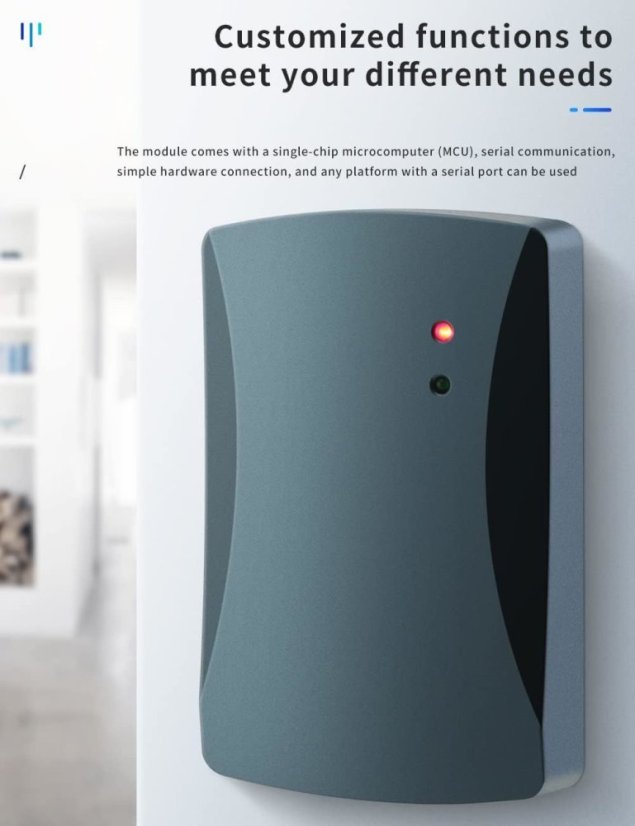

	Various Communication Protocols The module is equipped with a microcontroller (MCU) and allows serial communication, facilitating connection to various platforms.

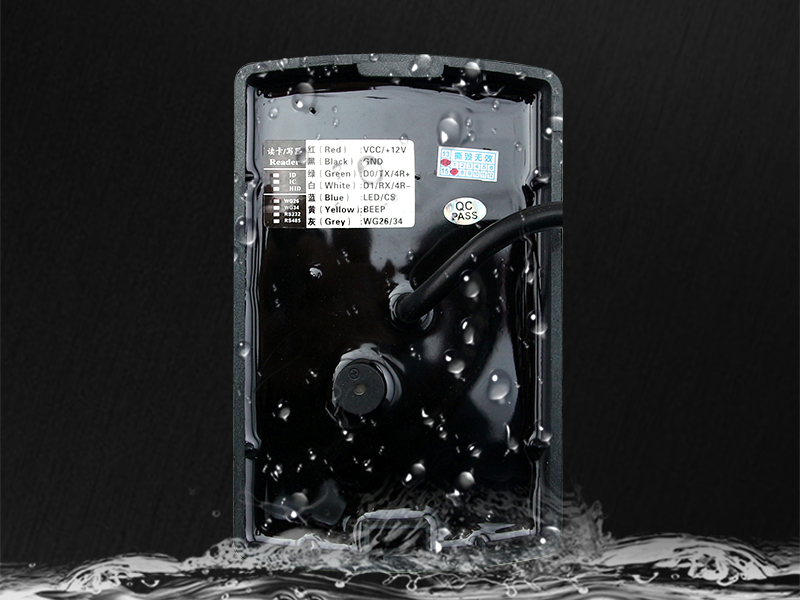

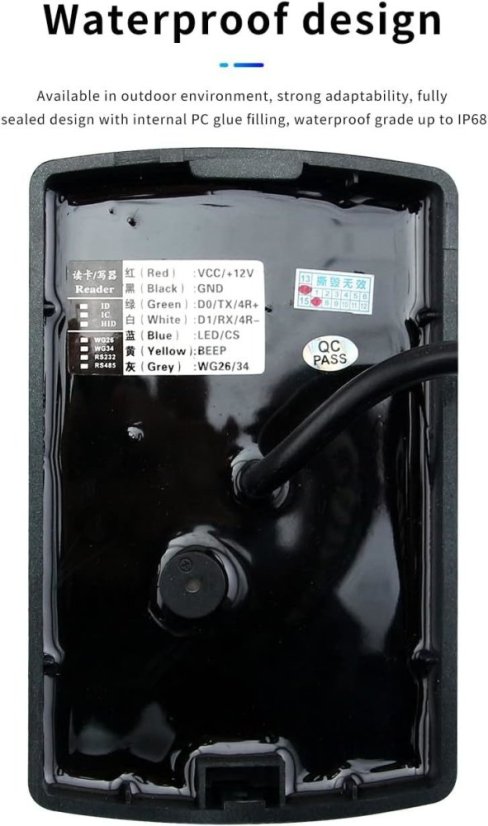

Waterproof Design Suitable for outdoor use, fully sealed with internal filling using PC adhesive, waterproof rating up to IP68.

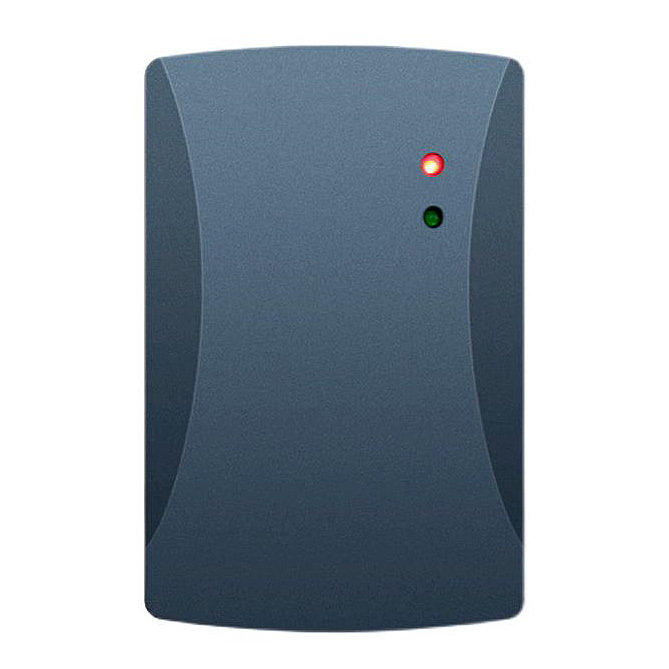

LED Indicators Dual-color indicator LED, red light for standby, green light for successful card reading.	ABS Material The housing is made from flame-retardant ABS material, featuring a mounting point on the bottom.

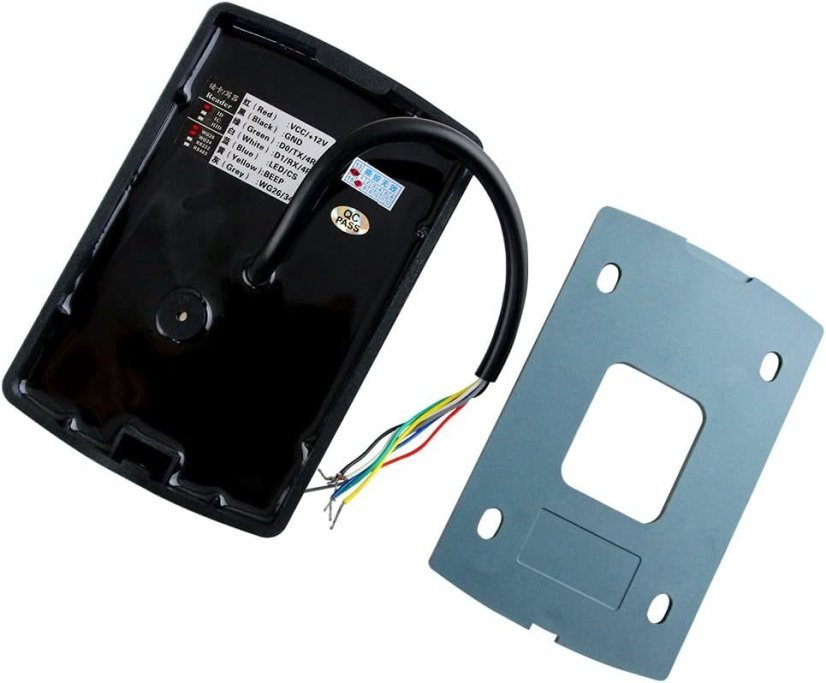

Wiring Instructions
The reader connects to devices with RS232 interfaces or to a computer.

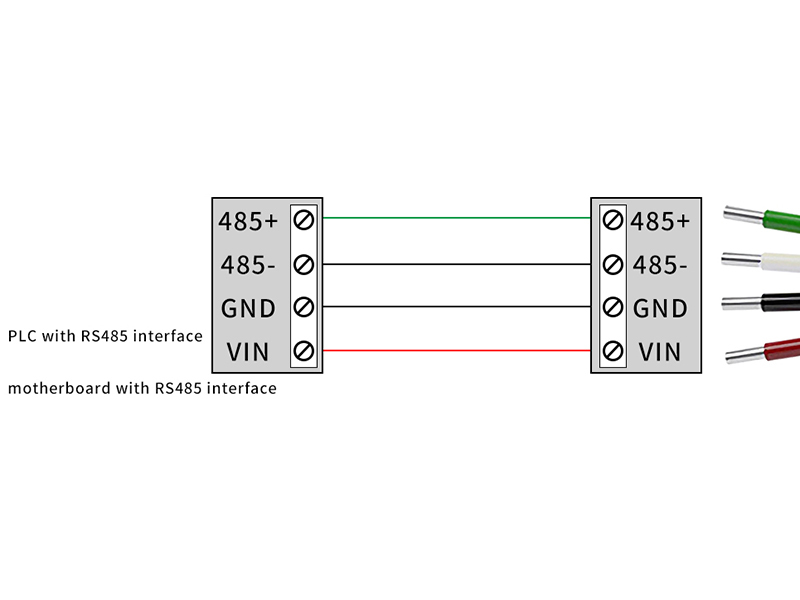

The card reader is connected to a device with an RS485 interface

Specifications:

• Model: KA107
• Communication Module Type: RFID/NFC reader
• Interface:
• RS485 (Modbus RTU)
• RS232
• TTL
• Chip Frequencies:
• 125kHz
• 13.56MHz
• Operating Voltage:
• 5V
• 9~16V
• 24V
• Standard: EM-ID, ISO14443A, ISO14443B, 15693
• Chip Types:
• ID EM4100, TK4100 (HID cards are not supported)
• IC Mifare Classic M1, Mifare Ultralight, and NFC NTAG*
• Current Consumption: 80 mA
• Reading Distance: EM ~6cm, Mifare ~4cm
• Red and green LEDs for indication
• Body Color: Black

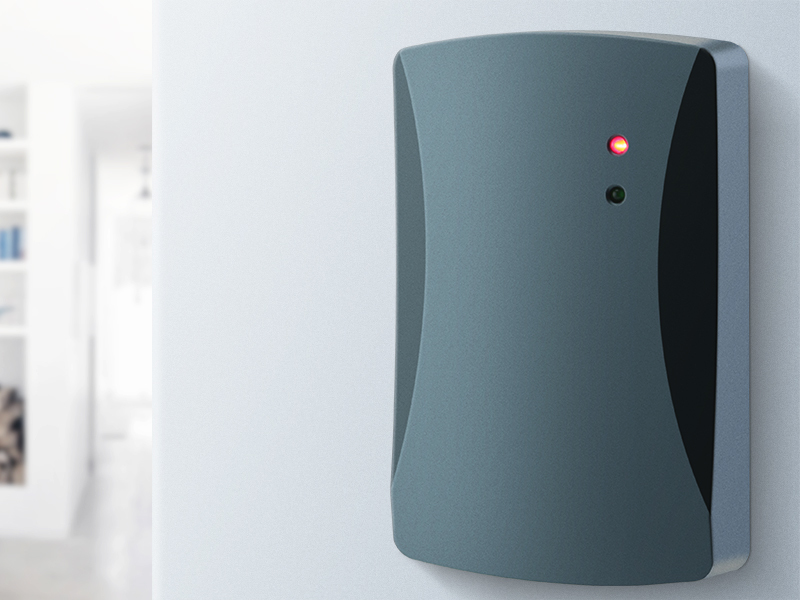

• Mounting: Wall-mounted
• Ingress Protection Rating: IP68
• Color: Black
• Operating Temperature: -20 °C to +70 °C

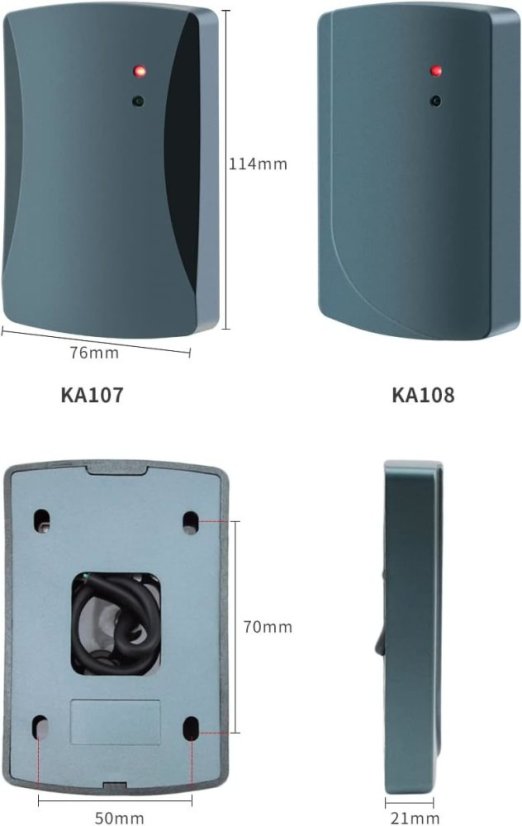

• Dimensions: 83x44x14mm

The package includes one waterproof RFID access panel.

This reader can be ordered with the following interfaces and voltages:

125kHz (ID)
13.56MHz (IC)
